Three white 120mm case fans with DRGB lighting, 25mm thick, PWM connectors

Phanteks

Phanteks PH-F120M25_DRGB_PWM_WT01_3P 120mm case fan 3-pack

SKU CH-JX6F-MT932 MPN PH-F120M25_DRGB_PWM_WT01_3P

Three white 120 mm fans with hydraulic bearings, PWM control from 500 to 2000 RPM, 84.26 CFM airflow at 35.7 dB(A) and addressable DRGB lighting

  • Fan Counts3 Fans
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic
  • RPM500-2000±10% RPM

Fan Size 120mm

Style Regular

Model M25

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

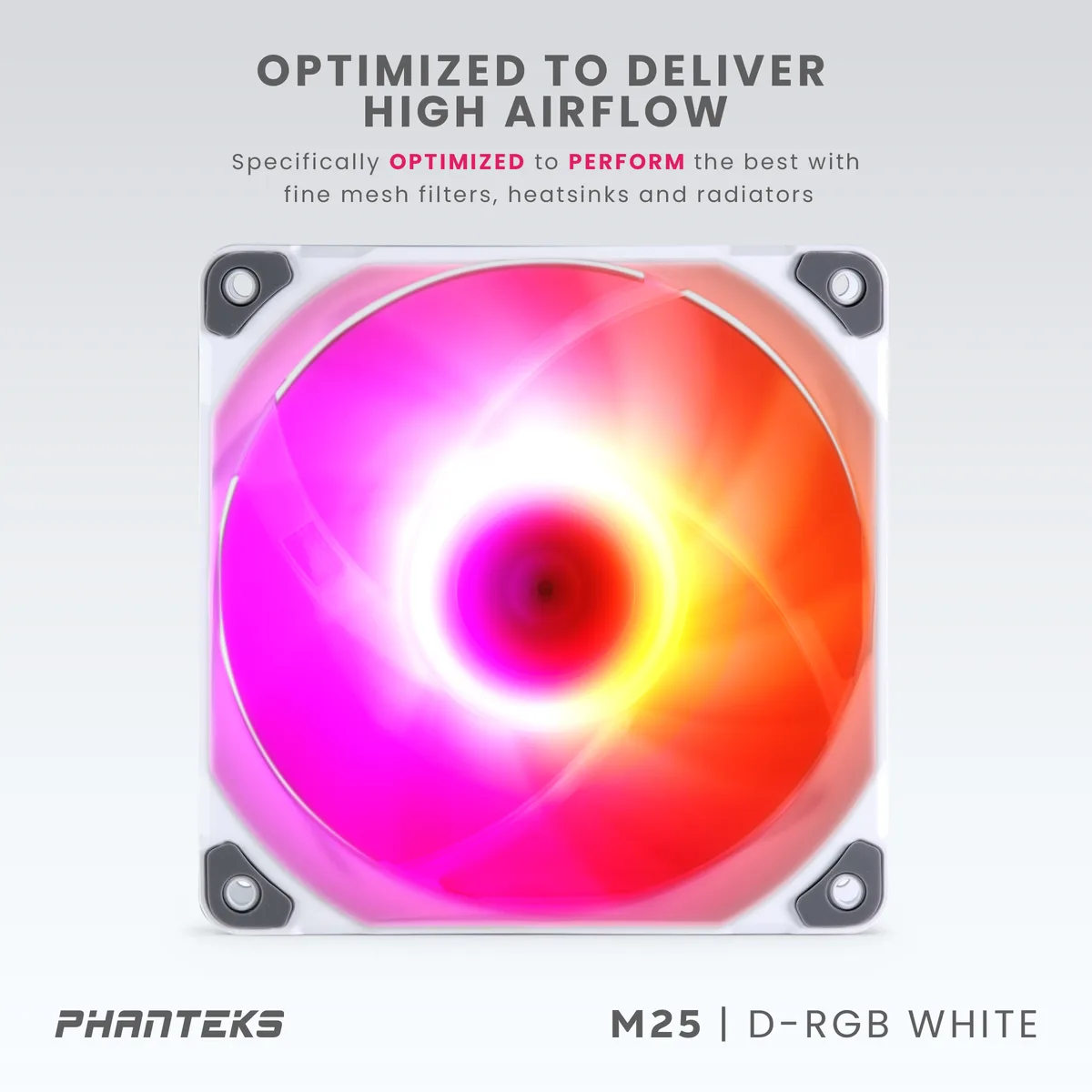

  • High airflow of 84.26 CFM cools radiators and heatsinks effectively
  • PWM control from 500 to 2000 RPM matches speed to thermal load

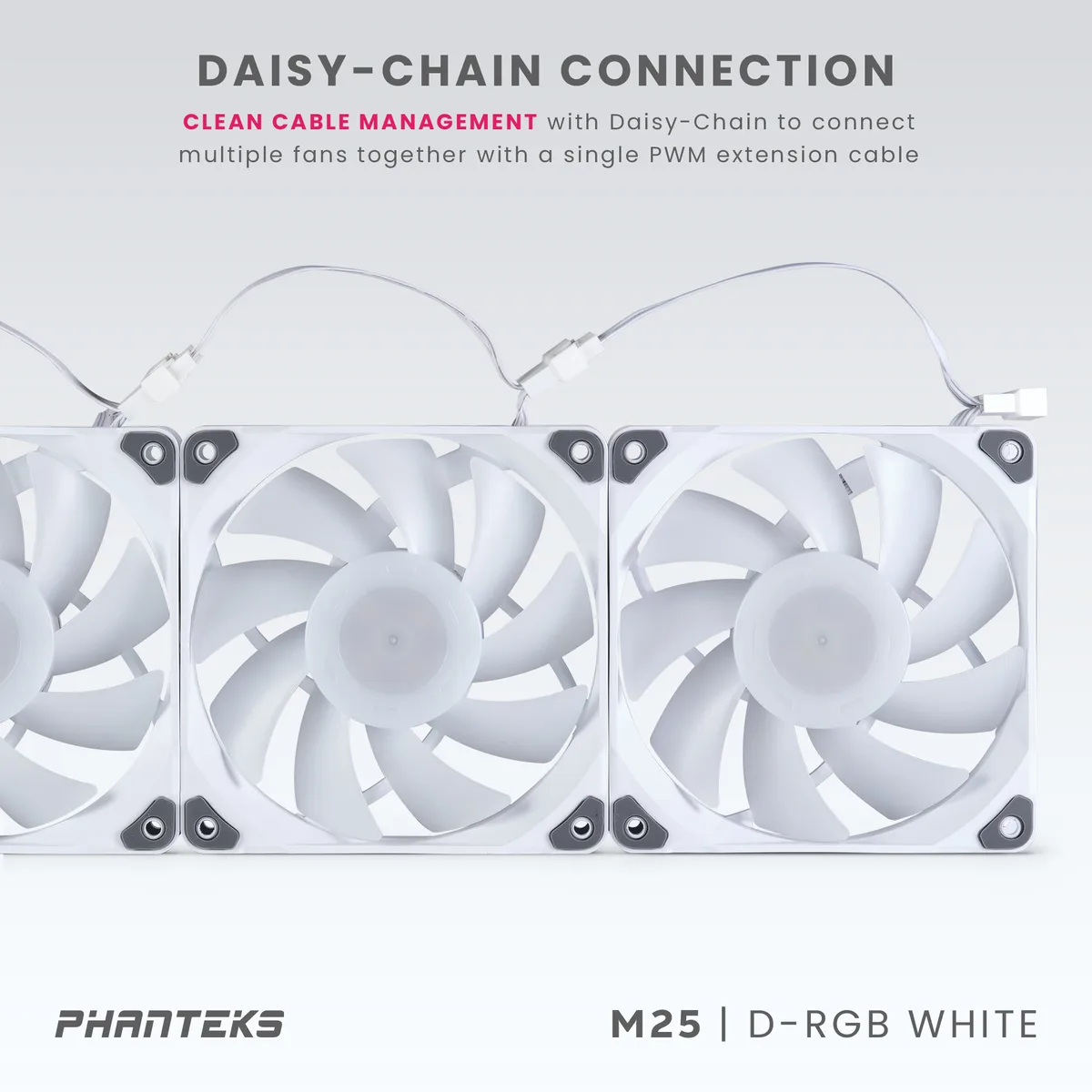

  • Daisy-chain cables link three fans on one PWM header for tidy routing
  • Hydraulic bearing runs at 35.7 dB(A) for quiet operation under load
  • DRGB lighting connects straight to motherboard A/D-RGB header with included adapter

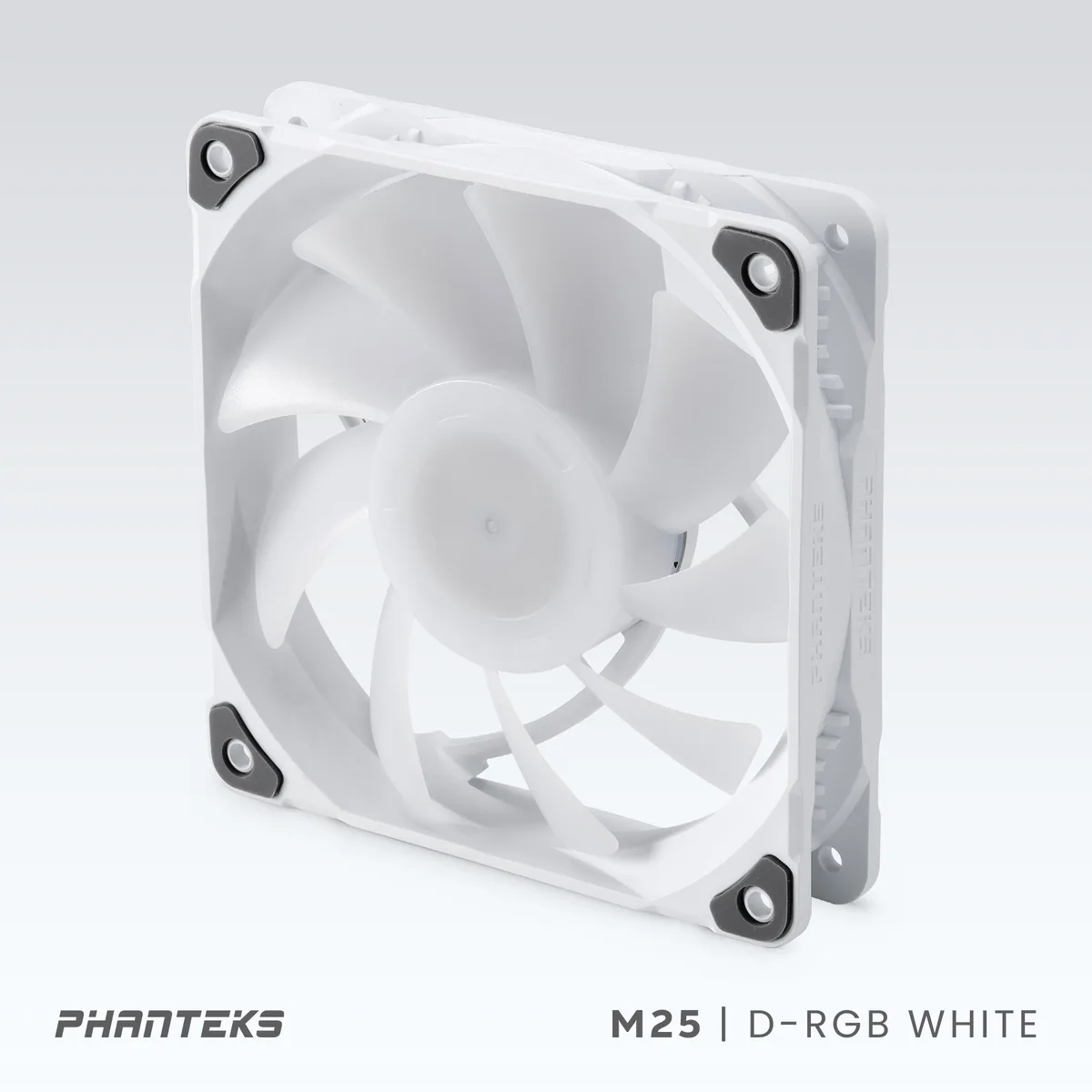

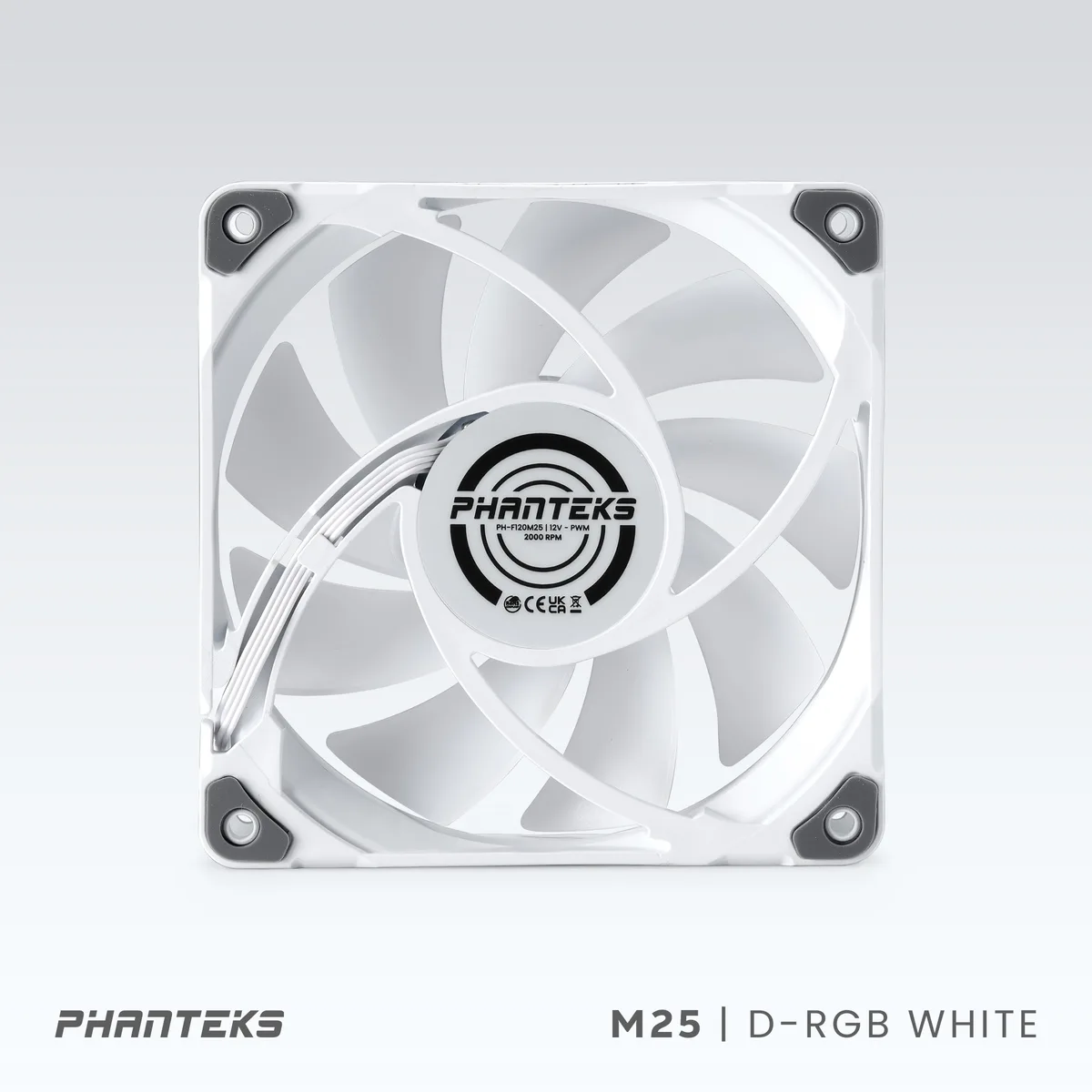

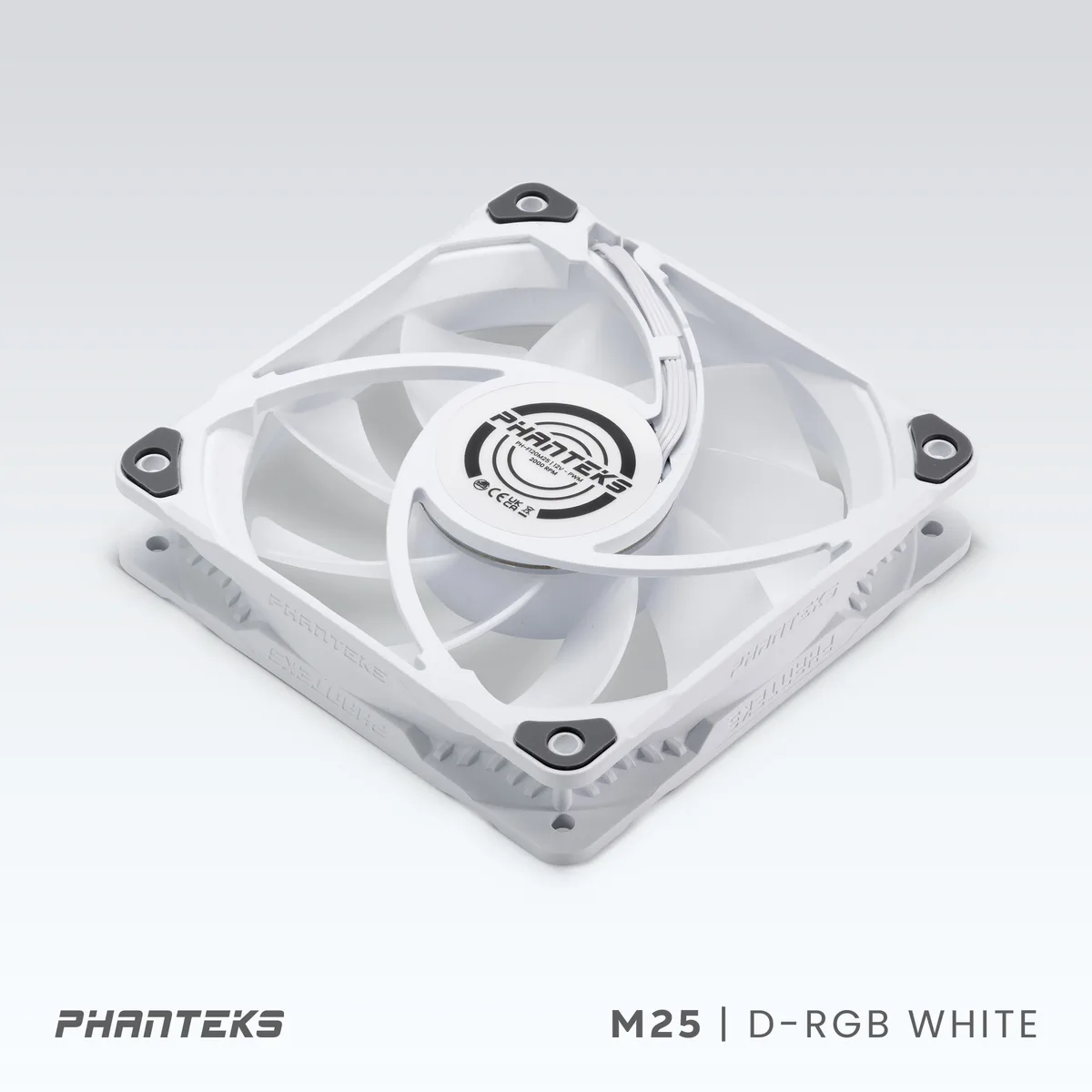

Three White 120 mm PWM Fans

This pack contains three Phanteks M25-120 D-RGB fans in white. Each unit measures 120 mm by 25 mm and uses a hydraulic bearing. They are suited for builders who want matching intake and exhaust with addressable lighting.

Check 4-pin headers and DRGB pins

Your motherboard must provide a 4-pin PWM header for each fan or a splitter to share one. A 5 V addressable RGB header or the included adapter is required to control the DRGB LEDs. Verify physical clearance for 25 mm thick frames.

Sustained airflow at 2000 RPM

At full speed the fans deliver 84.26 CFM while producing 35.7 dB(A). The wide 500-2000 RPM range lets the curve stay low during idle and ramp only when heat builds. Hydraulic bearings maintain consistent torque during long sessions.

Points forts

  • High airflow of 84.26 CFM cools radiators and heatsinks effectively
  • PWM control from 500 to 2000 RPM matches speed to thermal load
  • Daisy-chain cables link three fans on one PWM header for tidy routing
  • Hydraulic bearing runs at 35.7 dB(A) for quiet operation under load
  • DRGB lighting connects straight to motherboard A/D-RGB header with included adapter

Caractéristiques

BrandPhanteks
ModelM25-120 D-RGB Fan, White
Part NumberPH-F120M25_DRGB_PWM_WT01_3P
Fan Counts3 Fans
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM500-2000±10% RPM
Air Flow84.26 CFM
Noise Level35.7 dB(A)
Power Connector4 Pin
ColorWhite
LEDDRGB
Poids d’expédition0.15 kg
Dimensions du colis120 × 120 × 25 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the 3-pack include everything needed to run three fans on one motherboard header?

The pack contains three 120mm white fans, a daisy-chain cable to link them together and a motherboard adapter for a single A/D-RGB header, so no extra cables are required.

Should I pick the 500 RPM floor or the 2000 RPM ceiling for a quiet radiator build?

PWM lets the fan spin anywhere between 500 and 2000 RPM; start low for silence and let the curve ramp up only when the radiator needs the 84.26 CFM peak.

What does the 35.7 dB(A) rating mean when the fans are mounted on a mesh-front case?

At full 2000 RPM the fans reach 35.7 dB(A); behind a fine mesh the airflow stays high while the perceived noise typically drops below that figure.
