Three black 140 mm case fans, 30 mm thick, with DRGB lighting rings and blades, shown together in a pack

Phanteks

Phanteks PH-F140D30_DRGB_PWM_BK01_3P 140 mm 30 mm case fan 3-pack

SKU CH-M49V-FWY0R MPN PH-F140D30_DRGB_PWM_BK01_3P

Three 140 mm, 30 mm thick case fans with fluid-dynamic bearings, 250-1800 RPM, 71.93 CFM max airflow and 29.5 dB(A) noise, plus addressable DRGB lighting and daisy-chain linking

  • Fan Counts3 Fans
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness30mm
  • Bearing TypeFluid Dynamic
  • RPM250-1800 +/- 10% RPM

Fan Size 140mm

Style Regular

Model D30

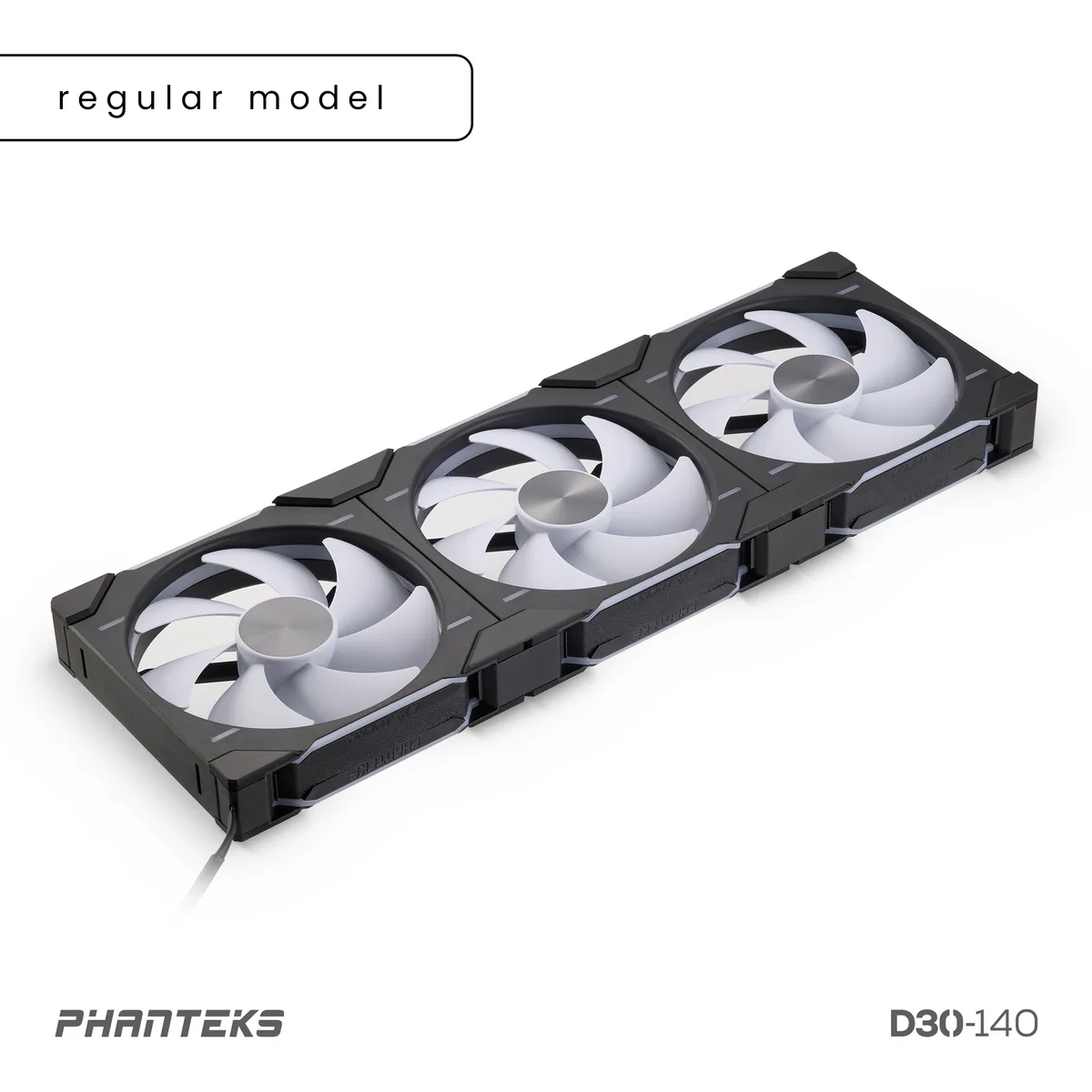

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Three fans in one pack simplify multi-fan builds

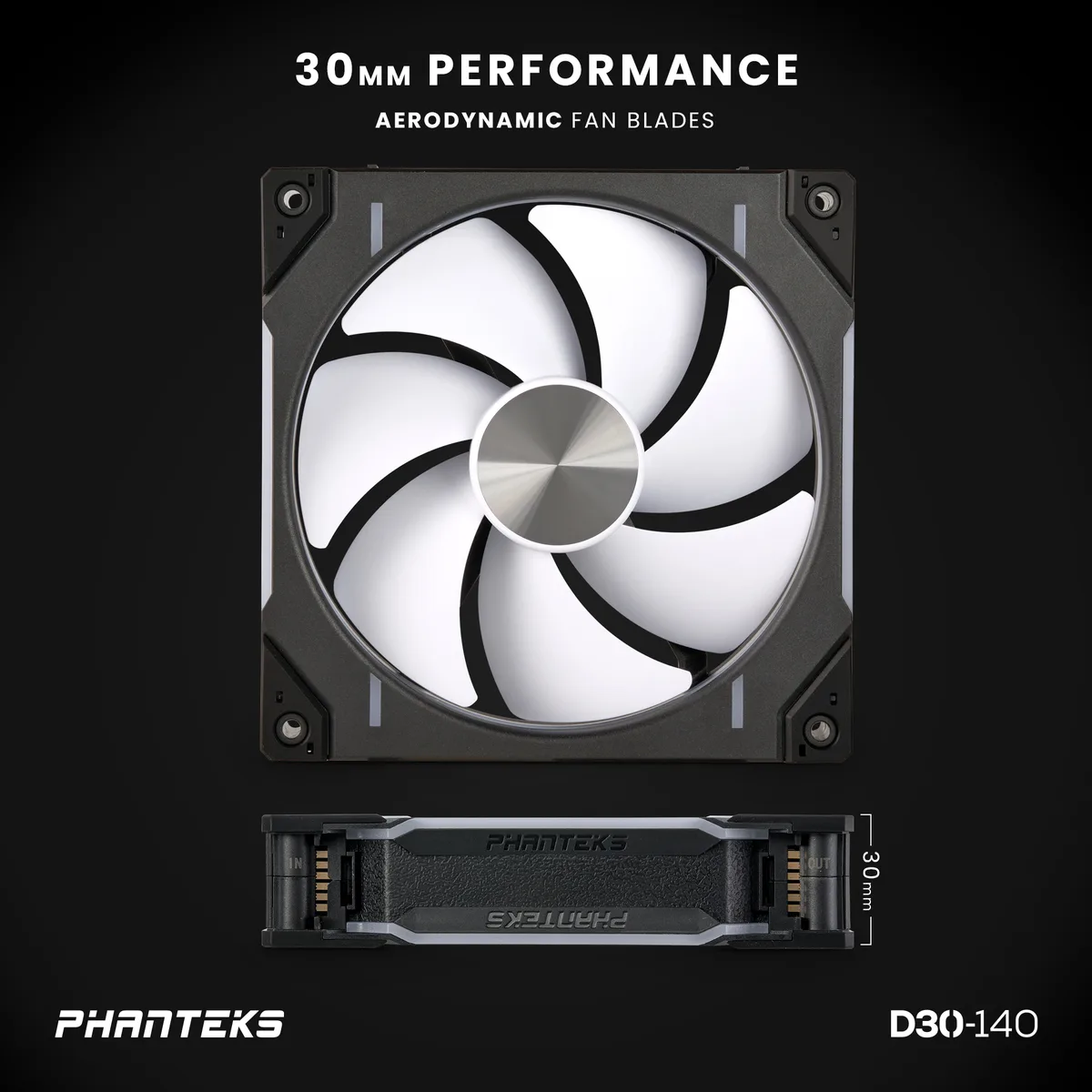

  • 30 mm thick frame delivers strong static pressure for radiators
  • Fluid dynamic bearing runs at 29.5 dB(A) for quiet operation
  • Daisy-chain linking system cuts cable clutter across all fans

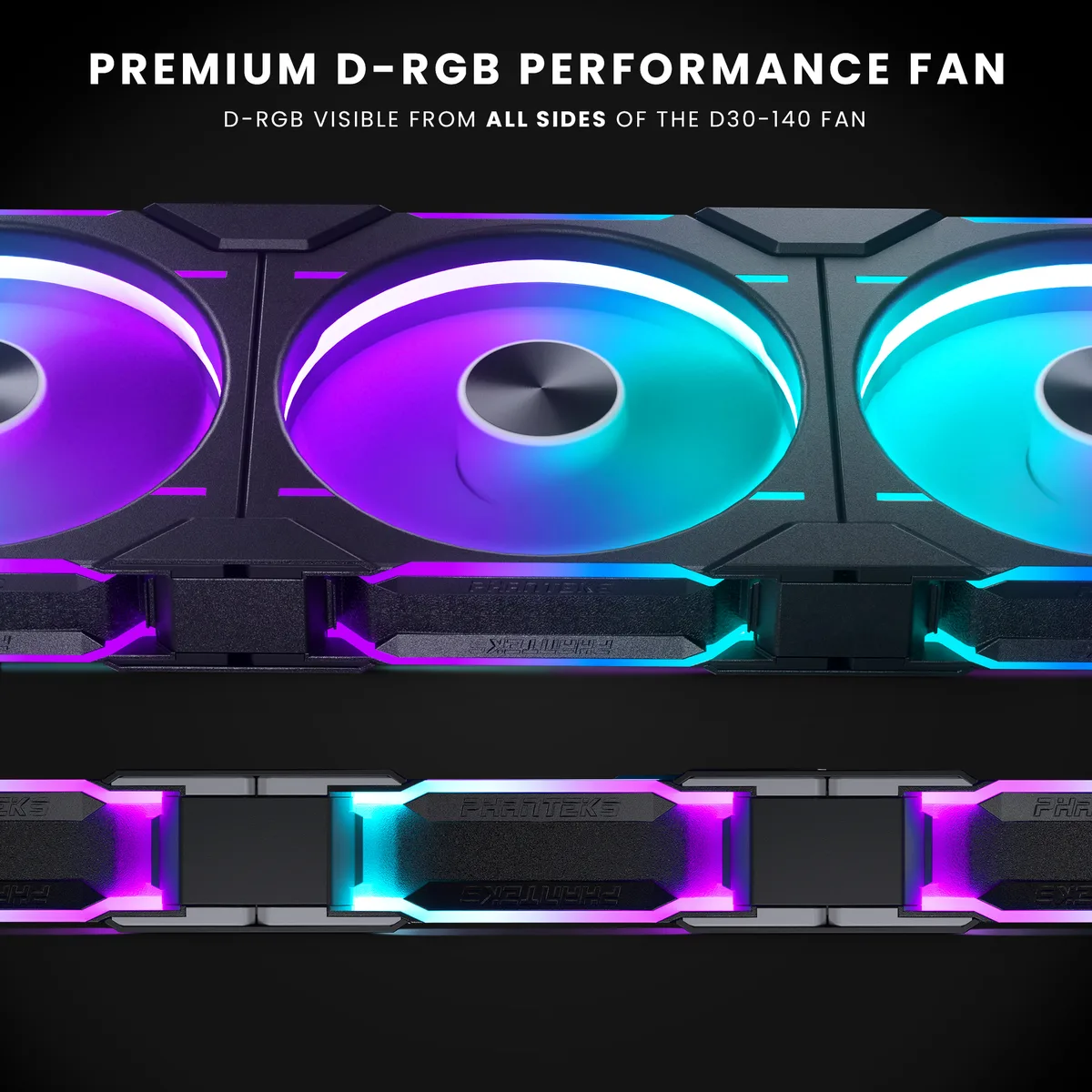

  • DRGB lighting visible from every angle syncs with motherboard software

Three 140 mm 30 mm fans for high-static-pressure

This pack contains three Phanteks D30-140 DRGB PWM fans, each 140 mm wide and 30 mm thick. The fluid-dynamic bearing spins from 250 to 1800 RPM, delivering up to 71.93 CFM at 29.5 dB(A). Black frames and integrated DRGB lighting suit radiators or restrictive mesh where extra frame depth helps push air through.

Check 4-pin PWM headers and 30 mm clearance

Your motherboard or fan controller must provide a 4-pin PWM header for each fan or a splitter that carries the PWM signal. Verify the case, radiator or mounting bracket can accommodate 30 mm thickness plus screw depth; standard 25 mm slots will not fit. The DRGB lighting requires a 5 V addressable RGB header or the included motherboard adapter.

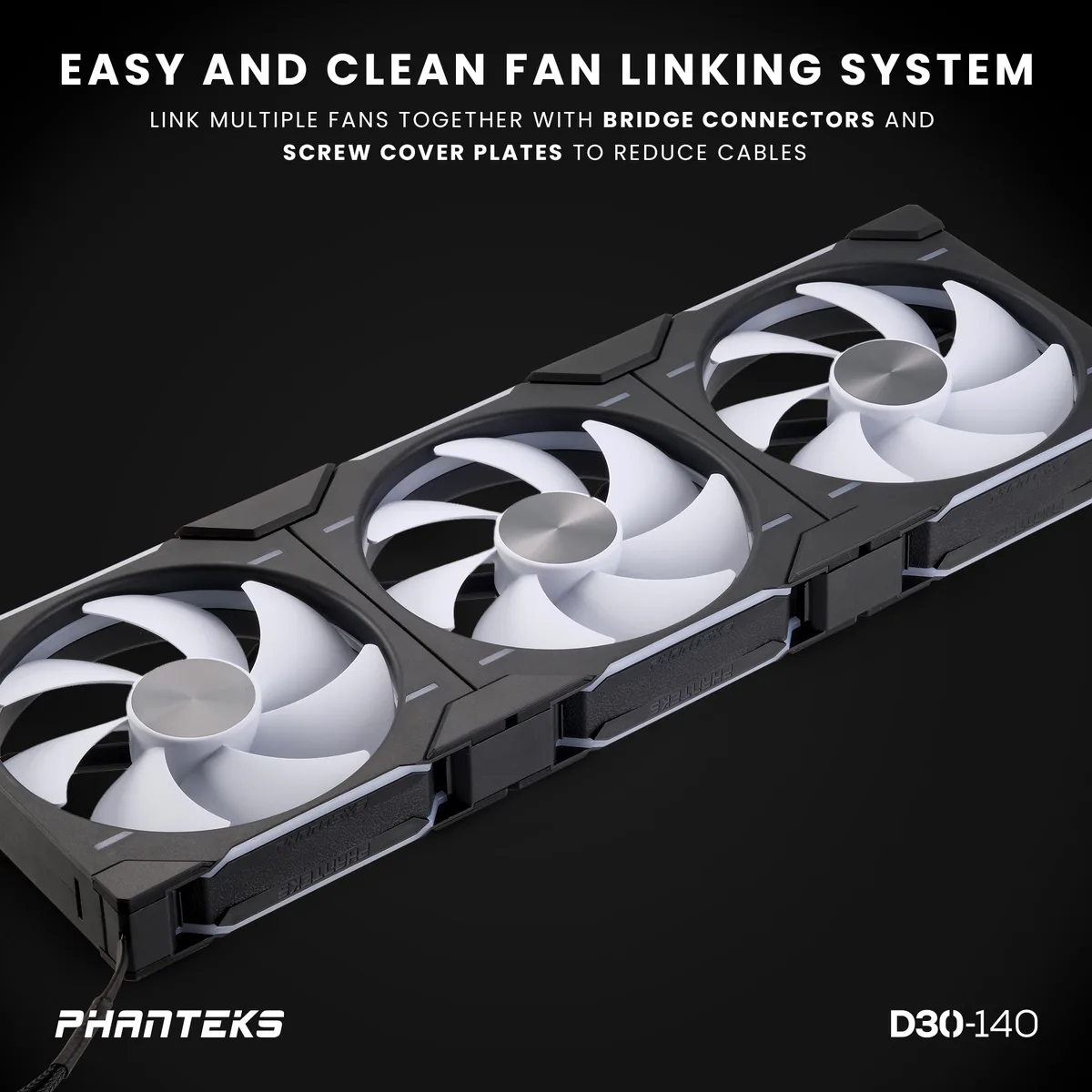

Daisy-chain clips and dual radiator screws unify

Twelve UNC 6-32 and twelve M4 radiator screws (36 mm) cover most thick radiators, while twelve standard fan screws handle case mounting. Corner clips, bridge clips and screw covers let you link the three fans into a single visual and mechanical unit with one DRGB cable run. The DRGB motherboard adapter adds compatibility if your board lacks a 5 V ARGB header.

Points forts

  • Three fans in one pack simplify multi-fan builds
  • 30 mm thick frame delivers strong static pressure for radiators
  • Fluid dynamic bearing runs at 29.5 dB(A) for quiet operation
  • Daisy-chain linking system cuts cable clutter across all fans
  • DRGB lighting visible from every angle syncs with motherboard software

Caractéristiques

BrandPhanteks
ModelPH-F140D30_DRGB_PWM_BK01_3P
Fan Counts3 Fans
TypeCase Fan
Fan Size140mm
Fan Thickness30mm
Bearing TypeFluid Dynamic
RPM250-1800 +/- 10% RPM
Air Flow71.93 CFM Max
Noise Level29.5 dB(A)
Power Connector4 Pin
ColorBlack
LEDDRGB
Dimensions140 x 140 x 30 mm / 5.51" x 5.51" x 1.18"
Package Contents3 x PH-F140D30_DRGB_PWM_WT01_3P
12 x Fan Screw
12 x UNC 6-32 Radiator Screw 36mm
12 x M4 Radiator Screw 36mm
2 x Corner Clip Cable, 6x Corner Clip
2 x Bridge Clip, 2xg Bridge Clip Connector
8 x Screw Cover Corner (4L, 4R)
4 x Screw Cover Bridge
1 x D-RGB M/B Adapter
Poids d’expédition1.36 kg
Dimensions du colis196 × 143 × 100 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What comes in the box with the 3-pack and do I need extra cables?

The package includes three 140 mm fans, 12 fan screws, 12 UNC 6-32 radiator screws, 12 M4 radiator screws, two corner clip cables, six corner clips, two bridge clips, two bridge clip connectors, eight screw cover corners, four screw cover bridges and one D-RGB motherboard adapter. No extra cables are required for daisy-chaining.

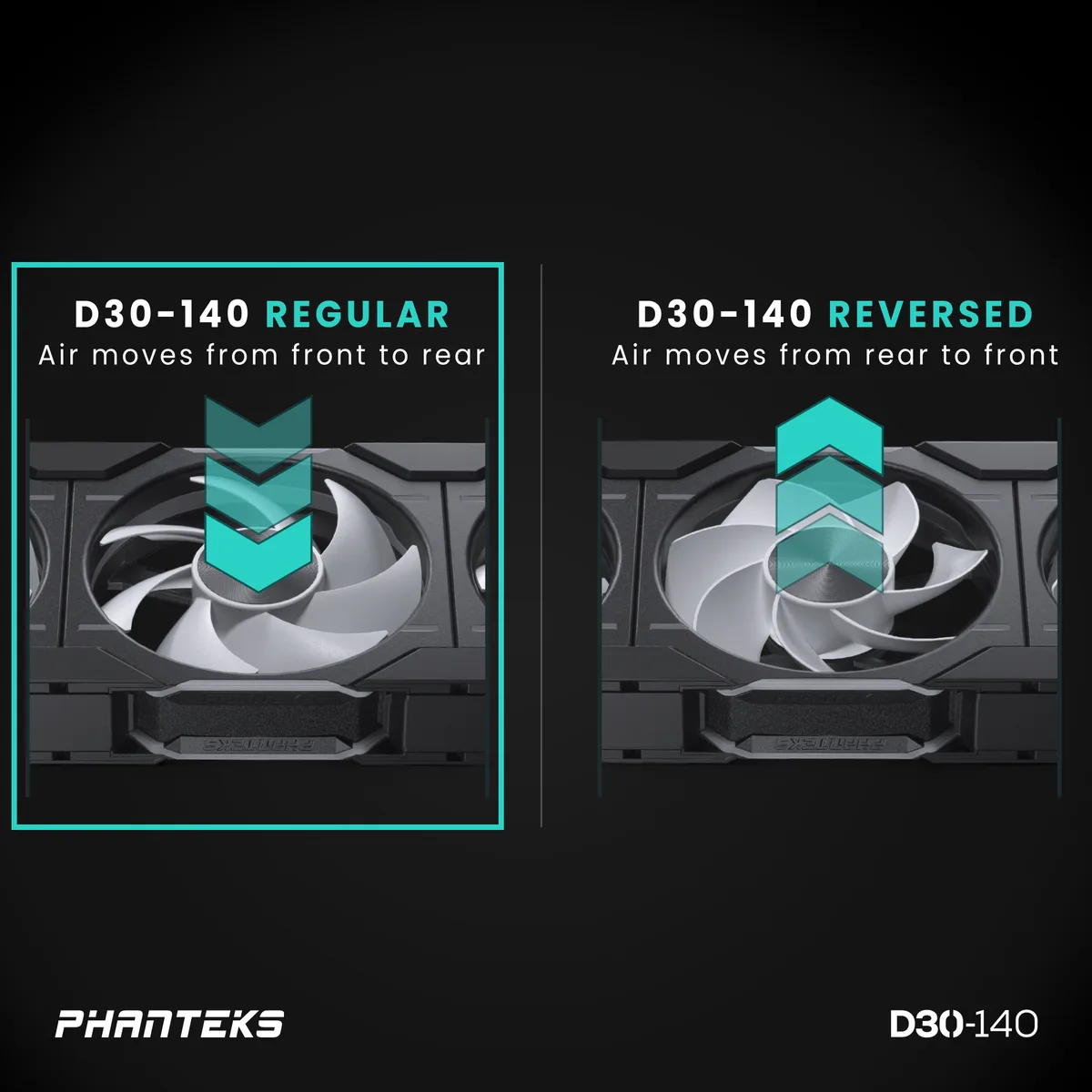

Should I pick regular or reverse airflow fans for my radiator?

Choose regular airflow for intake or exhaust where air moves through the fan in the standard direction; choose reverse airflow when you want the blades to pull air the opposite way without hiding the D-RGB lighting effect.

What does 71.93 CFM max mean when the fans are mounted on a thick radiator?

At 1800 RPM the fans deliver up to 71.93 CFM; the 30 mm thick frame maintains higher static pressure so airflow drops less behind dense fins than with standard 25 mm fans.
