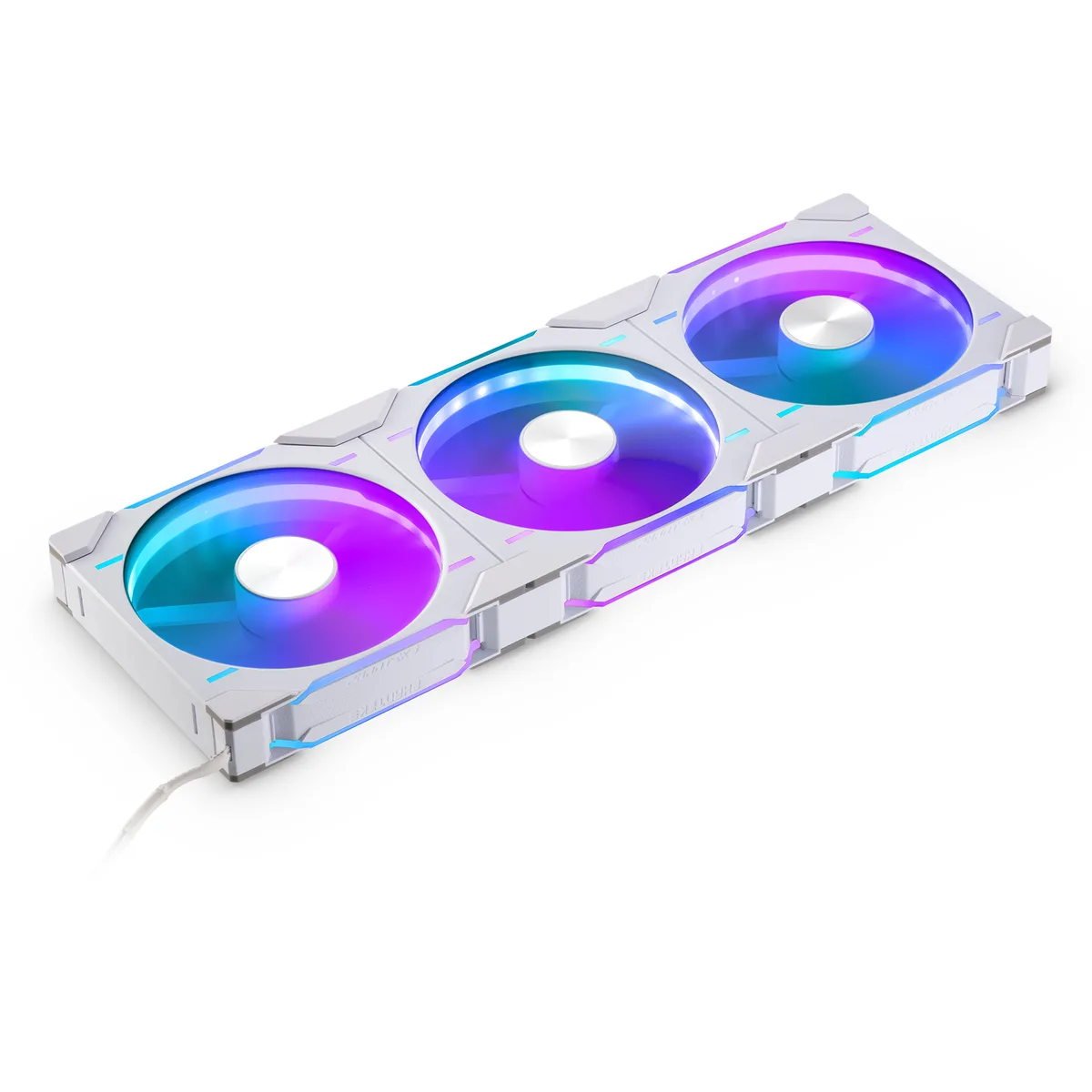

Three white 140 mm square case fans with DRGB lighting rings and thick 30 mm frames shown together

Phanteks

Phanteks PH-F140D30R_DRGB_PWM_WT01_3P 140 mm 30 mm case fan 3-pack

SKU CH-9XW8-QD932 MPN PH-F140D30R_DRGB_PWM_WT01_3P

Three white 140 mm fans with 30 mm frames, fluid-dynamic bearings, 250-1800 RPM, 71.76 CFM max airflow and 32.1 dB(A) noise, plus addressable DRGB lighting and daisy-chain cable management

  • Fan Counts3 Fans
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness30mm
  • Bearing TypeFluid Dynamic
  • RPM250-1800 +/- 10% RPM

Fan Size 140mm

Style Reversed

  • Regular / No DRGB
  • Regular
  • Reversed

Model D30

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Reverse airflow keeps blade lighting fully visible
  • Daisy-chain linking cuts cable clutter for cleaner builds

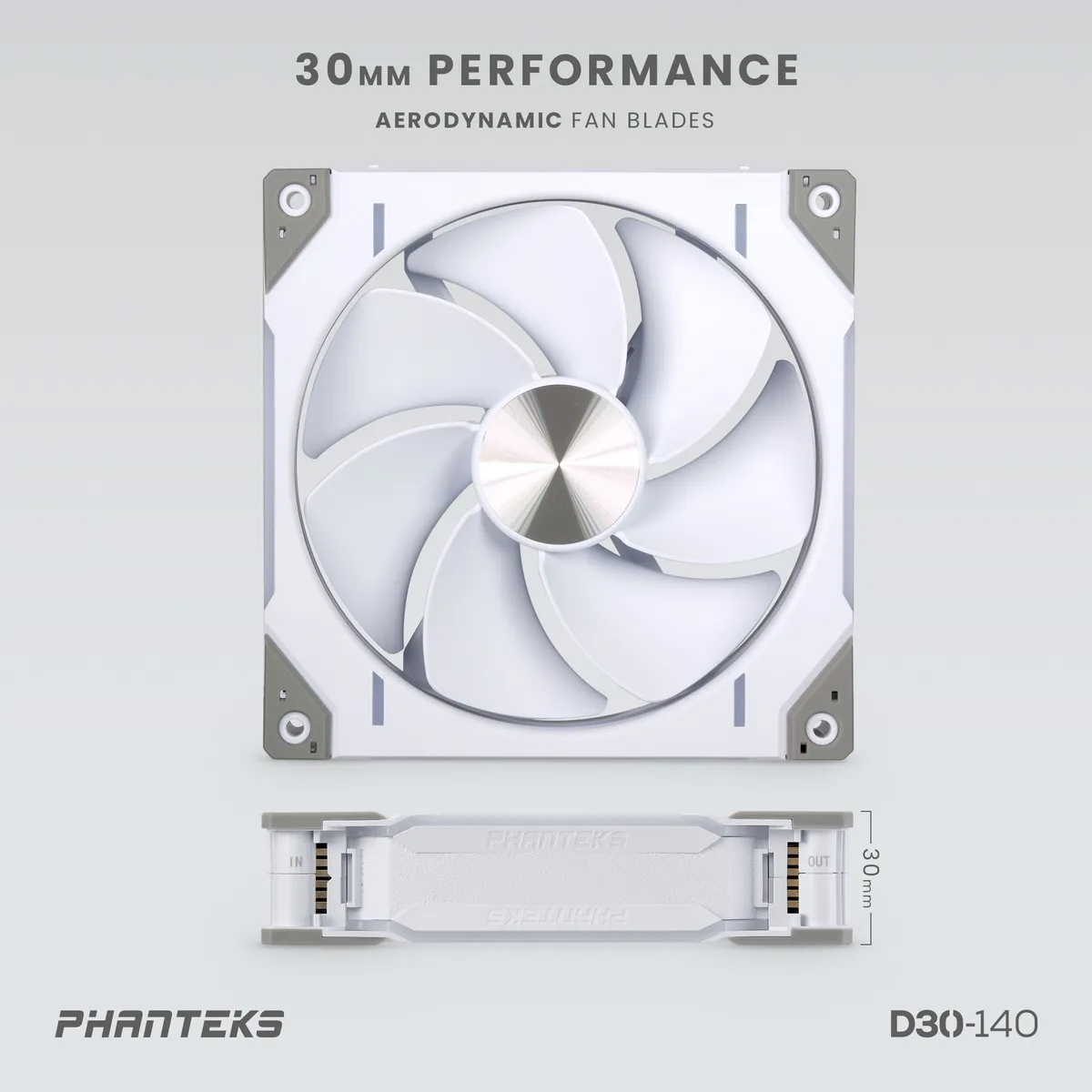

  • 30 mm thick frame delivers strong static pressure
  • Fluid Dynamic bearing runs at 32.1 dB(A) max

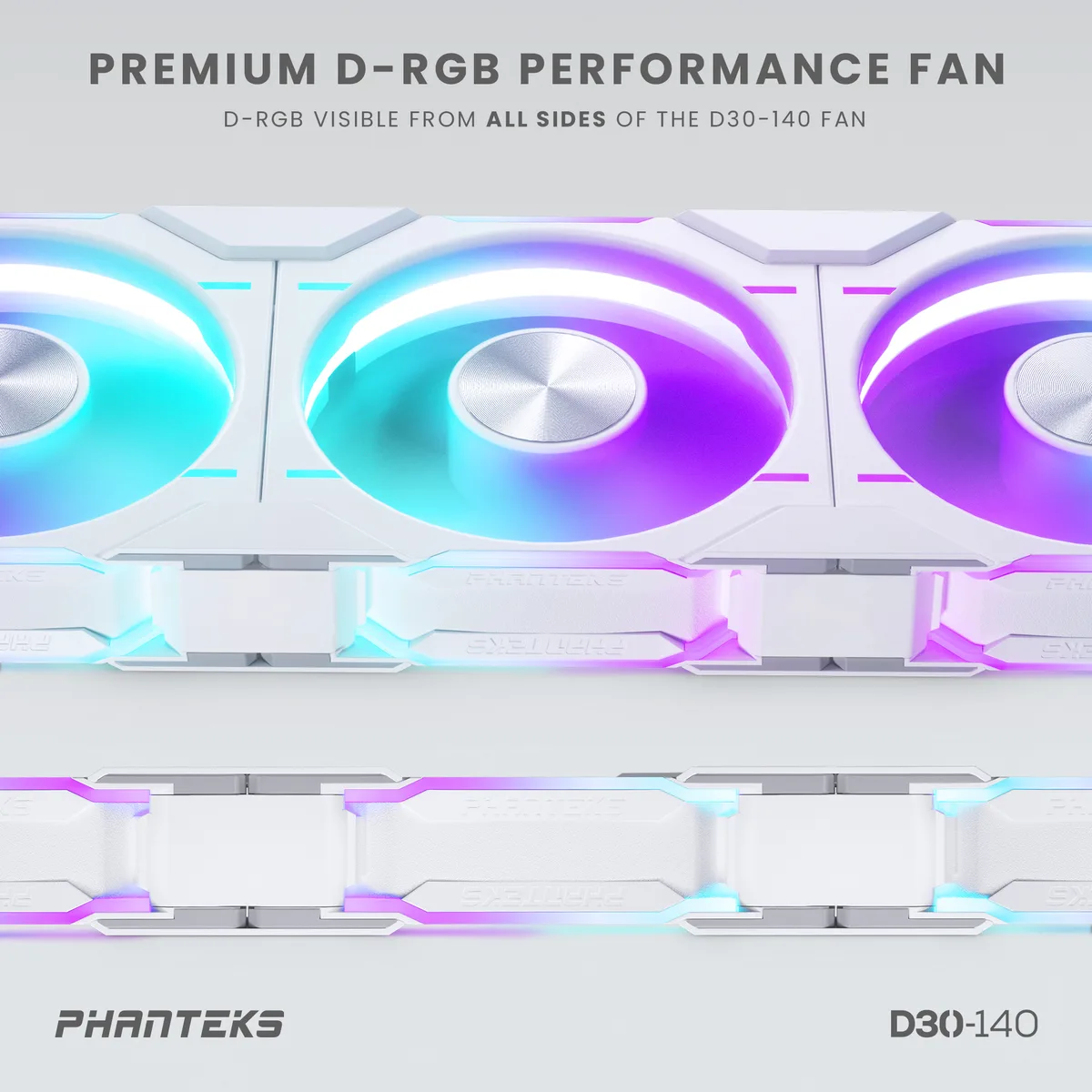

  • DRGB illumination syncs with motherboard RGB software

Three 140 mm reverse-airflow fans

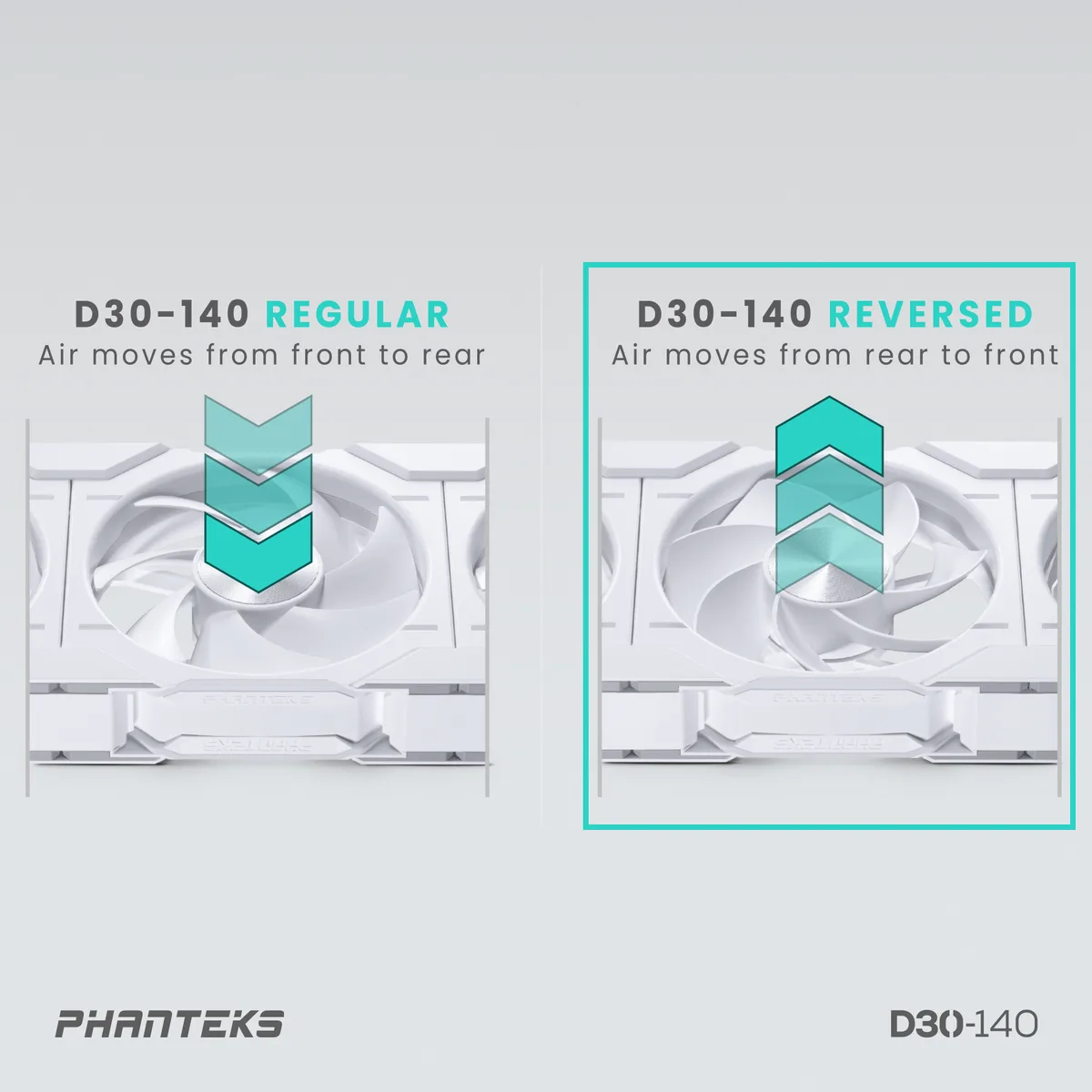

This three-pack supplies white 140 mm case fans with 30 mm thick frames and fluid-dynamic bearings. They target builders who want high static pressure for radiators or restrictive mesh without losing visible blade lighting. The reverse-airflow design keeps the illuminated blades facing the interior while pulling or pushing air as needed.

Daisy-chain linking and mixed screw kit

Twelve fan screws, twelve UNC 6-32 radiator screws and twelve M4 radiator screws cover standard and radiator mounts. Two corner-clip cables, six corner clips, two bridge clips and two bridge connectors let multiple fans share a single PWM and DRGB header. Eight screw-cover corners and four screw-cover bridges hide fasteners. A DRGB motherboard adapter connects the 5 V addressable signal to compatible boards.

Straightforward install with one cable catch

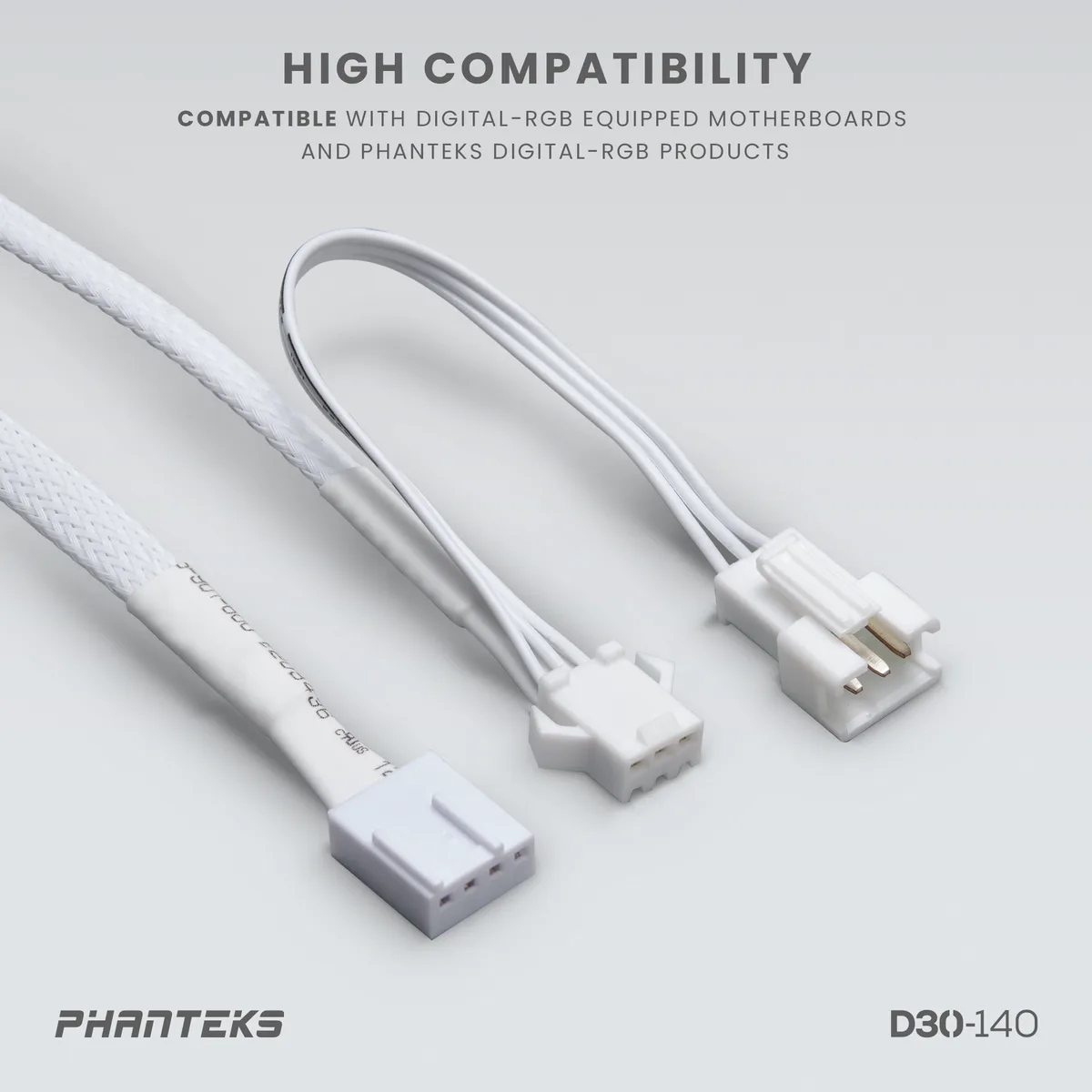

The 4-pin PWM connector and 3-pin 5 V DRGB plug fit standard headers; the daisy-chain parts click together without tools. Radiator mounting uses the longer 36 mm screws, while case mounting uses the shorter fan screws. The only common snag is routing the combined cable bundle cleanly when all three fans are linked in series.

Points forts

  • Reverse airflow keeps blade lighting fully visible
  • Daisy-chain linking cuts cable clutter for cleaner builds
  • 30 mm thick frame delivers strong static pressure
  • Fluid Dynamic bearing runs at 32.1 dB(A) max
  • DRGB illumination syncs with motherboard RGB software

Caractéristiques

BrandPhanteks
ModelPH-F140D30R_DRGB_PWM_WT01_3P
Fan Counts3 Fans
TypeCase Fan
Fan Size140mm
Fan Thickness30mm
Bearing TypeFluid Dynamic
RPM250-1800 +/- 10% RPM
Air Flow71.76 CFM Max
Noise Level32.1 dB(A)
Power Connector4 Pin
ColorWhite Matte blade / White Fan Frame
LEDDRGB
Dimensions140 x 140 x 30 mm / 5.51" x 5.51" x 1.18"
Package Contents3 x PH-F140D30R_DRGB_PWM_WT01
12 x Fan Screw
12 x UNC 6-32 Radiator Screw 36mm
12 x M4 Radiator Screw 36mm
2 x Corner Clip Cable, 6 x Corner Clip
2 x Bridge Clip, 2 x Bridge Clip Connector
8 x Screw Cover Corner (4L, 4R)
4 x Screw Cover Bridge
1 x D-RGB M/B Adapter
Poids d’expédition1.36 kg
Dimensions du colis196 × 143 × 100 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the fluid-dynamic bearing in these three 140 mm fans need replacement after a certain number of hours?

The fluid-dynamic bearing is designed for long continuous operation; Phanteks does not publish a specific service-life hour rating.

At 1800 RPM the fans deliver 71.76 CFM — what stops them from pushing more air in a restrictive radiator setup?

The 30 mm thick frame and blade geometry create the static pressure ceiling; beyond 1800 RPM the motor cannot overcome the added restriction.

Running all three fans at full speed all day, what noise and heat should I expect from the 4-pin PWM headers?

Maximum noise is 32.1 dB(A) per fan at 1800 RPM; PWM control lets the motherboard lower speed and noise when full airflow isn’t needed.
