Three white 120 mm case fans with DRGB rings and 30 mm thick frames

Phanteks

Phanteks PH-F120D30_DRGB_PWM_WT01_3P 120mm 30mm DRGB PWM case fan 3 pack

SKU CH-ET3D-0JCFY MPN PH-F120D30_DRGB_PWM_WT01_3P

Three 120 mm fans with 30 mm thick frames deliver up to 64.3 CFM at 30.2 dB(A) and include daisy-chainable DRGB lighting

  • Fan Counts3 Fans
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness30mm
  • Bearing TypeFDB (Fluid Dynamic Bearing)

Fan Size 120mm

Style Regular

Model D30

Option Triple Fans

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 30 mm thick frame delivers high static pressure for radiators and restrictive mesh
  • Fluid dynamic bearing runs at 30.2 dB(A) for quiet operation
  • 3 CFM maximum airflow moves air efficiently through dense obstacles

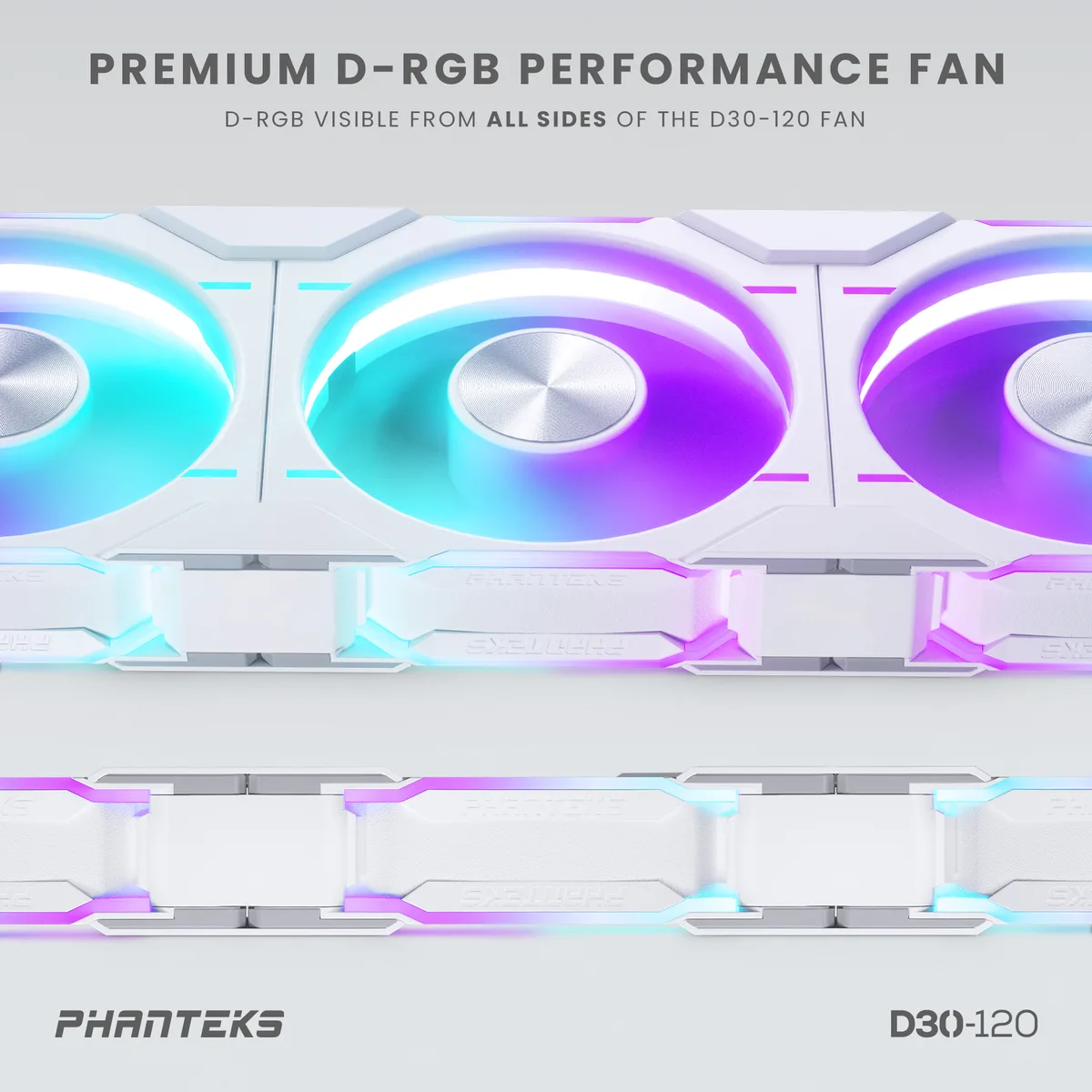

  • Addressable DRGB lighting visible from all sides with daisy-chain linking
  • Three white fans included with 250-2000 RPM PWM speed range

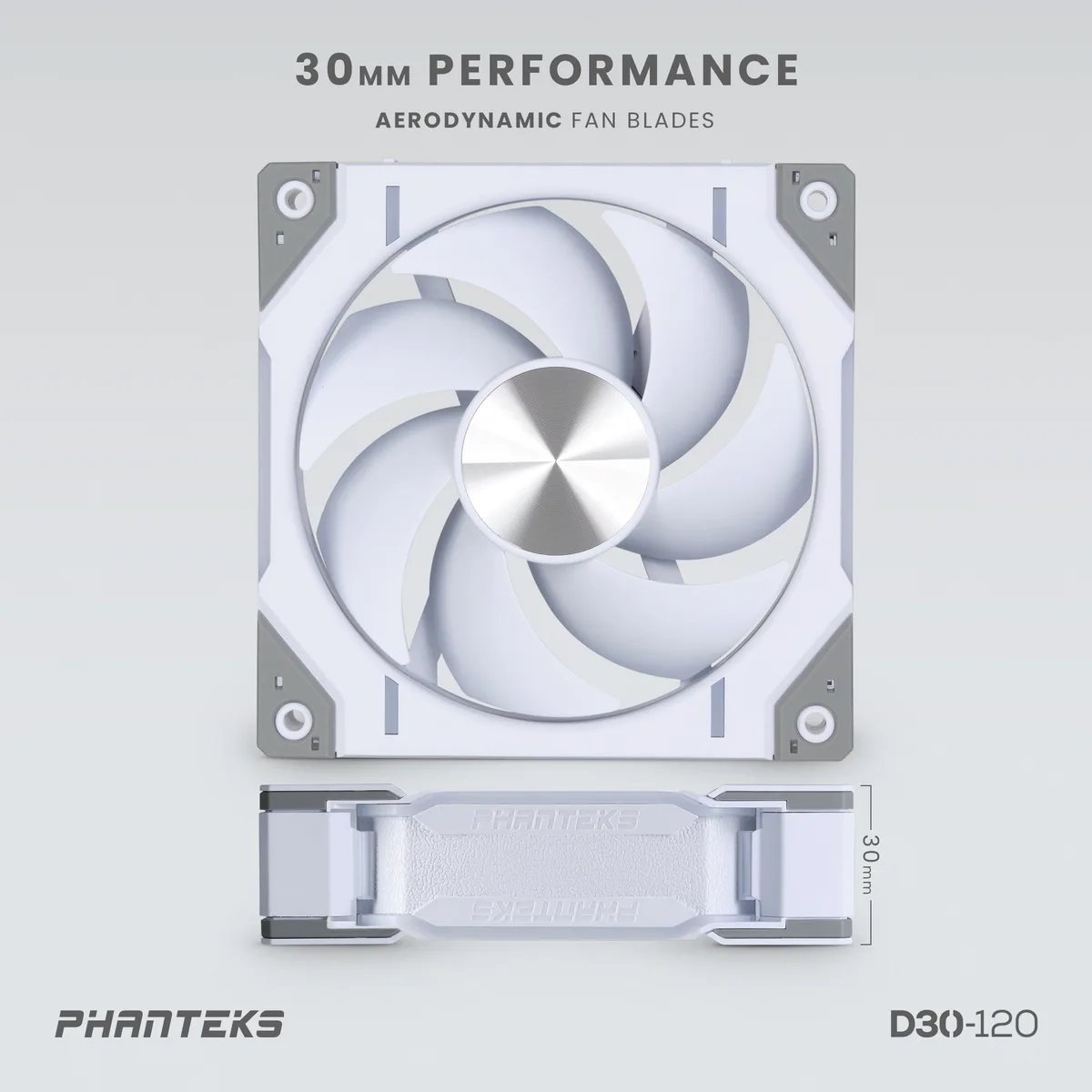

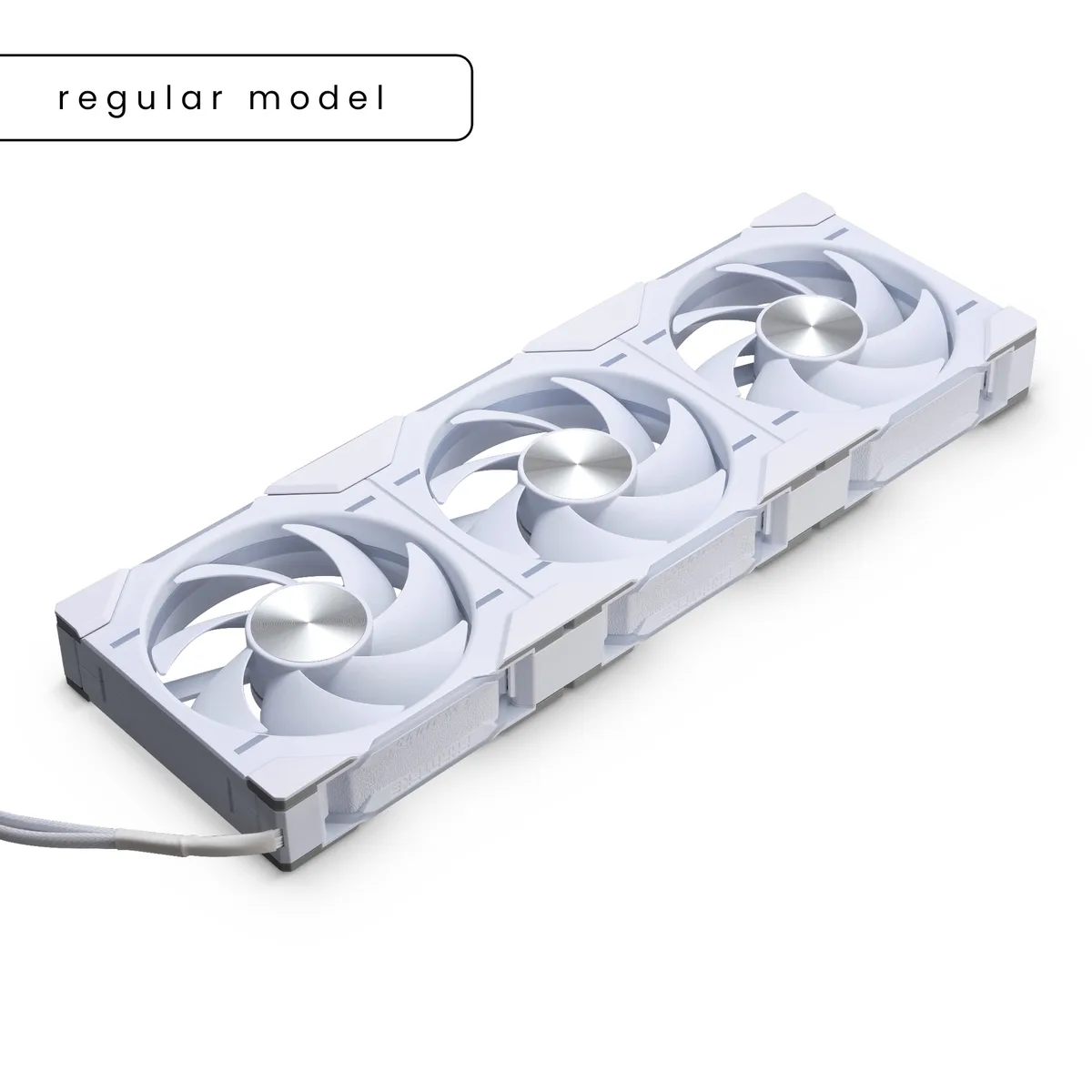

Three-pack 30 mm thick fans

This pack contains three 120 mm case fans with a 30 mm frame, white matte blades and a white frame. Fluid dynamic bearings support a speed range of 250 to 2000 RPM. DRGB lighting is built into the blades and frame halo for addressable colour control. The fans connect via standard 4-pin PWM headers.

Sustained pressure on radiators and filters

The thicker blade profile maintains static pressure when airflow meets resistance from radiators or dense dust filters. At maximum speed the fans deliver 64.3 CFM while producing 30.2 dB(A). PWM control lets the curve drop to near-silent levels during light loads without losing the pressure headroom needed for restrictive cooling setups.

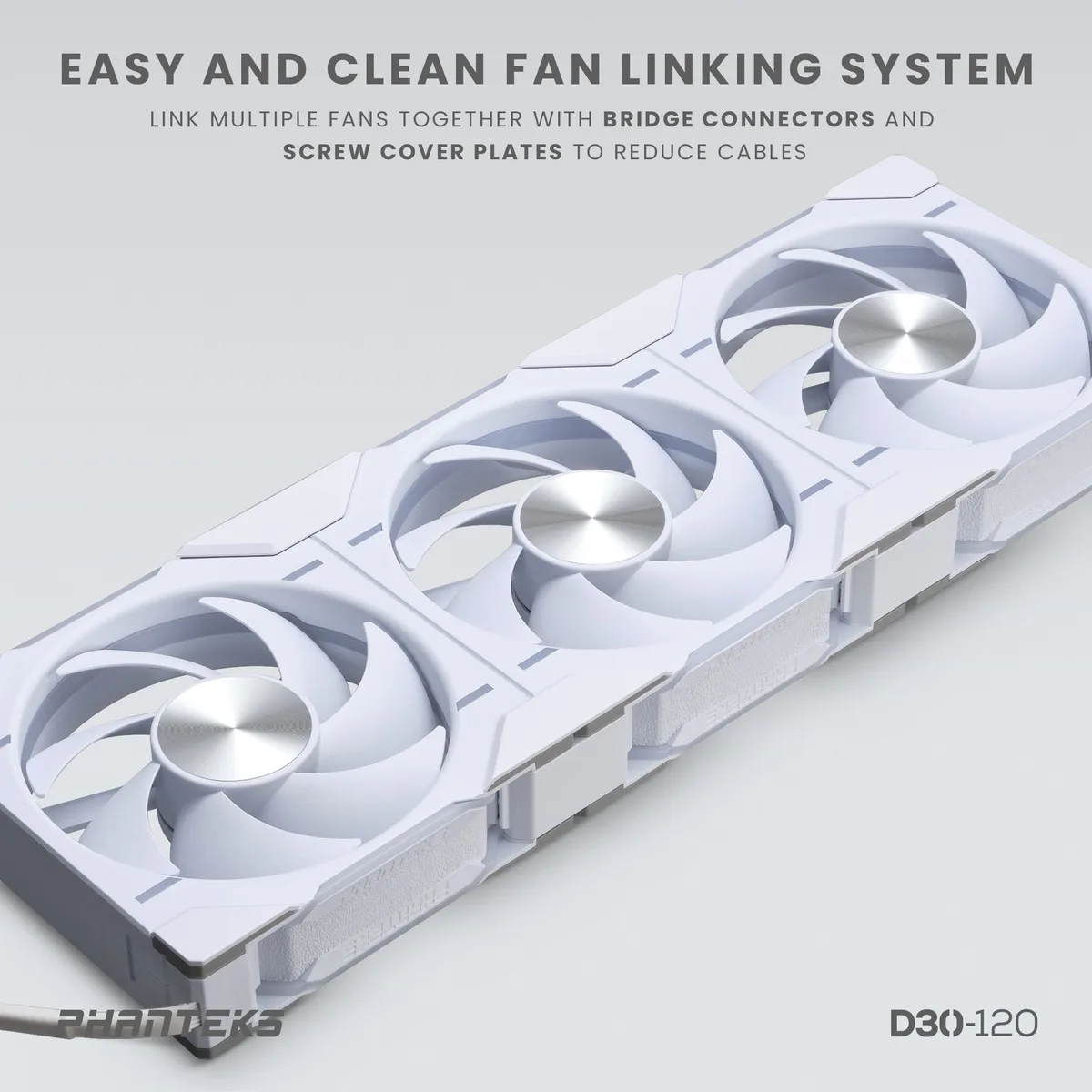

Daisy-chain linking reduces cable count

The integrated fan-linking system joins power and DRGB signals through bridge connectors so multiple units act as a single device. This works with motherboards that provide a 5 V digital RGB header and a 4-pin PWM header. Builds that lack a compatible DRGB header or need more than the header’s current limit will require a separate controller.

Points forts

  • 30 mm thick frame delivers high static pressure for radiators and restrictive mesh
  • Fluid dynamic bearing runs at 30.2 dB(A) for quiet operation
  • 3 CFM maximum airflow moves air efficiently through dense obstacles
  • Addressable DRGB lighting visible from all sides with daisy-chain linking
  • Three white fans included with 250-2000 RPM PWM speed range

Caractéristiques

BrandPhanteks
SeriesD30-120
ModelD30-120, White, 3 Pack
Part NumberPH-F120D30_DRGB_PWM_WT01_3P
Fan Counts3 Fans
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness30mm
Bearing TypeFDB (Fluid Dynamic Bearing)
RPM250-2000±10% RPM
Air FlowMax. Airflow 64.3 CFM
Noise Level30.2 dB(A)
Power Connector4-Pin PWN
ColorWhite Matte blade / White Fan Frame
LEDDRGB
Dimensions120 x 120 x 30 mm
Poids d’expédition1.00 kg
Dimensions du colis182 × 125 × 100 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud are the three Phanteks D30-120 fans at full 2000 RPM?

Each fan reaches 30.2 dB(A) at maximum speed, so the trio stays at that level when all run together.

What motherboard header do I need for PWM control and DRGB lighting on this 3-pack?

A 4-pin PWM header drives the fans and a 5 V 3-pin digital-RGB header controls the lighting.

Will the 30 mm thick frames fit alongside my existing 25 mm fans in the same case?

The 30 mm depth needs five millimetres more clearance than standard 25 mm fans, so check your radiator or mesh spacing first.
