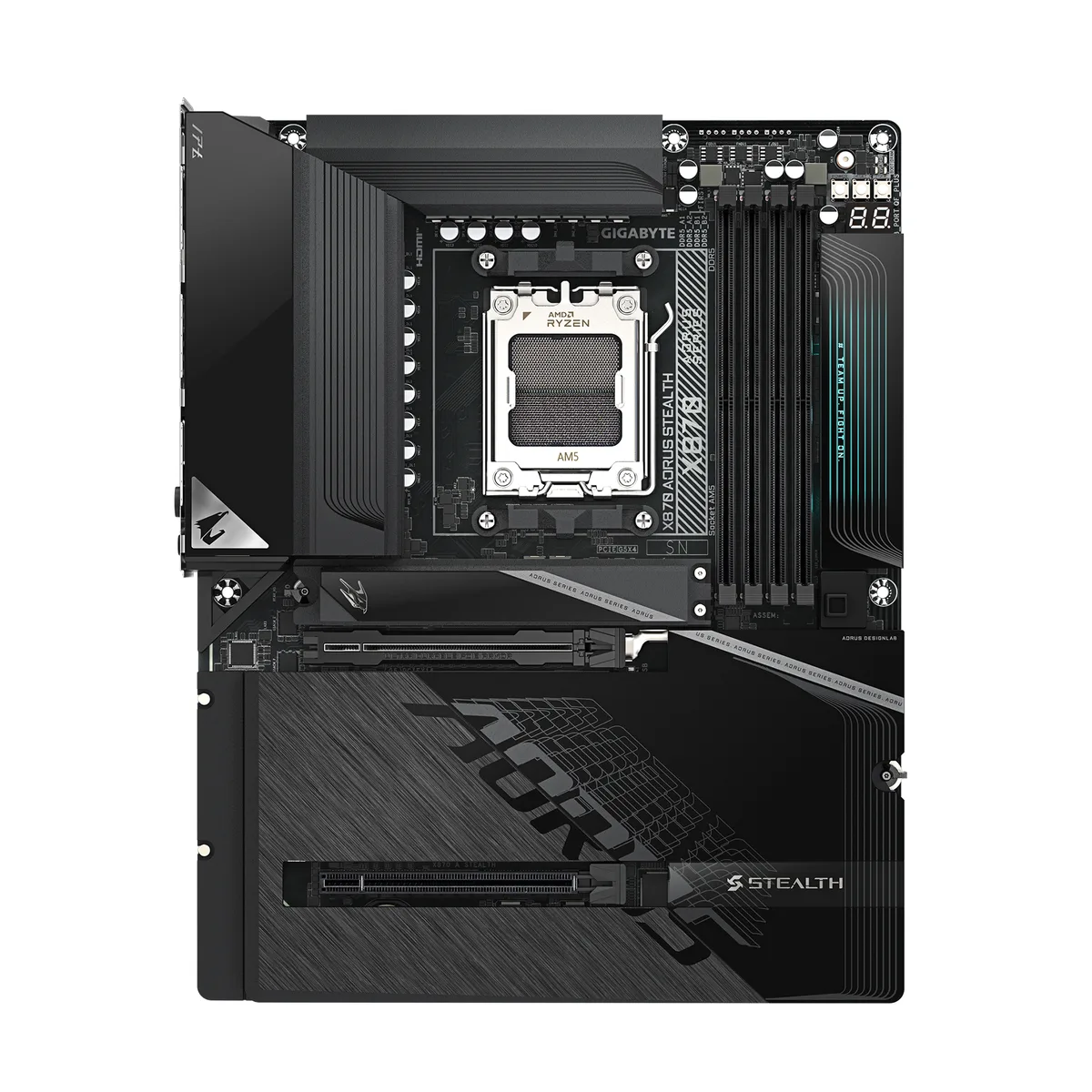

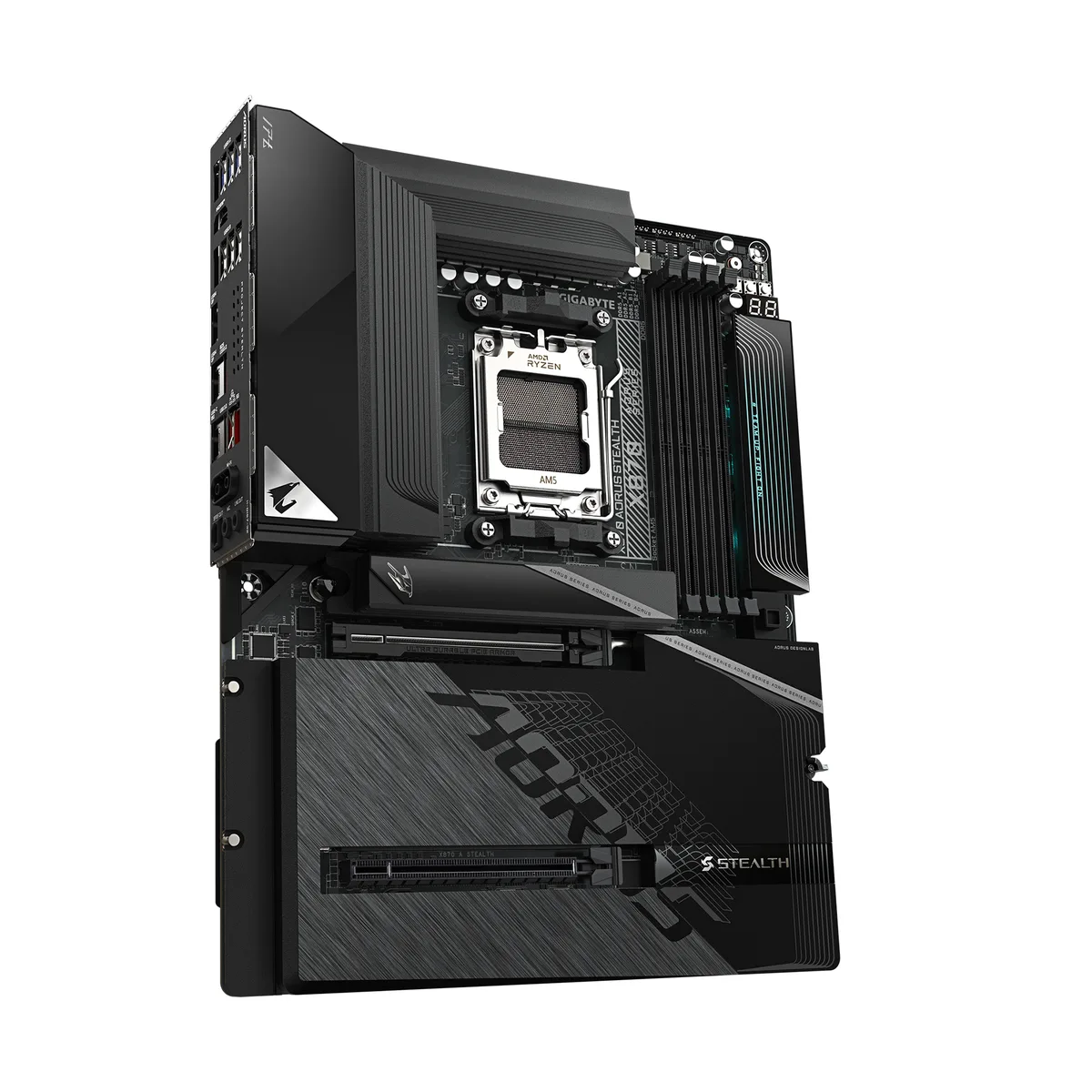

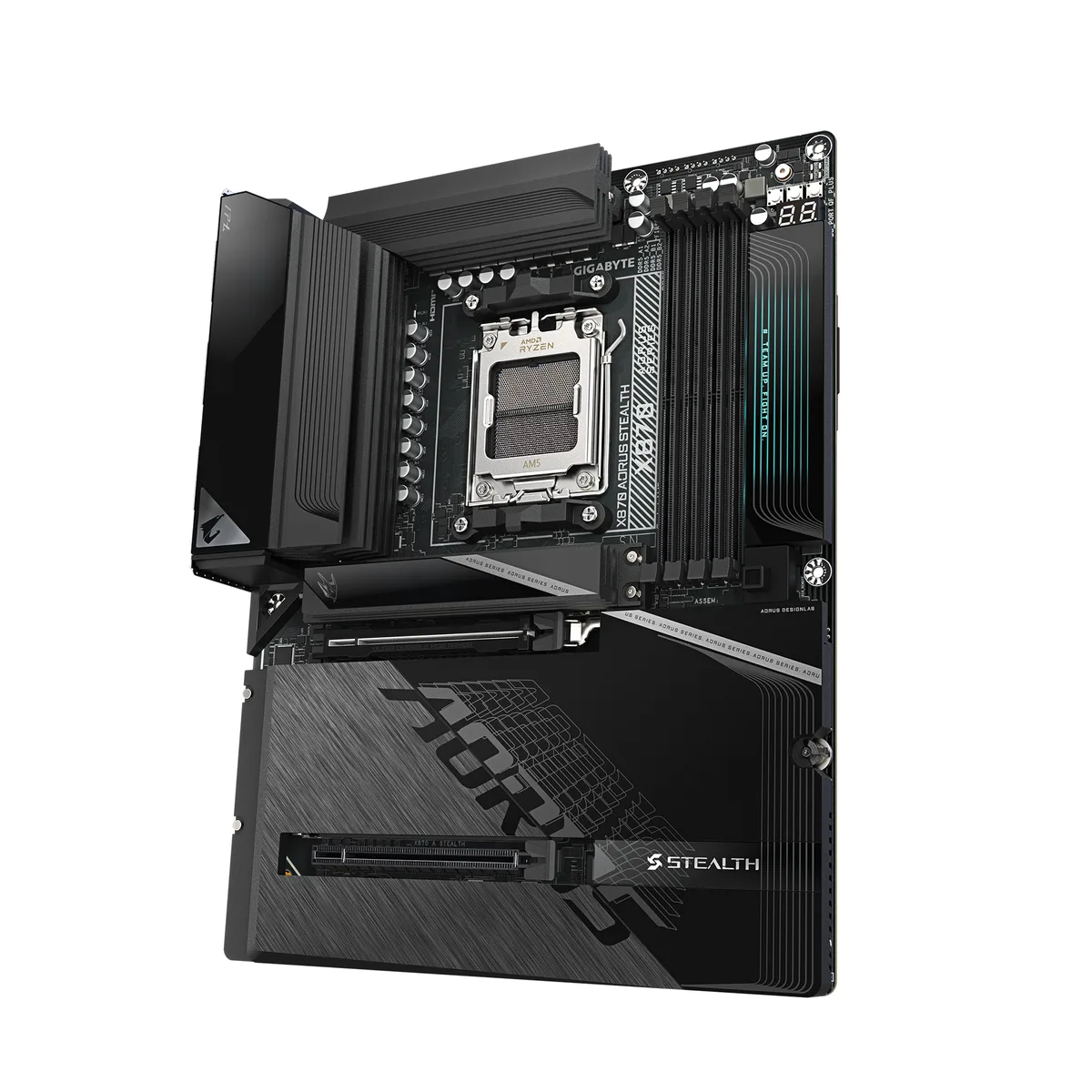

ATX motherboard with black VRM heatsinks and integrated rear I/O shield

GIGABYTE

GIGABYTE X870 AORUS STEALTH AMD motherboard

SKU CH-ZCCG-3SV11 MPN X870 AORUS STEALTH

AM5 board for Ryzen 9000, 8000 and 7000 CPUs with 16+2+2 power phases, four DDR5 slots up to 256 GB, four M.2 sockets, PCIe 5.0 graphics slot, USB4, WIFI7, 5 GbE and Bluetooth 5.4

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB

Model X870 AORUS STEALTH

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • Digital Twin 16+2+2 power phases with 6-layer PCB deliver steady voltage
  • Four DDR5 slots up to 256 GB with AMD EXPO support
  • Four M.2 slots including two PCIe 5.0 x4 and two PCIe 4.0 x4
  • WIFI7, Bluetooth 5.4 and 5 GbE LAN for high-speed networking

Socket AM5 Platform

The GIGABYTE X870 AORUS STEALTH motherboard is built for AMD Ryzen 9000, 8000 and 7000 series processors. It targets PC DIY enthusiasts and gamers who need an ATX board with high chassis compatibility. The design focuses on straightforward assembly and broad case support for custom builds.

16+2+2 Digital Power Phase

A digital twin 16+2+2 power phase design runs on a six-layer PCB with premium chokes and capacitors. This configuration delivers steady power delivery for demanding multi-core workloads. Advanced VRM heatsinks provide thermal headroom to maintain stable operation under sustained loads.

DIY EZ-Latch Features

PCIe EZ-Latch Plus allows single-click graphics card release. M.2 EZ-Latch Click and Plus enable screwless SSD and heatsink installation. WIFI EZ-Plug simplifies antenna attachment. DriverBIOS includes pre-installed Wi-Fi drivers. EZ-Debug Zone assists with organised troubleshooting during the build process.

Points forts

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • Digital Twin 16+2+2 power phases with 6-layer PCB deliver steady voltage
  • Four DDR5 slots up to 256 GB with AMD EXPO support
  • Four M.2 slots including two PCIe 5.0 x4 and two PCIe 4.0 x4
  • WIFI7, Bluetooth 5.4 and 5 GbE LAN for high-speed networking

Caractéristiques

BrandGIGABYTE
SeriesAORUS
CPU Socket TypeAM5
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetRealtek 5GbE
Max LAN Speed5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

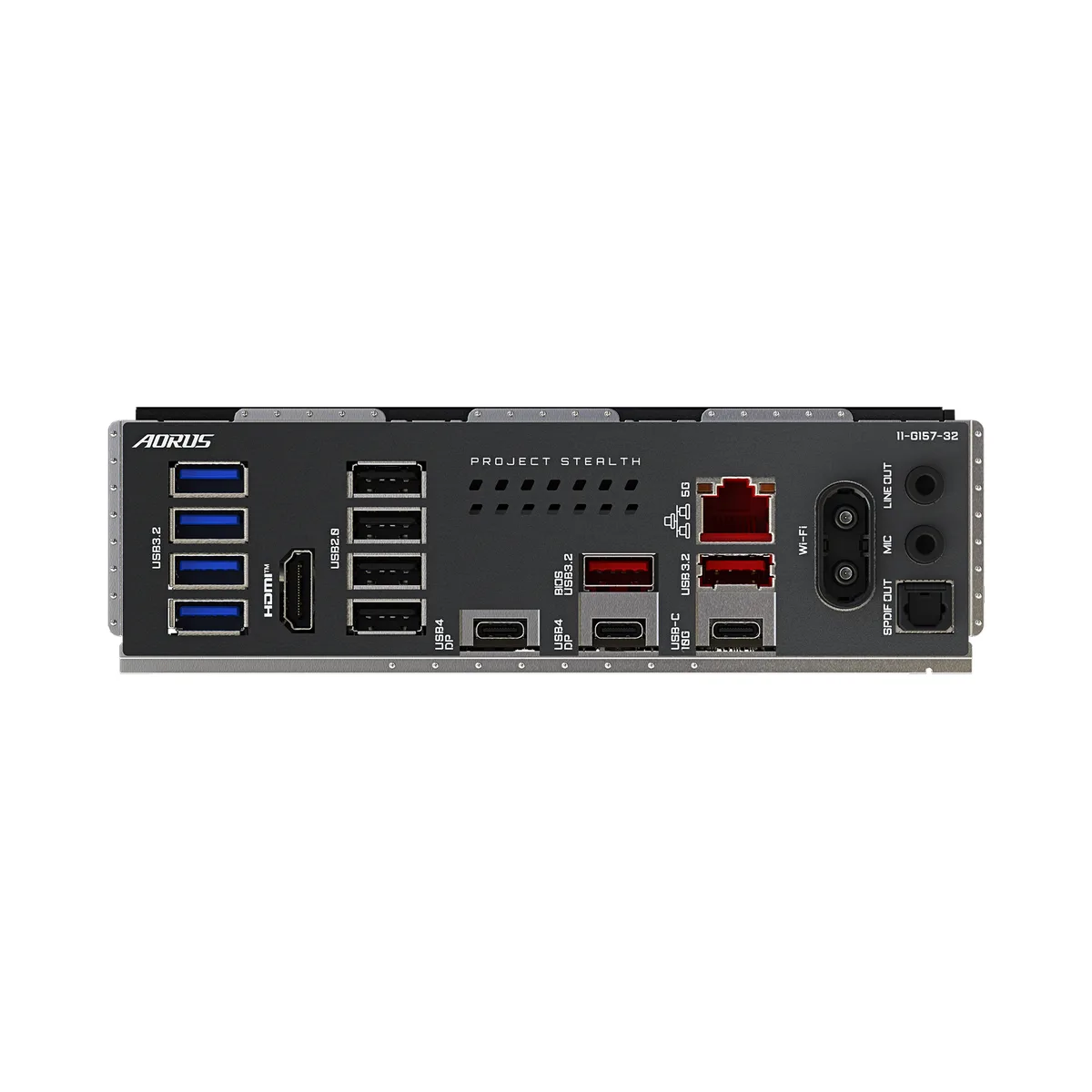

Back I/O Ports1 x HDMI port, 2 x antenna connectors, 2 x USB4 USB Type-C ports, 1 x USB Type-C port with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 2 Type-A ports, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks
Video PortsHDMI + 2 x USB Type-C
S-VideoNo
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort0 x DisplayPort
USB 3.18 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.08 x USB 2.0/1.1 ports
USB Type-C2 x USB4 USB Type-C port, 1 x USB Type-C port, with USB 3.2 Gen 2 support, 1 x USB Type-C port with USB 3.2 Gen 2x2 support
S/PDIF Out1 x Optical
Audio Ports2 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Poids d’expédition4.42 kg
Dimensions du colis373 × 318 × 122 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does the 16+2+2 power phase design mean for a Ryzen 9000 CPU in daily use?

The 16+2+2 digital twin power phases deliver steady current to the socket, helping the processor sustain higher boost clocks under load without throttling.

How does the PCIe 5.0 x16 slot and the four M.2 connectors limit drive and GPU choices?

The single PCIe 5.0 x16 slot runs at full speed for one graphics card, while two M.2 sockets operate at PCIe 5.0 x4 and two at PCIe 4.0 x4, so the fastest drives must occupy the first pair.

What clearance does the ATX board need inside a case for the rear I/O shield and VRM heatsinks?

The integrated I/O shield fits the standard ATX cut-out, and the VRM thermal armor sits within the usual keep-out zone, so any case that accepts ATX motherboards will accommodate it.
