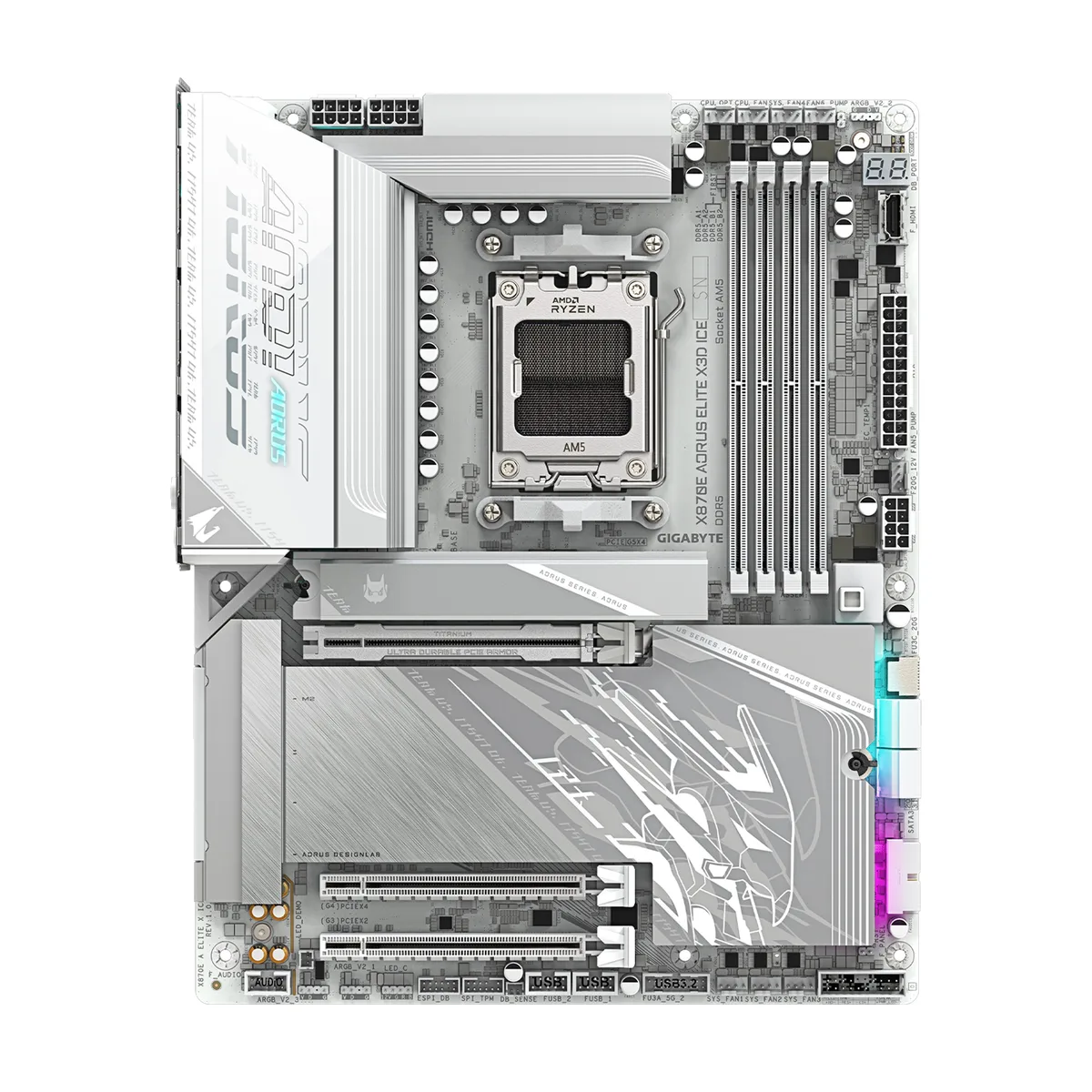

White ATX motherboard with silver heatsinks and blue accents

GIGABYTE

GIGABYTE X870E AORUS ELITE X3D ICE AMD motherboard

SKU CH-1K8S-GV3DH MPN X870E AORUS ELITE X3D ICE

AM5 board for Ryzen 7000, 8000 and 9000 CPUs with DDR5 up to 9000 MT/s, 16+2+2 phase VRM, four M.2 slots, PCIe 5.0, USB4 Type-C, WIFI 7 and 5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 9000(O.C)
  • Maximum Memory Supported256GB

Model X870E AORUS ELITE X3D ICE

  • X3D Turbo Mode 2.0 uses AI to boost Ryzen X3D gaming performance up to 25%
  • Digital twin 16+2+2 phase VRM delivers stable power for high-end Ryzen 9000 series CPUs
  • DDR5 memory overclocking up to 9000 MT/s via AMD EXPO profiles on four 288-pin slots
  • Four M.2 slots with EZ-Flex heatsinks support 2280 and 25110 drives at PCIe 5.0 speeds
  • WIFI 7 and BLUETOOTH 5.4 plus 5 GbE LAN provide high-speed wireless and wired connectivity

AMD AM5 X870E ATX motherboard

The GIGABYTE X870E AORUS ELITE X3D ICE is an ATX motherboard built for the AMD AM5 socket and X870E chipset. It supports Ryzen 7000, 8000 and 9000 series processors and provides a 16+2+2 phase digital VRM solution. Four DDR5 slots accept up to 256GB of memory with EXPO and XMP 3.0 profiles. The board includes Wi-Fi 7, BLUETOOTH 5.4 and 5 GbE wired networking.

Build focus: X3D gaming and high-speed storage

This board suits builders who want the X3D Turbo Mode 2.0 feature for Ryzen X3D processors and need four M.2 slots with PCIe 5.0 support from the CPU. It also fits users who require USB4 Type-C connectivity and a 7.1 channel Realtek ALC1220 audio codec. Users planning to run Ryzen 8000 series CPUs should note the primary PCIe x16 slot operates at PCIe 4.0 x8 instead of 5.0 x16.

Deciding spec: CPU-linked PCIe 5.0 x16 and M.2

The single specification that decides fit is the CPU-dependent PCIe 5.0 x16 slot and the CPU-linked M.2 connector. Ryzen 9000 and 7000 series processors enable PCIe 5.0 x16 graphics and PCIe 5.0 x4 storage on the top M.2 slot, while Ryzen 8000 series processors limit the graphics slot to PCIe 4.0 x8 and the M.2 to PCIe 4.0 speeds.

Points forts

  • X3D Turbo Mode 2.0 uses AI to boost Ryzen X3D gaming performance up to 25%
  • Digital twin 16+2+2 phase VRM delivers stable power for high-end Ryzen 9000 series CPUs
  • DDR5 memory overclocking up to 9000 MT/s via AMD EXPO profiles on four 288-pin slots
  • Four M.2 slots with EZ-Flex heatsinks support 2280 and 25110 drives at PCIe 5.0 speeds
  • WIFI 7 and BLUETOOTH 5.4 plus 5 GbE LAN provide high-speed wireless and wired connectivity

Caractéristiques

BrandGIGABYTE
ModelX870E AORUS ELITE X3D ICE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 9000(O.C)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia USB4 controller. When a device is installed
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

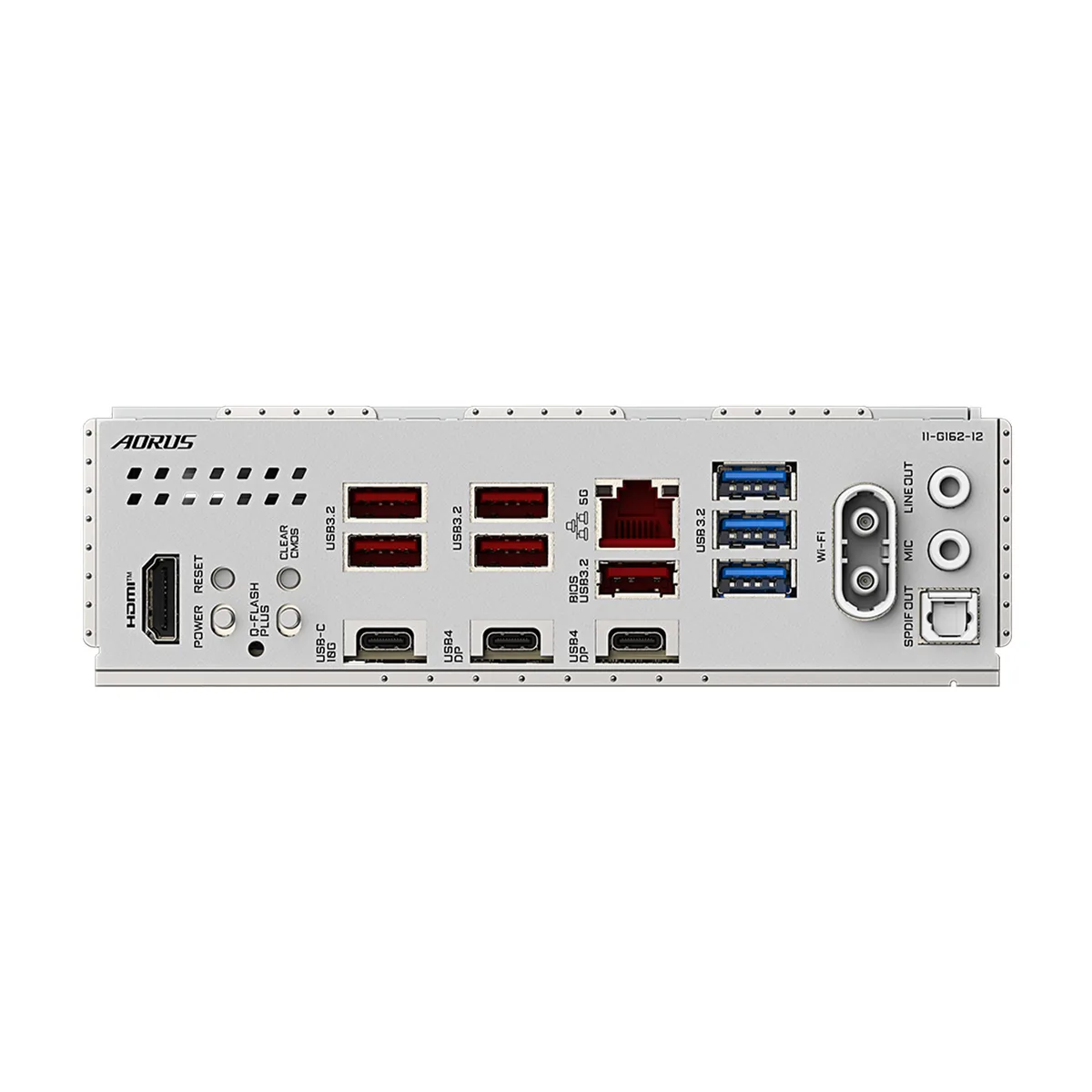

Back I/O Ports1 x HDMI port (Note)
1 x reset button
1 x power button
1 x Clear CMOS button
1 x Q-Flash Plus button
5 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB4 USB Type-C ports (DisplayPort (Note))
1 x RJ-45 port
3 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x noise detection header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Poids d’expédition3.02 kg
Dimensions du colis345 × 295 × 84 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will my Ryzen 7000 CPU run PCIe 5.0 on the top M.2 slot?

Yes. With a Ryzen 7000 processor the CPU-linked M.2 slot operates at PCIe 5.0 x4 for supported SSDs.

How many DDR5 modules can I install and what is the total limit?

Four slots accept up to 256 GB total of unbuffered non-ECC DDR5.

Does the board include Wi-Fi 7 and Bluetooth 5.4 out of the box?

Yes. The onboard wireless module supports 802.11 be and Bluetooth 5.4, and the antenna uses a quick-attach EZ-Plug design.
