Small black mini PC with blue accents, compact square design

GMKtec

GMKtec M5 Ultra Black 32GB+512GB barebone mini PC

SKU CH-GBB3-XJHEA

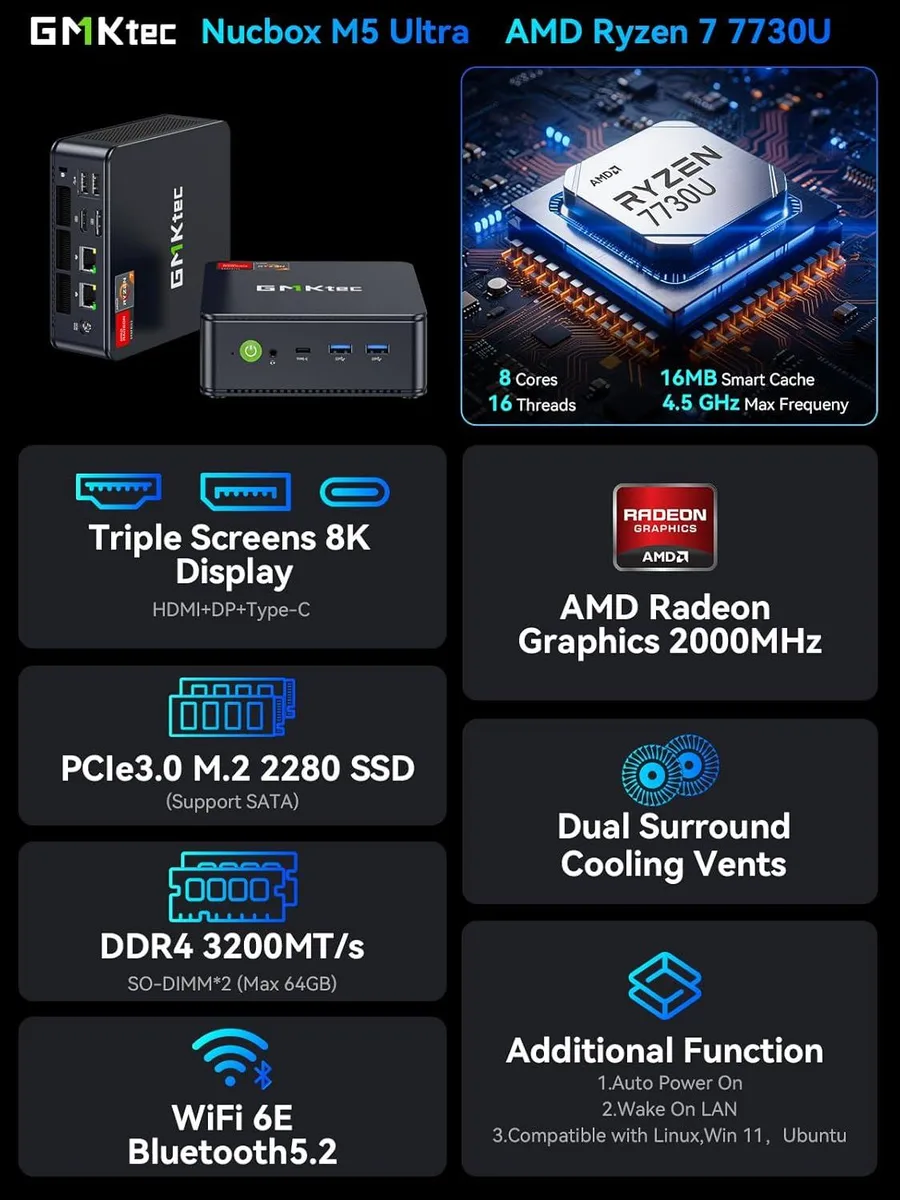

Barebone mini PC with Ryzen 7 7730U, 32 GB DDR4, 512 GB NVMe, dual 2.5 GbE LAN, WiFi 6E, Bluetooth 5.2 and triple 4K display output

  • ColorBlue
  • Form Factormini pc
  • AI FeaturesN/A
  • CPU TypeAMD Ryzen 7 7730U (8C/16T, Up to 4.5GHz, L2 4MB L3 16MB Cach
  • CPU SocketTSMC 7nm FinFET
  • CPU Cores8-Core

Color Black

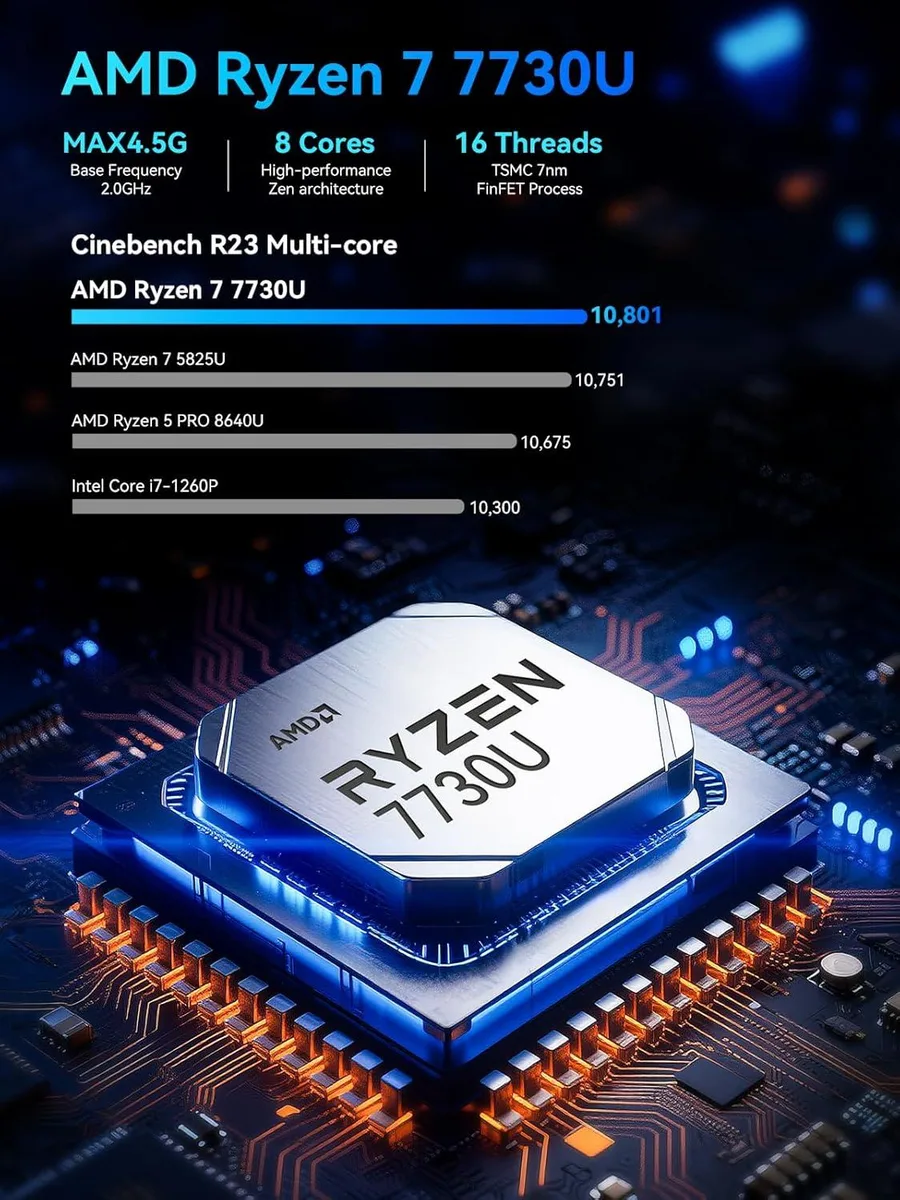

  • 8-core Ryzen 7 7730U reaches 4.5 GHz for responsive multitasking
  • 32 GB DDR4 dual-channel memory handles heavy workloads smoothly
  • 512 GB PCIe 3.0 NVMe SSD plus second M.2 slot for storage growth
  • Dual 2.5 GbE LAN ports enable fast wired networking
  • Triple 4K output via HDMI 2.0, DP and USB-C drives three displays

Ready-to-run mini PC for multitasking

The GMKtec M5 Ultra Black arrives with Windows 11 Pro, 32GB of DDR4 memory and a 512GB NVMe drive. An 8-core Ryzen 7 7730U processor reaches 4.5GHz boost clocks, while integrated Radeon graphics drive up to three 4K displays. Dual 2.5GbE ports, WiFi 6E and Bluetooth 5.2 handle wired and wireless networking.

Step up from entry-level boxes

The 35% performance lift over prior M5 models makes the jump worthwhile when you need simultaneous 4K output, virtualisation headroom or a compact PfSense/Unraid node. Builders who want discrete GPU power or more than 64GB of RAM should look elsewhere.

Verify your monitor inputs

Video outputs are HDMI 2.0, DisplayPort and USB-C with DP alt-mode — check that your screens match. The 19V 3.42A adapter is included, so confirm your mains voltage falls within the 100-240V AC range. DDR4 upgrades must be 3200MT/s modules; other DDR generations will not fit.

Points forts

  • 8-core Ryzen 7 7730U reaches 4.5 GHz for responsive multitasking
  • 32 GB DDR4 dual-channel memory handles heavy workloads smoothly
  • 512 GB PCIe 3.0 NVMe SSD plus second M.2 slot for storage growth
  • Dual 2.5 GbE LAN ports enable fast wired networking
  • Triple 4K output via HDMI 2.0, DP and USB-C drives three displays

Caractéristiques

BrandGMKtec
SeriesM5 Ultra
ModelM5 Ultra Black 32GB+512GB
Part NumberM5 Ultra Black 32GB+512GB
ColorBlue
Form Factormini pc
AI FeaturesN/A
CPU TypeAMD Ryzen 7 7730U (8C/16T, Up to 4.5GHz, L2 4MB L3 16MB Cache)
CPU SocketTSMC 7nm FinFET
CPU Cores8-Core
FSBN/A
North BridgeAMD Ryzen 7 Integrated
South BridgeN/A
Memory installed32GB DDR4 Dual Channel (16*2)
Memory Type SupportedDDR4 3200MT/S
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage Installed512GB PCIe 3.0 NVMe SSD
M.2 SlotDual M.2 2280 PCIe 3.0 x4
Discrete Graphic CardN/A
Integrated GraphicsAMD Radeon Graphics 8Cores 2000 MHz
Onboard AudioRealtek High Definition Audio
Channel2 Channel
LANDual 2.5Gbps RJ45
Max LAN Speed2500 Mbps
Wireless LANWiFi 6E (802.11ax)
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.2
Front USB2 x USB 3.2 Gen2 (10Gbps)
Front Audio Ports3.5mm Headphone Jack
Other Front PortsType-C (USB 3.2 Gen2, PD)
HDMIHDMI 2.0 (4K@60Hz)
DisplayPortDP 1.4 (8K@60Hz)
ThunderboltN/A
Rear USB2*USB 3.2 Gen2 (10Gbps), 2*USB 2.0 (480Mbps)
RJ45Dual 2.5Gbps RJ45 LAN
Power Supply65W DC Power Adapter (19V 3.42A)
Dimensions128.8 x 127 x 47.8 mm
Weight0.528 kg (Device only)
Remote ControlN/A
FeaturesTriple Display Output, Dual M.2 Slots, WiFi 6E
Packaging1 x GMKtec Nucbox M5 Ultra AMD Ryzen 7 7730U Mini PC, 1 x Power Adapter, 1 x VESA Mount with Screws, 1 x HDMI Cable, 1 x User Manual

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What are the physical dimensions and mounting options for the M5 Ultra mini PC?

The unit includes a VESA mount with screws for attachment to the back of a monitor or wall. It uses a 19 V 3.42 A DC power adapter with a 100-240 V AC input.

How do I install additional storage in the dual M.2 2280 slots, and what is the common mistake?

Open the case, insert the PCIe 3.0 x4 NVMe SSD into either M.2 2280 slot at an angle, then secure it with the screw. The common mistake is forgetting to enable the new drive in the BIOS before use.

When will the 32 GB DDR4 3200 MT/s memory need replacement, and what is the upgrade limit?

The installed 32 GB DDR4 dual-channel memory (2 x 16 GB) can be expanded to a maximum of 64 GB. Replacement is only needed if you require more capacity or a module fails.
