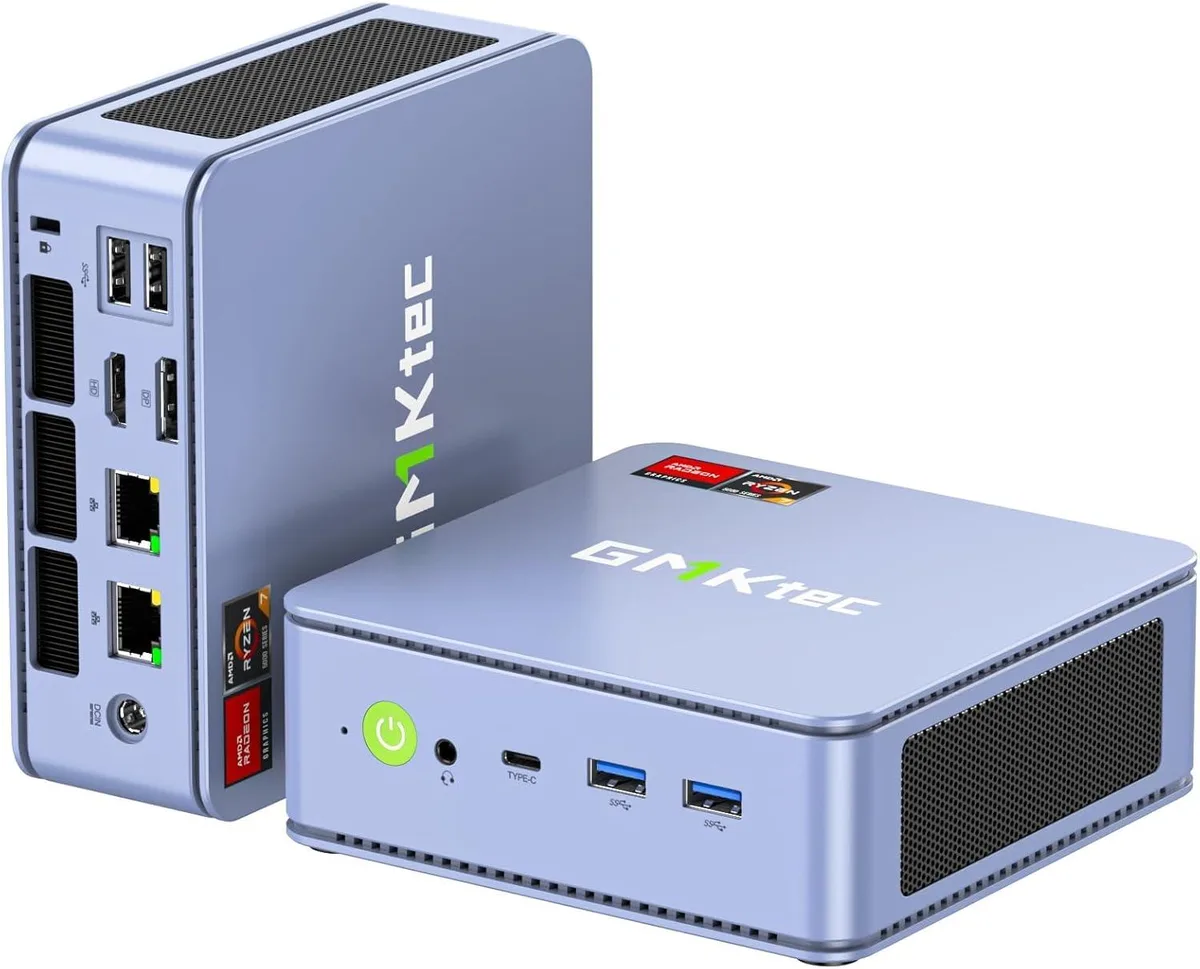

Compact blue mini PC with smooth matte finish

GMKtec

GMKtec M5 Ultra Blue barebone mini PC Ryzen 7 7730U 32GB 512GB

SKU CH-Q919-D3BPG

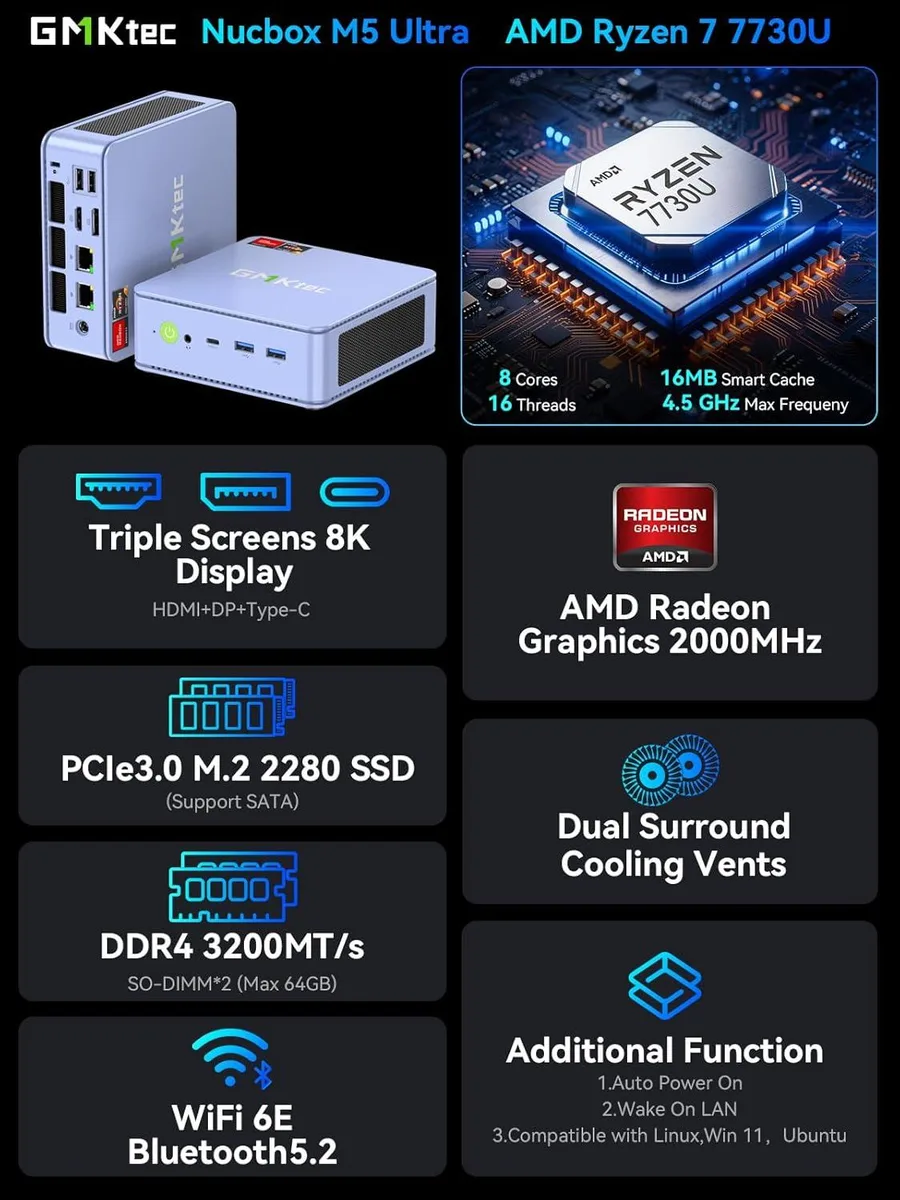

Compact mini PC with Ryzen 7 7730U, 32GB DDR4, 512GB NVMe, dual 2.5GbE LAN and triple 4K output

  • ColorBlue
  • Form Factormini pc
  • AI FeaturesN/A
  • CPU TypeAMD Ryzen 7 7730U (8C/16T, Up to 4.5GHz, L2 4MB L3 16MB Cach
  • CPU SocketTSMC 7nm FinFET
  • CPU Cores8-Core

Color Blue

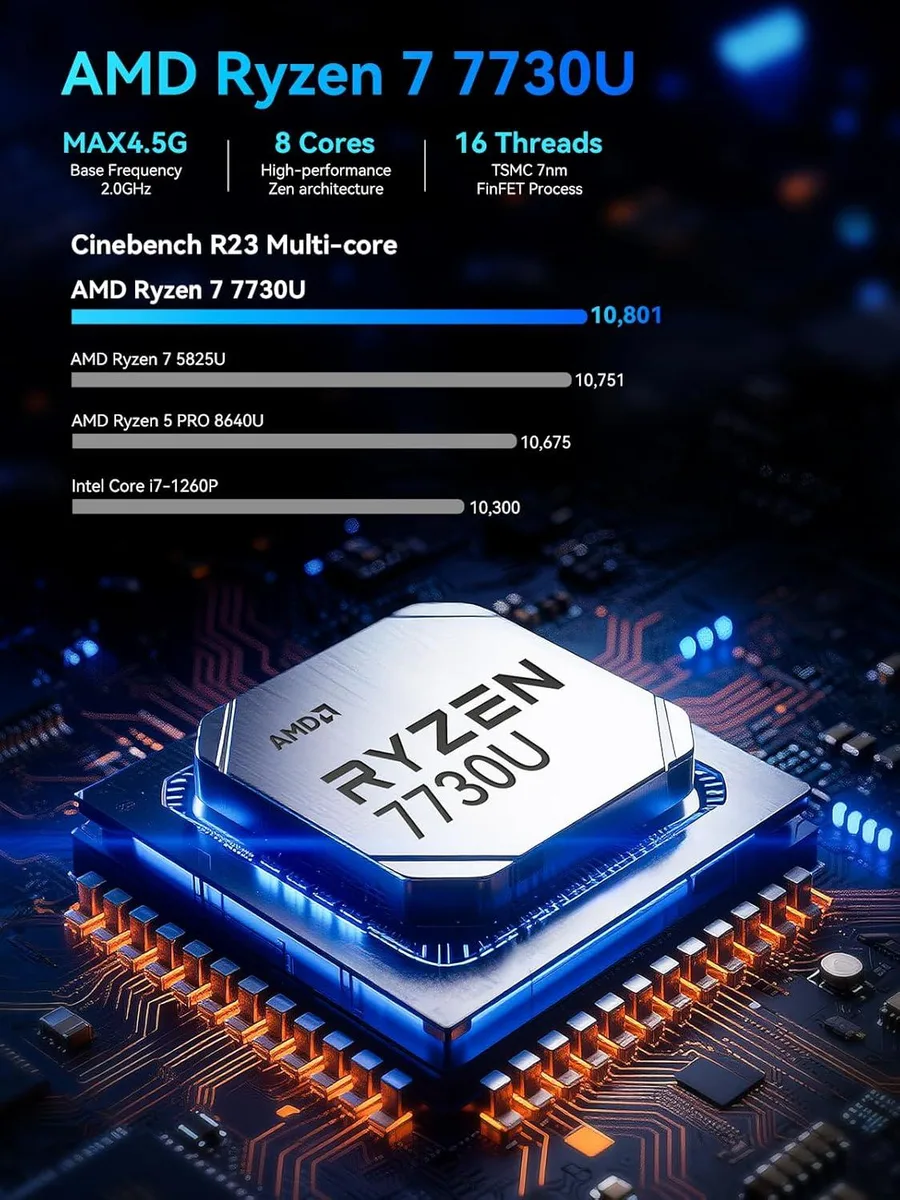

  • 8-core Ryzen 7 7730U reaches 4.5 GHz for responsive multitasking
  • 32 GB DDR4 dual-channel memory expandable to 64 GB
  • 512 GB PCIe 3.0 NVMe SSD plus second M.2 2280 slot
  • Dual 2.5 GbE LAN ports enable fast wired networking
  • Triple 4K 60 Hz output via HDMI 2.0 DP and USB-C

Compact Ryzen 7 barebone

The GMKtec M5 Ultra Blue is a new mini PC barebone built around an AMD Ryzen 7 7730U processor with 8 cores and 16 threads. It ships with 32GB of DDR4 3200MT/s memory in dual-channel configuration and a 512GB PCIe 3.0 NVMe SSD. The system supports triple 4K display output through HDMI 2.0, DisplayPort and USB-C.

Suited for multitasking and network roles

This unit fits users who need a small desktop for office productivity, content creation or light gaming with integrated Radeon graphics. Dual 2.5GbE LAN ports make it practical for home server, firewall or router applications. Buyers who require discrete graphics performance or more than 64GB of memory should consider other platforms.

Dual M.2 2280 slots decide storage growth

The board provides two M.2 2280 PCIe 3.0 x4 sockets, allowing total SSD capacity to be expanded well beyond the included 512GB drive. Memory can be upgraded to 64GB using DDR4 3200MT/s modules. These two expansion paths determine whether the chassis meets long-term workload demands.

Points forts

  • 8-core Ryzen 7 7730U reaches 4.5 GHz for responsive multitasking
  • 32 GB DDR4 dual-channel memory expandable to 64 GB
  • 512 GB PCIe 3.0 NVMe SSD plus second M.2 2280 slot
  • Dual 2.5 GbE LAN ports enable fast wired networking
  • Triple 4K 60 Hz output via HDMI 2.0 DP and USB-C

Caractéristiques

BrandGMKtec
SeriesM5 Ultra
ModelM5 Ultra Blue 32GB+512GB
Part NumberM5 Ultra Blue 32GB+512GB
ColorBlue
Form Factormini pc
AI FeaturesN/A
CPU TypeAMD Ryzen 7 7730U (8C/16T, Up to 4.5GHz, L2 4MB L3 16MB Cache)
CPU SocketTSMC 7nm FinFET
CPU Cores8-Core
FSBN/A
North BridgeAMD Ryzen 7 Integrated
South BridgeN/A
Memory installed32GB DDR4 Dual Channel (16*2)
Memory Type SupportedDDR4 3200MT/S
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage Installed512GB PCIe 3.0 NVMe SSD
M.2 SlotDual M.2 2280 PCIe 3.0 x4
Discrete Graphic CardN/A
Integrated GraphicsAMD Radeon Graphics 8Cores 2000 MHz
Onboard AudioRealtek High Definition Audio
Channel2 Channel
LANDual 2.5Gbps RJ45
Max LAN Speed2500 Mbps
Wireless LANWiFi 6E (802.11ax)
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.2
Front USB2 x USB 3.2 Gen2 (10Gbps)
Front Audio Ports3.5mm Headphone Jack
Other Front PortsType-C (USB 3.2 Gen2, PD)
HDMIHDMI 2.0 (4K@60Hz)
DisplayPortDP 1.4 (8K@60Hz)
ThunderboltN/A
Rear USB2*USB 3.2 Gen2 (10Gbps), 2*USB 2.0 (480Mbps)
RJ45Dual 2.5Gbps RJ45 LAN
Power Supply65W DC Power Adapter (19V 3.42A)
Dimensions128.8 x 127 x 47.8 mm
Weight0.528 kg (Device only)
Remote ControlN/A
FeaturesTriple Display Output, Dual M.2 Slots, WiFi 6E
Packaging1 x GMKtec Nucbox M5 Ultra AMD Ryzen 7 7730U Mini PC, 1 x Power Adapter, 1 x VESA Mount with Screws, 1 x HDMI Cable, 1 x User Manual

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I confirm the Ryzen 7 7730U is running at its 4.50 GHz turbo speed after setup?

Open Task Manager in Windows 11 Pro, select the Performance tab and watch the CPU frequency climb to 4.50 GHz under load.

The box lists 32 GB DDR4 3200 and a 512 GB PCIe 3.0 NVMe SSD — do I need to buy any RAM or storage modules separately?

No, 32 GB DDR4 dual-channel (2×16 GB) and the 512 GB NVMe SSD are already installed; the second M.2 2280 slot is free if you want more storage later.

Should I choose the 32 GB / 512 GB version or step up to the 64 GB max capacity for virtualization workloads?

The 32 GB model handles most VMs well; upgrade to 64 GB DDR4 3200 only if you run many simultaneous machines or large datasets.
