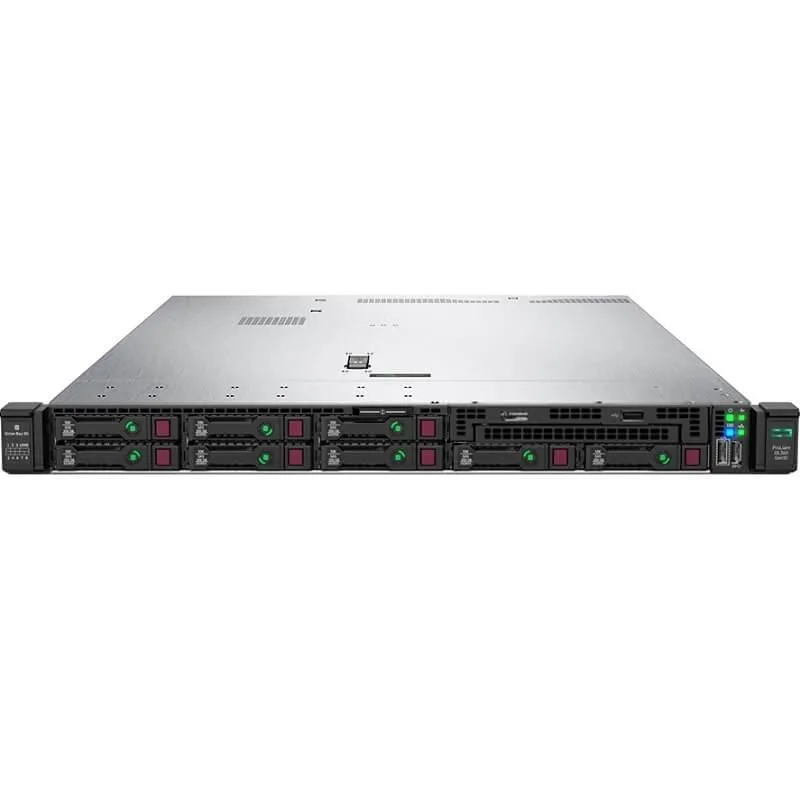

1U rack server with eight 2.5-inch drive bays front panel

HP

HP ProLiant DL360 Gen9 8-bay SFF Xeon E5-2620 v3 2.4GHz 4GB 2×146GB SAS H240ar

SKU CH-X22G-NVP3F

1U rack server with one Xeon E5-2620 v3 at 2.4GHz, 4GB DDR4, two 146GB 15K SAS drives and an H240ar RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon E5 v3
  • MAX Processors2
  • ChipsetIntel C610
  • Six-core Xeon E5-2620 v3 at 2.4GHz for multi-thread workloads
  • 4GB DDR4 ECC registered memory installed with 24 DIMM slots for expansion
  • Two 146GB 15K SAS drives deliver fast sequential access
  • Smart HBA H240ar supports RAID 0/1/5/6/10/50/60 for data protection
  • Dual 500W hot-swap power supplies provide redundancy in 1U rack form

1U rack server for dense compute

The HP ProLiant DL360 Gen9 fits a single Xeon E5-2620 v3 six-core processor at 2.4GHz with 4GB of DDR4 memory into a 1U chassis. Eight small-form-factor SAS bays and an H240ar controller supporting RAID 0/1/5/6/10/50/60 make it suited to storage-heavy workloads in space-constrained racks. Dual 500W hot-swap power supplies provide redundancy for continuous operation.

Tool-less rails and hot-swap bays

The server slides into a standard rack on tool-less rails and the eight 2.5-inch drive bays accept SAS or SATA drives without shutting down. The H240ar controller is pre-cabled to the backplane so no internal routing is required. Memory expansion uses 24 DDR4 DIMM slots arranged twelve per processor; mixing capacities is supported but speed will match the slowest installed module. A second processor kit must be added before populating the second bank of twelve slots.

Steady throughput under load

With two 146GB 15K SAS drives the array delivers consistent sequential bandwidth for database logs or virtualisation storage. The H240ar maintains RAID parity calculations across all supported levels without throttling during sustained writes. Redundant 500W supplies share load evenly so a single supply failure does not reduce available power to the CPU or drive backplane. The Matrox G200 graphics controller consumes minimal power leaving the thermal envelope for compute.

Points forts

  • Six-core Xeon E5-2620 v3 at 2.4GHz for multi-thread workloads
  • 4GB DDR4 ECC registered memory installed with 24 DIMM slots for expansion
  • Two 146GB 15K SAS drives deliver fast sequential access
  • Smart HBA H240ar supports RAID 0/1/5/6/10/50/60 for data protection
  • Dual 500W hot-swap power supplies provide redundancy in 1U rack form

Caractéristiques

BrandHP
SeriesProLiant
ModelProliant DL360 G9
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon E5 v3
MAX Processors2
ChipsetIntel C610
Installed Memory Size4GB
Memory TypeDDR4
Max Memory Capacity4GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s ECC Registered, actual memory speed dependent on the processor capability).
Number of Memory Slots24
Storage ControllerHP Smart HBA H240ar Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media DrivesNone
GPU TypeMatrox G200
Video Memory16MB
Remote ManagementiLO Management (standard).
LAN Ports4 x Ports
Expansion SlotsPrimary Riser: 2 PCIe 3.0 Slots (1 & 2) available: 1x Full-Height Half Length, 1x Half-Lenth Half Height. Optional PCIe 3.0 slot 3 - Full-Height Half Height (Secondary PCIe Riser and dual CPU required).
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight63.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I confirm the H240ar controller is detecting both 146GB SAS drives after installation?

During POST the H240ar BIOS will list each 146GB drive and show the configured RAID level; you can also enter the Smart Storage Administrator to verify logical drive status.

Which items ship with the server and which must be purchased separately?

The unit includes one Xeon E5-2620 v3 processor, 4GB DDR4, two 146GB 15K SAS drives with trays, the H240ar controller, and dual 500W power supplies; additional CPUs, memory modules, drives, and an operating system are not included.

Should I choose the single-processor configuration or add a second Xeon for my workload?

The board supports up to two processors and 24 DIMM slots; adding a second Xeon doubles core count to 12 physical cores and enables the second set of 12 memory slots for higher capacity.
