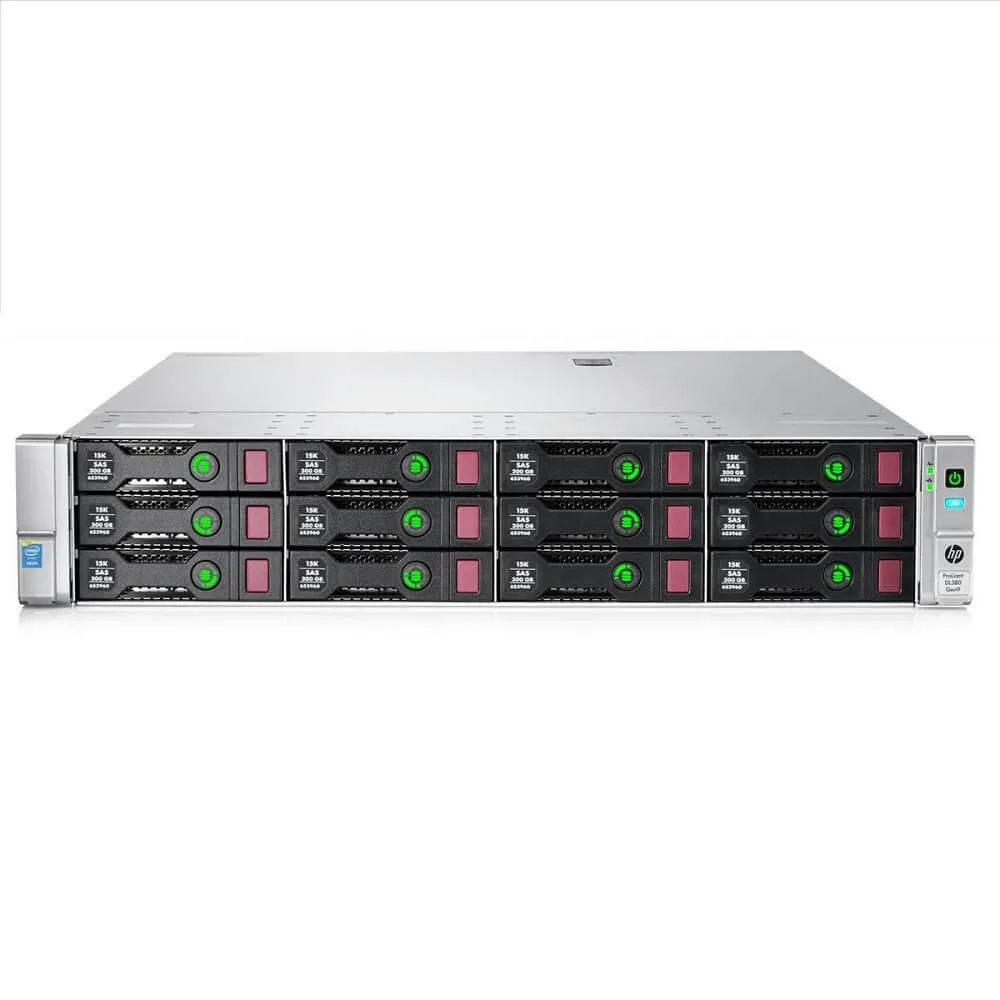

Silver 2U rack server with twelve 3.5-inch drive bays visible on the front

HP

HP ProLiant DL380 Gen9 2U rack server E5-2609 v3 1.9GHz 96GB 2x 1TB SAS H240ar

SKU CH-6Q8F-0846X

2U rack server with single Xeon E5-2609 v3, 96GB DDR4, dual 1TB SAS drives and redundant 500W power

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon E5 v3
  • MAX Processors2
  • ChipsetIntel C610
  • Six-core Xeon processor runs at 1.9 GHz for compute tasks
  • 96 GB DDR4 memory fills every DIMM slot for high capacity
  • Two 1 TB SAS drives spin at 7.2 K rpm for bulk storage
  • Smart HBA H240ar controller supports RAID 0/1/5/6/10/50/60
  • Dual 500 W redundant power supplies keep the server running

2U rack server for core workloads

The HP ProLiant DL380 Gen9 is a 2U rack server built around a single Intel Xeon E5-2609 v3 six-core processor running at 1.9 GHz. It ships with 96 GB of DDR4 ECC registered memory and two 1 TB 7.2 K SAS drives managed by a Smart HBA H240ar controller. Dual 500 W hot-swap power supplies provide redundancy for continuous operation in data-centre environments.

Upgrade from single-socket entry systems

This configuration replaces older single-socket towers or 1U units that lack memory headroom and drive redundancy. The jump is worthwhile when workloads need 24 DIMM slots for up to 96 GB of DDR4, hardware RAID 0/1/5/6/10/50/60 across 12 large-form-factor bays, and a second processor socket ready for future expansion without a chassis change.

Fits standard 2U racks with room to grow

The server occupies 2U of rack space and uses the Intel C610 chipset with Matrox G200eH2 graphics for basic management display. Twelve 3.5-inch SAS bays are populated with two drives, leaving ten bays free for additional SAS or SATA storage. An optional rear cage can add three more LFF or two SFF bays using the second riser slot, while the open second CPU socket doubles core count and memory channels when a matching Xeon E5 v3 or v4 processor is added.

Points forts

  • Six-core Xeon processor runs at 1.9 GHz for compute tasks
  • 96 GB DDR4 memory fills every DIMM slot for high capacity
  • Two 1 TB SAS drives spin at 7.2 K rpm for bulk storage
  • Smart HBA H240ar controller supports RAID 0/1/5/6/10/50/60
  • Dual 500 W redundant power supplies keep the server running

Caractéristiques

BrandHP
SeriesProLiant
ModelProliant DL380 G9
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon E5 v3
MAX Processors2
ChipsetIntel C610
Installed Memory Size96GB
Memory TypeDDR4
Max Memory Capacity96GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s ECC Registered, actual memory speed dependent on the processor capability).
Number of Memory Slots24
Storage ControllerHP Smart HBA H240ar Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media DrivesNone
GPU TypeMatrox G200eH2
Video Memory16MB
Remote ManagementiLO Management (standard).
LAN Ports4 x Ports
Expansion SlotsPrimary Riser: 3 PCIe 3.0 Slots (1-3) available: 2x Full-Height Half Length, 1x Half-Lenth Full Height. Optional 3 additional slots (Slot 2 PCIe Riser and dual CPU required).
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight63.0000LBS

Questions sur cet article

What rack height and drive bay count does the ProLiant DL380 Gen9 need for mounting?

The server occupies 2U of rack space and provides twelve 3.5-inch large form factor drive bays for SAS drives.

How is the Smart HBA H240ar controller configured during installation, and what step is often missed?

The H240ar must be set to HBA mode or RAID mode in the UEFI/BIOS before creating arrays; skipping this leaves the drives invisible to the OS installer.

Which components will require replacement first in the DL380 Gen9, and what are their specifications?

The two 500W redundant power supplies and the 7.2K RPM 1TB SAS drives are the primary field-replaceable units; memory uses DDR4 ECC Registered modules up to 2400 MT/s across 24 slots.
