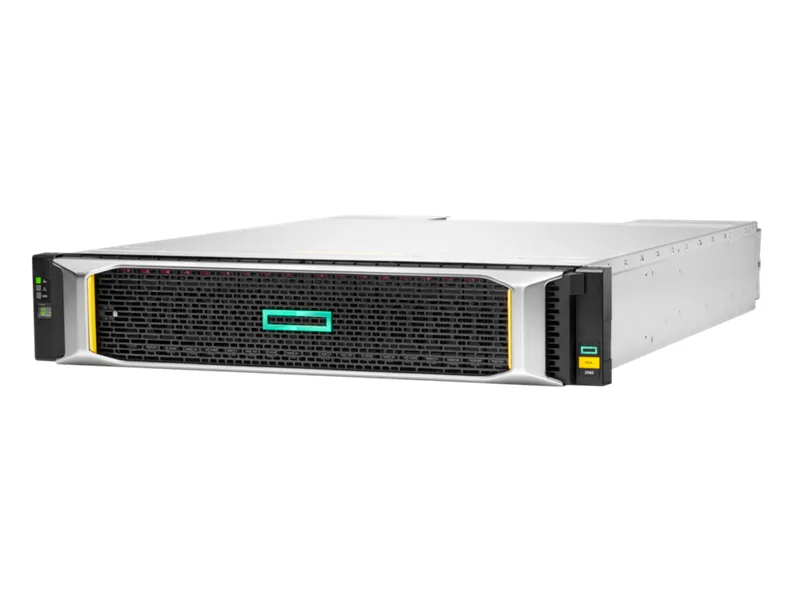

HPE MSA 2060 Gen6 2U rack storage array with twelve 2.4TB SAS drives installed

HPE

HPE MSA 2060 Gen6 2U rack server 28.8TB 12x2.4TB SAS P79249-B25

SKU CH-J0M9-BQRJ3 MPN P79249-B25

2U storage array with 12 installed 2.4TB SAS drives providing 28.8TB capacity and dual 12Gb SAS controllers

  • WorkloadStorage Server
  • TypeSmall Form Factor
  • Rack Height2U
  • Hard Drive (Installed)28.8TB (12 x 2.4TB)
  • Storage Controller2 x 12 Gb SAS 4-port Controller
  • HDD InterfaceSAS

HDD 28.8TB (12 x 2.4TB)

Option 2 x 12 Gb SAS 4-port controllers

  • 8 TB raw capacity from 12 installed 2.4 TB SAS drives
  • Dual 12 Gb SAS 4-port controllers provide redundant host connectivity
  • 2U rack form factor fits standard 24-bay SFF enclosure
  • Two 580 W redundant power supplies maintain uptime
  • Supports Windows Server 2022, 2019, 2016, VMware vSphere 6.7, Red Hat 8, SLES 15

HPE MSA 2060 Gen6 2U storage array

The HPE MSA 2060 Gen6 is a flash-ready hybrid storage system built for small and remote office deployments. It delivers shared storage with a focus on simplicity and application acceleration. This 2U rackmount unit ships with twelve 2.4TB SAS hard drives pre-installed.

Capacity and headroom

The array provides 28.8TB of raw capacity from the factory-installed drives across 24 small form factor bays. Maximum raw capacity reaches 1.78 PB using only SFF drives or 2.71 PB when mixing SFF and LFF enclosures. Up to nine additional enclosures can be added for further expansion. Performance peaks at 395,000 IOPS for demanding workloads.

Integration and build fit

Dual 12Gb SAS 4-port controllers provide host connectivity and redundancy. Two 580W redundant power supplies are included for uptime assurance. Certified operating systems include Windows Server 2022, 2019, 2016, VMware vSphere 6.7, Red Hat Linux 8 and SuSE SLES 15. The system measures 3.5 x 17.5 x 20.0 inches and weighs 11 lbs.

Points forts

  • 8 TB raw capacity from 12 installed 2.4 TB SAS drives
  • Dual 12 Gb SAS 4-port controllers provide redundant host connectivity
  • 2U rack form factor fits standard 24-bay SFF enclosure
  • Two 580 W redundant power supplies maintain uptime
  • Supports Windows Server 2022, 2019, 2016, VMware vSphere 6.7, Red Hat 8, SLES 15

Caractéristiques

BrandHPE
SeriesMSA 2060 Gen6
ModelP79249-B25
WorkloadStorage Server
TypeSmall Form Factor
Rack Height2U
Hard Drive (Installed)28.8TB (12 x 2.4TB)
Storage Controller2 x 12 Gb SAS 4-port Controller
HDD InterfaceSAS
Max HDD CapacityMaximum array raw capacity of 1.78 PB (all SFF) and 2.71 PB (SFF & LFF)
Expansion Bays24 drive bay 2060 SFF drive enclosure or 12 drive bay 2060 LFF drive enclosure (add up to 9 with any combination)
Compatible/Certified OSWindows Server 2022
Windows Server 2019
Windows Server 2016
VMWare vSphere 6.7
Red Hat Linux 8
SuSE SLES 15
Power CharacteristicsTwo 580W redundant power supplies
Dimensions3.5" x 17.5" x 20.0"
Weight11 lbs.
Poids d’expédition13.61 kg
Dimensions du colis762 × 635 × 254 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Can the 12Gb SAS controllers connect to our existing 6Gb SAS host bus adapters?

Yes, the dual 12Gb SAS 4-port controllers negotiate down to 6Gb or 3Gb speeds, so current HBAs will link without extra configuration.

How do I verify the array is healthy after racking and cabling?

The front-panel LEDs show green for power and drive status; the management GUI then reports all twelve 2.4TB drives online with zero degraded or failed indicators.

Which items ship inside the 2U chassis and what must I order separately?

The unit includes two 580W redundant power supplies, two 12Gb SAS controllers, and twelve 2.4TB SAS drives pre-installed; host cables, SFP+ transceivers, and any expansion enclosures are sold separately.
