HPE
HPE P86770-005 ProLiant ML30 Gen11 Xeon 6325P 32GB 2x2TB SATA Tower Server
Tower server with a 3.50 GHz Intel Xeon 6 quad-core processor, 32GB DDR5 memory, and two 2TB SATA hard drives
- WorkloadGeneral Purpose Server
- TypeTower
- Rack Height4U
- Hot-swap Fans1 x Non-hot plug non-redundant system fan
- CPU TypeIntel Xeon 6
- CPU Speed6325P (3.50 GHz)
- Quad-core Xeon 6325P at 3.5 GHz for responsive compute
- 32 GB DDR5 UDIMM at 4800 MT/s for fast memory bandwidth
- 2 x 2 TB SATA 7.2K drives for high-capacity storage
- MR216i-p controller with x16 lanes for flexible RAID options
- Four expansion slots and 1 GbE 4-port adapter for I/O growth

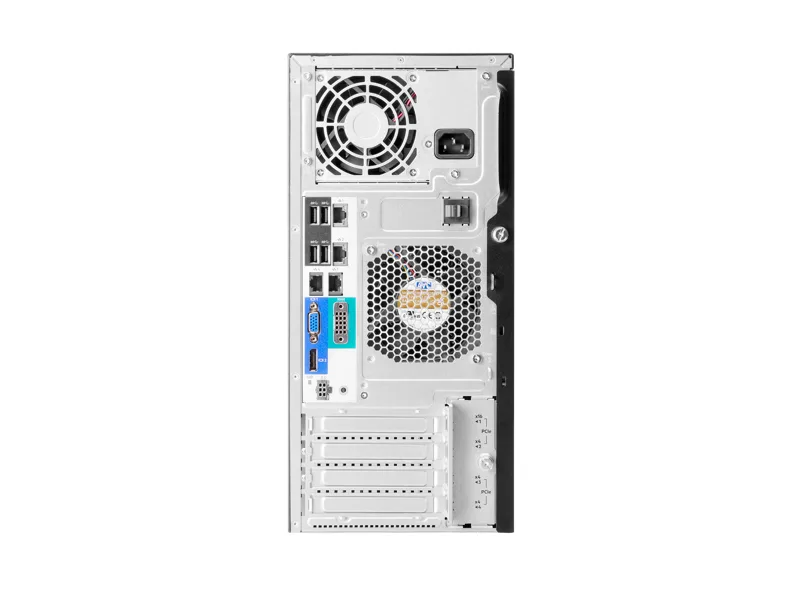

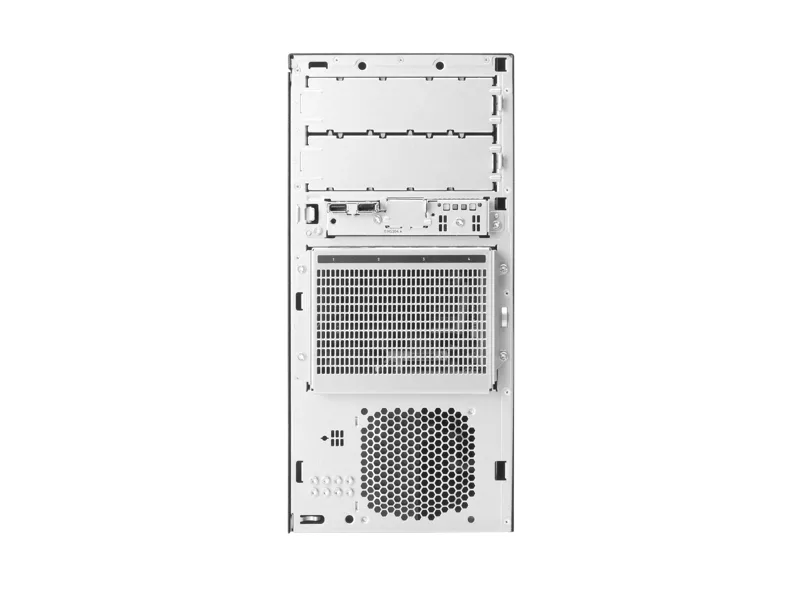

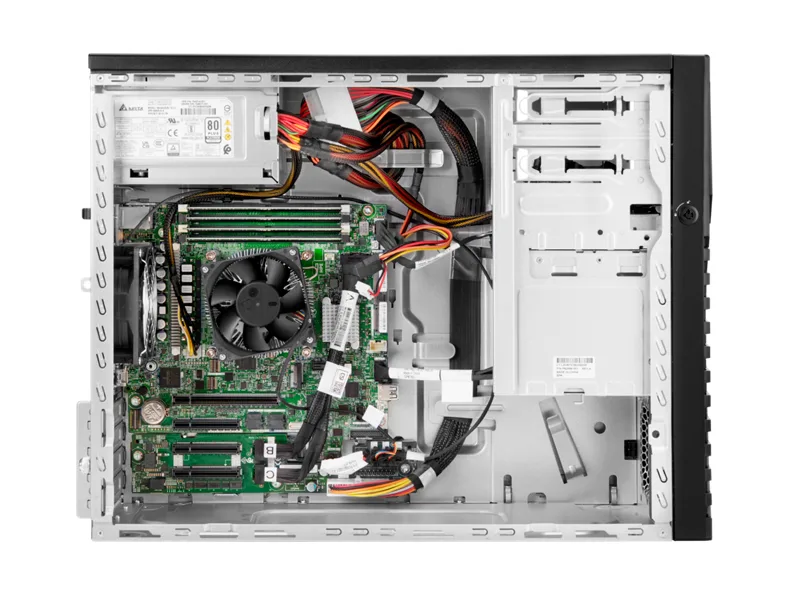

General-purpose tower server
The HPE ProLiant ML30 Gen11 is a single-socket tower server built around an Intel Xeon 6325P quad-core processor running at 3.50 GHz with 12 MB L3 cache. It ships with 32 GB of HPE DDR5 Smart Memory as a single 4800 MT/s UDIMM and two 2 TB SATA 7.2K LFF hard drives managed by an MR216i-p Gen11 storage controller. Four expansion slots provide room for additional I/O cards.
Thermals and power in normal use
A single 500 W Flex Slot Platinum hot-plug power supply delivers power to the system while a non-hot-plug non-redundant system fan handles airflow through the 4U chassis. The embedded 1 Gb four-port Ethernet adapter supports network connectivity without adding a discrete card. Power draw scales with the installed processor, memory and storage configuration under typical general-purpose workloads.
Build integration and expansion
The tower form factor fits on a desk or shelf and uses LFF drive bays for the included SATA hard drives. Four expansion slots accept additional controllers, network adapters or other PCIe cards to extend functionality. Builds needing redundant cooling, hot-swap drive bays, a second processor or higher-wattage redundant power supplies will require a different platform.
Points forts
- Quad-core Xeon 6325P at 3.5 GHz for responsive compute
- 32 GB DDR5 UDIMM at 4800 MT/s for fast memory bandwidth
- 2 x 2 TB SATA 7.2K drives for high-capacity storage
- MR216i-p controller with x16 lanes for flexible RAID options
- Four expansion slots and 1 GbE 4-port adapter for I/O growth
Caractéristiques
| Brand | HPE |
|---|---|
| Series | ProLiant ML30 G11 |
| Model | P86770-005 |
| Workload | General Purpose Server |
| Type | Tower |
| Rack Height | 4U |
| Hot-swap Fans | 1 x Non-hot plug non-redundant system fan |
| CPU Type | Intel Xeon 6 |
| CPU Speed | 6325P (3.50 GHz) |
| Number of CPU Cores | Quad-Core Processor |
| Cache Memory | 12 MB L3 |
| # of Processors Installed | 1 |
| Installed Memory Size | 32GB |
| Memory Type | HPE DDR5 Smart Memory |
| Memory Features | 1 x 32GB UDIMM, 4800 MT/s |
| Hard Drive (Installed) | 2 x HPE 2TB SATA 6G Business Critical 7.2K LFF LP HDD |
| Storage Controller | HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller |
| Ethernet Controller | Embedded 1Gb 4-Port Ethernet Adapter |
| Expansion Slots | 4 |
| Power Characteristics | 1 x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| Poids d’expédition | 18.14 kg |
| Dimensions du colis | 483 × 457 × 127 mm |
Questions sur cet article
How do I install the MR216i-p storage controller and which step is commonly missed?
Seat the MR216i-p Gen11 x16 Lanes controller into a PCIe x16 slot, connect the SATA cables to the two installed 2TB 7.2K LFF drives, then enable the controller in UEFI before creating any RAID volume.
What maintenance will the single 500W Flex Slot Platinum power supply need over time?
The hot-plug 500W supply can be replaced without shutting down the server; plan to swap it once its internal fan noise increases or the iLO health log reports a power-supply warning.
Which limit appears first when the Xeon 6325P runs at 3.50 GHz under sustained load with the single non-hot-plug fan?
The lone non-redundant system fan sets the thermal ceiling; prolonged 3.50 GHz utilisation will trigger CPU throttling before the 500W power supply reaches its rated output.
