HPE ProLiant DL340 Gen12 Xeon 6505P 12-Core 2.2 GHz 64GB DDR5 2x480GB SATA SSD 2x1000W Rack Server P87780-005
General-purpose 2U rack server with a 12-core Intel Xeon 6 processor, 64GB DDR5 memory, dual 480GB SATA SSDs and redundant 1000W power supplies
- WorkloadGeneral Purpose Server
- TypeRack
- CPU TypeIntel Xeon 6
- CPU Speed6505P (2.20 GHz)
- Number of CPU Cores12-Core Processor
- Cache Memory48 MB L3
- 12-core Xeon 6505P at 2.20 GHz for compute density
- 64 GB DDR5 Smart Memory in single module for expansion headroom
- Dual 480 GB SATA SSD for mirrored boot and fast OS access
- Broadcom BCM5719 quad-port 1 GbE adapter for network flexibility
- Redundant 2x1000W power supplies for continuous uptime
General-purpose rack server

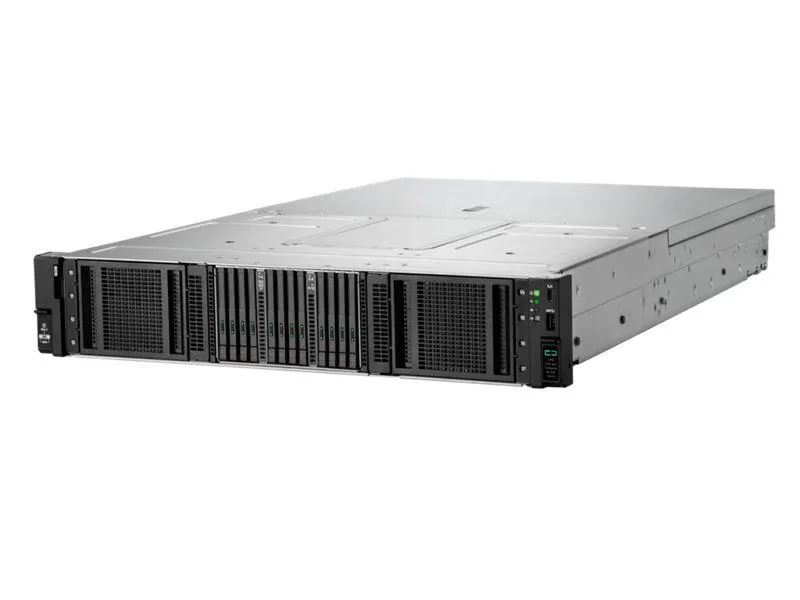

The HPE ProLiant DL340 Gen12 is a rack-mounted server system built around a single Intel Xeon 6505P processor with 12 cores running at 2.2 GHz. It ships with 64 GB of HPE DDR5 Smart Memory in a single module and includes a Broadcom BCM5719 four-port 1 GbE adapter. Dual 1000 W power supplies provide redundant power for continuous operation.
Suits general-purpose workloads
This configuration targets organisations running standard business applications, virtualisation hosts or file services that benefit from redundant power and a single-socket design. Buyers who need multiple processors installed, larger memory capacity out of the box, or 10 GbE and faster networking should look at other platforms that provide those capabilities.
Check rack space and storage needs
Verify that your rack has sufficient depth and airflow for a 2U rack server and that the HPE MR408i-o storage controller meets your RAID requirements. Confirm the two 480 GB SATA SSDs provide enough boot and application storage or plan to populate additional drive bays. Ensure your power distribution can support dual 1000 W supplies.
Points forts
- 12-core Xeon 6505P at 2.20 GHz for compute density
- 64 GB DDR5 Smart Memory in single module for expansion headroom
- Dual 480 GB SATA SSD for mirrored boot and fast OS access
- Broadcom BCM5719 quad-port 1 GbE adapter for network flexibility
- Redundant 2x1000W power supplies for continuous uptime
Caractéristiques
| Brand | HPE |
|---|---|
| Series | ProLiant DL340 G12 |
| Model | P87780-005 |
| Workload | General Purpose Server |
| Type | Rack |
| CPU Type | Intel Xeon 6 |
| CPU Speed | 6505P (2.20 GHz) |
| Number of CPU Cores | 12-Core Processor |
| Cache Memory | 48 MB L3 |
| CPU Features | 150W TDP |
| # of Processors Installed | 1 |
| Installed Memory Size | 64GB |
| Memory Type | HPE DDR5 Smart Memory |
| Memory Features | 64 GB (1x64 GB) |
| Storage Controller | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| SSD (Installed) | 2 x 480GB SATA SSD |
| Ethernet Controller | Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE |
| Power Characteristics | 2x1000W |
| Poids d’expédition | 18.14 kg |
| Dimensions du colis | 762 × 508 × 254 mm |
Questions sur cet article
What rack depth and mounting rails does the DL340 Gen12 require?
The server fits a standard 19-inch rack; you must supply compatible sliding rails and ensure the cabinet depth accommodates the 2U chassis and rear cable clearance.
Will the HPE MR408i-o controller recognise my existing SATA drives?
Yes, the MR408i-o Gen11 controller supports SATA SSDs and HDDs, so your current 2.5-inch SATA drives can be added to the 8 SFF bays alongside the installed 480GB SSDs.
How can I verify the 64GB DDR5 Smart Memory is running at full speed after setup?
During POST the iLO console displays memory speed and rank configuration; confirm it shows 64 GB at the rated DDR5 frequency with no correctable errors logged.
