HPE
HPE ProLiant DL380 Gen11 2U rack server P60637-B21 Xeon Gold 6426Y 2.50GHz 16-core 32GB DDR5 8 SFF 800W
2U rack server with 16-core Xeon Gold 6426Y, 32 GB DDR5, eight hot-swap SFF bays and an 800 W power supply
- TypeRack
- Rack Height2U
- SecurityUEFI Secure Boot and Secure Start support Tamper-free update
- CPU TypeIntel Xeon Gold
- CPU Speed6426Y (2.50 GHz)
- Number of CPU Cores16-Core Processor
- 16-core Xeon Gold 6426Y at 2.50 GHz for demanding workloads
- 32 GB DDR5 RDIMM installed with 32 slots for future growth
- 8 hot-swap SFF bays backed by MR408i-o controller
- 800 W power supply supports high-density 2U rack deployment
- Silicon Root of Trust and FIPS 140-2 validated firmware security

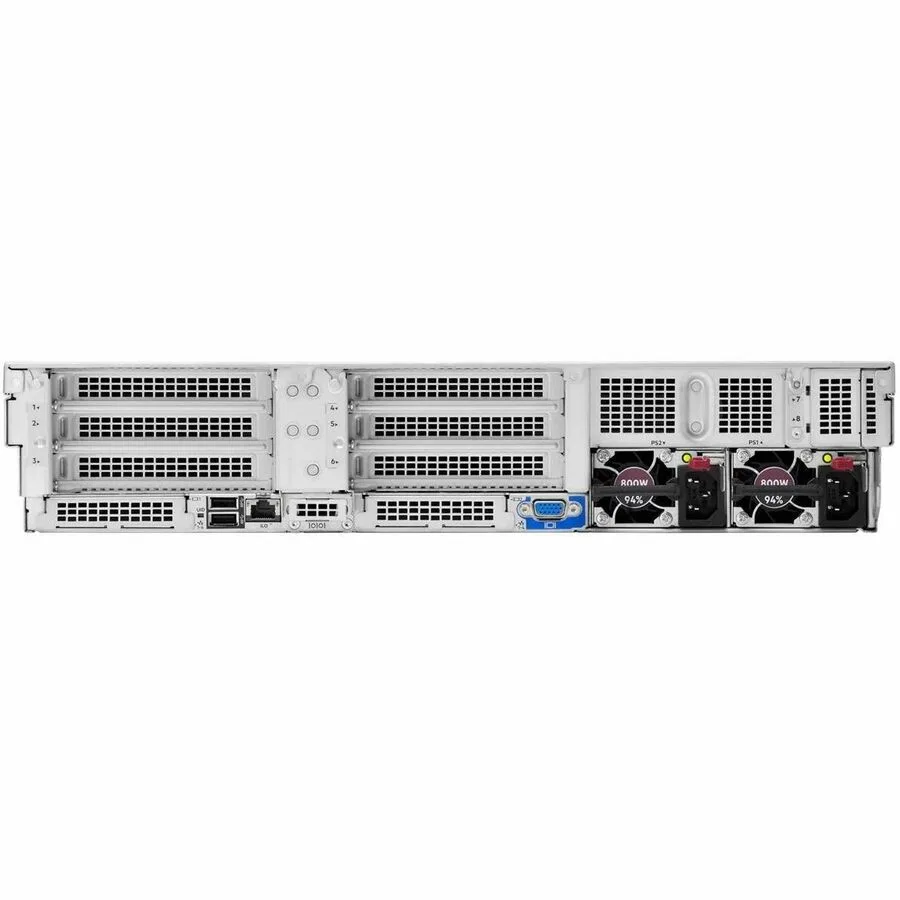

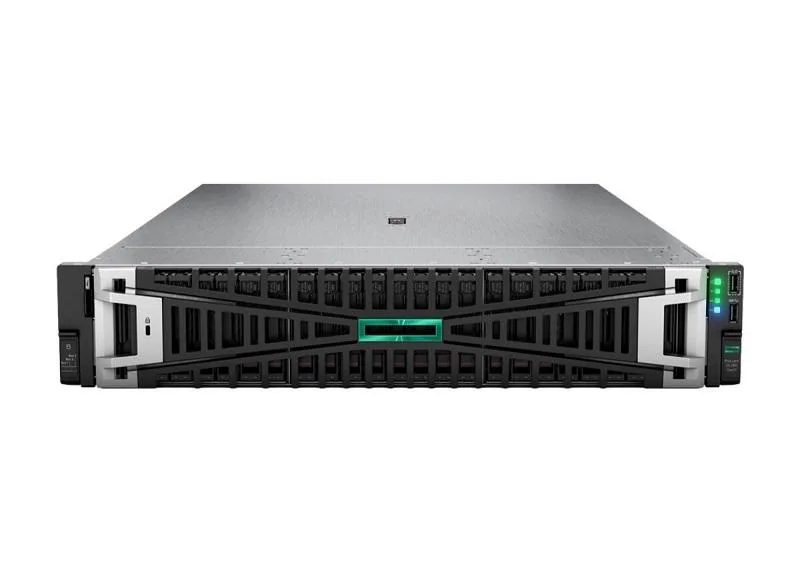

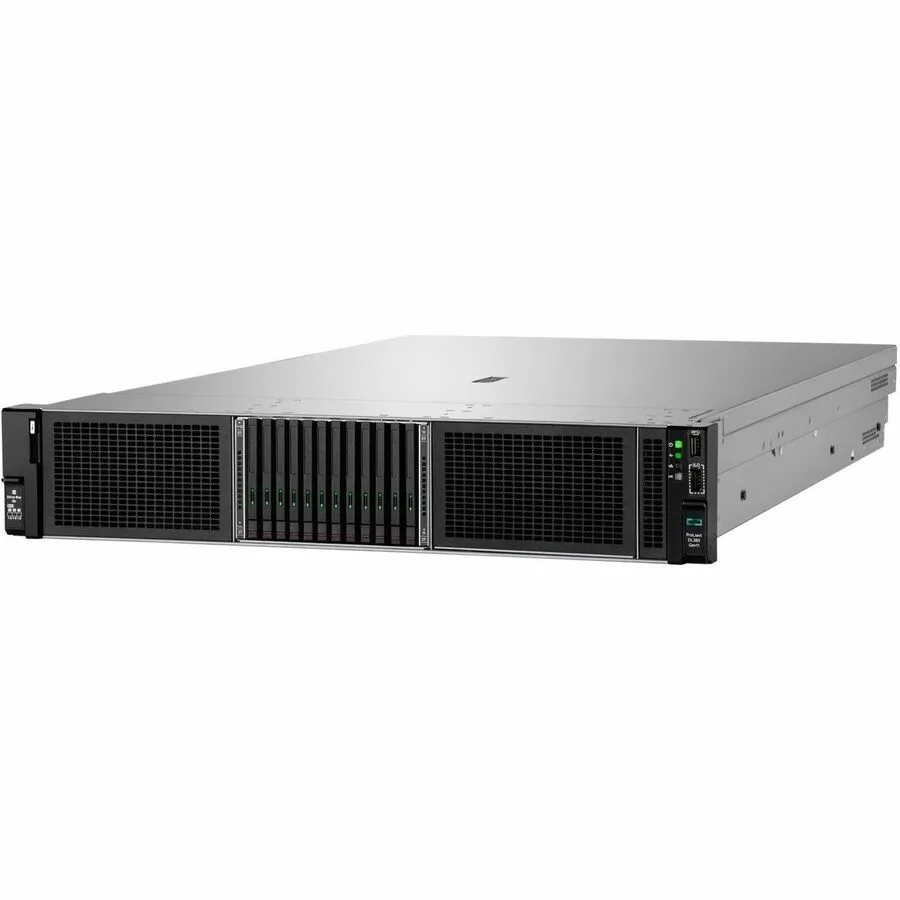

HPE ProLiant DL380 Gen11 2U server
The HPE ProLiant DL380 Gen11 is a 2U rackmount server system built around a single Intel Xeon Gold 6426Y 16-core processor running at 2.50 GHz. It ships with 32 GB of DDR5 memory installed in one of 32 available slots. Eight small-form-factor hot-swap drive bays connect to an MR408i-o storage controller. A single 800 W power supply is included. The chassis measures 3.4 inches high, 17.6 inches wide and 28.6 inches deep, weighing 72.75 lb.
Suited for virtualisation and database workloads
This configuration suits organisations consolidating virtual machines or running memory-intensive databases that benefit from 16 cores and DDR5 bandwidth. The 32 GB base memory and single processor leave headroom for expansion within the 32 DIMM slots. Buyers who need dual-processor performance or higher initial memory capacity should look at a different configuration. Environments requiring GPU acceleration or more than eight front drive bays will not be served by this unit.
DDR5 memory generation
The system uses DDR5 RDIMM modules at 4800 MT/s, a detail that determines every future memory upgrade. Only DDR5 modules are compatible with the 32 slots provided. Installing an earlier DDR generation will not work and prevents the server from booting. Buyers planning capacity increases must source DDR5 parts exclusively.
Points forts
- 16-core Xeon Gold 6426Y at 2.50 GHz for demanding workloads
- 32 GB DDR5 RDIMM installed with 32 slots for future growth
- 8 hot-swap SFF bays backed by MR408i-o controller
- 800 W power supply supports high-density 2U rack deployment
- Silicon Root of Trust and FIPS 140-2 validated firmware security
Caractéristiques
| Brand | HPE |
|---|---|
| Series | ProLiant |
| Model | ProLiant DL380 Gen11 |
| Part Number | P60637-B21 |
| Type | Rack |
| Rack Height | 2U |
| Security | UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Secure Recovery - recover critical firmware to known good state on detection of compromised firmware |
| CPU Type | Intel Xeon Gold |
| CPU Speed | 6426Y (2.50 GHz) |
| Number of CPU Cores | 16-Core Processor |
| # of Processors Installed | 1 |
| Chipset | Intel C741 |
| Installed Memory Size | 32GB |
| Memory Type | DDR5 |
| Number of Memory Slots | 32 |
| Storage Controller | MR408i-o |
| Expansion Bays | 8 |
| Compatible/Certified OS | Windows Server Red Hat Enterprise Linux SuSE Linux Enterprise Server Ubuntu Server Oracle Linux Citrix XenServer |
| Dimensions | Height: 3.4" Width: 17.6" Depth: 28.6" |
| Weight | 72.75 lb |
| Package Contents | ProLiant DL380 G11 Server SFF Easy Install Rail Kit Cable Management Arm |
| Poids d’expédition | 23.59 kg |
| Dimensions du colis | 1016 × 635 × 254 mm |
Questions sur cet article
What rack dimensions does the 2U chassis with 17.6-inch width and 28.6-inch depth require?
The server is a 2U rack unit measuring 3.4 inches tall, 17.6 inches wide and 28.6 inches deep, weighing 72.75 lb. It mounts in a standard EIA rack with at least 2U of vertical space and enough depth clearance for the 28.6-inch chassis.
How is the single Xeon Gold 6426Y processor installed, and what step is often missed?
The processor is pre-installed in the single socket on the Intel C741 chipset board. The step often missed is applying the correct torque to the heatsink retention screws in the prescribed diagonal sequence so the CPU seats evenly.
When will the 800W power supply or the 32GB DDR5 RDIMM need replacement?
The 800W supply is rated for continuous operation; plan replacement after 5–7 years or if fan noise increases. The single 32GB DDR5 RDIMM should be replaced only if memory errors appear or capacity must grow beyond the 32 available slots.
