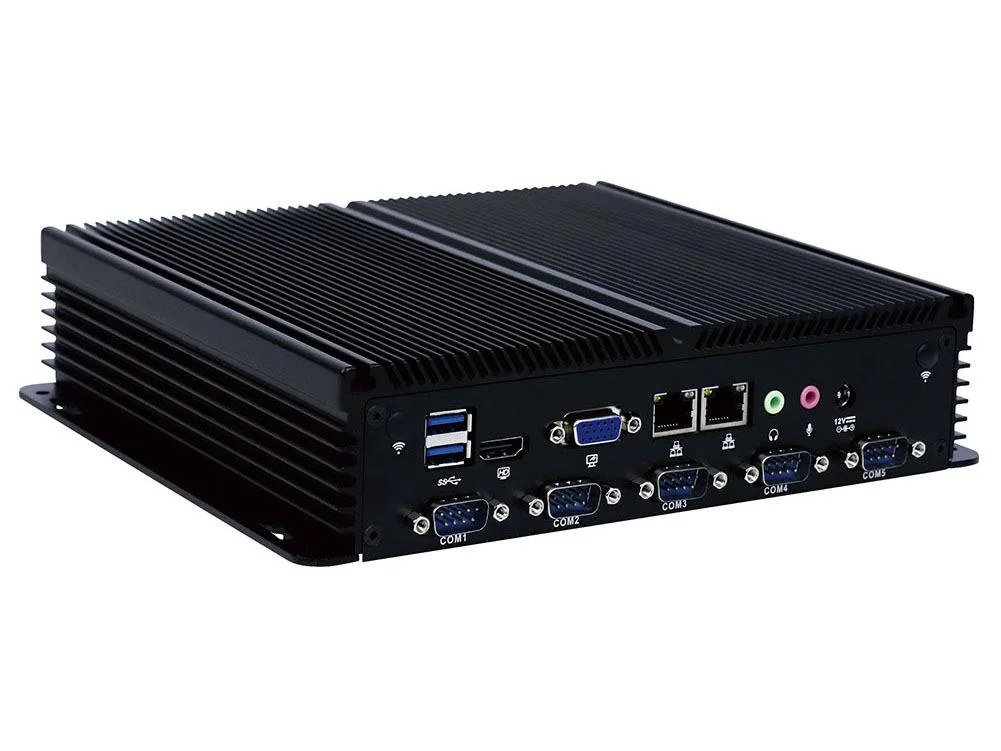

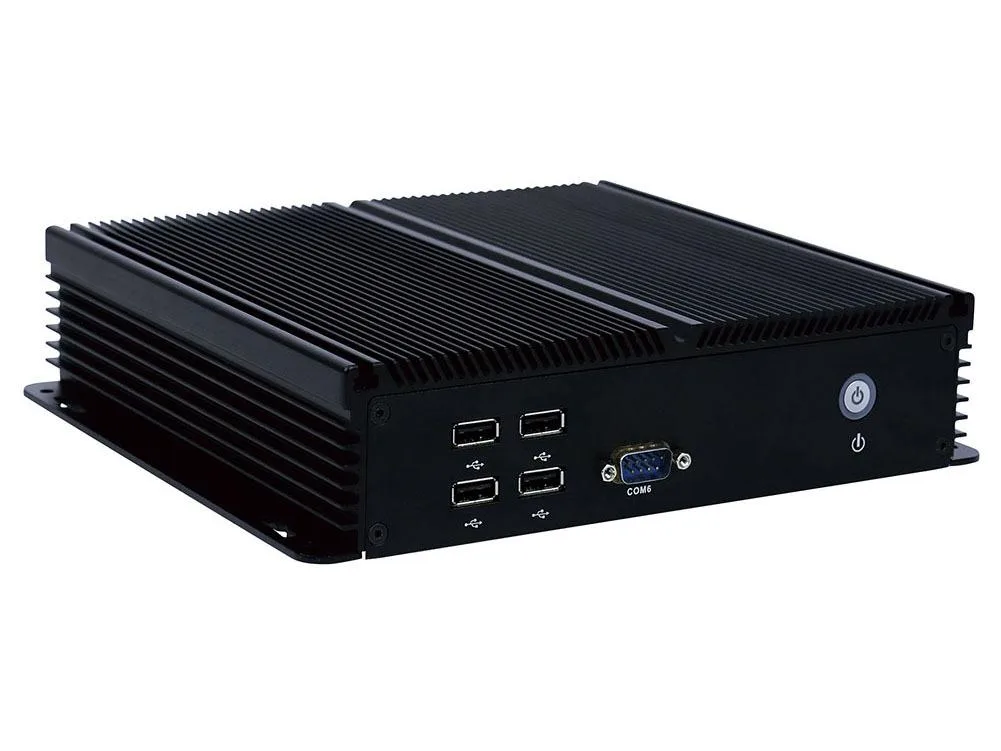

Compact black aluminium fanless mini PC, rectangular with rounded edges, matte finish, industrial look

Inctel

Inctel Partaker I17 fanless mini PC i5-4210U 8GB DDR3 240GB SSD

SKU CH-ZV7H-JK48V

Fanless industrial mini PC with Intel Core i5-4210U, 8 GB DDR3, 240 GB SSD, six COM ports, dual LAN and 3G/4G SIM slot for embedded automation

  • Form FactorMini PC
  • ColorBlack
  • Power SupplyMini PC
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU FSB4210U (1.70 GHz)

Memory Capacity 8GB DDR3

SSD 240GB

HDD None

  • Fanless aluminium chassis runs silently in noise-sensitive spaces
  • Intel Core i5-4210U up to 2.70 GHz handles industrial workloads
  • Dual Intel I211-AT LAN ports provide redundant wired connectivity
  • Six COM ports with RS232/422/485 on COM3 suit legacy equipment
  • Wide -10 °C to +60 °C operating range fits harsh environments

Industrial fanless mini PC

The Partaker I17 is a compact desktop computer built around an Intel Core i5-4210U processor with 8 GB of DDR3L memory and a 240 GB SSD. Its all-aluminium chassis operates silently without fans across a temperature range of -10 °C to +60 °C. Windows 10 Pro is pre-installed and Linux is also supported. The unit targets automation, medical, transportation and similar embedded deployments.

Installation and common issues

Mounting uses the 214 mm by 200 mm footprint with a 54 mm height and a weight of 2.0 kg. A single DC 12 V supply powers the system through a locking connector. The board provides one mSATA slot and one 2.5 inch drive bay; the second 2.5 inch bay is optional. Builders must verify antenna clearance for the mini-PCIe Wi-Fi or 4G modules and confirm COM3 pin-out before wiring RS-232, RS-422 or RS-485 devices.

DDR3L memory constraint

The system accepts only DDR3L SODIMMs at 1333 or 1600 MHz up to a maximum of 8 GB. Standard 1.5 V DDR3 modules are not compatible and will prevent boot. Buyers needing more than 8 GB of RAM must choose a different platform.

Points forts

  • Fanless aluminium chassis runs silently in noise-sensitive spaces
  • Intel Core i5-4210U up to 2.70 GHz handles industrial workloads
  • Dual Intel I211-AT LAN ports provide redundant wired connectivity
  • Six COM ports with RS232/422/485 on COM3 suit legacy equipment
  • Wide -10 °C to +60 °C operating range fits harsh environments

Caractéristiques

Part NumberI17-I5 4210U-8G240G
Form FactorMini PC
ColorBlack
Power SupplyMini PC
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU FSB4210U (1.70 GHz)
CPU NameIntel Core i5-4210U
CPU Socket TypeIntel Core i5 4th Gen
GPU/VGA TypeIntel HD Graphics 4400
Virtual Reality Ready240 GB
Memory Capacity8GB DDR3
Memory Slots (Available/Total)8 GB DDR3
SSD240GB
HDDNo
Optical Drive TypeNo
Screen SizeNo Screen
Display FeatureIntel HD Graphics 4400
LAN ChipsetNo Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I confirm the Partaker I17 is running correctly after first power-up?

Verify the system boots into Windows 10 Pro, check Device Manager shows the Intel Core i5-4210U at 1.70 GHz with Intel HD Graphics 4400, and confirm both Intel I211-AT LAN ports and all six COM ports are detected.

What comes in the box with the I17 and what must I source separately?

The unit includes the fanless aluminium chassis with the i5-4210U processor, 8 GB DDR3L memory installed, 240 GB SSD, and Windows 10 Pro licence. No monitor, keyboard, mouse or additional storage drives are supplied.

Which I17 configuration should I choose for dual-display industrial use with serial equipment?

Select the standard Partaker I17 with 8 GB DDR3L and 240 GB SSD; it provides VGA plus HD for synchronous or asynchronous dual display, six COM ports (COM3 configurable for RS232/422/485), dual Gigabit LAN, and a SIM slot for 3G/4G expansion.
