Inctel Partaker I17 i5-4210U fanless mini PC 1GB DDR3 barebone

Industrial Fanless Mini PC

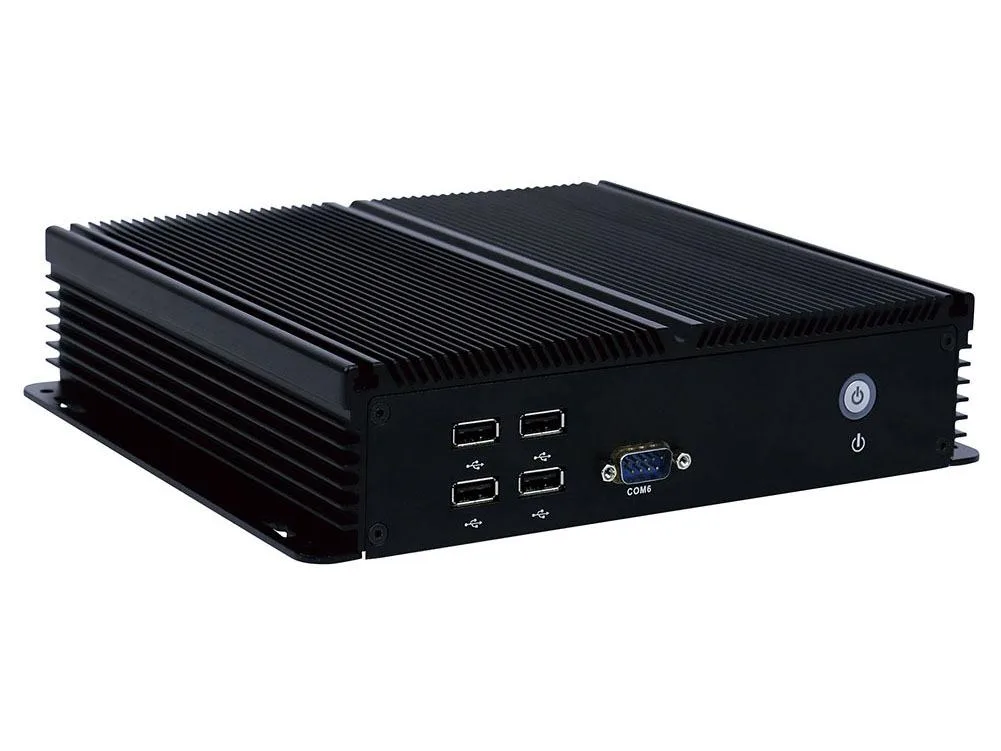

The Inctel Partaker I17 is a compact desktop computer built around an Intel Core i5-4210U processor with Intel HD Graphics 4400. It ships as a barebone unit with 1GB of DDR3 memory installed and no storage drives included. The fanless aluminium chassis is rated for operating temperatures from -10 to +60 degrees Celsius. Windows 10 Pro is pre-installed and Linux is supported.

Build Integration Needs

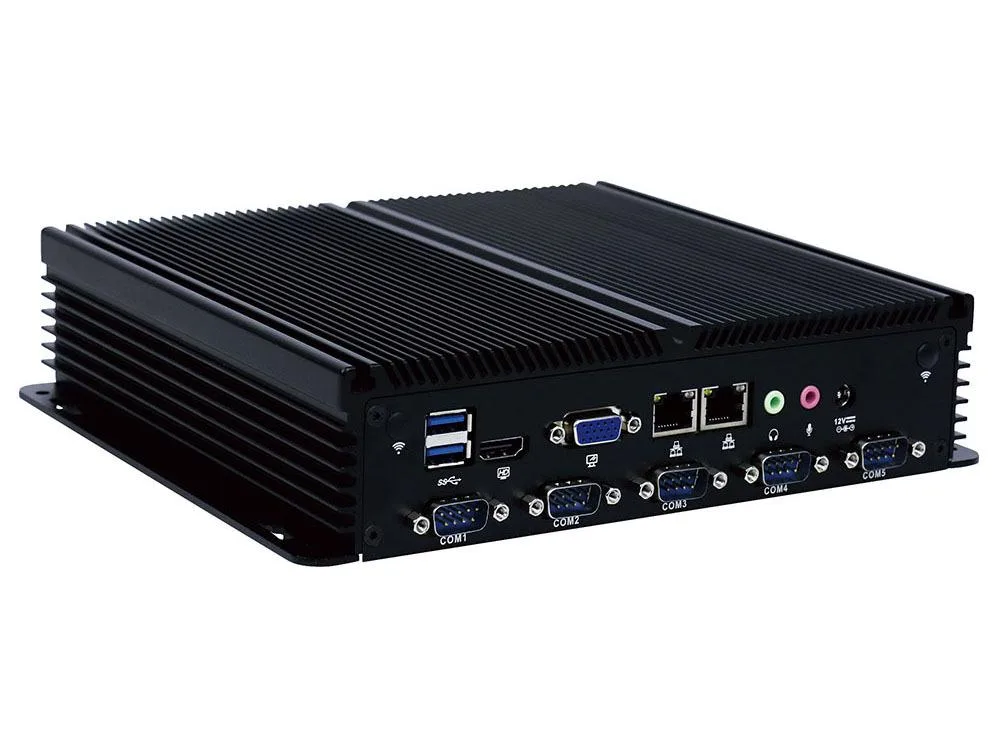

The system requires a DC 12V power input and provides dual Intel I211-AT Gigabit LAN ports, four USB 2.0 and two USB 3.0 ports, one VGA and one HD display output for dual-screen setups. Six COM ports are available, with COM3 configurable for RS232, RS422 or RS485. Expansion is handled by two mini-PCIe slots, one supporting mSATA and the other Wi-Fi, 3G or 4G modules with a SIM slot. A GPIO header and optional LPT port are also present. Storage must be added via the mSATA slot or a 2.5-inch drive bay.

Target Users And Limits

This unit suits industrial automation, medical, transportation or warehouse deployments that need silent, rugged operation and legacy serial connectivity in a small footprint. Buyers who want more storage bays, additional expansion slots or higher graphics performance should look at something else. The barebone configuration means RAM and storage must be sourced separately before deployment.
