Inctel Partaker I3 i5-8250U 32GB 512GB desktop PC

Fanless mini PC for industrial use

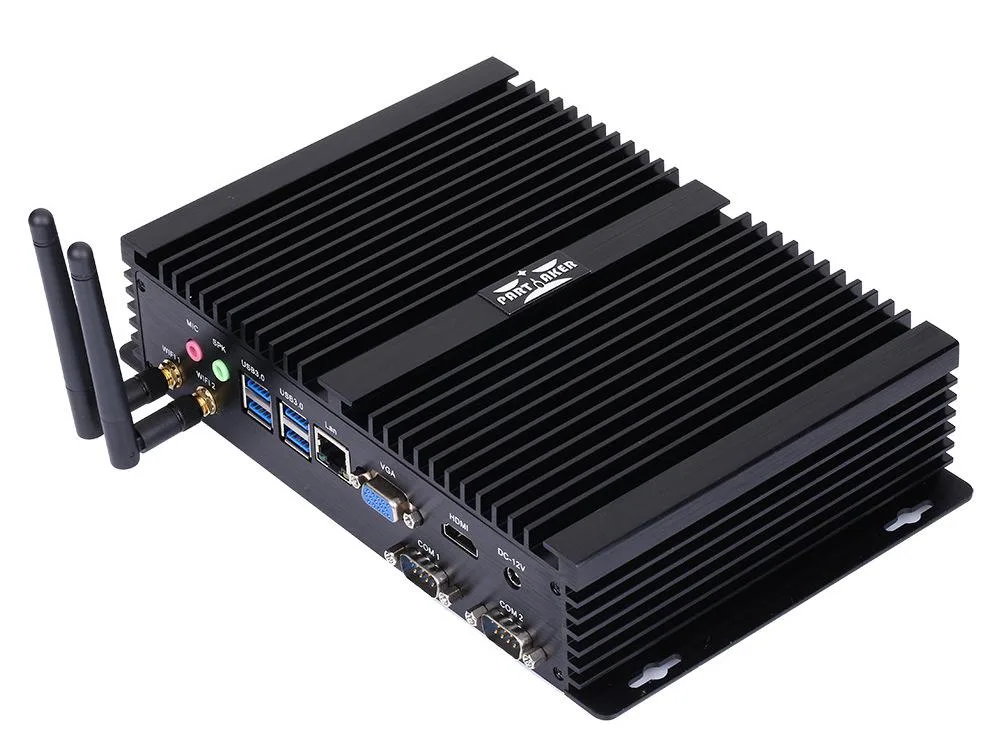

The Inctel Partaker I3 is a fanless mini desktop powered by an Intel Core i5-8250U processor with integrated Intel UHD Graphics 620. It ships with 32 GB of DDR4 memory and a 512 GB SSD, running Windows 10 Pro out of the box. The aluminium chassis doubles as a heatsink, making it suitable for dusty or noise-sensitive environments such as factory floors, digital signage or edge-computing nodes. No monitor is included.

Mounting ears simplify installation

The unit measures 234 by 150 by 43 mm and features integrated mounting ears for wall or DIN-rail attachment. A single 12 V 5 A DC adapter powers the system through a 100-240 V AC input. Two RS-232 COM ports, four USB 3.0 and three USB 2.0 ports, plus HDMI and VGA outputs provide legacy and modern connectivity. Ensure the mounting surface can support the chassis and that the DC jack is accessible for service.

Check display and peripheral needs

Verify that your display accepts HDMI or VGA input at the required resolution, as no other video outputs are present. The board supports one mSATA SSD, one M.2 SSD and one 2.5-inch drive bay, but the supplied 512 GB SSD occupies one slot; confirm which interface it uses before adding storage. Dual-band 802.11ac Wi-Fi with external antennas is included, and Gigabit Ethernet is available for wired networks.
