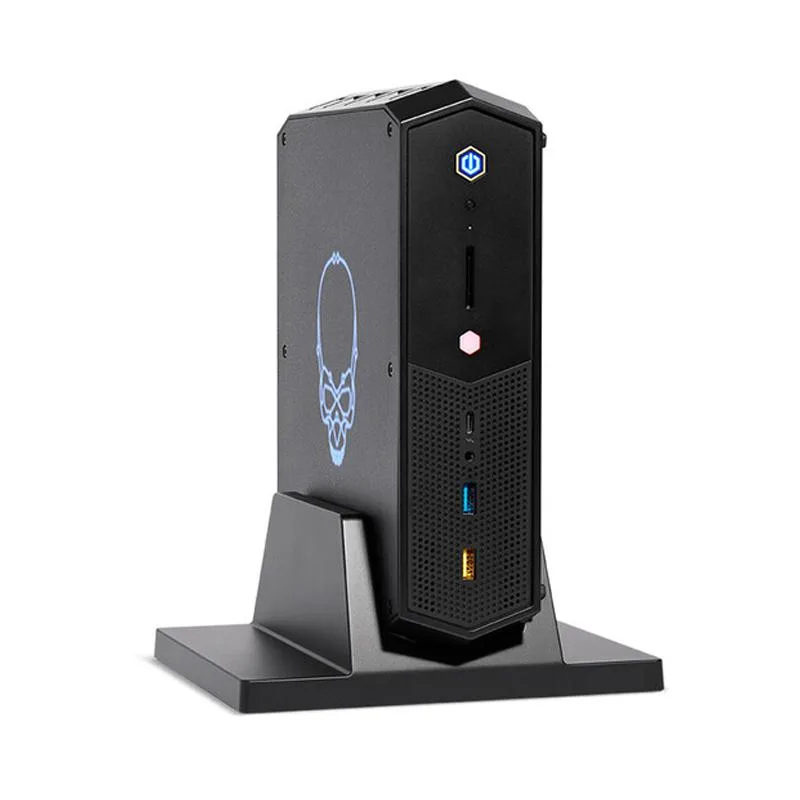

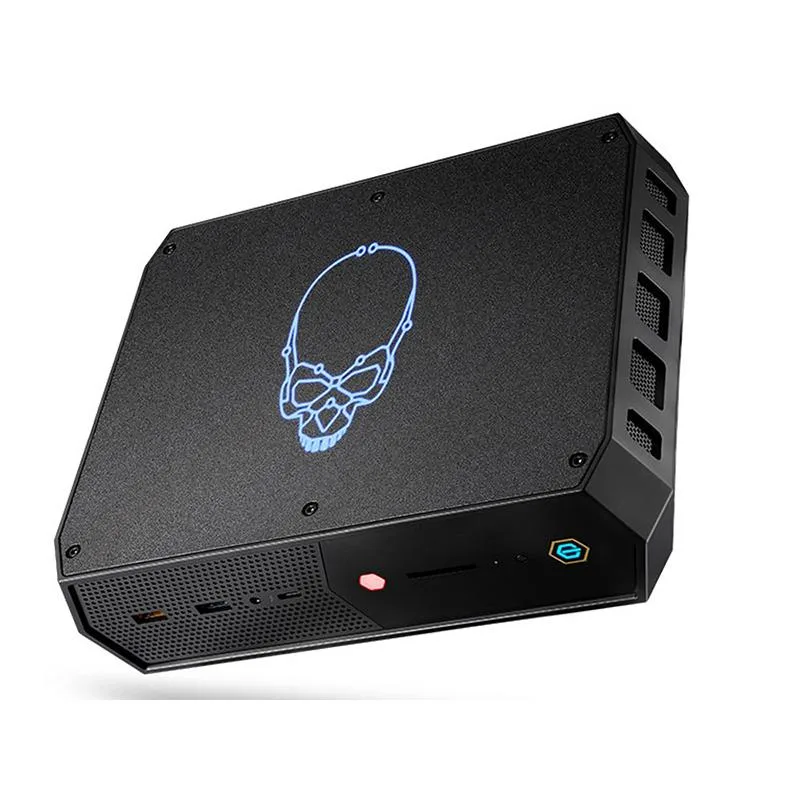

Compact dark mini PC barebone with front ports and vented sides

Intel

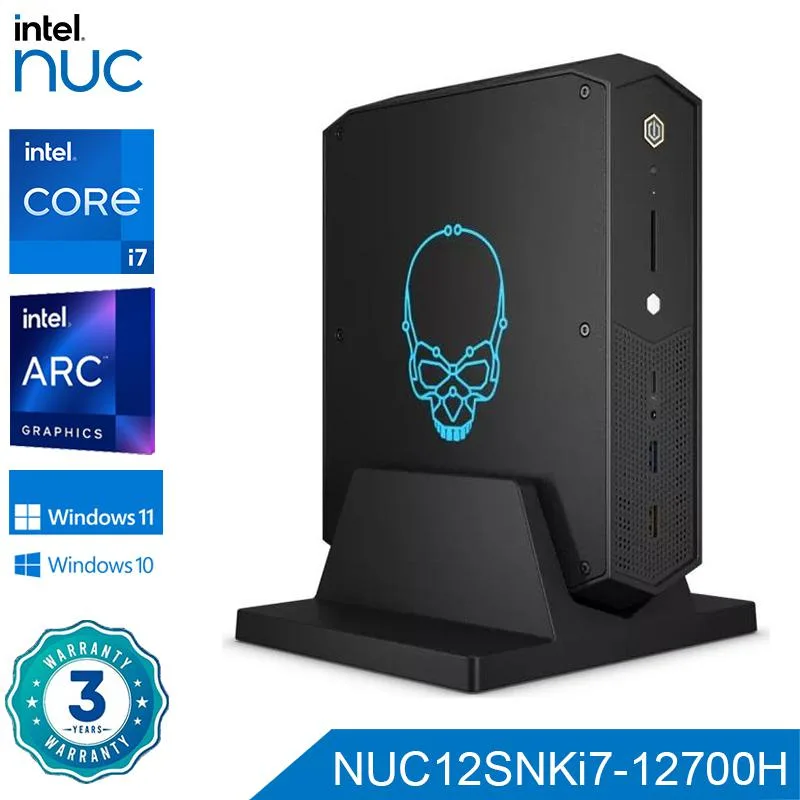

Intel NUC12SNKi72 barebone mini PC

SKU CH-SD06-M9PGS MPN NUC12SNKi72

A barebone mini PC with a 14-core Core i7-12700H and Arc A770M graphics, supporting 64 GB DDR4, three M.2 slots, 2.5 Gbps LAN, Wi-Fi 6E and Thunderbolt 4

  • CPU TypeIntel Core i7 12th Gen
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes

CPU Type Intel Core i7-12700H

Group No Memory / No Hard Drive

Options NUC 12th NUC12SNKi72

  • 14-core i7-12700H reaches 4.70 GHz for demanding workloads
  • Arc A770M graphics with 16 GB GDDR6 drives high frame rates
  • Dual-channel DDR4-3200 support up to 64 GB for smooth multitasking
  • Three M.2 slots enable fast PCIe 4.0 and Gen3 storage expansion
  • 5 GbE LAN plus Wi-Fi 6E and Bluetooth 5.2 for low-latency connectivity

Serpent Canyon Barebone

The Intel NUC12SNKi72 is a new barebone mini PC built around a 12th Generation Core i7-12700H processor with 14 cores and 20 threads. It ships with an Intel Arc A770M discrete GPU carrying 16GB GDDR6 video memory. The chassis measures 230 mm by 180 mm by 60 mm and includes dual Thunderbolt 4 ports, HDMI 2.1, and DisplayPort 2.0 outputs. No RAM or storage is installed.

Suited For And Not

Builders who want a compact system for gaming or content creation can add up to 64GB of dual-channel DDR4 3200 SO-DIMM memory and three M.2 SSDs. The 2.5GbE LAN, Wi-Fi 6E AX1690 and Bluetooth 5.2 cover modern connectivity. Buyers who need ECC memory support, a larger GPU form factor, or a pre-installed operating system should look elsewhere.

Capacity And Headroom

The 24MB cache CPU boosts to 4.70 GHz, giving headroom for multithreaded workloads and 4K media playback. Dual-channel DDR4 tops out at 64GB across two 262-pin slots. Three M.2 slots provide PCIe 4.0 x4 on two sockets and PCIe 3.0 x4 on the third. The Arc A770M handles current titles at high settings, while the 7.1-channel audio and six USB 3.2 Gen 2 Type-A ports support peripherals.

Points forts

  • 14-core i7-12700H reaches 4.70 GHz for demanding workloads
  • Arc A770M graphics with 16 GB GDDR6 drives high frame rates
  • Dual-channel DDR4-3200 support up to 64 GB for smooth multitasking
  • Three M.2 slots enable fast PCIe 4.0 and Gen3 storage expansion
  • 5 GbE LAN plus Wi-Fi 6E and Bluetooth 5.2 for low-latency connectivity

Caractéristiques

BrandIntel
SeriesSerpent Canyon
ModelNUC12SNKi72
CPU TypeIntel Core i7 12th Gen
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot3 x M.2
Discrete Graphic CardIntel Arc A770M Graphics
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Connection i225-LM
Max LAN Speed2.5Gbps
Wireless LANIntel® Killer(tm) Wi-Fi 6E AX1690 (i/s)
Bluetooth5.2
Front USB2x front USB 3.2 Gen 2 ports
Front Audio Ports3.5mm stereo headphone jack
Card ReaderSDXC slot with UHS-II support
Other Front PortsThunderbolt 4 port
HDMIHDMI 2.1
DisplayPort2x DisplayPort 2.0
Thunderbolt 3Thunderbolt 4 port
Rear USB4x rear USB 3.2 Gen 2 ports
RJ45Intel® 2.5Gb (i225-LM) Ethernet port
Input19V
Power Supply330W
Dimensions35x29x29cm
Weight6kg
PackagingOriginal packaging

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What DDR4 SO-DIMM memory must I buy to use the dual-channel 3200 MHz support?

Purchase two 262-pin DDR4 3200 SO-DIMM modules up to 64 GB total; the board runs them in dual-channel mode at 1.2 V.

Will my existing 2.5 Gbps Ethernet switch work with the i225-LM port?

Yes, the Intel i225-LM controller negotiates 2.5 Gbps on Cat 5e or better cabling and falls back to 1 Gbps if needed.

How do I confirm the Arc A770M 16 GB GDDR6 GPU is active after assembling the barebone?

Open Windows Device Manager or the Intel Arc Control panel; both list the A770M with 16 GB dedicated video memory when drivers are installed.
