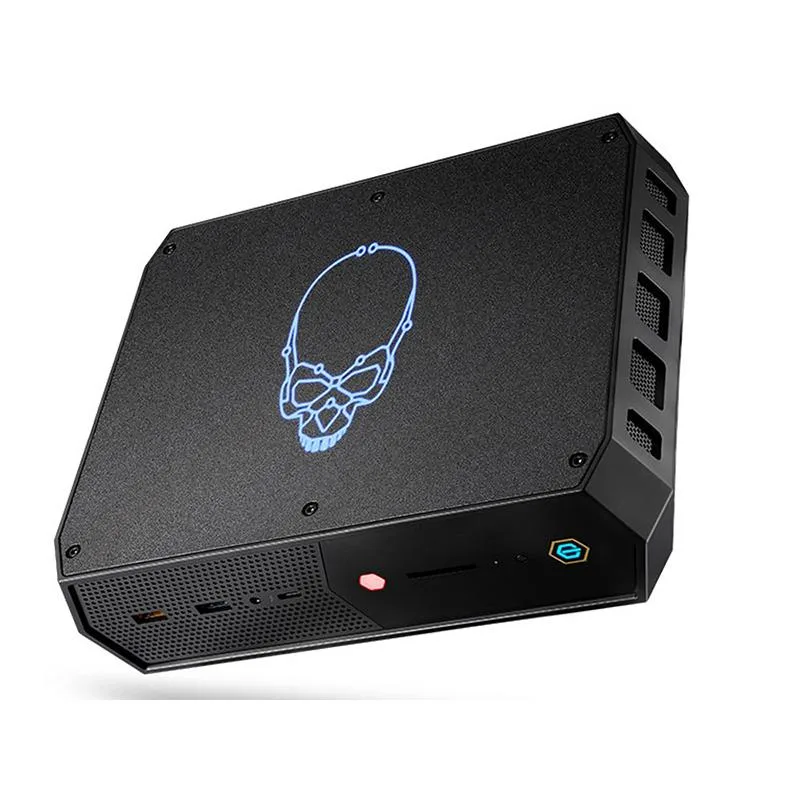

Compact black mini PC with angled vents and front ports

Intel

Intel NUC12SNKi72 Core i7-12700H Arc A770M 16GB GDDR6 64GB 2TB barebone mini PC

SKU CH-KHDQ-FGM83 MPN NUC12SNKi72

A 12th-generation Core i7 barebone with Arc A770M graphics, dual-channel DDR4 support to 64 GB and three M.2 slots

  • CPU TypeIntel Core i7 12th Gen
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes

CPU Type Intel Core i7-12700H

Group 64gb ram / 2tb ssd

Options NUC 12th NUC12SNKi72

  • 14-core i7-12700H reaches 4.70 GHz for fast compute
  • Arc A770M with 16 GB GDDR6 drives high-frame gaming
  • Three M.2 slots accept PCIe 4.0 SSDs for storage growth
  • Dual-channel DDR4 3200 supports up to 64 GB memory
  • 5 GbE plus Wi-Fi 6E and Bluetooth 5.2 keep links quick

Serpent Canyon barebone with Arc A770M

This Intel NUC12SNKi72 barebone targets builders who want a compact desktop with discrete graphics. It ships with a Core i7-12700H processor and an Intel Arc A770M GPU equipped with 16GB GDDR6 memory. The chassis includes Thunderbolt 4, HDMI, DisplayPort and 2.5GbE connectivity. Buyers add their own DDR4 SO-DIMM modules and M.2 storage.

Discrete Arc A770M with 16GB GDDR6

The integrated Intel Arc A770M graphics card provides 16GB of dedicated GDDR6 video memory. This discrete GPU sits alongside the processor’s Iris Xe graphics and drives up to four displays via HDMI 2.1, DisplayPort 2.0 and Thunderbolt 4 alt-mode outputs. Systems needing a different GPU vendor or a user-replaceable graphics card cannot use this barebone.

Dual-channel DDR4 up to 64GB and three M.2 slots

Two 262-pin SO-DIMM slots accept DDR4-3200 memory in dual-channel mode for a maximum of 64GB. Three M.2 sockets provide PCIe 4.0 x4 on two slots and PCIe 3.0 x4 on the third for SSD expansion. Builds requiring more than 64GB of system memory or more than three M.2 drives will exceed the platform limits.

Points forts

  • 14-core i7-12700H reaches 4.70 GHz for fast compute
  • Arc A770M with 16 GB GDDR6 drives high-frame gaming
  • Three M.2 slots accept PCIe 4.0 SSDs for storage growth
  • Dual-channel DDR4 3200 supports up to 64 GB memory
  • 5 GbE plus Wi-Fi 6E and Bluetooth 5.2 keep links quick

Caractéristiques

BrandIntel
SeriesSerpent Canyon
ModelNUC12SNKi72
CPU TypeIntel Core i7 12th Gen
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot3 x M.2
Discrete Graphic CardIntel Arc A770M Graphics
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Connection i225-LM
Max LAN Speed2.5Gbps
Wireless LANIntel® Killer(tm) Wi-Fi 6E AX1690 (i/s)
Bluetooth5.2
Front USB2x front USB 3.2 Gen 2 ports
Front Audio Ports3.5mm stereo headphone jack
Card ReaderSDXC slot with UHS-II support
Other Front PortsThunderbolt 4 port
HDMIHDMI 2.1
DisplayPort2x DisplayPort 2.0
Thunderbolt 3Thunderbolt 4 port
Rear USB4x rear USB 3.2 Gen 2 ports
RJ45Intel® 2.5Gb (i225-LM) Ethernet port
Input19V
Power Supply330W
Dimensions35x29x29cm
Weight6kg
PackagingOriginal packaging

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does the 14-core, 20-thread Core i7-12700H actually deliver in this chassis?

The 12th Gen Core i7-12700H runs at up to 4.70 GHz with 24 MB cache, so multi-threaded workloads and modern games scale across 14 cores inside the 230 x 180 x 60 mm barebone.

How do the two Thunderbolt 4 ports limit display and data throughput?

Each Thunderbolt 4 port carries DisplayPort 2.0 alt-mode and USB 3.2 Gen 2 data, enabling two additional 4K displays or high-speed peripherals per port.

What physical space and slots are needed to add memory and storage?

The board provides two 262-pin SO-DIMM slots for dual-channel DDR4 3200 up to 64 GB, plus three M.2 slots — two PCIe 4.0 x4 and one PCIe 3.0 x4 — for SSDs.
