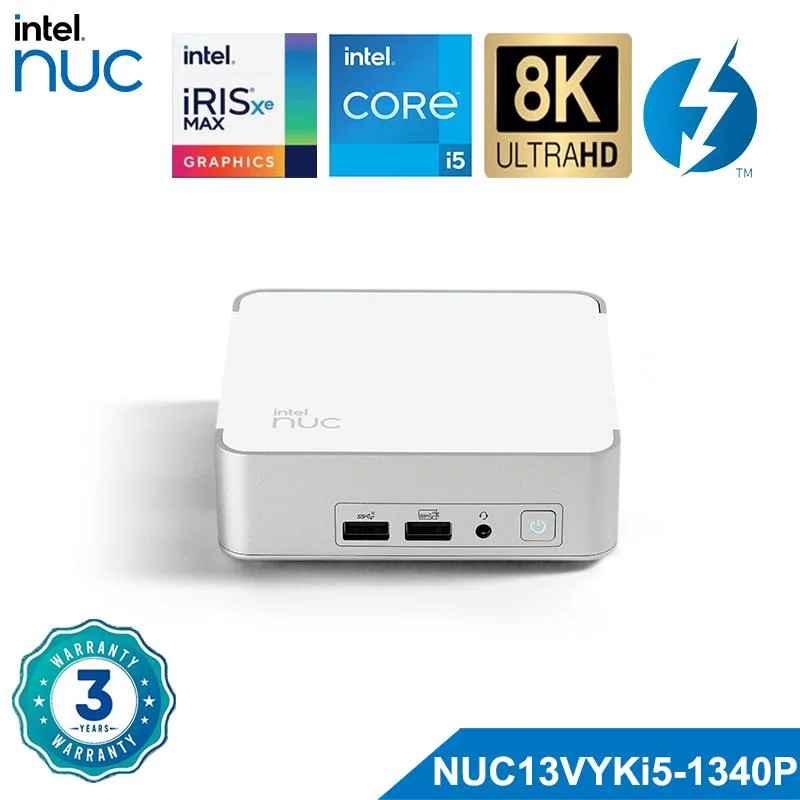

Compact white mini PC with front ports and headphone jack

Intel

Intel NUC13VYKi5 Core i5-1340P 64GB 2TB barebone mini PC

SKU CH-FCMT-57WE0 MPN NUC13VYKi5

A compact barebone mini PC ready for up to 64 GB of DDR4 memory and dual M.2 storage, driven by a 13th-generation 12-core Intel Core i5 with Iris Xe graphics, dual Thunderbolt 4.

  • CPU TypeIntel Core i5 13th Gen
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Storage InstalledNo Hard Drive

CPU Type Intel Core i5-1340P

Group 64gb ram / 2tb ssd

Options NUC 13 Pro NUC13VYKi5

  • 12-core 13th Gen i5-1340P with 4.5 GHz turbo for responsive multitasking
  • Dual-channel DDR4-3200 supports up to 64 GB for memory-intensive workloads
  • Two M.2 slots enable PCIe Gen 4 NVMe and SATA storage expansion
  • Dual Thunderbolt 4 ports deliver 4K video, data and power over one cable
  • 5 GbE LAN plus Wi-Fi 6E and Bluetooth 5 for fast, reliable connectivity

Compact workstation barebone

The Intel NUC13VYKi5 is a mini-PC barebone built around a 13th Generation Core i5-1340P processor with 12 cores and 16 threads. It ships without memory or storage, allowing integrators to populate two SO-DIMM slots and two M.2 slots to match workload requirements. Integrated Iris Xe graphics with 80 execution units drive up to two 4K displays at 60 Hz via HDMI 2.1.

Suited for multi-display office

This unit fits IT teams deploying compact desktops, digital-signage players or edge appliances that need dual 4K output, 2.5 GbE LAN, Wi-Fi 6E and Thunderbolt 4 connectivity. Builders who require discrete GPU performance, additional Ethernet ports or legacy serial interfaces should consider other platforms.

Memory ceiling decides the build

The platform supports a maximum of 64 GB of dual-channel DDR4-3200 memory across two 262-pin SO-DIMM slots. If the target application demands more than 64 GB of RAM, this barebone cannot meet the requirement.

Points forts

  • 12-core 13th Gen i5-1340P with 4.5 GHz turbo for responsive multitasking
  • Dual-channel DDR4-3200 supports up to 64 GB for memory-intensive workloads
  • Two M.2 slots enable PCIe Gen 4 NVMe and SATA storage expansion
  • Dual Thunderbolt 4 ports deliver 4K video, data and power over one cable
  • 5 GbE LAN plus Wi-Fi 6E and Bluetooth 5 for fast, reliable connectivity

Caractéristiques

BrandIntel
SeriesVivid Canyon
ModelNUC13VYKi5
CPU TypeIntel Core i5 13th Gen
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Discrete Graphic CardIntel Iris Xe Graphics 80EU
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Controller i226-V
Max LAN Speed2.5Gbps
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
Bluetooth5.3
Front USB2x USB 3.2
Front Audio Ports3.5mm headphone/mic jack
Thunderbolt 32x Thunderbolt™ 4
Rear USB2x USB 4 (type C)
RJ451
Input20V
Power Supply120W
Dimensions117 x 111 x 37 [mm] (LxWxH)
Weight1.5kg
PackagingOriginal packaging

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I verify the Intel Core i5-1340P is running at its 4.5GHz turbo speed after assembly?

Enter the BIOS during boot and confirm the processor shows 12 cores, 16 threads and 12MB smart cache; then run a CPU stress test and watch for sustained 4.5GHz on the performance cores while the 35W TDP limit is respected.

Which memory modules and storage drives must I purchase separately for this barebone unit?

You need two DDR4-3200 SO-DIMMs up to 64GB total and at least one M.2 2280 PCIe Gen 4 NVMe SSD for the key-M slot; a second M.2 2242 PCIe Gen 3 or SATA drive can be added in the key-B slot if desired.

Should I choose the single 64GB kit or two 32GB sticks to reach the maximum supported memory?

Install two 32GB DDR4-3200 SO-DIMMs to populate both 262-pin slots for dual-channel operation; a single 64GB module would leave one channel unused and halve memory bandwidth.
