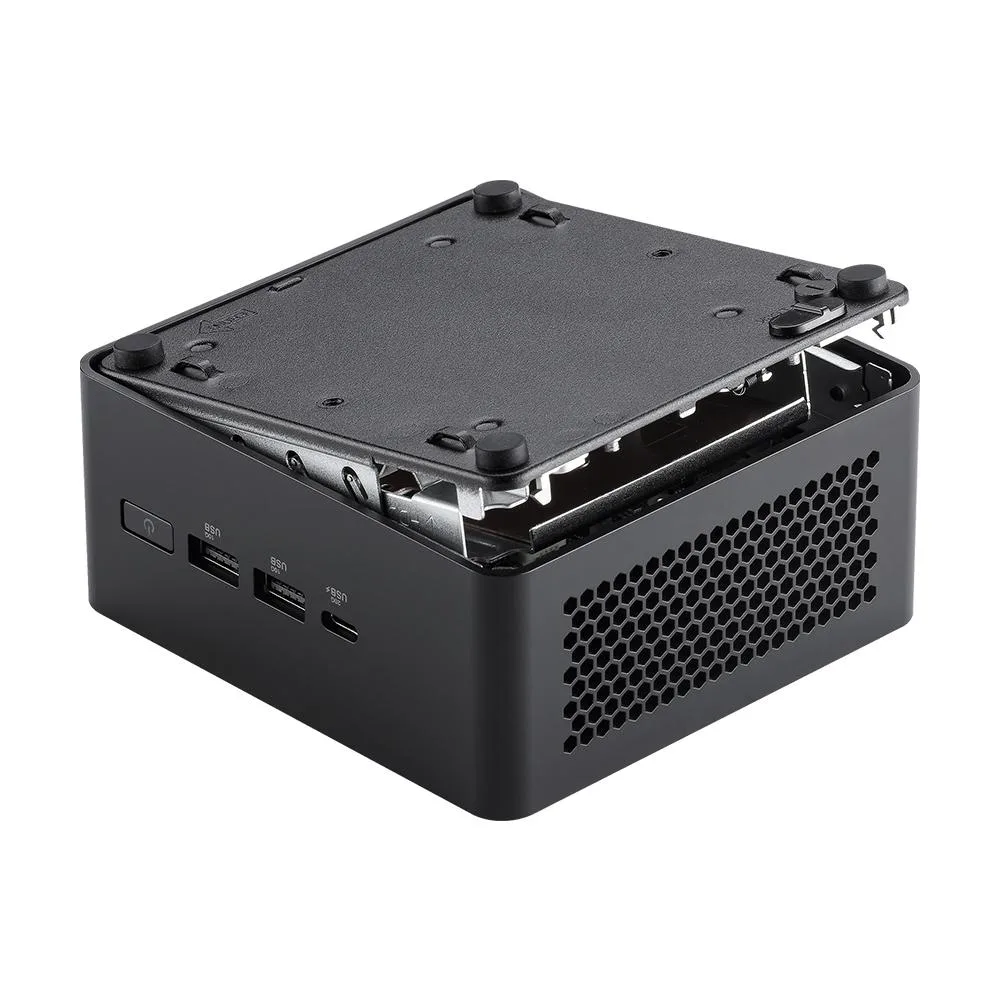

Small black tall mini PC chassis 117 by 112 by 54 mm

Intel

Intel NUC14RVHU7 barebone mini PC Core Ultra 7 155H Arc 16GB 1TB

SKU CH-6WNF-J3DN4 MPN NUC14RVHU7

A tall mini-PC barebone with a 16-core Core Ultra 7 155H, Arc graphics and an integrated NPU, supporting DDR5-5600 up to 96 GB, dual M.2 NVMe slots, 2.5 GbE, Wi-Fi 6E, Bluetooth 5.3.

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core Ultra 7
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 16gb ram / 1tb ssd

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Intel Core Ultra 7 155H with 16 cores and 22 threads for demanding workloads
  • Integrated Intel Arc graphics and NPU accelerate AI tasks and media creation
  • Dual DDR5 5600 SO-DIMM slots support up to 96 GB total memory
  • Two M.2 NVMe slots and 2.5 GbE LAN for fast storage and networking

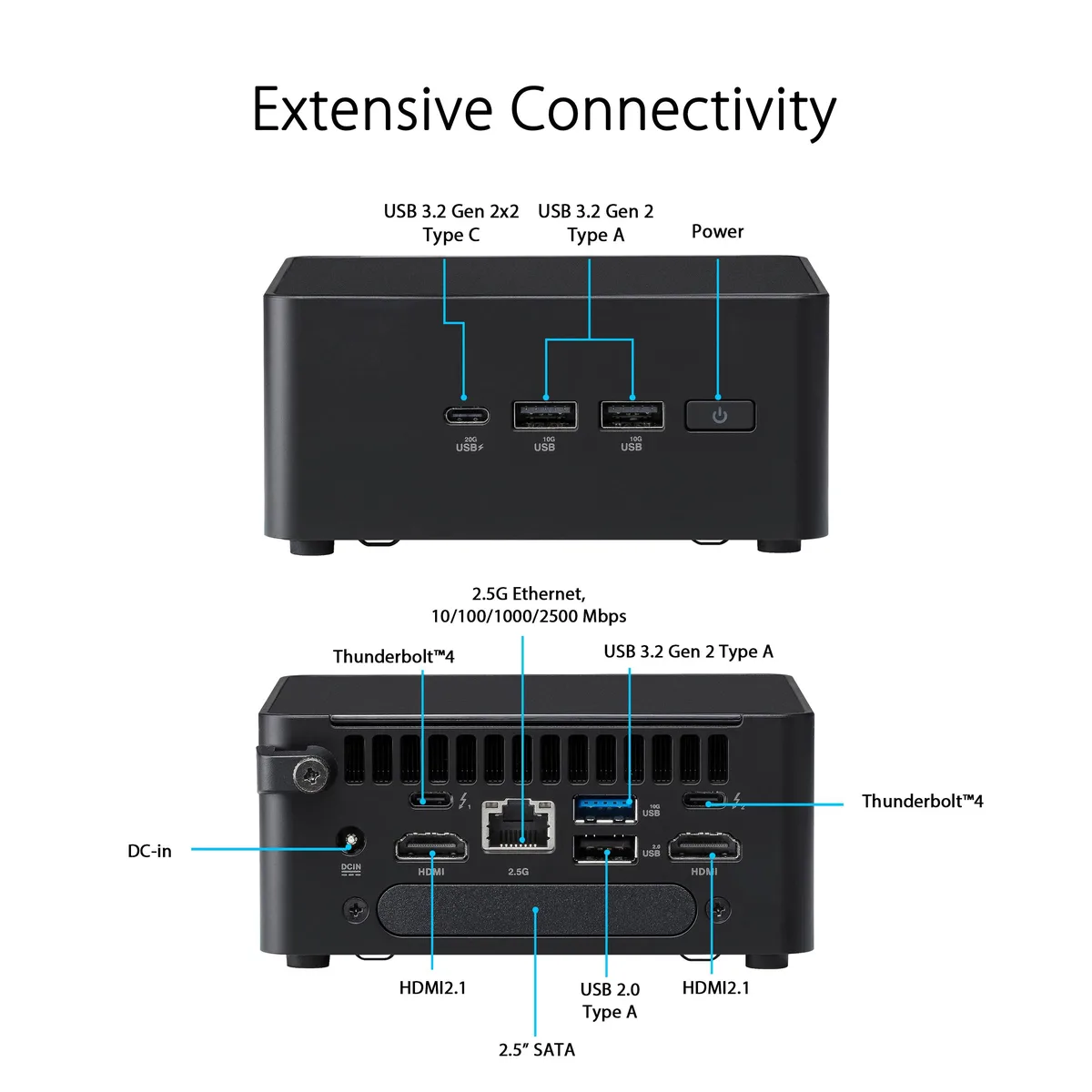

  • Dual Thunderbolt 4 and HDMI 2.1 ports drive up to four displays

Intel NUC 14 Pro barebone for AI workloads

The Intel NUC14RVHU7 is a tall mini PC barebone built around the Core Ultra 7 155H processor with 16 cores and 22 threads. It integrates Intel Arc graphics and a dedicated NPU for AI tasks such as video conferencing enhancements. The system targets developers and power users who want a compact platform for local inference and multi-display productivity.

Thermals sustained by 120 W adapter and VESA mount

The chassis measures 117 by 112 by 54 mm and includes VESA mounting hardware for behind-display installation. A 120 W 19 V power adapter supplies 12 V to 20 V DC input, delivering enough headroom for the 4.80 GHz max turbo frequency. Intel Wi-Fi 6E AX211 and Bluetooth 5.3 handle wireless connectivity without external antennas.

Two M.2 slots and Thunderbolt 4 expand storage

One M.2 2280 PCIe Gen4x4 slot and one M.2 2242 PCIe x4 slot accept NVMe SSDs up to 96 GB of DDR5 5600 memory across two SO-DIMM sockets. Dual Thunderbolt 4 Type-C ports plus two HDMI 2.1 TMDS outputs drive up to four displays. Front and rear USB include one 20 Gbps Type-C three 10 Gbps Type-A and one USB 2.0 Type-A port.

Points forts

  • Intel Core Ultra 7 155H with 16 cores and 22 threads for demanding workloads
  • Integrated Intel Arc graphics and NPU accelerate AI tasks and media creation
  • Dual DDR5 5600 SO-DIMM slots support up to 96 GB total memory
  • Two M.2 NVMe slots and 2.5 GbE LAN for fast storage and networking
  • Dual Thunderbolt 4 and HDMI 2.1 ports drive up to four displays

Caractéristiques

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVHU7
ColorBlack
Form FactorTall
CPU TypeIntel Core Ultra 7
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install memory and storage in the NUC14RVHU7, and what step do people often miss?

Open the chassis, insert two DDR5-5600 SO-DIMMs into the slots for up to 96GB, then add an M.2 2280 PCIe Gen4x4 NVMe SSD and an optional M.2 2242 NVMe SSD; the step often missed is securing each M.2 drive with its screw before closing the case.

What maintenance or replacement will the NUC14RVHU7 need later?

The system has no user-serviceable fan or battery; long-term upkeep is limited to keeping the intake vents clear of dust and, if capacity needs grow, swapping the SO-DIMMs or the two NVMe SSDs for larger modules.

What limit appears first on the NUC14RVHU7 during sustained heavy workloads?

The 120W 19V power adapter caps total system draw, so the Core Ultra 7 155H will hit its power limit before thermal throttling becomes the primary constraint.
