Black tall mini PC barebone with VESA mount hardware

Intel

Intel NUC14RVHU7 barebone mini PC Core Ultra 7 155H Arc 32GB 1TB

SKU CH-0YV8-2MC6N MPN NUC14RVHU7

A compact barebone mini PC with a Core Ultra 7 155H processor, Arc graphics and integrated NPU, supporting up to 96 GB of DDR5 memory and dual NVMe storage

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core Ultra 7
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 32G RAM / 1T SSD

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Intel Core Ultra 7 155H with 16 cores and 22 threads reaches 4.80 GHz
  • Integrated NPU accelerates AI video effects at low power
  • Dual DDR5-5600 SO-DIMM slots support up to 96 GB total
  • Two M.2 NVMe slots include 2280 Gen4x4 and 2242 x4
  • Wi-Fi 6E AX211 and Bluetooth 5.3 plus 2.5 GbE LAN

Core Ultra 7 barebone for compact builds

The Intel NUC14RVHU7 is a tall mini PC barebone built around the Core Ultra 7 155H processor with 16 cores and 22 threads. It includes integrated Arc graphics running at 2.2 GHz and an on-die NPU for AI-assisted tasks such as video conferencing effects. The chassis measures 117 x 112 x 54 mm and ships with a 120 W 19 V power adapter. Memory and storage are not installed, so the buyer adds SO-DIMM modules and M.2 drives.

DIY users who want Arc graphics and NPU acceleration

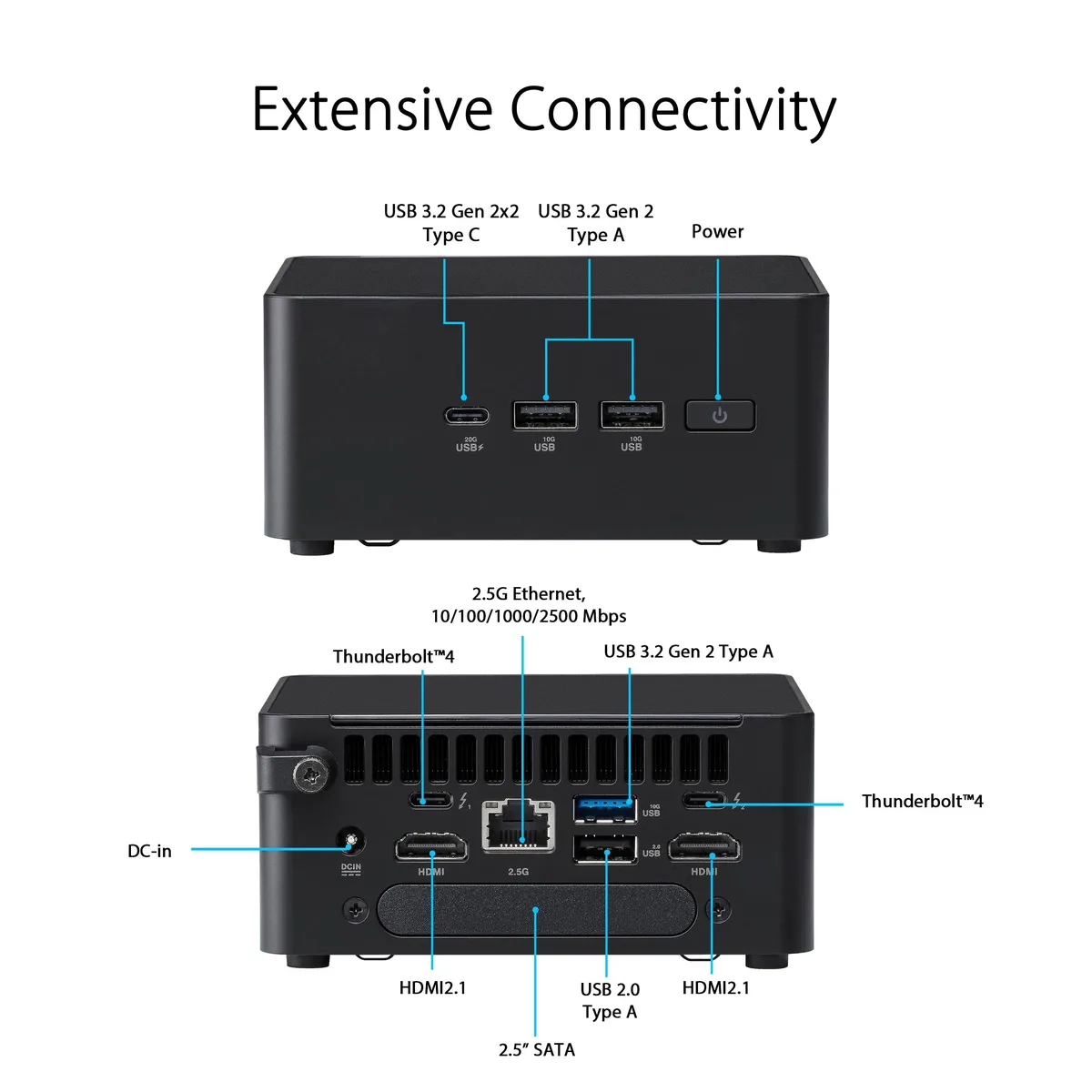

This barebone suits builders who need a small footprint, dual-channel DDR5-5600 support up to 96 GB, and two M.2 slots (2280 and 2242) for NVMe SSDs. Connectivity covers 2.5 GbE LAN, Wi-Fi 6E AX211, Bluetooth 5.3, two HDMI 2.1 ports, two Thunderbolt 4 ports, one USB 3.2 Gen 2x2 Type-C, three USB 3.2 Gen 2 Type-A and one USB 2.0 Type-A. It is not for buyers who want memory or storage pre-installed, nor for those who require a discrete graphics card or a larger chassis with internal drive bays.

DDR5-5600 SO-DIMM support up to 96 GB

The board provides two SO-DIMM slots that accept DDR5-5600 modules in dual-channel mode, with a maximum capacity of 96 GB. This specification decides whether the platform matches the workload, because memory speed and capacity directly affect the integrated Arc graphics and NPU performance. Select compatible modules to complete the build.

Points forts

  • Intel Core Ultra 7 155H with 16 cores and 22 threads reaches 4.80 GHz
  • Integrated NPU accelerates AI video effects at low power
  • Dual DDR5-5600 SO-DIMM slots support up to 96 GB total
  • Two M.2 NVMe slots include 2280 Gen4x4 and 2242 x4
  • Wi-Fi 6E AX211 and Bluetooth 5.3 plus 2.5 GbE LAN

Caractéristiques

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVHU7
ColorBlack
Form FactorTall
CPU TypeIntel Core Ultra 7
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the 120 W power adapter limit sustained performance of the Core Ultra 7 155H?

The 120 W 19 V adapter supplies the chassis; the processor can reach 4.80 GHz within that power envelope.

How loud or hot does the tall chassis get during all-day workloads?

The 117 x 112 x 54 mm tall form factor uses active cooling to manage the Core Ultra 7 155H and Arc graphics under continuous load.

Which DDR5 SO-DIMMs and NVMe SSDs must I already own to complete this barebone?

Install two DDR5 5600 SO-DIMMs up to 96 GB total and one M.2 2280 PCIe Gen4 NVMe plus one M.2 2242 PCIe NVMe SSD.
