JONSBO
JONSBO T9 BLACK Mini-ITX PC Case, 4.0mm Aluminium, Wood Base, SFX 100mm, GPU 202-310mm, PCIe 5.0 Cable, Black
Mini-ITX aluminium chassis with 4.0 mm panels, solid walnut base, three motherboard height settings, SFX 100 mm power supply support and graphics cards from 202 mm to 310 mm.
- TypeMini-ITX
- ColorBlack
- Case MaterialAluminum / Steel/Wood
- Motherboard CompatibilityITX
- Dust FiltersSide
- Internal 3.5" Drive Bays1
- 4 mm aluminium shell gives rigid structure with CNC mesh panels
- 20 mm solid walnut base hides cables and adds premium feel
- ITX board adjusts across three levels for cooler and GPU clearance
- Supports SFX PSU up to 100 mm and GPUs from 202 to 310 mm
- Includes PCIe 5.0 riser cable for vertical graphics mounting
Mini-ITX aluminium case with wood base

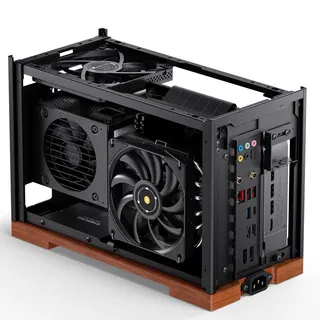

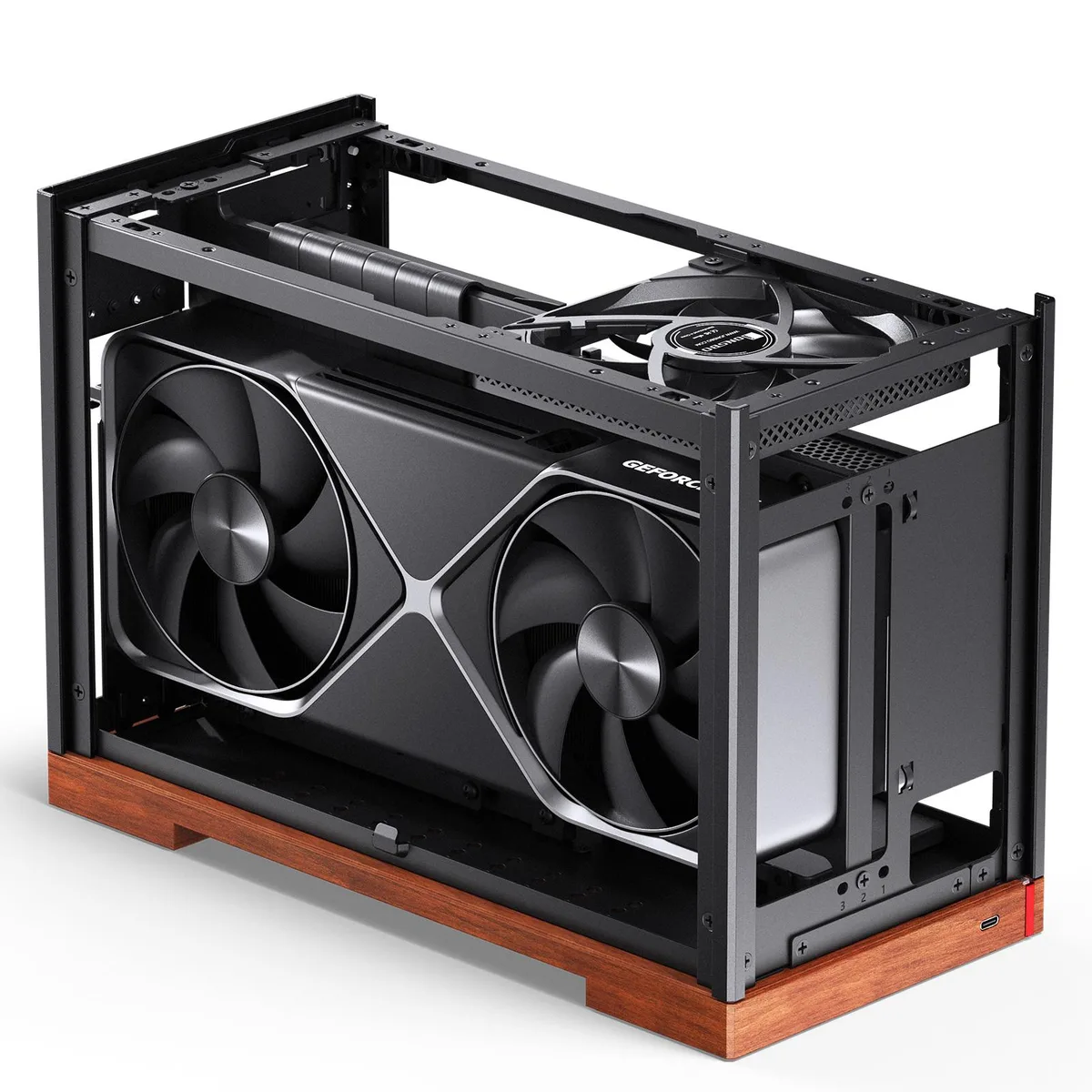

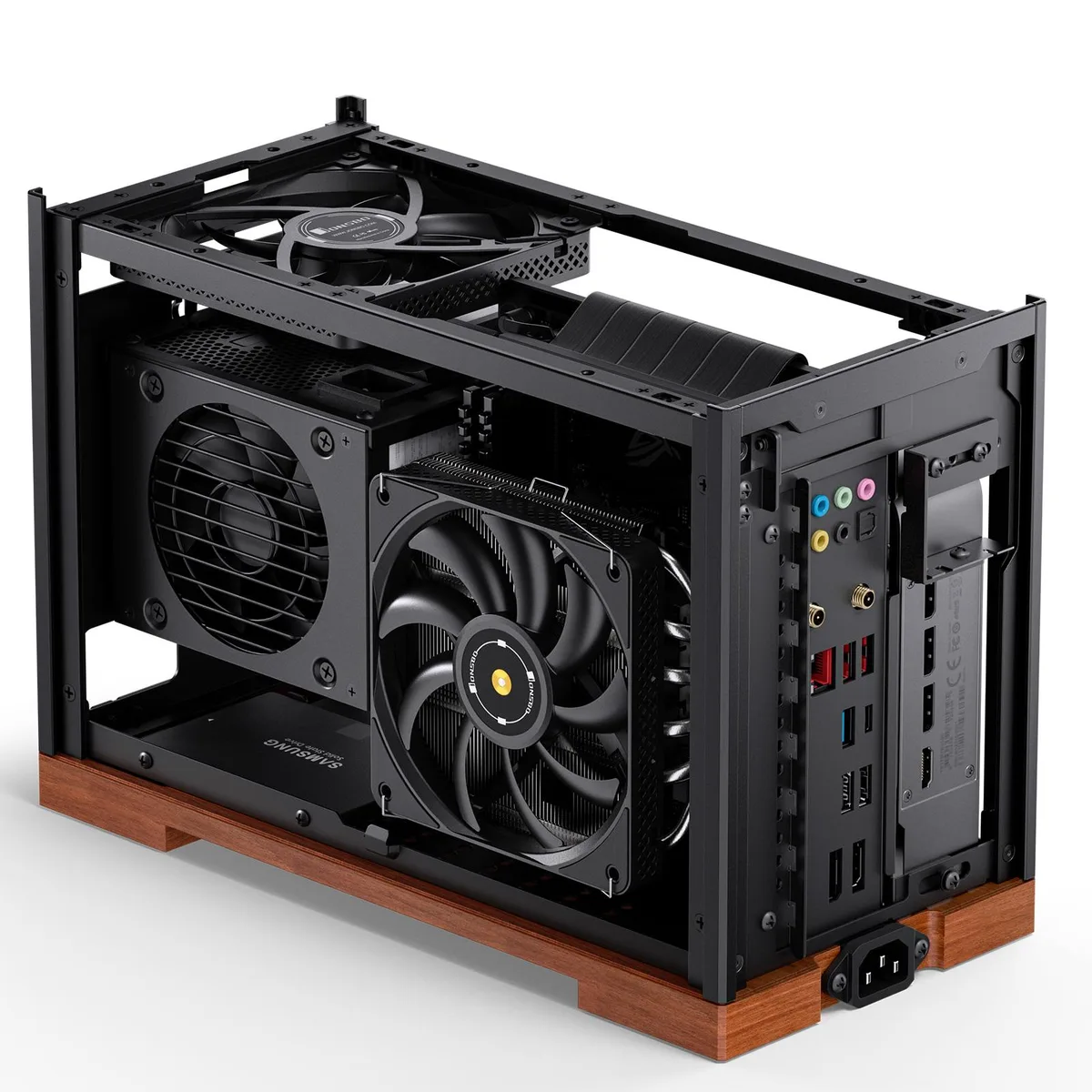

The Jonsbo T9 BLACK is a 4.0 mm aluminium Mini-ITX chassis that pairs a CNC-machined grille with a 20 mm solid walnut base. It targets builders who want a compact desktop footprint and a distinctive material mix. The three-level motherboard tray lets you match graphics-card thickness to cooler height in a single frame.
Compatibility checks before ordering
Confirm your motherboard is Mini-ITX and your power supply is an SFX unit no longer than 100 mm. The graphics card must fit within 202–310 mm length depending on the tray level you choose. CPU cooler height is limited to 58–78 mm based on the same level selection. Only one 3.5-inch and one 2.5-inch drive can be installed internally.
What this replaces and when to upgrade
It replaces a standard steel Mini-ITX box when you need the adjustable tray to fit a thicker graphics card or a taller cooler without changing cases. The jump is worth it if you want the aluminium-and-wood aesthetic, the tool-free panels and the single USB Type-C front port in a 3.85 kg package.
Points forts
- 4 mm aluminium shell gives rigid structure with CNC mesh panels
- 20 mm solid walnut base hides cables and adds premium feel
- ITX board adjusts across three levels for cooler and GPU clearance
- Supports SFX PSU up to 100 mm and GPUs from 202 to 310 mm
- Includes PCIe 5.0 riser cable for vertical graphics mounting
Caractéristiques
| Brand | Jonsbo |
|---|---|
| Series | T9 |
| Model | T9 BLACK |
| Part Number | T9 BLACK |
| Type | Mini-ITX |
| Color | Black |
| Case Material | Aluminum / Steel/Wood |
| Motherboard Compatibility | ITX |
| Dust Filters | Side |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 1 |
| Expansion Slots | 2 |
| Front Ports | Type-C*1 |
| Fan Options | Top - 1 x 120mm |
| Side Air duct | Yes |
| Max GPU Length | = 202mm-310mm |
| Max CPU Cooler Height | 58mm-78mm |
| Max PSU Length | SFX=100mm |
| Weight | 3.85kg |
Autres versions de ce modèle
2 de plus dans cette gamme
Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.
Questions sur cet article
What does the JONSBO T9 BLACK include and what must I buy separately?
The case ships with a 5.0 PCIe riser cable, a 20 mm solid-wood base with hidden wiring channels, a 120 mm top fan mount and side dust filters. You must supply an SFX power supply up to 100 mm long, an ITX motherboard, a CPU cooler no taller than 78 mm, a graphics card between 202 mm and 310 mm, plus your own storage drives and memory.
Which adjustable motherboard level should I choose for my graphics card and cooler?
Level 1 fits a triple-slot card with a cooler under 58 mm. Level 2 fits a 2.5-slot card with a cooler under 68 mm. Level 3 allows the tallest cooler up to 78 mm but only with a thinner graphics card. Match the level to the thickest component you plan to install.
What does the 310 mm maximum GPU length mean once the case is built?
It is the absolute longest graphics card the chassis can accept when the motherboard tray is set to its most rearward position. Any card longer than 310 mm will not fit, and the usable length drops to 202 mm if you move the tray forward for a taller CPU cooler.
