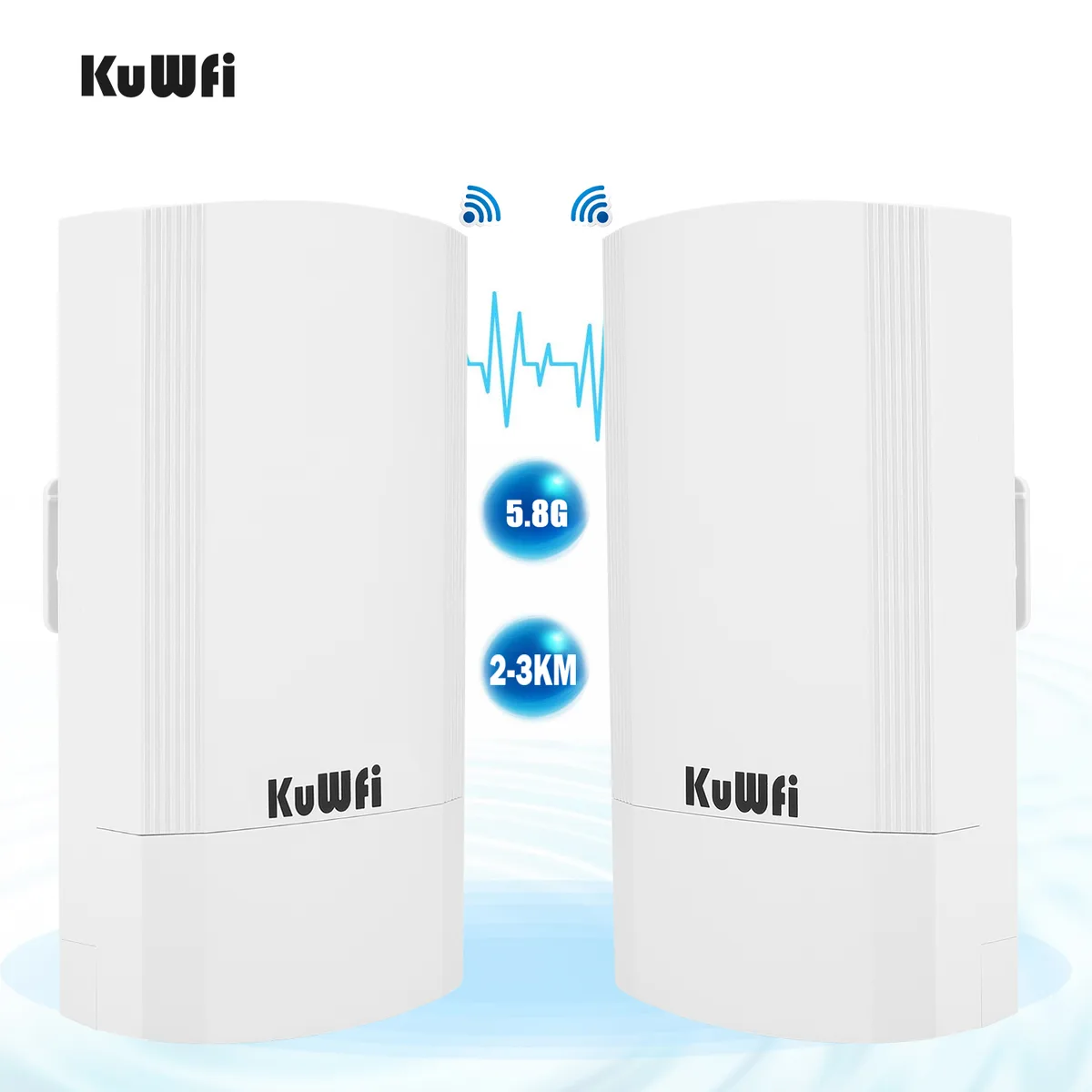

Two white rectangular outdoor wireless bridge units with integrated panel antennas and mounting hardware

KuWfi

KuWfi CPE80SR US 5.8G 900Mbps 2-Pack Wireless Bridge

SKU CH-T5E8-PG26D

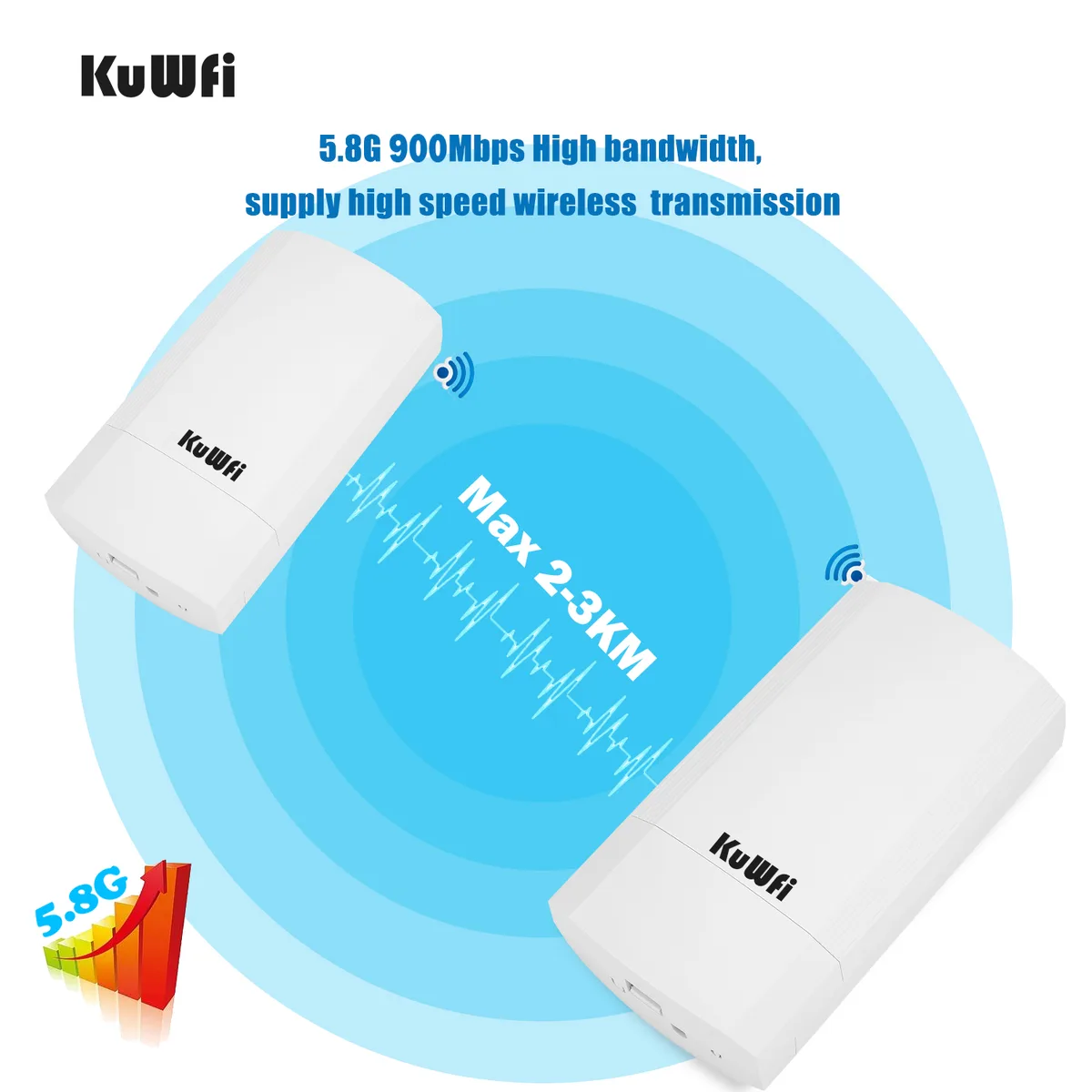

Two 5.8 GHz wireless bridges deliver 900 Mbps point-to-point links up to 3 km with IP65 outdoor rating

  • StandardsIEEE 802.11ac/a
  • Security64/128-bit WEP security, 128bit WPA (TKIP/AES) security
  • WPAWPA
  • WAN Ports1 * 10/100Mbps RJ45 WAN Port
  • LAN Ports1 * 10/100Mbps RJ45 LAN Port
  • LEDsPWR(Power), WAN, LAN, Wi-Fi
  • 8 GHz link reaches 900 Mbps for fast point-to-point throughput
  • IP65 rated enclosure withstands outdoor weather conditions
  • Built-in 11 dBi MIMO panel antenna focuses signal up to 3 km
  • 24 V passive PoE simplifies single-cable power and data
  • Pair of units pre-configured for instant bridge deployment

KuWfi CPE80SR 5.8 GHz Bridge Kit

This KuWfi CPE80SR kit contains two outdoor wireless bridges operating on the 5.8 GHz band with a 900 Mbps PHY rate. Each unit integrates an 11 dBi MIMO panel antenna and an IP65-rated enclosure for point-to-point or point-to-multipoint links up to 2-3 km.

Installers needing a dedicated wireless link

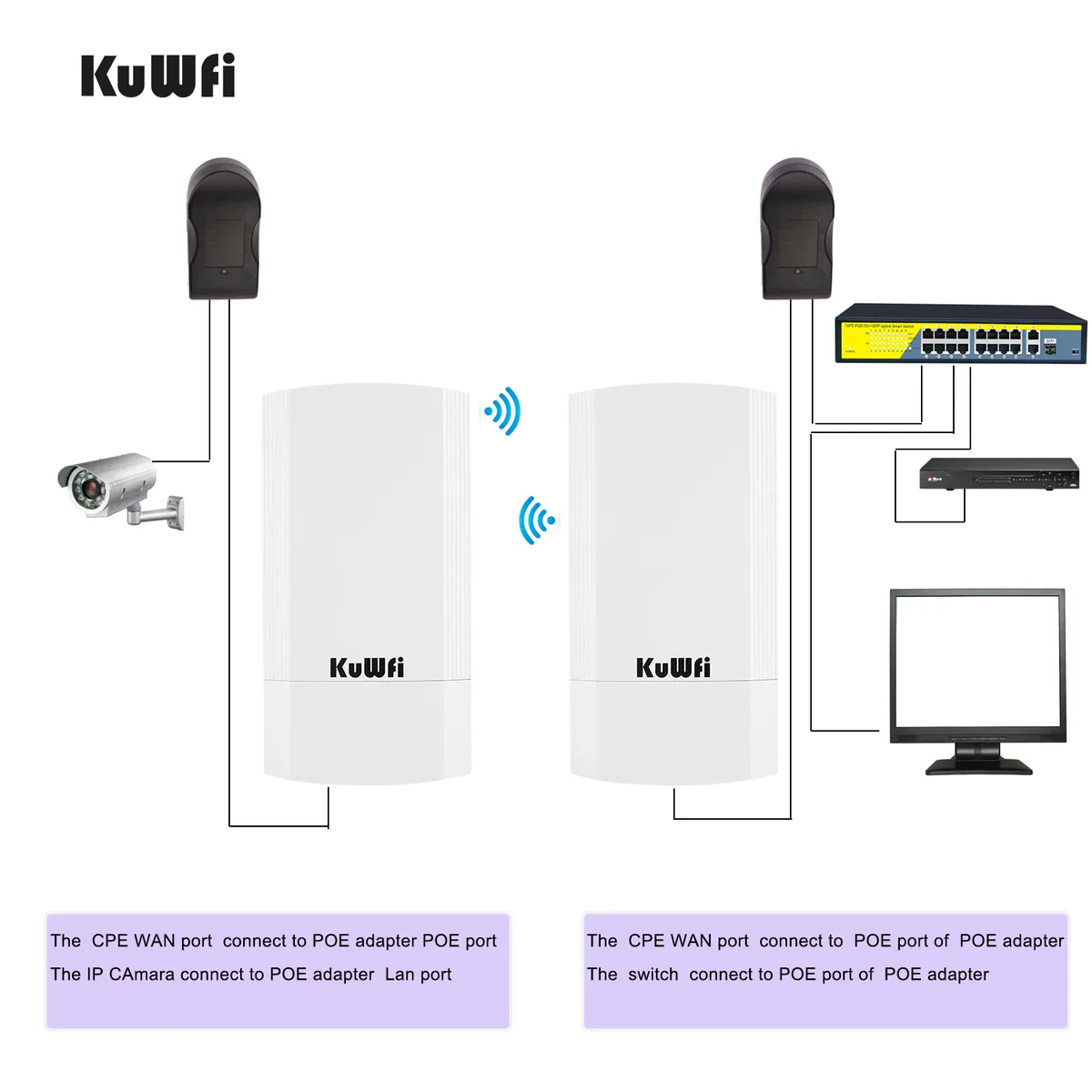

The pair suits installers who need a transparent bridge between two fixed sites such as buildings, cameras or remote networks. It does not suit users who want a conventional access point for phone or laptop clients, or anyone requiring gigabit Ethernet ports.

10/100 Mbps Ethernet ports

Each bridge provides one 10/100 Mbps WAN port and one 10/100 Mbps LAN port, so wired throughput is limited to 100 Mbps. The link runs on 24 V passive PoE from the included injectors and is managed through a web interface.

Points forts

  • 8 GHz link reaches 900 Mbps for fast point-to-point throughput
  • IP65 rated enclosure withstands outdoor weather conditions
  • Built-in 11 dBi MIMO panel antenna focuses signal up to 3 km
  • 24 V passive PoE simplifies single-cable power and data
  • Pair of units pre-configured for instant bridge deployment

Caractéristiques

BrandKuWfi
ModelCPE80SR US
StandardsIEEE 802.11ac/a
Security64/128-bit WEP security, 128bit WPA (TKIP/AES) security
WPAWPA
WAN Ports1 * 10/100Mbps RJ45 WAN Port
LAN Ports1 * 10/100Mbps RJ45 LAN Port
LEDsPWR(Power), WAN, LAN, Wi-Fi

Questions sur cet article

Does the 2-pack include everything needed to mount and power both bridges, or must I buy PoE injectors and cables separately?

The kit ships with two CPE units, two 24V 0.5A PoE power adapters, two 1-meter Ethernet cables and four metal mounting hoops with screws, so no extra power or mounting parts are required.

The listing shows a single CPE80SR US model — are there different capacity or antenna-gain versions I should choose between?

Only the CPE80SR US is offered; each unit has a built-in 11dBi MIMO panel antenna and identical 64MB RAM, 8MB flash and RTL8881AN chipset, so there are no alternative capacities or gain options to select.

The headline says 900Mbps — what real throughput can I expect over a 2-3km link with the 5.8GHz radios?

The 900Mbps figure is the maximum PHY rate under IEEE 802.11ac; actual throughput will be lower due to overhead, distance, interference and the 10/100Mbps Ethernet ports, which cap wired traffic at 100Mbps.
