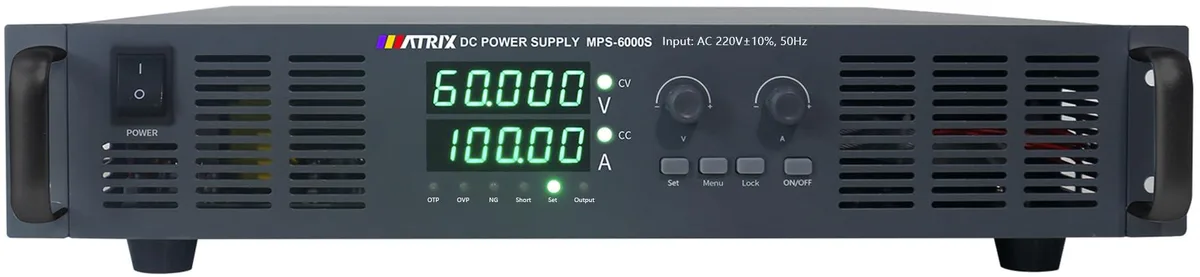

Silver metal rackmount power supply 17 by 20 by 3.5 inches front panel display knobs binding posts

Matrix

Matrix MPS-6000S-60-100 Industrial Power Supply 60V 100A 6000W

SKU CH-0YRA-K27WR

A programmable DC supply delivers 0-60 V at up to 100 A with 6000 W output, PWM regulation and OVP, OCP, OTP plus short-circuit protection

  • TypeMATRIX MPS-6000S-60-100 High Voltage Programmable DC Power S
  • Watts6000 watts
  • Surge Wats6000 watts
  • Engine BrandMATRIX
  • Voltage60 volts
  • Circuit BreakerMATRIX MPS-6000S-60-100 High Voltage Programmable DC Power S
  • Delivers 6000W adjustable DC power for demanding industrial applications
  • Output adjustable from 0 to 60V and 0 to 100A for versatile test setups
  • Five-digit simultaneous voltage and current display enables precise monitoring
  • Comprehensive OVP, OCP, OTP and short-circuit protection safeguards connected equipment

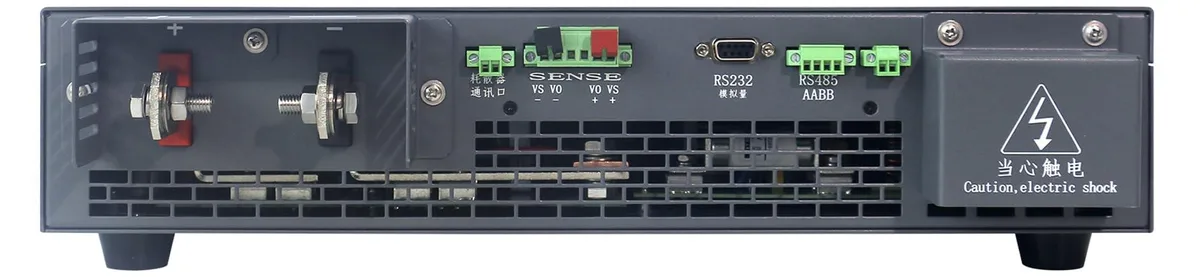

  • RS-232 and RS-485 interfaces support remote control and system integration

Industrial Programmable DC Supply

The Matrix MPS-6000S-60-100 is a programmable bench DC power supply built for laboratory and industrial test environments. It delivers adjustable output up to 60 volts and 100 amps with a 6000 watt rating. Engineers and technicians use it for development, validation and burn-in tasks that demand precise, stable power.

60 V 100 A 6000 W Capacity

The unit provides continuous output from 0 to 60 volts and 0 to 100 amps, reaching 6000 watts at full scale. Headroom covers high-current loads such as motor drives, battery strings and power-stage prototypes. It runs out when a test requires more than 60 volts, more than 100 amps or more than 6000 watts total.

Thermals Noise And Protection

Forced-air cooling handles sustained full-load operation in a 2U rack-mount chassis. Protection circuits include over-voltage, over-current, over-temperature and short-circuit shutdown to safeguard the supply and the device under test. Audible fan noise is present during high-power use. Input draws from single-phase 220 volt 50 Hz mains.

Points forts

  • Delivers 6000W adjustable DC power for demanding industrial applications
  • Output adjustable from 0 to 60V and 0 to 100A for versatile test setups
  • Five-digit simultaneous voltage and current display enables precise monitoring
  • Comprehensive OVP, OCP, OTP and short-circuit protection safeguards connected equipment
  • RS-232 and RS-485 interfaces support remote control and system integration

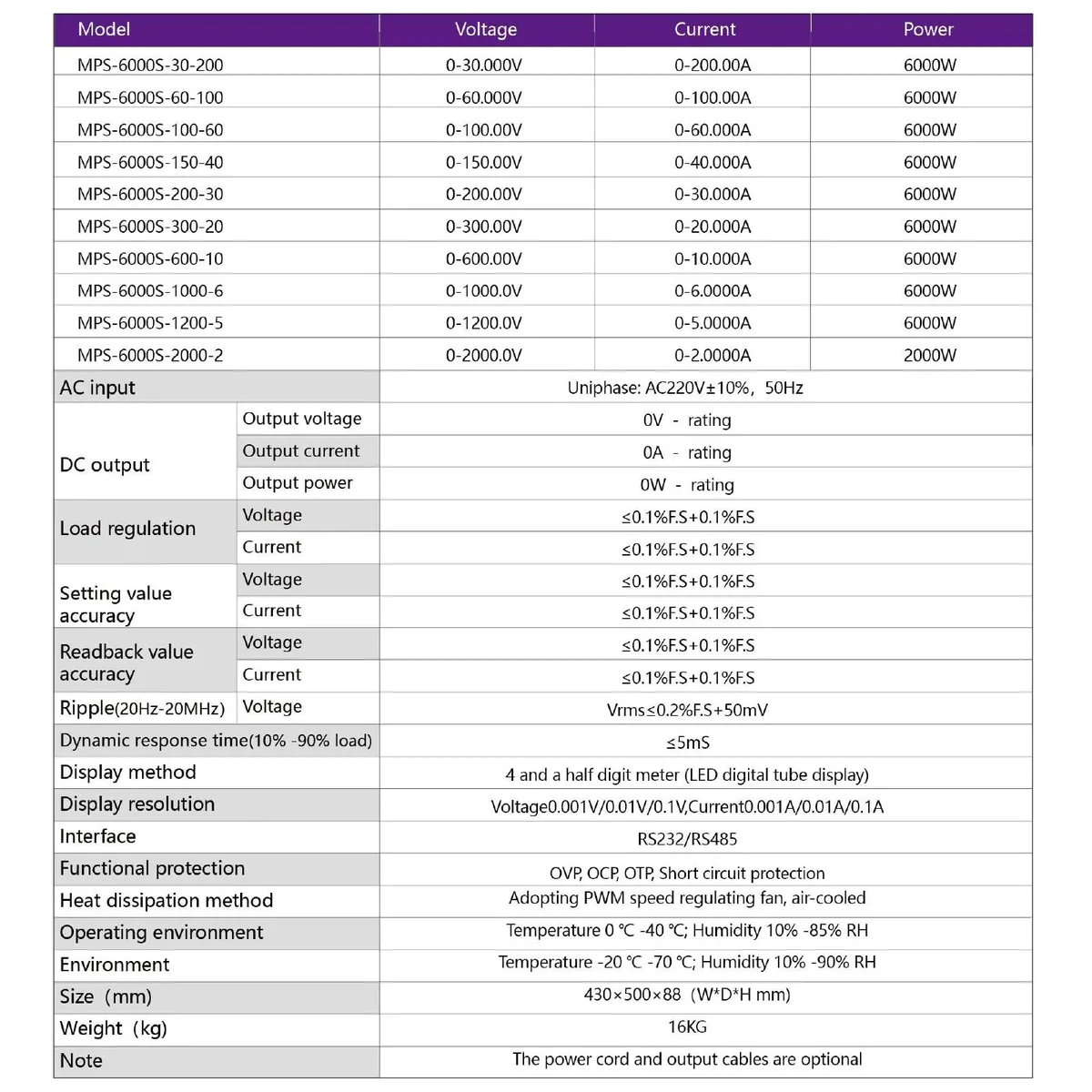

Caractéristiques

TypeMATRIX MPS-6000S-60-100 High Voltage Programmable DC Power Supply 60V 100A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Watts6000 watts
Surge Wats6000 watts
Engine BrandMATRIX
Voltage60 volts
Circuit BreakerMATRIX MPS-6000S-60-100 High Voltage Programmable DC Power Supply 60V 100A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Size/Dimensions17 in x 20 in x 3.5 in
Horsepower6000 watts
Input VoltageMATRIX MPS-6000S-60-100 High Voltage Programmable DC Power Supply 60V 100A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Output VoltageMPS-6000S-60-100, MATRIX MPS-6000S-60-100 High Voltage Programmable DC Power Supply 60V 100A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Output AmpsMPS-6000S-60-100, MATRIX MPS-6000S-60-100 High Voltage Programmable DC Power Supply 60V 100A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Input Amps2U, MATRIX MPS-6000S-60-100 High Voltage Programmable DC Power Supply 60V 100A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Styleadjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Operating Frequencynot_applicable
MaterialMetal
Regulationnot_applicable
RippleMATRIX MPS-6000S-60-100 High Voltage Programmable DC Power Supply 60V 100A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Featuresadjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply, MATRIX MPS-6000S-60-100 High Voltage Programmable DC Power Supply 60V 100A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz
Parts3 Years
Labor3 Years

Questions sur cet article

Will the 6000 W output and RS-232 or RS-485 links work with my older 220 V test bench?

The unit runs from single-phase AC 220 V ±10 % at 50 Hz and provides RS-232 and RS-485 interfaces for integration with existing equipment.

How can I confirm the supply is regulating correctly after I wire it up?

The front panel shows simultaneous five-digit voltage and current readouts, and protection LEDs indicate OVP, OCP, OTP or short-circuit events.

What ships in the box and what must I source separately?

The power supply itself is included; AC input cable, RS-232/RS-485 cables and any load leads are not supplied.
