Black compact mini PC barebone unit with vertical orientation and textured side panels

minisforum

minisforum MF-MSA1-9950X(64+0)US barebone mini PC Ryzen 9 9950X 16C/32T 5.7GHz 64GB DDR5 no SSD

SKU CH-CGW6-VRENG MPN MF-MSA1-9950X(64+0)US

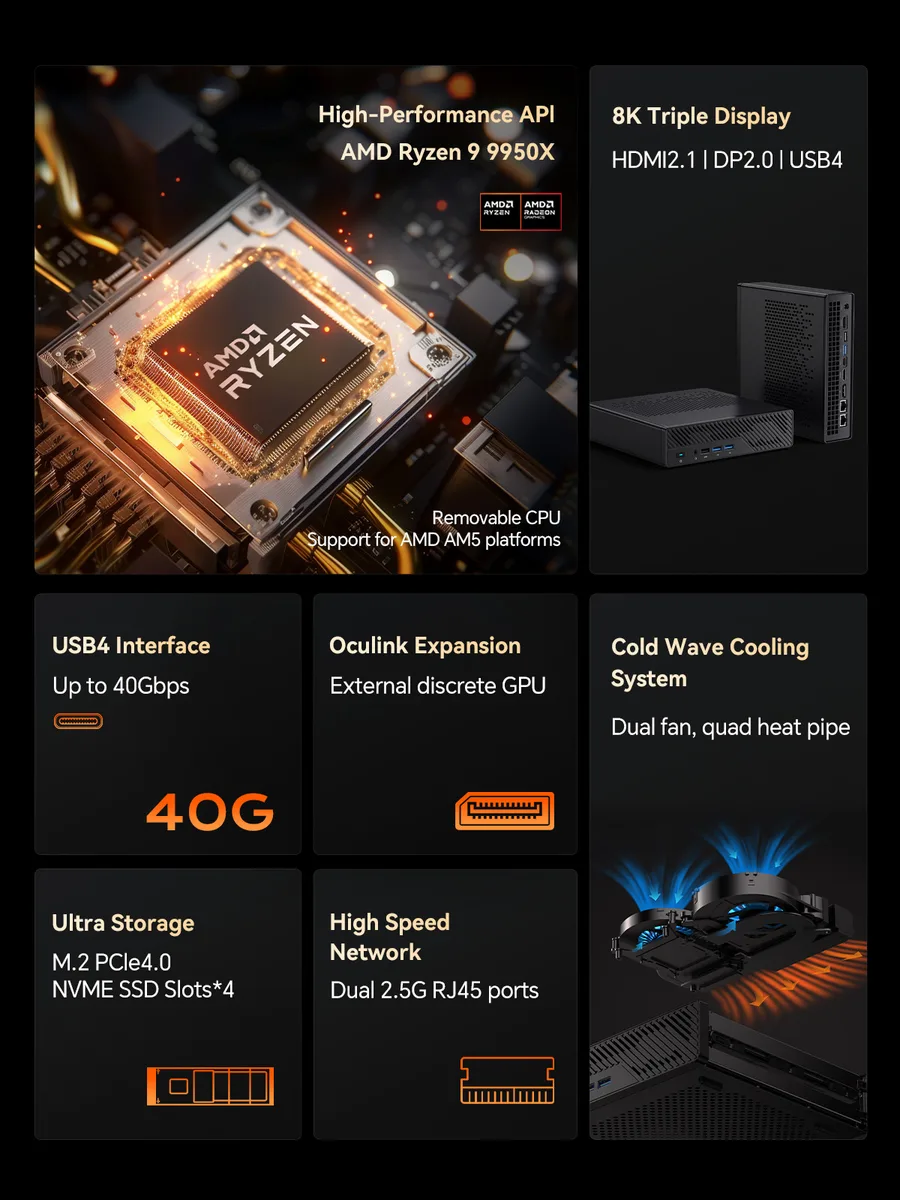

Barebone mini workstation with a 16-core Ryzen 9 9950X up to 5.7 GHz, 64 GB DDR5 5600 installed, four M.2 2280 slots, dual 2.5 Gbps LAN, Wi-Fi 6E, Bluetooth 5.2, and triple 4K video outputs

  • ColorBlack
  • CPU TypeAMD Ryzen 9 9950X
  • CPU SocketAMD Socket AM5
  • CPU Cores16-Core
  • CPU Feature16 cores, 32 threads, max. 5.7GHz
  • Memory installed64GB

CPU Type AMD Ryzen 9 9950X

Memory Type 64GB SO-DIMM DDR5 5600

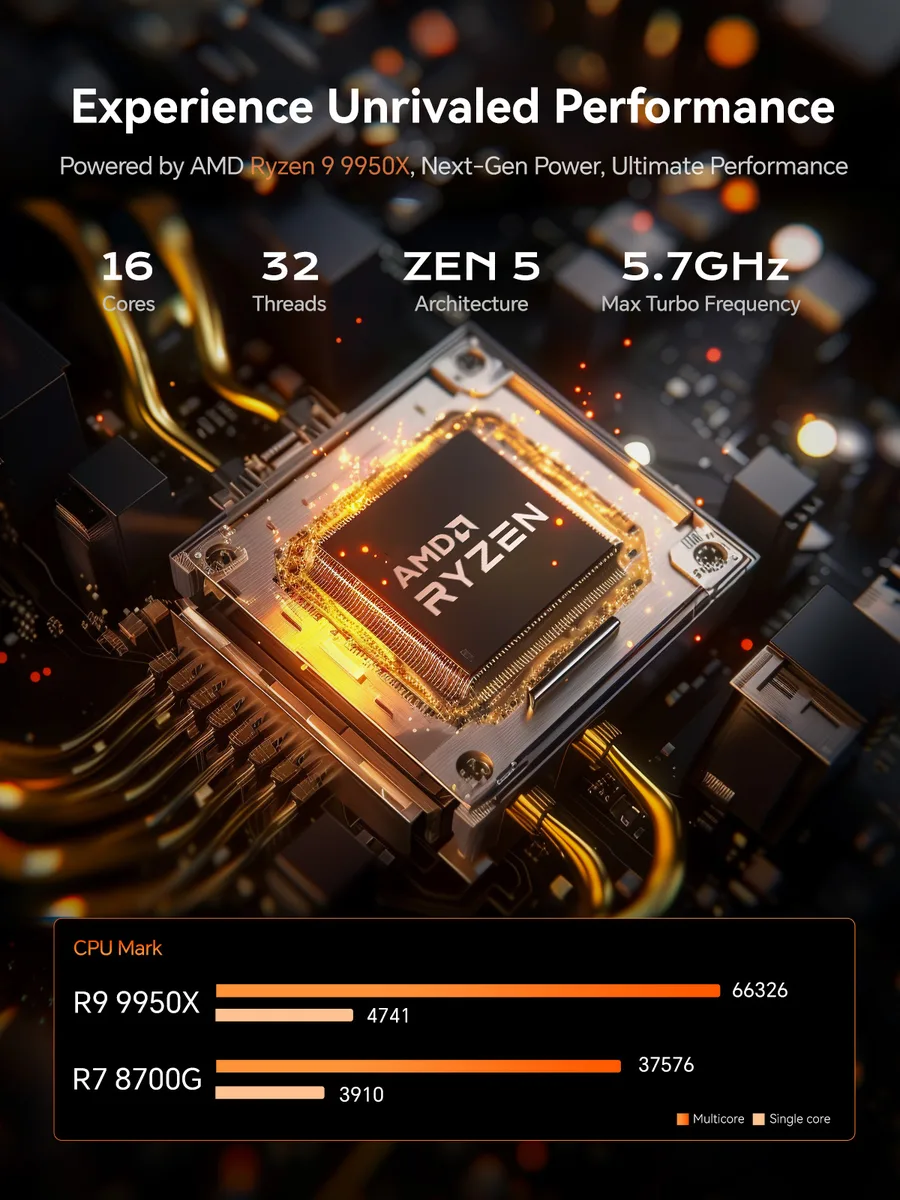

  • 16-core 32-thread Ryzen 9 9950X up to 5.7 GHz for heavy workloads

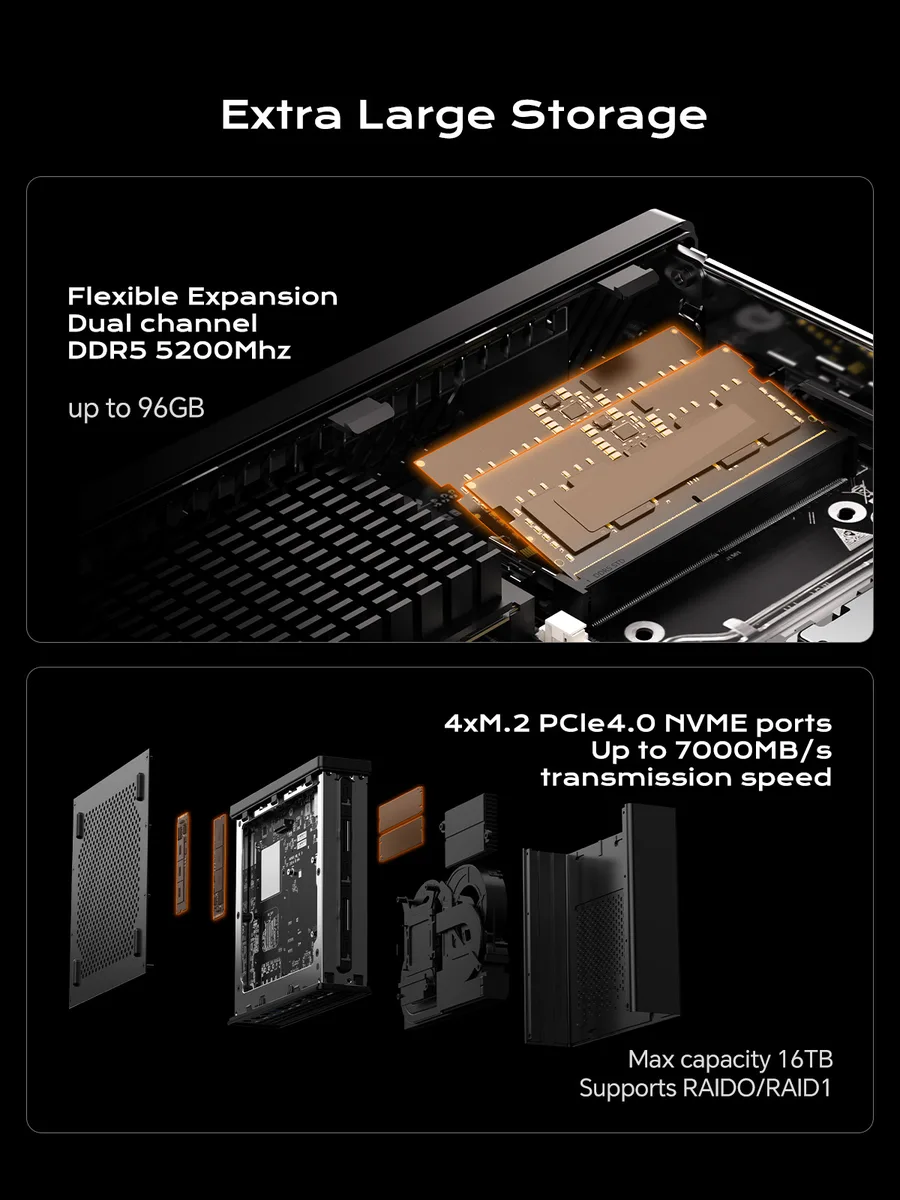

  • 64 GB DDR5 5600 dual-channel installed expandable to 96 GB
  • Four M.2 2280 PCIe 4.0 slots for high-speed storage expansion
  • Dual 2.5 Gbps LAN plus Wi-Fi 6E and Bluetooth 5.2 for fast networking
  • Triple 4K video via HDMI 2.1 DP 2.0 and USB-C DP Alt mode

Ready-to-run Ryzen 9 workstation

The minisforum MS-A1-9950X barebone ships with a 16-core Ryzen 9 9950X processor and 64 GB of DDR5 5600 memory installed. It targets professionals who need high multi-thread performance in a compact chassis without assembling parts themselves.

Expandable platform for storage and displays

Four M.2 2280 slots accept PCIe 4.0 and 3.0 SSDs up to 4 TB each, and dual SODIMM sockets allow memory upgrades to 96 GB. Video outputs comprise HDMI 2.1, DisplayPort 2.0 and USB-C with DP Alt mode, each driving 4K at up to 144 Hz. Dual 2.5 GbE ports, Wi-Fi 6E and Bluetooth 5.2 handle wired and wireless networking.

Suits users who want CPU power in a small footprint

Buyers needing discrete graphics, additional PCIe expansion cards or a pre-installed operating system should consider other form factors. The included 19 V 12.63 A adapter powers the system, and cooling runs as quiet as 37 dB under load.

Points forts

  • 16-core 32-thread Ryzen 9 9950X up to 5.7 GHz for heavy workloads
  • 64 GB DDR5 5600 dual-channel installed expandable to 96 GB
  • Four M.2 2280 PCIe 4.0 slots for high-speed storage expansion
  • Dual 2.5 Gbps LAN plus Wi-Fi 6E and Bluetooth 5.2 for fast networking
  • Triple 4K video via HDMI 2.1 DP 2.0 and USB-C DP Alt mode

Caractéristiques

BrandMINISFORUM
ModelMS-A1-9950X
ColorBlack
CPU TypeAMD Ryzen 9 9950X
CPU SocketAMD Socket AM5
CPU Cores16-Core
CPU Feature16 cores, 32 threads, max. 5.7GHz
Memory installed64GB
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Storage
M.2 Slot2 x M.2 2280 PCle4.0 SSD Slot (up to 4TB)(PCle4.0x4)(Back side)
1 x M.2 2280 PCle4.0 SSD Slot (up to 4TB)(PCle3.0x4)(CPU Side)
1 x M.2 2280 PCIe4.0 SSD Slot (up to 4TB)(PCIe4.0x1)(CPU Side)
Integrated GraphicsAMD Radeon Graphics

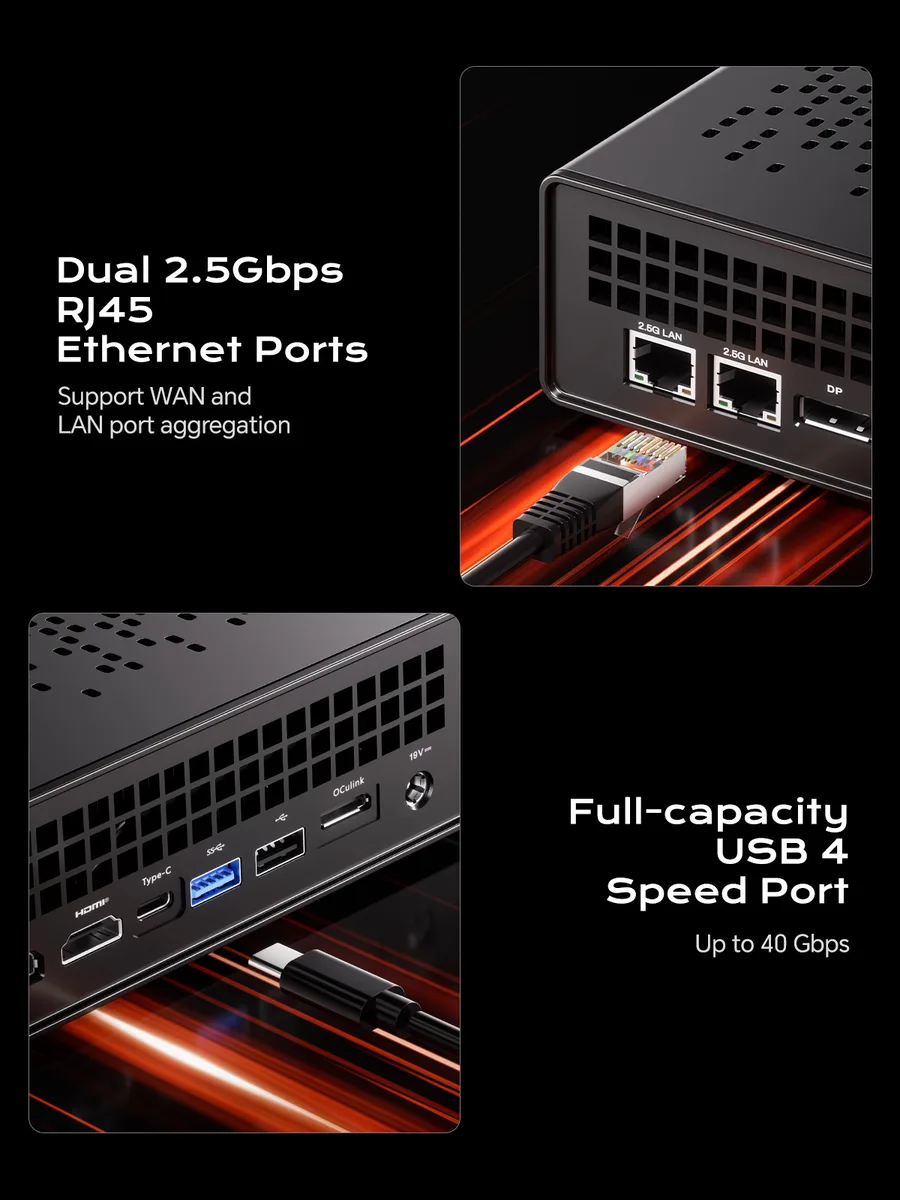

Max LAN SpeedDual 2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.2
Front USB2 x USB 3.0 Gen1 5Gbps
1 x USB 2.0
Front Audio Ports1 x 3.5 mm combo jack
HDMI1 x HDMI 2.1
DisplayPort1 x DisplayPort 2.0
Rear USB1 x USB 3.2 Gen 2 10Gbps
1 x USB Type-C
RJ452
Other Rear Ports1 x OCuLink
Power SupplyDC 19V/12.63A (adapter included)
Dimensions189.5 x 186 x 48mm
Weight1.8 kg
Packaging1 x MS-A1 9950X Mini Workstation
1 x US Power Adapter
1 x Power Cord
1 x HDMI Cable
1 x Manual
Poids d’expédition3.27 kg
Dimensions du colis229 × 229 × 121 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

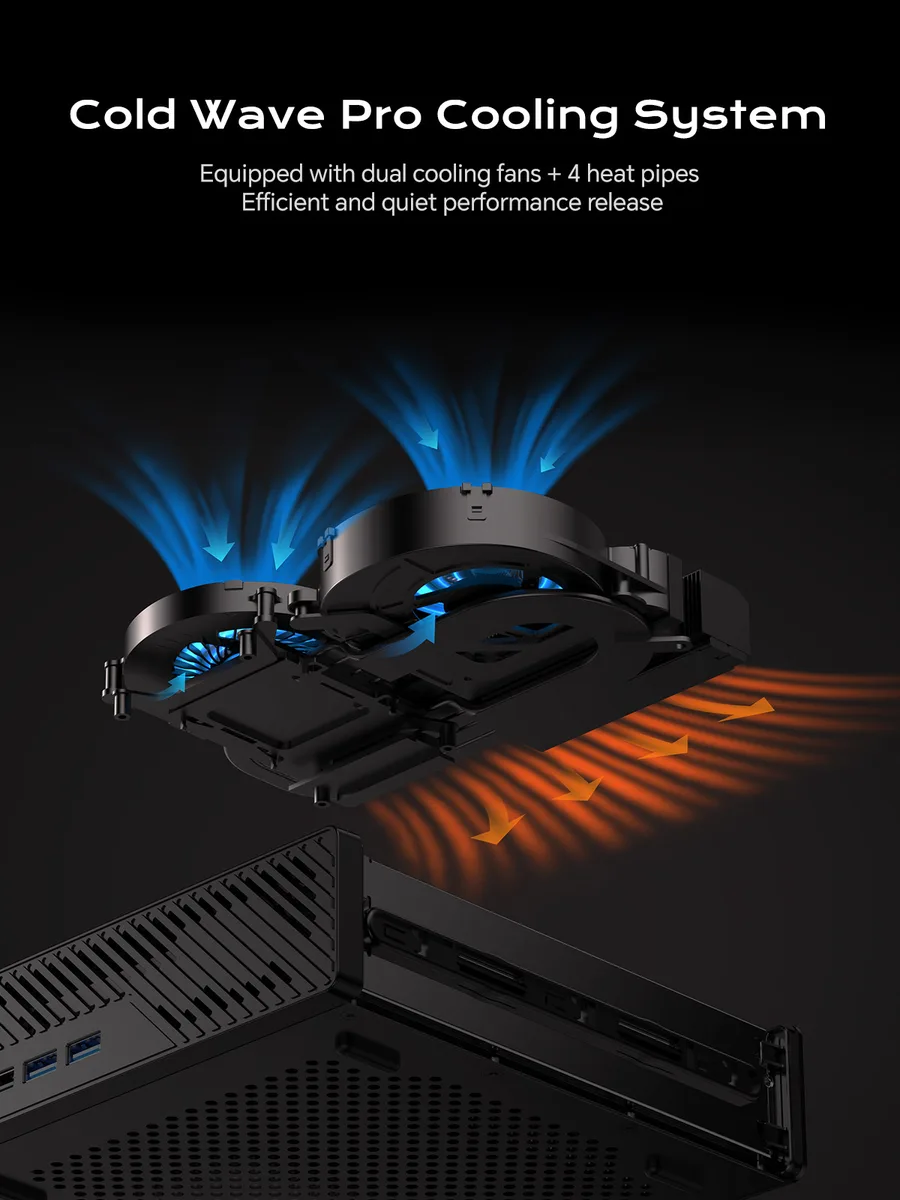

How long can the Ryzen 9 9950X hold its 5.7 GHz boost with the dual-fan four-heat-pipe cooler?

The dual-fan four-heat-pipe cooling system is rated for quiet operation as low as 37 dB and is designed to sustain 16-core 32-thread performance under load.

What noise level should I expect from the dual-fan cooler when the system runs all day?

The cooling system operates as low as 37 dB, keeping acoustic output low during continuous 16-core workloads.

Which M.2 SSD form factor and interface do the four onboard slots accept?

Four M.2 2280 PCIe 4.0 slots are provided; two run at PCIe 4.0 x4, one at PCIe 3.0 x4, and one at PCIe 4.0 x1, each supporting up to 4 TB.
