Compact black mini PC barebone, no storage installed

minisforum

minisforum MF-MSA2-9955HX(64+0)US barebone mini PC Ryzen 9 9955HX 64GB DDR5 no storage

SKU CH-JQH8-MQH24 MPN MF-MSA2-9955HX(64+0)US

A barebone mini workstation with a 16-core Ryzen 9 9955HX, 64GB DDR5-5600, dual 10G SFP+ and dual 2.5G LAN, triple 8K video output, and three M.2 slots supporting U.2 NVMe up to 15TB

  • ColorBlack
  • CPU TypeAMD Ryzen 9 9955HX
  • CPU Cores16-Core
  • CPU Feature16 cores, 32 threads, max. 5.4GHz
  • Memory installed64GB
  • Memory slot2 x 262Pin SO-DIMM

CPU Type AMD Ryzen 9 9955HX

Memory Type 64GB SO-DIMM DDR5 5600

  • 16-core Ryzen 9 9955HX reaches 5.4 GHz for heavy workloads
  • 64 GB DDR5-5600 installed, expandable to 96 GB dual-channel
  • Triple 8K 60 Hz output via HDMI 2.1 and two USB-C DP Alt ports
  • Dual 10 Gbps SFP+ plus two 2.5 Gbps RJ45 for high-speed networking
  • Three M.2 slots support U.2 up to 15 TB and NVMe up to 4 TB each

Barebone mini PC with 16-core Ryzen 9

The Minisforum MS-A2-9955HX is a barebone mini workstation built around a 16-core, 32-thread AMD Ryzen 9 9955HX processor that reaches 5.4 GHz. It ships with 64 GB of DDR5-5600 memory in dual-channel configuration and supports up to 96 GB across two SO-DIMM slots. Integrated AMD Radeon 610M graphics run at 2.2 GHz. No storage or operating system is included.

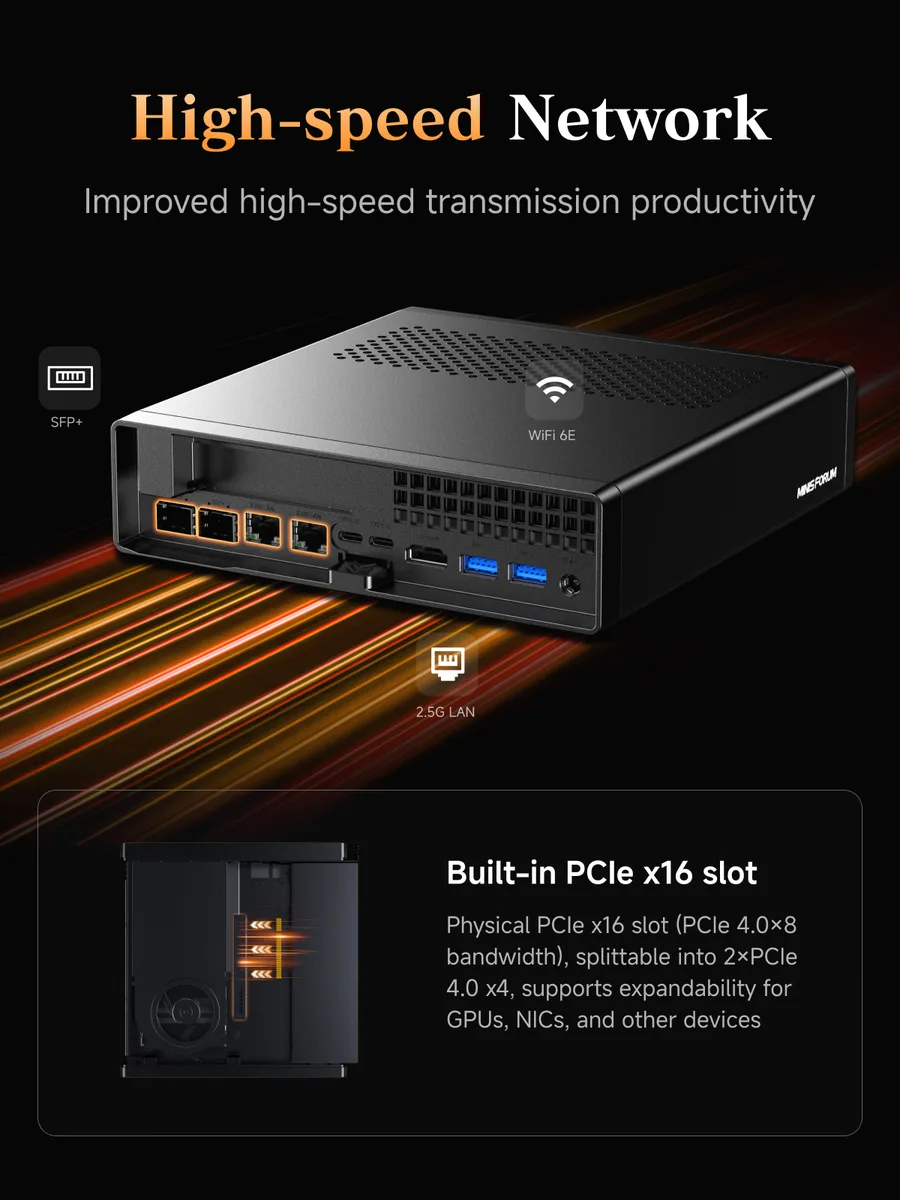

Adds 10 GbE SFP+ and PCIe 4.0 expansion

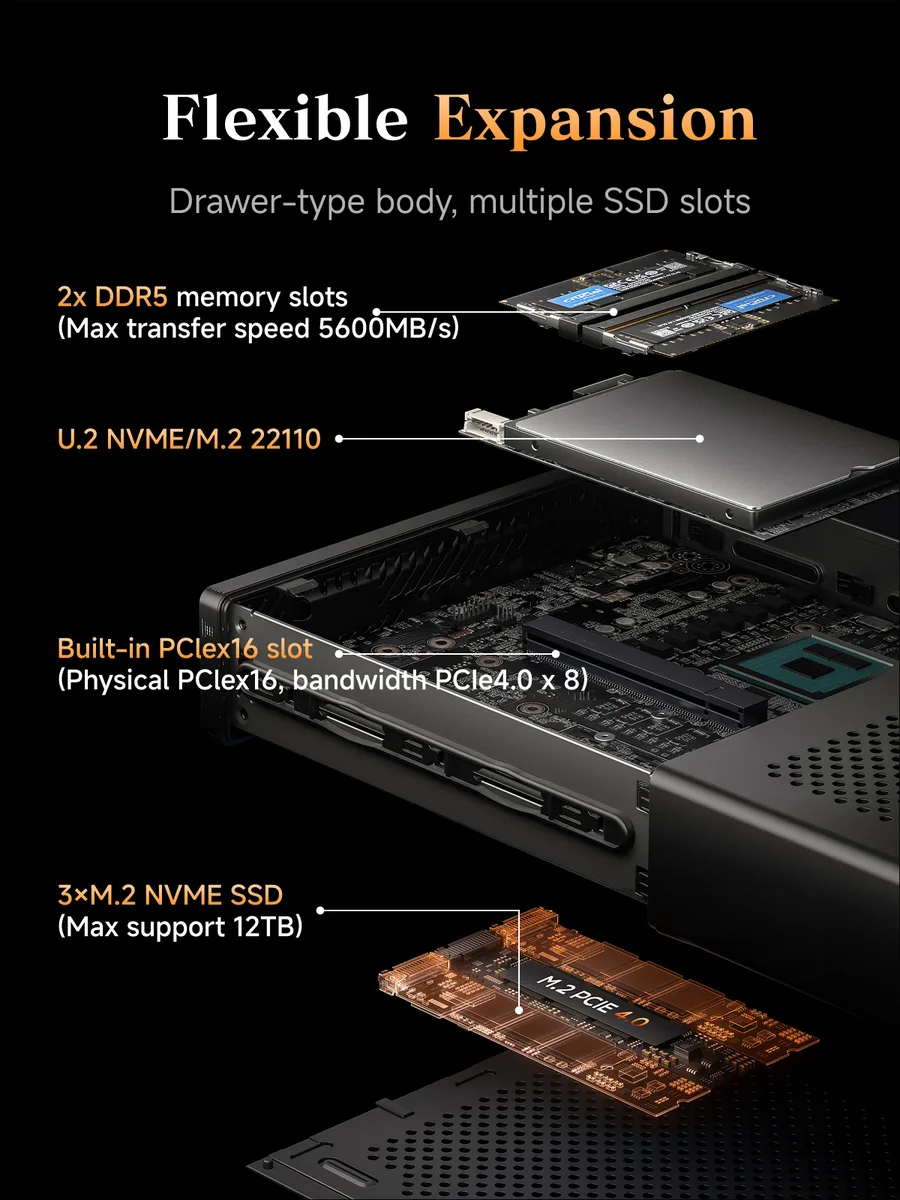

This unit upgrades connectivity with two 10 Gbps SFP+ ports based on Intel X710 controllers, plus dual 2.5 GbE RJ45 ports using Realtek RTL8125 and Intel I226-V. A PCIe 4.0 x16 slot operates at x8 and supports bifurcation for add-in cards. Storage capacity expands through one M.2 2280/U.2 slot accepting up to 15 TB U.2 drives and two additional M.2 2280/22110 slots for NVMe SSDs up to 4 TB each.

Suits multi-display workstations needing

Builders who want triple 8K@60 Hz output via HDMI 2.1 and two USB-C DP Alt Mode ports will benefit from the video flexibility. The 10 GbE SFP+ links serve network-attached storage or server clusters. Buyers who need discrete GPU performance, more than three display outputs, or a pre-installed OS and SSD should look at other platforms.

Points forts

  • 16-core Ryzen 9 9955HX reaches 5.4 GHz for heavy workloads
  • 64 GB DDR5-5600 installed, expandable to 96 GB dual-channel
  • Triple 8K 60 Hz output via HDMI 2.1 and two USB-C DP Alt ports
  • Dual 10 Gbps SFP+ plus two 2.5 Gbps RJ45 for high-speed networking
  • Three M.2 slots support U.2 up to 15 TB and NVMe up to 4 TB each

Caractéristiques

BrandMINISFORUM
ModelMS-A2-9955HX
ColorBlack
CPU TypeAMD Ryzen 9 9955HX
CPU Cores16-Core
CPU Feature16 cores, 32 threads, max. 5.4GHz
Memory installed64GB
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
PCI Express 4.0 x161 x PCIe x16 (PCIe4.0 x8, Splitting Supported )
Storage InstalledNo Storage
M.2 Slot1 x M.2 2280/U.2 NVME SSD (Up to 15 TB U.2, PCIe 4.0x4)
2 x M.2 2280/22110 NVME SSD (Up to 4 TB/Slot, default PCIe 3.0 x4, up to PCIe 4.0 x4)
Integrated GraphicsAMD Radeon 610M
LANRealtek RTL8125 + Intel I226-V + 2 x Intel X710
Max LAN Speed10Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.2
Front USB2 x USB 3.2 Gen1 (5Gbps)
1 x USB 2.0
Front Audio Ports1 x 3.5 mm combo jack
HDMI1 x HDMI 2.1
Rear USB1 x USB3.2 Gen2 (10Gbps)
1 x USB3.2 Gen1 (5Gbps)
2 x USB-C (USB3.2 Gen2, 10Gbps,Alt DP2.0)
RJ451 x 2.5Gb LAN(RJ45,Realtek RTL8125)
1 x 2.5Gb LAN(RJ45,Intel I226-V)
2 x 10G SFP+(Intel X710)
Power Supply19V/12.63A
Dimensions196 x 189 x 48mm
Weight1.4 kg
Packaging1 x MS-A2-995HX Mini Workstation
1 x US Power Adapter
1 x Power Cord
1 x HDMI Cable
1 x Mounting Screw Set
1 x Manual
Poids d’expédition3.04 kg
Dimensions du colis234 × 229 × 119 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What size M.2 NVMe SSD does the 2280 slot accept and what is the maximum capacity per slot?

The two M.2 2280/22110 slots each support NVMe SSDs up to 4 TB per slot, running at PCIe 3.0 x4 by default and up to PCIe 4.0 x4.

How do I install an M.2 drive and what step is commonly missed?

Remove the bottom cover, insert the M.2 2280 or 22110 NVMe SSD at an angle into the slot, secure it with the screw, then enable the drive in BIOS — many users forget the BIOS step.

When will the pre-installed 64 GB DDR5 memory need replacement or expansion?

The 64 GB DDR5-5600 SO-DIMM kit can be expanded to 96 GB using both 262-pin slots; replace modules only if a fault occurs or workloads exceed 96 GB.
