MSI
MSI MAG A1000GL PCIE5 1000 W power supply
A fully modular 1000 W ATX 3.1 power supply with 80 PLUS Gold efficiency, a native 16-pin PCIe 5.1 connector and a 135 mm fluid dynamic bearing fan in a compact 150 mm frame
- ColorBlack
- TypeIntel ATX 12V
- Maximum Power1000 W
- Fans1 x 135 mm Fluid Dynamic Bearing
- PFCActive
- Max PSU Length150 mm
Type ATX 3.1 (1000W)
- 1000 W output powers demanding builds
- 80 PLUS Gold certification delivers up to 90 % efficiency
- ATX 3.1 and PCIe 5.1 ready for modern GPUs
- Native 16-pin 12V-2x6 connector supplies up to 600 W
- Fully modular design with 150 mm compact length reduces clutter
1000 W ATX 3.1 power supply

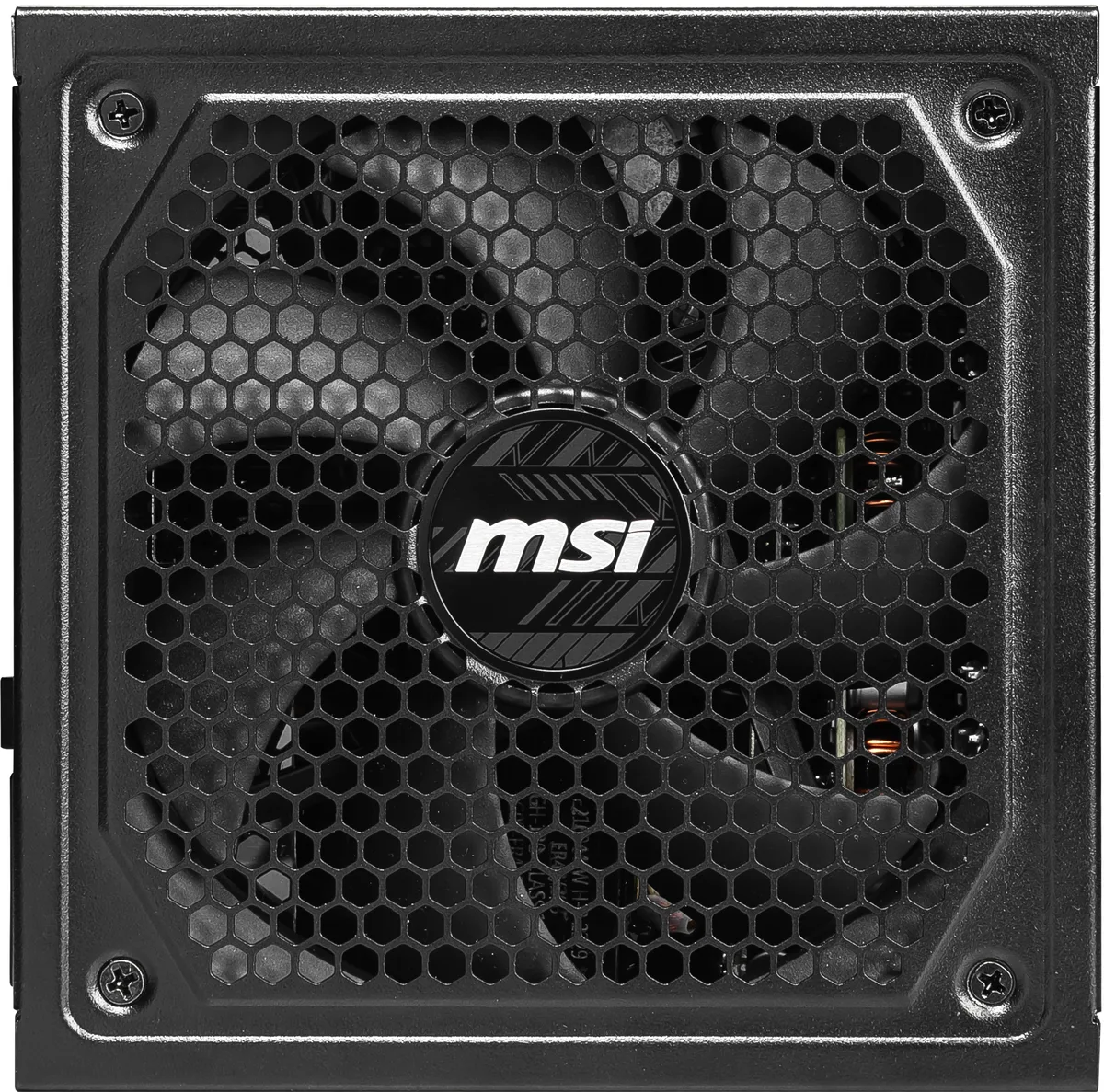

This fully modular unit delivers up to 1000 W of continuous power and meets the Intel ATX 3.1 and PCIe 5.1 specifications. An 80 PLUS Gold rating guarantees up to 90 % efficiency at typical loads. A 135 mm fluid dynamic bearing fan provides cooling inside a compact 150 mm deep chassis.
600 W native 12V-2x6 GPU connector

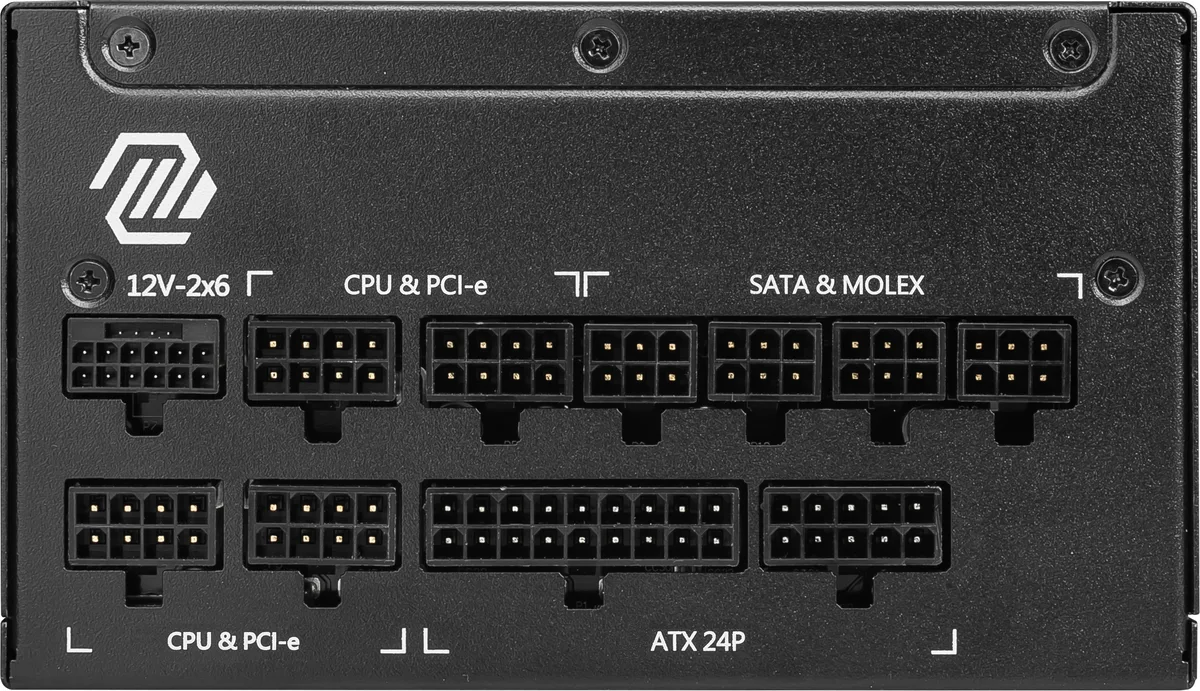

The single 16-pin PCIe 5.1 cable supplies up to 600 W directly to a modern graphics card without adapters. Four additional 6+2-pin PCIe connectors support further expansion cards or auxiliary power. Twelve SATA and four Molex connectors cover storage and peripheral needs.

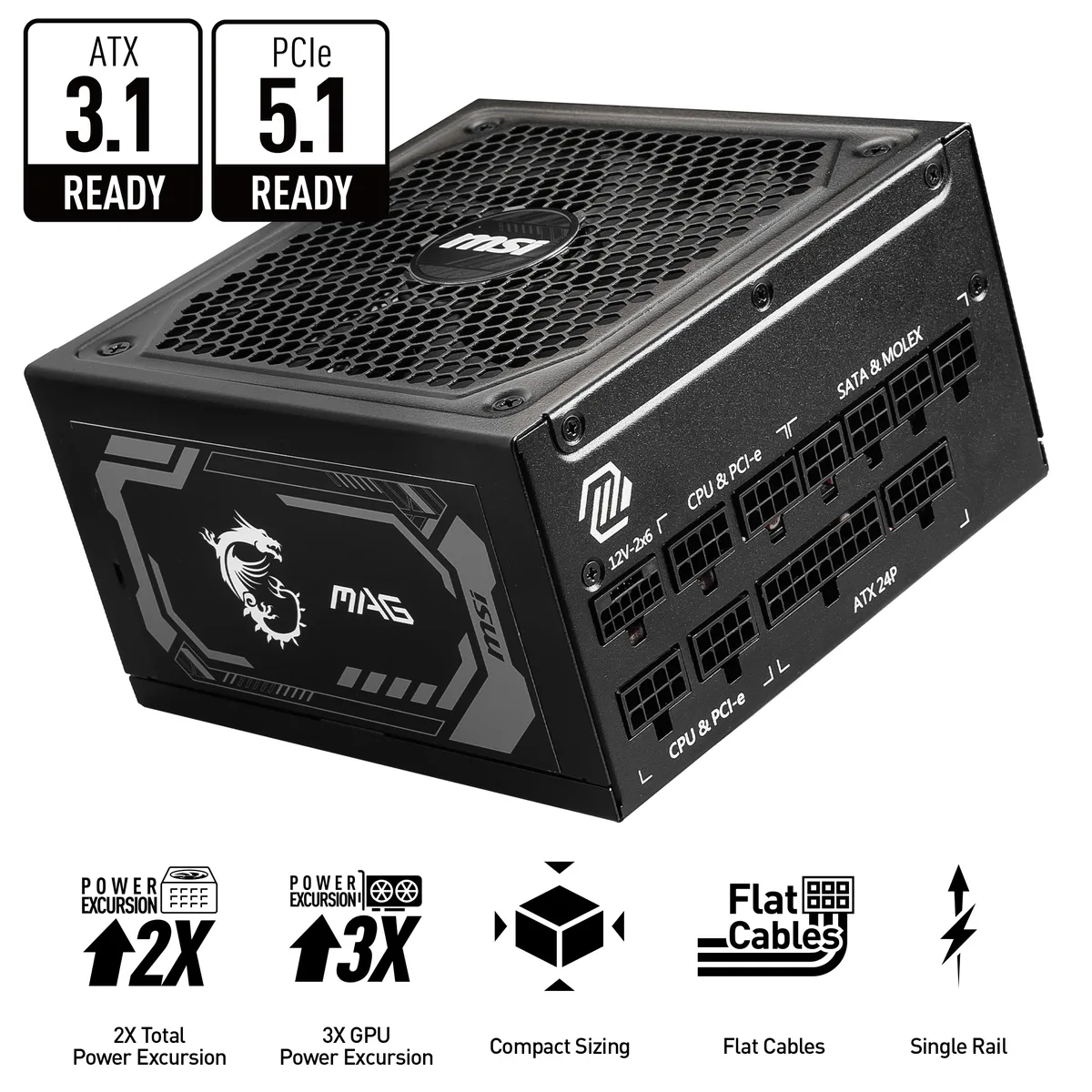

ATX 3.1 excursion limits
The ATX 3.1 design allows the PSU to sustain 2x total power excursions and 3x GPU power excursions for short periods. Full modular cabling reduces clutter and improves airflow in space-constrained builds. Protection circuits include OCP, OVP, OPP, OTP, SCP and UVP.
Points forts
- 1000 W output powers demanding builds
- 80 PLUS Gold certification delivers up to 90 % efficiency
- ATX 3.1 and PCIe 5.1 ready for modern GPUs
- Native 16-pin 12V-2x6 connector supplies up to 600 W
- Fully modular design with 150 mm compact length reduces clutter
Caractéristiques
| Brand | MSI |
|---|---|
| Model | MAG A1000GL PCIE5 |
| Color | Black |
| Type | Intel ATX 12V |
| Maximum Power | 1000 W |
| Fans | 1 x 135 mm Fluid Dynamic Bearing |
| PFC | Active |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15A (Max.) |
| Output | +5V@22A, +3.3V@22A, [email protected] , [email protected] , +5VSB@3A |
| Connectors | 1 x ATX (24 PIN) 2 x EPS (4+4 PIN) 1x PCI-E 5.1 (16 PIN) 4 x PCI-E (6+2 PIN) 12 x SATA (15 PIN) 4 x MOLEX (4 PIN) 1 x Molex to FDD Adapter |
| Dimensions | 11.53 * 9.25 * 5.08" |
| Weight | 7.54 lbs |
| Poids d’expédition | 3.43 kg |
| Dimensions du colis | 298 × 241 × 140 mm |
Autres versions de ce modèle
5 de plus dans cette gamme
Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.
Questions sur cet article
Will this 150 mm long unit fit in a compact ATX case?
The power supply measures 150 mm in length, so verify your case specification lists at least that much clearance for an ATX PSU.
Can the native 16-pin connector deliver 600 W to a PCIe 5.1 graphics card?
Yes, the included 12V-2x6 cable is rated for up to 600 W on a single PCIe 5.1 GPU.
What cable count comes in the box for SATA drives?
Twelve SATA power connectors are provided across the modular cables.
