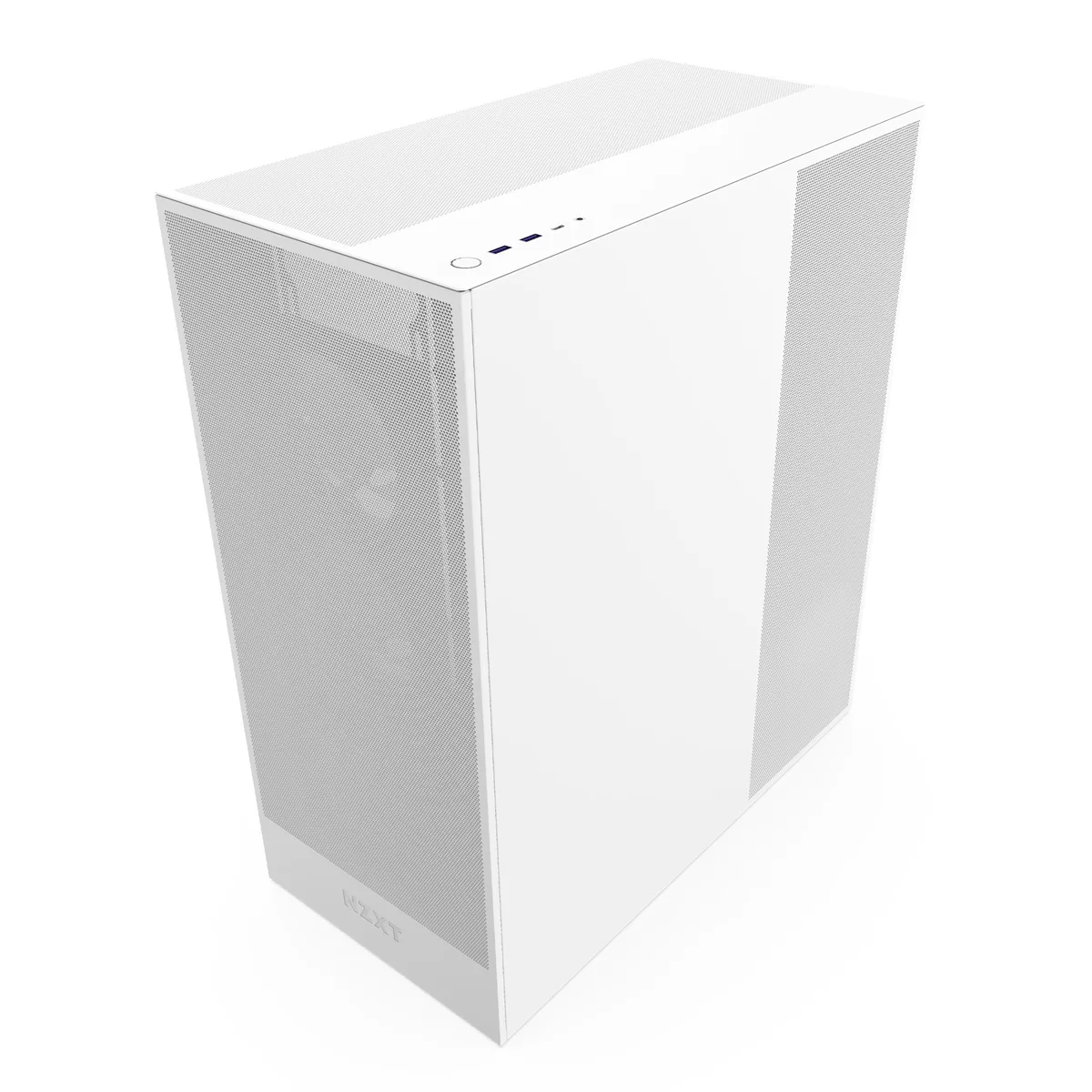

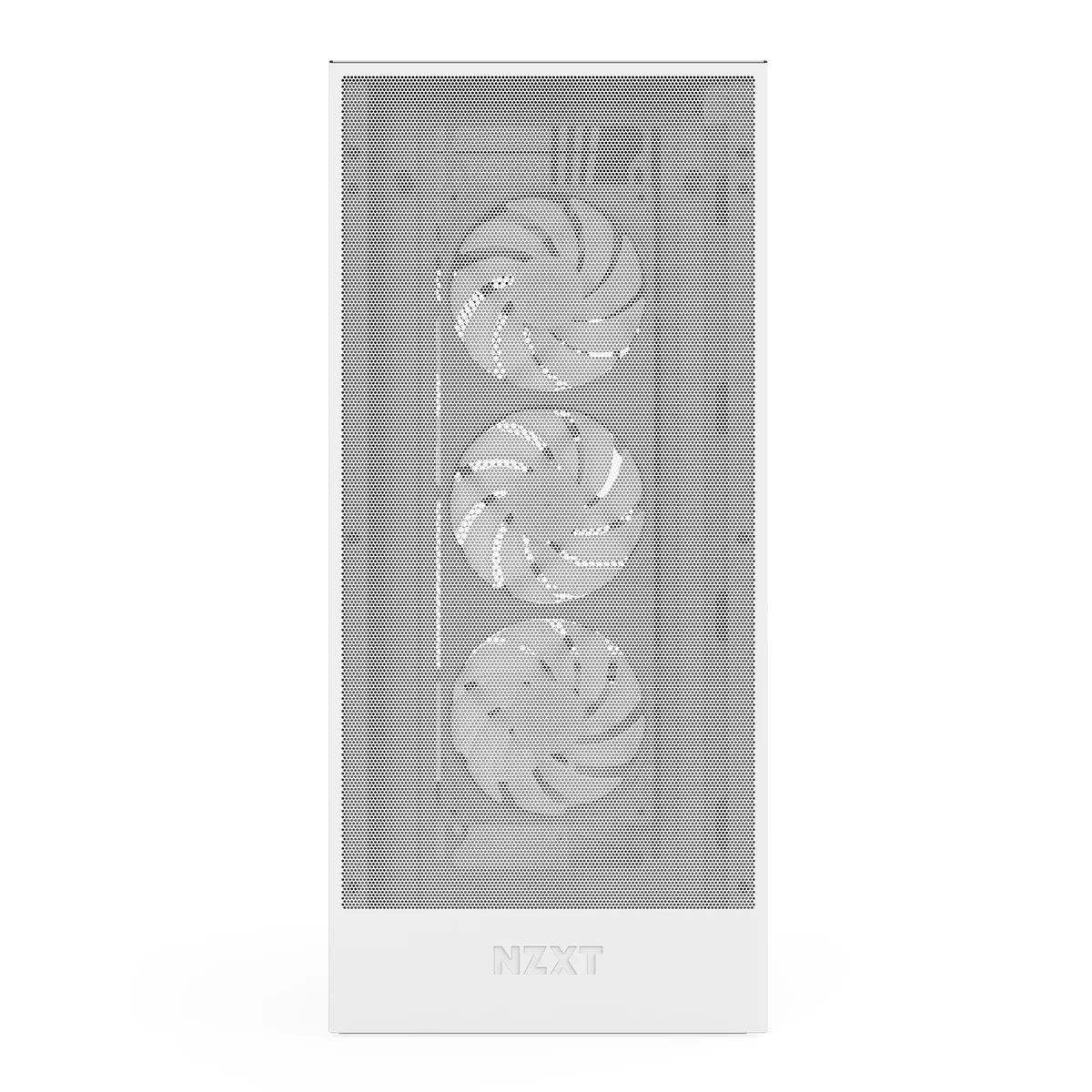

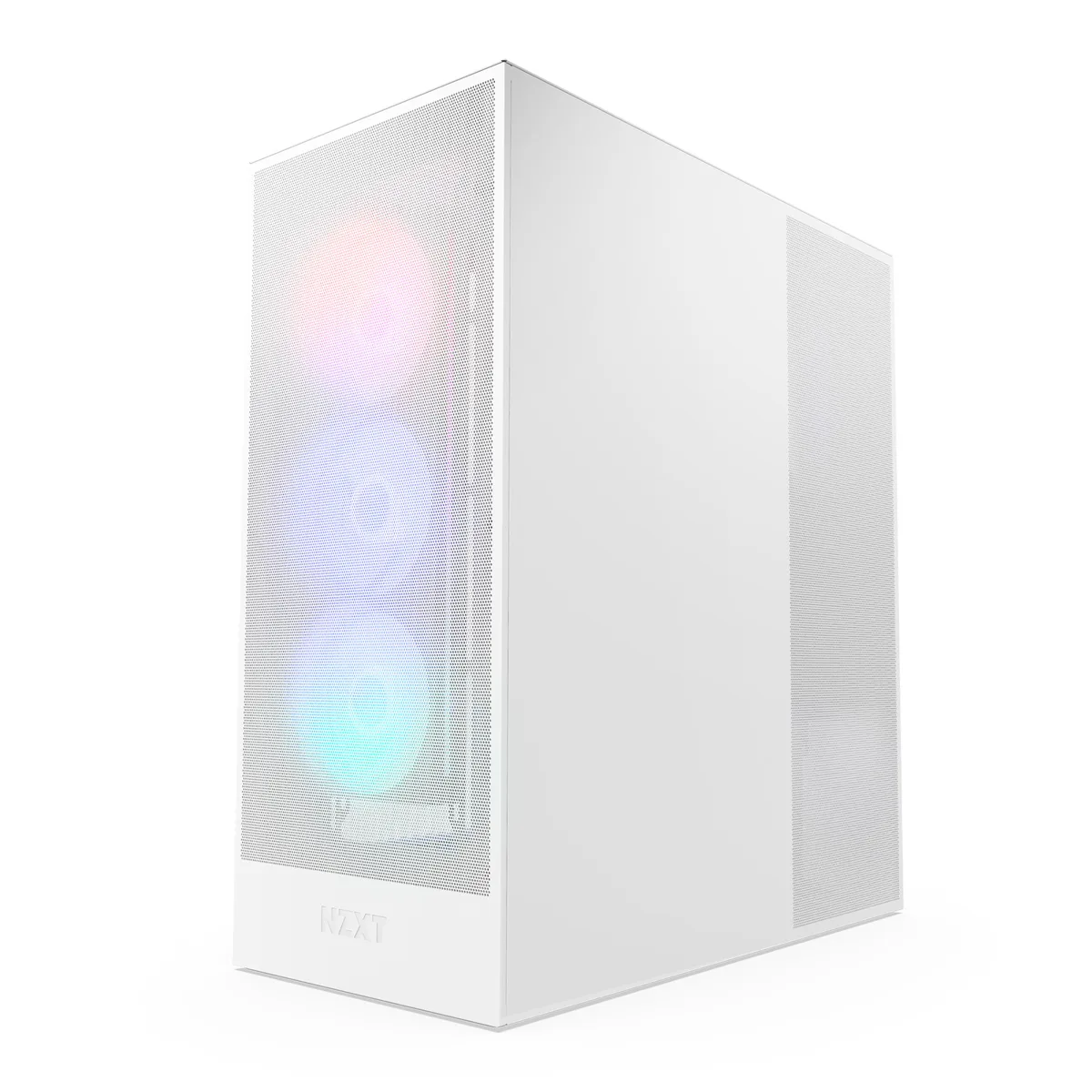

White mid-tower PC case with tempered glass side panel and mesh front, three RGB fans visible behind the mesh

NZXT

NZXT CM-H72FW-R1 PC Case White Mid-Tower

SKU CH-6QND-HSMH4 MPN CM-H72FW-R1

White mid-tower case with vertical PSU layout, 10 fan mounts, three pre-installed 120 mm front fans and support for 420 mm front and 360 mm top radiators

  • Motherboard CompatibilityE-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX
  • ColorWhite
  • Case MaterialSGCC Steel, Ultra-clear Tempered Glass
  • TypeATX Mid Tower
  • Side Panel1 x Side Tempered Glass Panel
  • Dust FiltersHigh Performance Mesh

Options H7 Flow RGB White (2024)

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Room for E-ATX boards up to 27.7 mm wide
  • Bottom trio of 120 mm fans cools GPU directly
  • Mesh panels move high volumes of air while trapping dust
  • Front 420 mm and top 360 mm radiator clearance
  • Ten fan mounts plus one pre-installed RGB frame fan

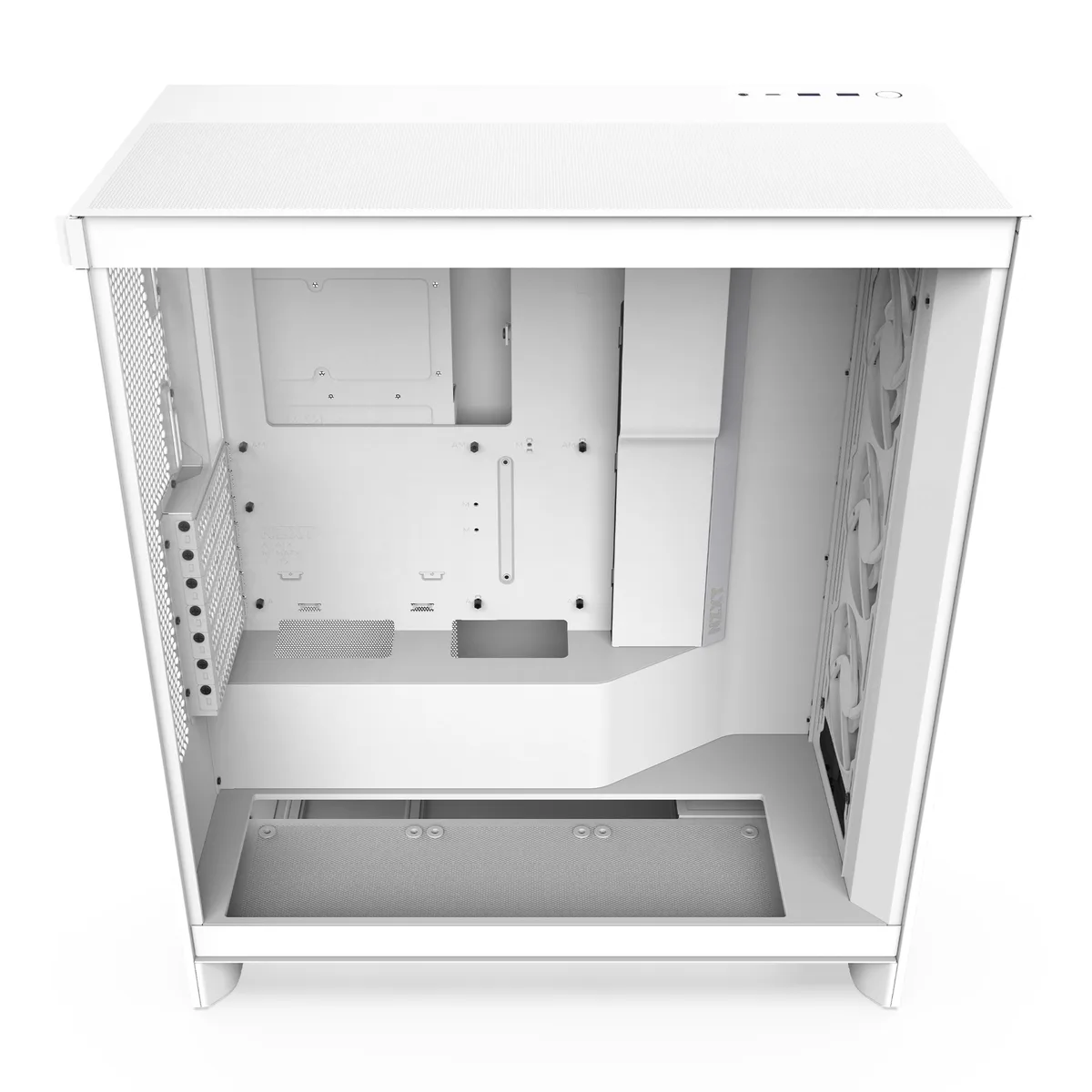

Mid-tower case with vertical PSU

The NZXT H7 Flow RGB is a white mid-tower chassis built around a vertical power-supply layout that creates room for three bottom intake fans. It accepts E-ATX boards up to 27.7 mm thick, plus ATX, Micro-ATX and Mini-ITX, making it suitable for high-end desktop builds that need strong GPU airflow in a compact footprint.

Sustained airflow under load

High-performance mesh panels on the front, top and bottom act as both intake and exhaust paths while filtering dust, so the case maintains steady airflow during long sessions rather than relying on short bursts. Three pre-installed 120 mm F360 RGB Core fans spin at 1700 RPM with 50.1 CFM each, and the layout supports up to ten fans total for continuous thermal headroom.

USB 3.2 Gen 2 Type-C front I/O

The top panel provides two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 2 Type-C port, limiting the single Type-C connection to 10 Gbps while the Type-A ports run at 5 Gbps. Builders planning multiple high-speed Type-C devices should note the single port constraint and plan hub or rear-I/O usage accordingly.

Points forts

  • Room for E-ATX boards up to 27.7 mm wide
  • Bottom trio of 120 mm fans cools GPU directly
  • Mesh panels move high volumes of air while trapping dust
  • Front 420 mm and top 360 mm radiator clearance
  • Ten fan mounts plus one pre-installed RGB frame fan

Caractéristiques

Motherboard CompatibilityE-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX
ColorWhite
Case MaterialSGCC Steel, Ultra-clear Tempered Glass
TypeATX Mid Tower
Side Panel1 x Side Tempered Glass Panel
Dust FiltersHigh Performance Mesh
Front Ports2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x Audio,
BrandNZXT
ModelCM-H72FW-R1
Part NumberCM-H72FW-R1
Internal 3.5" Drive Bays2 + 2
Internal 2.5" Drive Bays4
Expansion Slots7
Fan OptionsFront: 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
Top: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm
Rear: 1 x 120 mm / 1 x 140 mm
Fan Specs
F360 RGB Core Fan (Case Version)
Speed: 1,700 ± 200 RPM
Airflow: 50.1 CFM
Static Pressure: 1.27 mm-H2O
Noise: 23.3 dBA
Fan Connector: 3-pin
Pre-installed FansFront - 3 x 120mm
Radiator OptionsFront: Up to 420 mm
Top: Up to 360 mm
Rear: Up to 140 mm
Max GPU Length410 mm
Max CPU Cooler Height185 mm
Max PSU Length200 mm
Dimensions19.49" x 8.46" x 17.91"
FeaturesThe H7 Flow stays true to a traditional mid-tower
design while adding bottom fan support for direct GPU
cooling due to the vertically-oriented PSU. This keeps
the footprint narrow and takes up less desk space,
unlike dual-chamber cases. Ultra-fine perforated panels
are optimized for airflow, and it's equipped with a
front-mounted F360 RGB Core single-frame fan unit
for out-of-the-box cooling and lighting.
Poids d’expédition14.45 kg
Dimensions du colis635 × 566 × 330 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud are the three 120 mm front fans when the system runs all day?

The included F360 RGB Core fans spin at 1,700 ± 200 RPM and deliver 50.1 CFM each; three together move substantial air while the high-performance mesh keeps turbulence low.

Does the case include a motherboard standoff kit or must I supply my own for an E-ATX board up to 27.7 mm?

Standard ATX standoffs are pre-installed; the tray accepts E-ATX, ATX, Micro-ATX and Mini-ITX without extra parts.

Will a 410 mm graphics card and a 185 mm CPU cooler fit together with a 360 mm top radiator installed?

Yes — maximum GPU length is 410 mm, CPU cooler height is 185 mm, and the top mounts a 360 mm radiator without reducing those clearances.
