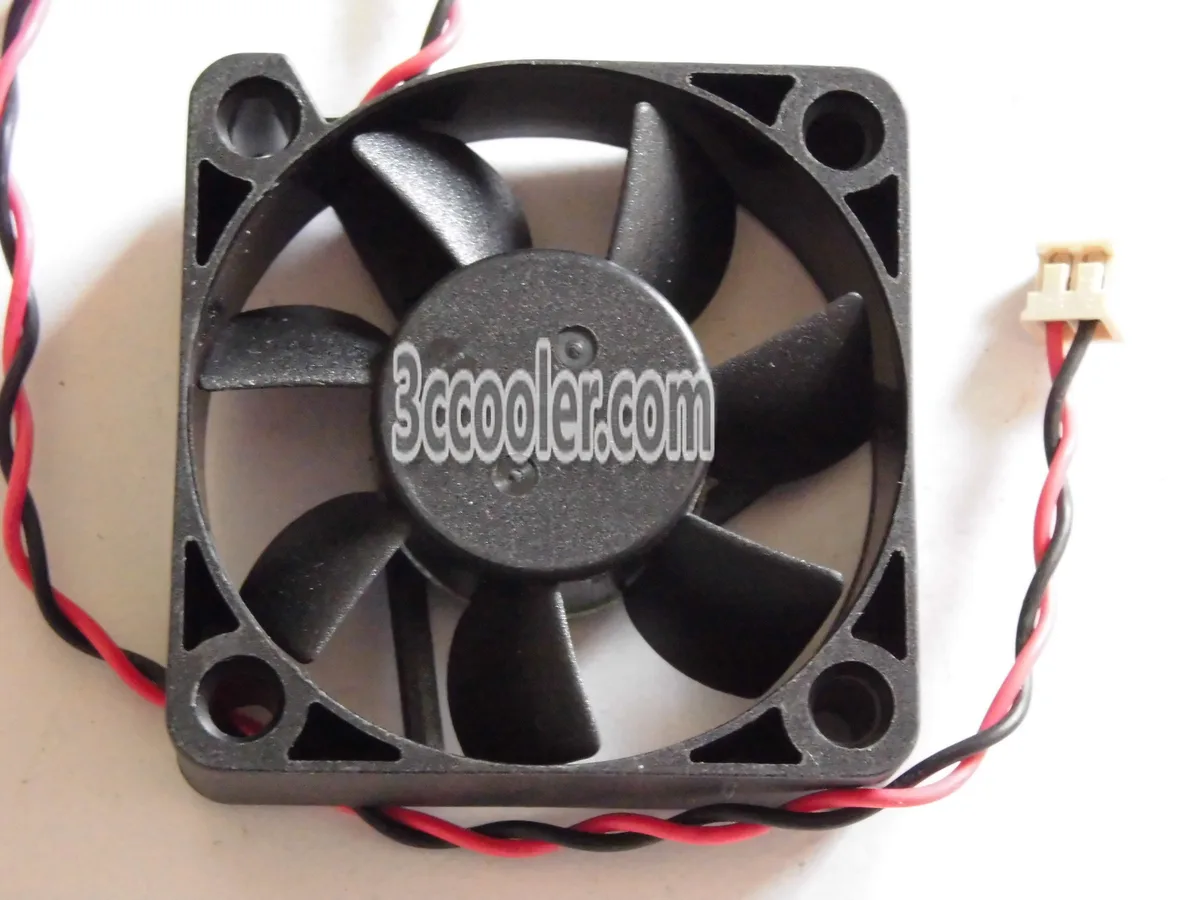

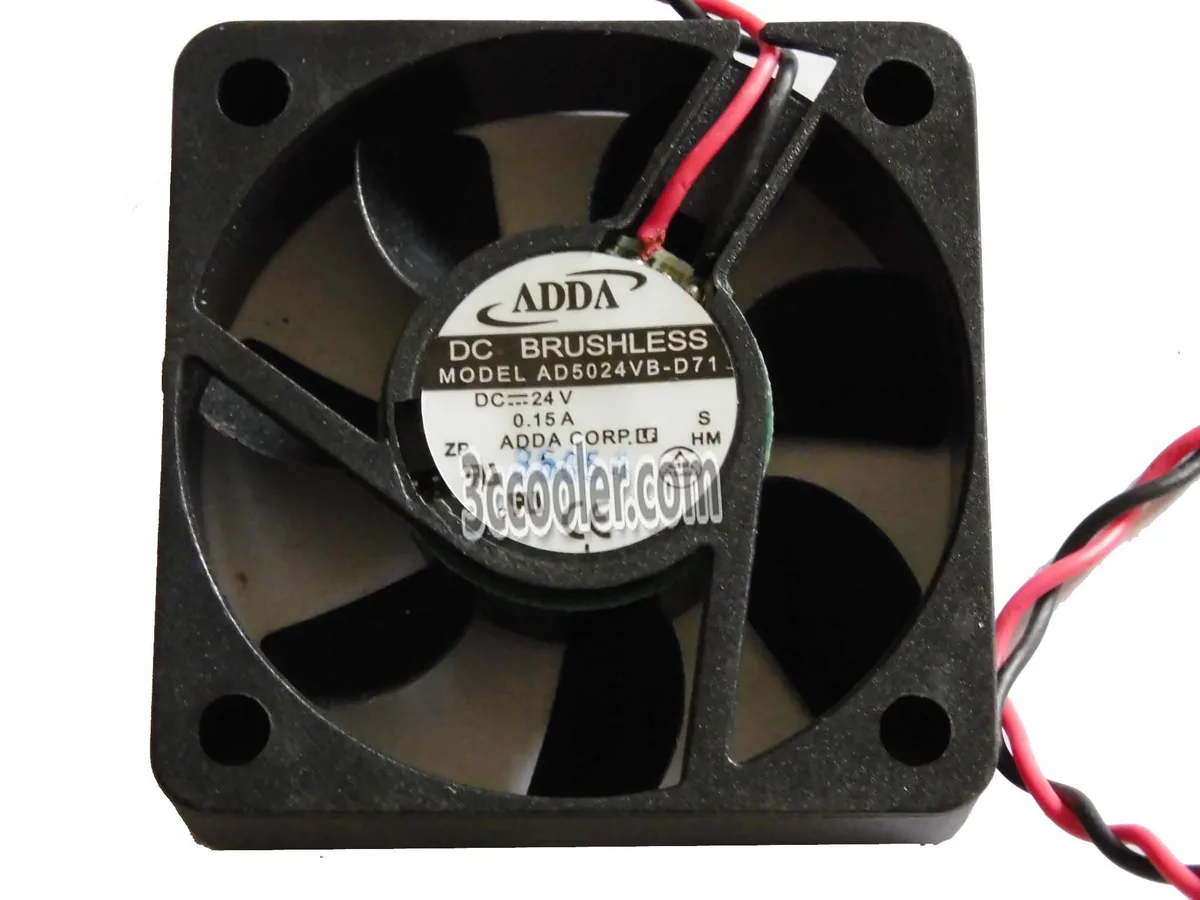

Small black square fan, 50 by 15 millimetres, two-wire connector

OEM Industries

OEM Industries AD5024VB-D71 50x15mm 24V 0.15A CPU cooler

SKU CH-9KS3-X0ZER

A 50 mm square fan with ball bearing runs on 24 V at 0.15 A using a two-wire, two-pin connector

  • ColorBlack
  • TypeFan only
  • Fan Size50mm
  • Bearing TypeBall
  • LEDNo
  • 50 mm square footprint fits tight spaces
  • 24 V 0.15 A rating keeps power draw low
  • Ball bearing design extends service life
  • Two-wire two-pin connector simplifies installation
  • 5015 frame size matches standard mounting holes

Compact 50 mm square cooler

The OEM Industries AD5024VB-D71 is a 50x15 mm axial fan rated for 24 V and 0.15 A. It uses a two-wire, two-pin connector and a ball bearing. The unit is intended for small-form-factor systems or embedded boards that need a low-profile 5 cm square cooler.

Verify voltage and connector

Confirm that your motherboard or controller provides a 24 V fan header with a matching two-pin layout. The cooler draws 0.15 A, so the header must supply that current. No PWM or tachometer wire is present, so speed control and monitoring are not available through this connector.

Ball bearing acoustics and heat

The ball bearing runs quietly at idle but produces a measurable hum under sustained load. Airflow is modest given the 50 mm frame, so the cooler suits low-TDP processors or auxiliary component cooling. Power draw stays at the rated 0.15 A during normal operation.

Points forts

  • 50 mm square footprint fits tight spaces
  • 24 V 0.15 A rating keeps power draw low
  • Ball bearing design extends service life
  • Two-wire two-pin connector simplifies installation
  • 5015 frame size matches standard mounting holes

Caractéristiques

ModelAD5024VB-D71
ColorBlack
TypeFan only
Fan Size50mm
Bearing TypeBall
LEDNo

Questions sur cet article

Does the AD5024VB-D71 come with mounting hardware or do I need to buy screws separately?

The cooler is supplied as the fan unit only; mounting screws are not included and must be sourced separately.

Should I choose the 24V 0.15A version or a different voltage for my 24V system?

Select the 24V 0.15A model to match a 24V power rail; other voltages are not compatible with that supply.

What airflow can I expect from the 50mm ball-bearing fan in a typical chassis?

The 50x15mm ball-bearing fan runs at 24V 0.15A, delivering targeted spot cooling for compact enclosures.
