Gray 21.5 inch flat front IP65 all-in-one PC with capacitive touch screen and fanless aluminum body

partaker

Partaker A30 21.5" IP65 All-in-One PC i5-5200U 4GB 128GB

SKU CH-KMEW-SWDFN

A 21.5" industrial all-in-one with an IP65-rated capacitive touchscreen, fanless cooling, and an Intel Core i5-5200U for reliable factory automation

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 5th Gen
  • CPU NameIntel Core i5-5200U

A30 21.5" Capacitive I5 5200U 4GB RAM / 128GB SSD

  • IP65 front panel resists dust and water in factories
  • Fanless aluminum design runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN and four USB 3.0 ports connect industrial gear
  • Capacitive touch rated for 50 million touches ensures long HMI life
  • Dual storage slots mSATA plus 2.5 inch SATA allow flexible capacity

Industrial IP65 All-in-One

The Partaker A30 is a 21.5 inch industrial panel PC with an IP65 rated flat front panel, designed for factory automation and HMI applications. It integrates an Intel Core i5-5200U processor, 4GB of DDR3L memory, and a 128GB mSATA SSD within a fanless aluminium chassis. The projected capacitive touchscreen supports multi-touch input and is rated for over 50 million touches. Windows 11 Pro comes pre-installed for immediate deployment.

Check power voltage and mounting cut-out

Verify that your supply can deliver 12V DC, with an optional 9 to 36V wide voltage range available for mobile or unstable power environments. The embedded installation requires a precise panel cut-out of 528 by 320 millimetres, while wall, desktop or cantilever mounting options are also supported. Ensure the operating ambient temperature stays within the minus 20 to plus 60 Celsius range for SSD configurations. Confirm that legacy serial devices use RS232 or RS485 protocols compatible with the two COM ports provided.

Fanless aluminium chassis with versatile I/O

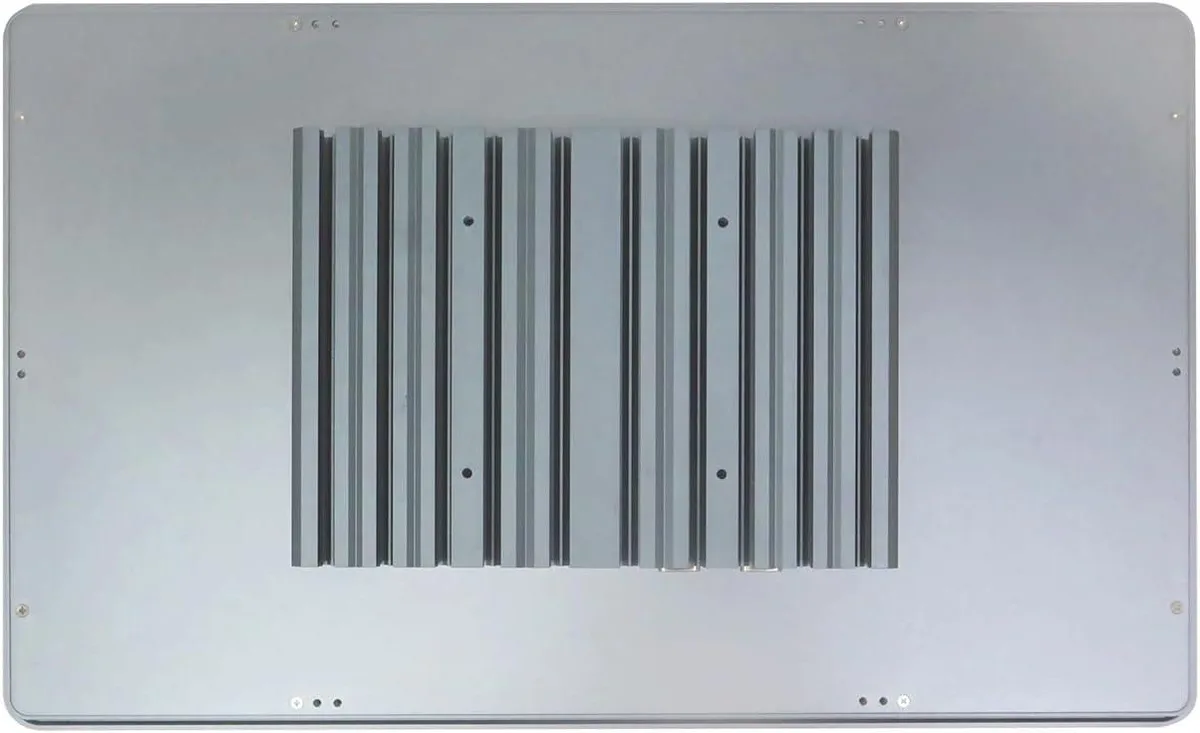

The passive aluminium cooling system eliminates moving parts, enabling silent and dust free operation in harsh conditions. Dual Gigabit LAN ports provide network redundancy for industrial Ethernet networks. Four USB 3.0 ports, an HDMI output, and audio jacks handle peripheral and display expansion. Two Mini PCIe slots with a SIM card slot allow the addition of WiFi, Bluetooth or cellular modules. Dual storage bays accept one mSATA and one 2.5 inch SATA drive for flexible capacity planning.

Points forts

  • IP65 front panel resists dust and water in factories
  • Fanless aluminum design runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN and four USB 3.0 ports connect industrial gear
  • Capacitive touch rated for 50 million touches ensures long HMI life
  • Dual storage slots mSATA plus 2.5 inch SATA allow flexible capacity

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 5th Gen
CPU NameIntel Core i5-5200U
Screen Size21.5"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the box include everything needed to mount and power the A30, or must I buy a bracket and cable separately?

The packing list contains the panel PC, a power supply, a power cord and four embedded mounting clips, so no extra bracket or cable is required for standard installation.

Should I choose the 4 GB DDR3L configuration or add a second module to reach the 16 GB maximum?

The board has two SODIMM slots supporting DDR3L 1333/1600; 4 GB is installed and a second module can be added later to reach 16 GB if your application needs more memory.

What does the IP65 rating on the 21.5 inch front panel mean for daily use on a factory floor?

IP65 means the flat front panel is dust-tight and protected against low-pressure water jets, allowing reliable touch operation in wet or dusty industrial environments.
