17 inch gray all-in-one with flat capacitive touch screen

partaker

Partaker A29 17" All-in-One PC i3-5005U 8GB 512GB

SKU CH-MSMM-PA14H

A 17-inch industrial all-in-one with an IP65-rated capacitive touchscreen, fanless cooling, and dual LAN for reliable automation

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A29 17" Capacitive I3 5005U 8GB RAM / 512GB SSD

  • IP65 front panel resists dust and water in harsh environments

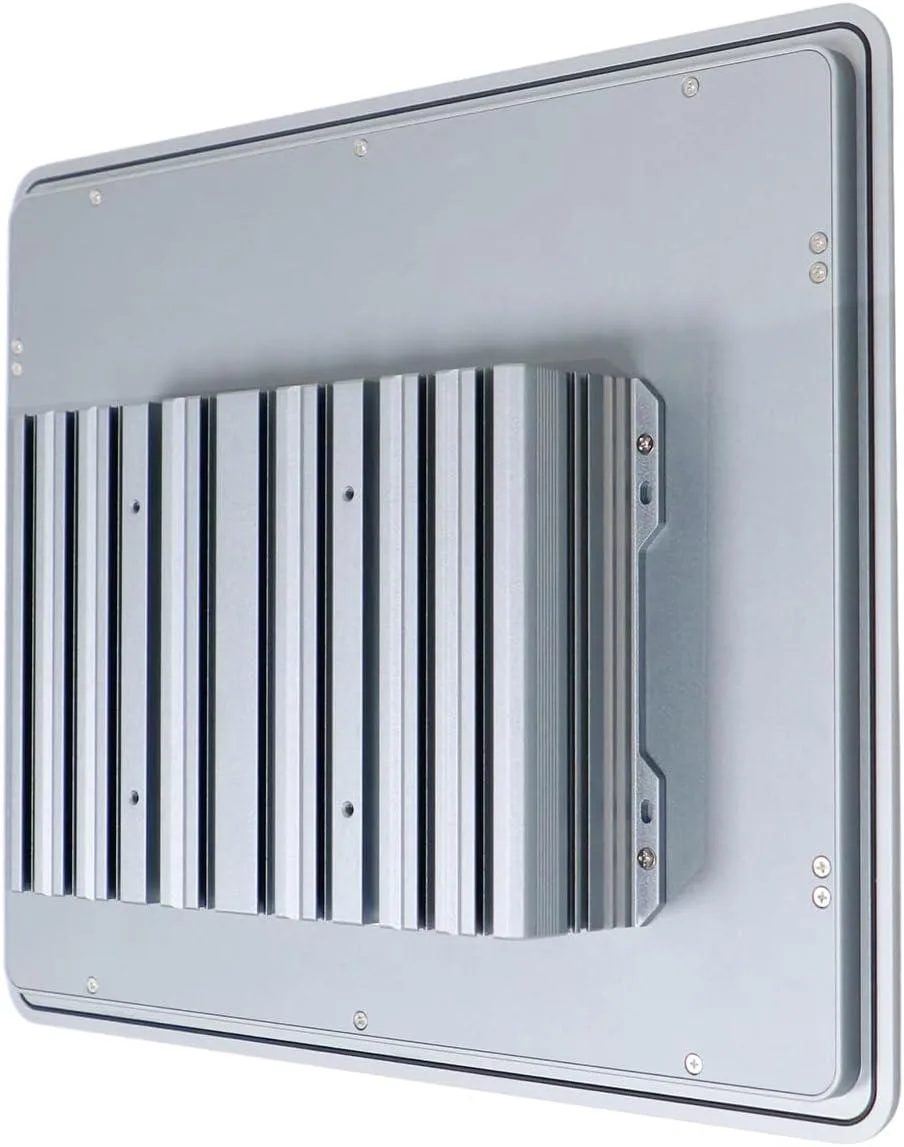

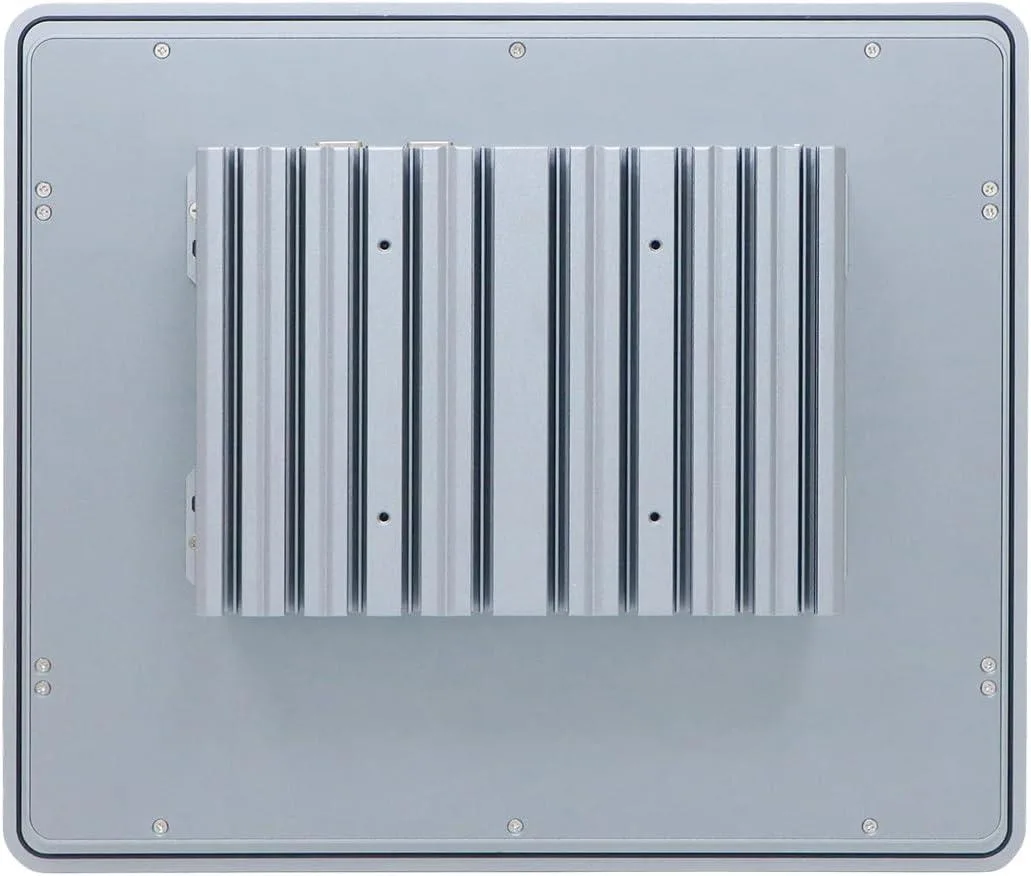

  • Fanless aluminium cooling enables silent 24/7 operation from -20°C to 60°C
  • Dual Gigabit LAN plus four USB 3.0 ports provide flexible industrial connectivity
  • Capacitive touch rated for 50 million touches ensures long-term HMI reliability
  • Windows 11 Pro pre-installed on 512GB SSD with 8GB DDR3L memory

Industrial 17" Touch Panel PC

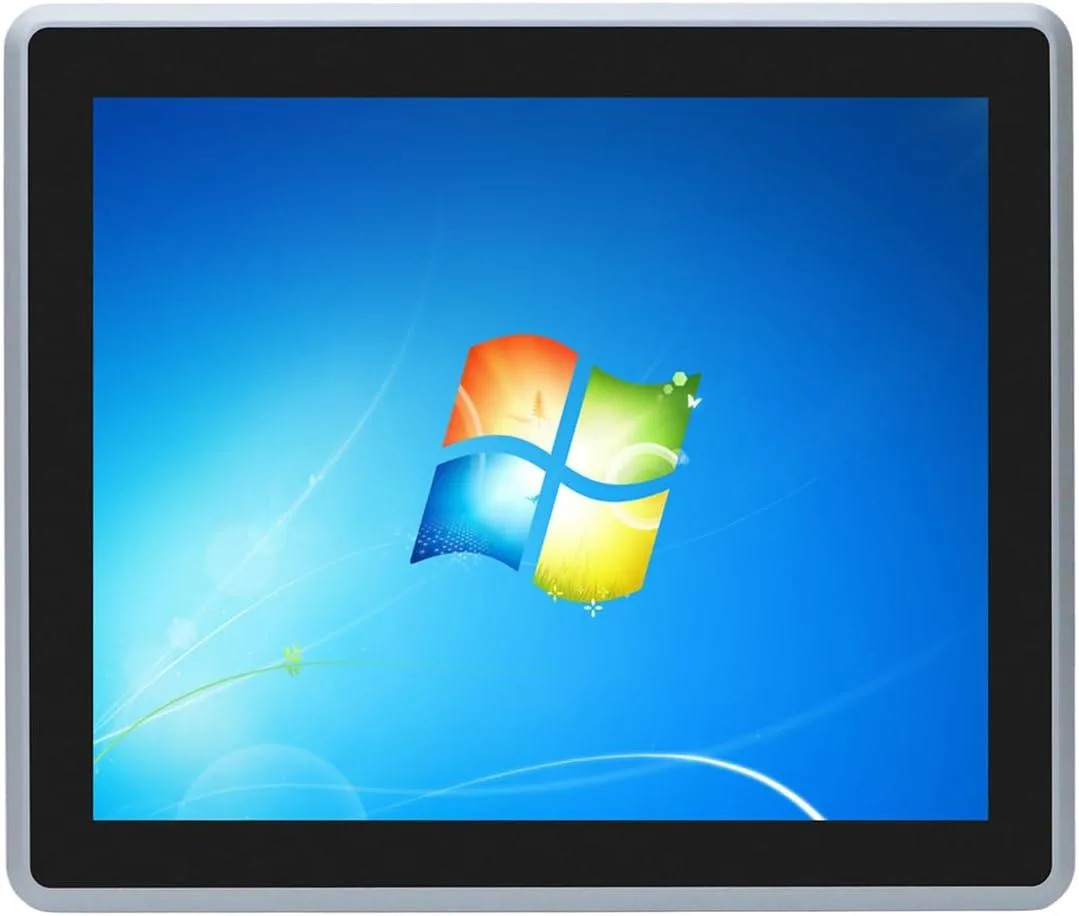

The Partaker A29 is a fanless all-in-one computer built around a 17-inch capacitive touch display with an IP65-rated flat front panel. It runs Windows 11 Pro on an Intel Core i3-5005U processor with 8 GB of DDR3L memory and a 512 GB SSD. The 5:4 aspect ratio screen delivers 1280×1024 resolution at 250 cd/m² brightness and full viewing angles for reliable HMI use in automation environments.

Upgrading from older fanless HMIs

This unit replaces legacy panel PCs that lack dual Gigabit LAN, multiple USB 3.0 ports, or modern OS support. The jump is worth it when a project needs dual COM ports for RS232/485, Mini PCIe expansion with a SIM slot for cellular modules, and an operating temperature range of -20 °C to 60 °C. The 50-million-touch rated screen and passive aluminum cooling also remove moving-part failures common in earlier designs.

Installation and common pitfalls

Mounting options include embedded, wall, desktop or cantilever setups using the supplied clips; the embedded cut-out measures 389×321 mm. A 12 V DC input is standard with an optional 9–36 V wide-voltage range for unstable supplies. Installers should verify Mini PCIe card height clearance and ensure the mSATA and 2.5-inch SATA bays are populated before sealing the enclosure, as post-mount access requires disassembly.

Points forts

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling enables silent 24/7 operation from -20°C to 60°C
  • Dual Gigabit LAN plus four USB 3.0 ports provide flexible industrial connectivity
  • Capacitive touch rated for 50 million touches ensures long-term HMI reliability
  • Windows 11 Pro pre-installed on 512GB SSD with 8GB DDR3L memory

Caractéristiques

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size17"
Screen TypeMulti-Touch Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What are the cut-out dimensions for the 17" IP65 front panel?

The embedded installation cut-out measures 389 x 321 mm, matching the flat front panel designed for IP65 sealing.

How do I install the Mini PCIe expansion cards and what is the common mistake?

Insert the Mini PCIe card into one of the two slots and secure it with the screw; the step often missed is seating the SIM card in the adjacent SIM slot before closing the chassis.

What storage drives can be replaced later and what are the limits?

You can replace the mSATA SSD and the 2.5" SATA drive; memory uses two SODIMM DDR3L slots supporting up to 16 GB total.
