Partaker B1-I5 4200U-8G240G desktop PC
Fanless mini desktop with Intel Core i5-4200U, 8 GB DDR3, 240 GB SSD and Windows 10 Pro
- Form FactorMini PC
- ColorSilver
- MonitorMonitor not included
- Operating SystemWindows 10 Pro
- CPU TypeIntel Core i5 4th Gen
- CPU Name1.60GHz
GPU · Memory · SSD · HDD Intel HD Graphics 4400 · 8GB DDR3 · 240GB · None
- Intel HD Graphics 4400 · 16GB DDR3 · 1TB
- Intel HD Graphics 4400 · 16GB DDR3 · 240GB · None
- Intel HD Graphics 4400 · 16GB DDR3 · 512GB · None
- Intel HD Graphics 4400 · 4GB DDR3 · 64GB · None
- Intel HD Graphics 4400 · 4GB DDR3 · None
- Intel HD Graphics 4400 · 8GB DDR3 · 1TB
- Intel HD Graphics 4400 · 8GB DDR3 · 240GB · None
- Intel HD Graphics 4400 · 8GB DDR3 · None
- Silent operation from fanless aluminium chassis
- Intel Core i5-4200U up to 2.60 GHz for responsive computing
- 8 GB DDR3 and 240 GB SSD for quick boot and multitasking
- Dual-display support via VGA and HDMI ports
- Gigabit LAN and dual-antenna Wi-Fi for stable connectivity

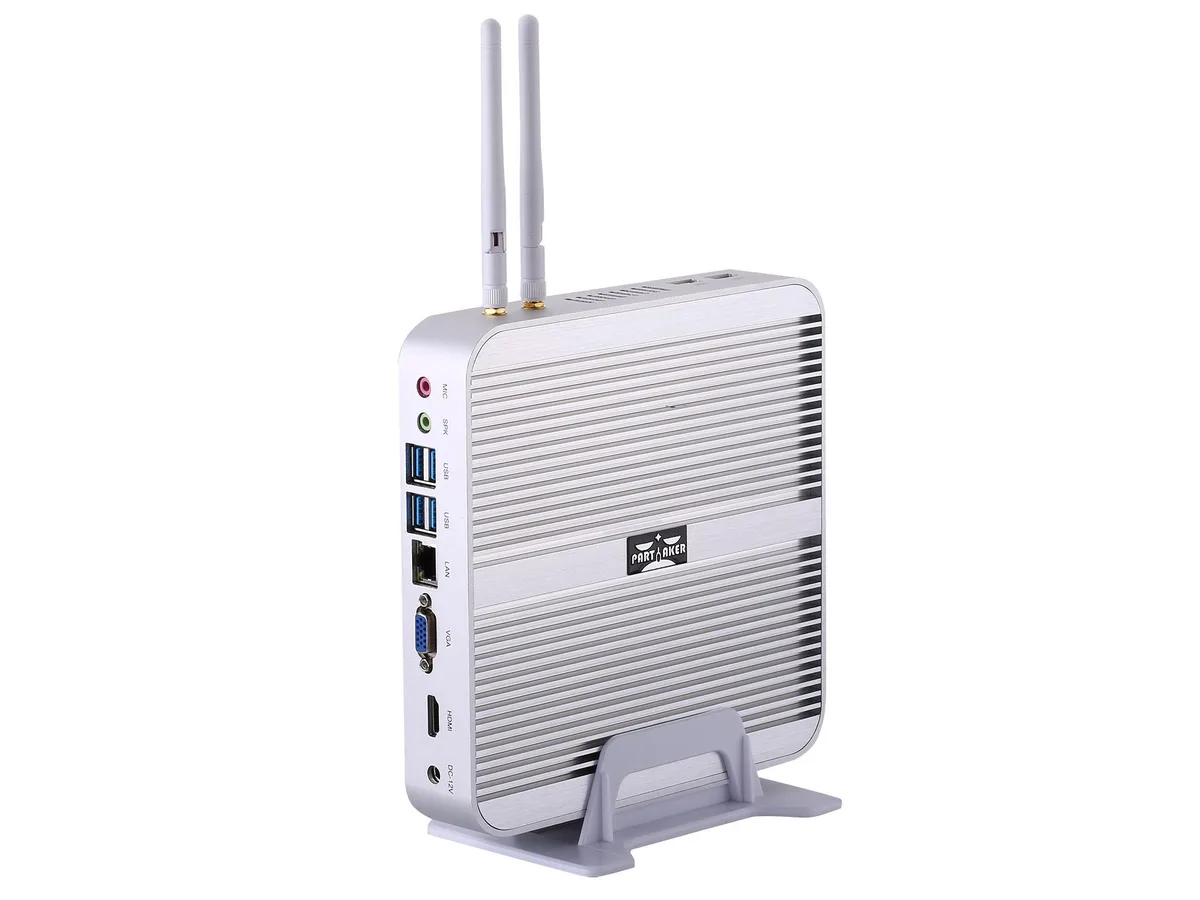

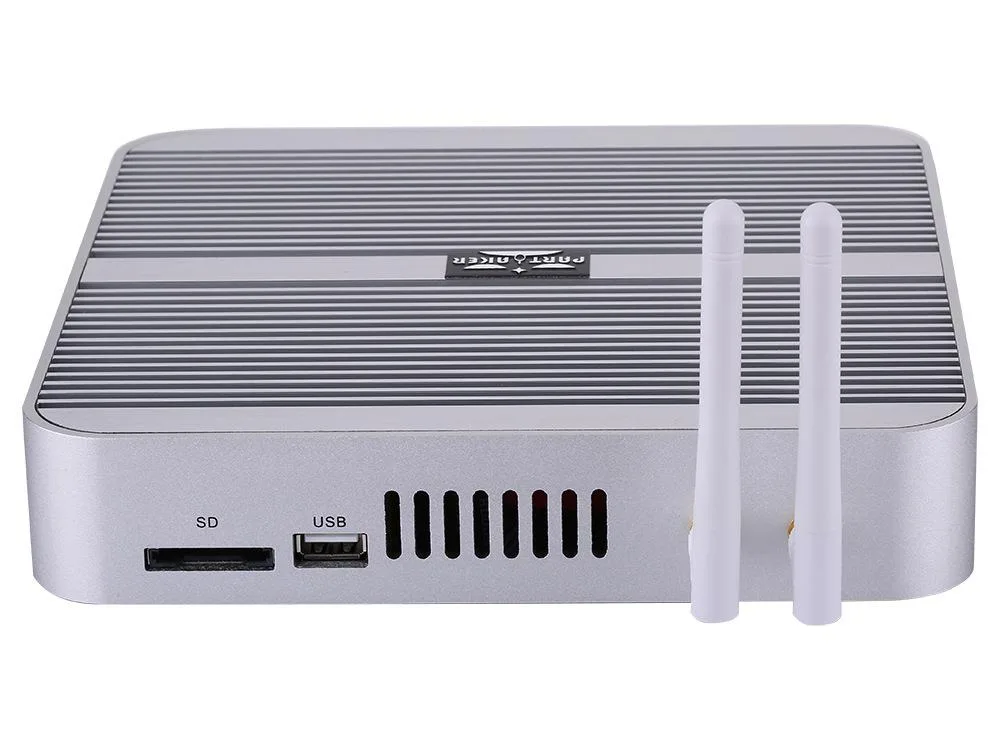

Fanless Intel Core i5-4200U Mini PC
The Partaker B1 is a silent, fanless desktop built around an Intel Core i5-4200U processor with a base speed of 1.60GHz and a turbo up to 2.60GHz. It ships with Windows 10 Pro, 8GB of DDR3L memory and a 240GB mSATA SSD inside a compact aluminium chassis measuring 197 by 197 by 37mm.
Suits silent office and signage roles.
The passively cooled design makes it ideal for noise-sensitive spaces such as meeting rooms, reception desks or digital signage where it can drive two displays over HDMI and VGA. Buyers who need more than 16GB of RAM, a 2.5-inch drive bay, or modern wireless standards should consider other platforms.
Single mSATA slot and two SO-DIMMs define upgrade
Storage expansion is limited to one mSATA 3.0 port at 6Gb/s, while memory uses two DDR3L SO-DIMM slots supporting 1333 or 1600MHz modules up to 16GB total. The half-height Mini PCIe slot is occupied by the included dual-antenna 802.11ac Wi-Fi module.
Points forts
- Silent operation from fanless aluminium chassis
- Intel Core i5-4200U up to 2.60 GHz for responsive computing
- 8 GB DDR3 and 240 GB SSD for quick boot and multitasking
- Dual-display support via VGA and HDMI ports
- Gigabit LAN and dual-antenna Wi-Fi for stable connectivity
Caractéristiques
| Model | B1-I5 4200U-8G240G |
|---|---|
| Part Number | B1-I5 4200U-8G240G |
| Form Factor | Mini PC |
| Color | Silver |
| Monitor | Monitor not included |
| Operating System | Windows 10 Pro |
| CPU Type | Intel Core i5 4th Gen |
| CPU Name | 1.60GHz |
| GPU/VGA Type | Intel HD Graphics 4400 |
| Memory Capacity | 8GB DDR3 |
| SSD | 240GB |
| HDD | No |
| Screen Size | No Screen |
| LAN Speed | 10/100/1000Mbps |
Autres versions de ce modèle
5 de plus dans cette gamme
Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.
partaker
partaker B1-I5 4200U-4G64G desktop PC 4GB DDR3 64GB SSD
- Mini PC
- Silver
268,99 $US
0.00341731BTC
En stock
Questions sur cet article
What are the exact dimensions of the Partaker B1-I5 4200U-8G240G mini PC for desk mounting?
The chassis measures 197 mm wide by 197 mm deep by 37 mm high and includes a vertical stand in the packing list.
How do I install the Wi-Fi antennas and which ports handle dual-display output?
Screw the two supplied antennas onto the rear RP-SMA connectors; connect monitors to the HDMI and VGA ports for dual-screen support.
What memory and storage upgrades are possible later?
Two SO-DIMM DDR3L slots accept up to 16 GB total at 1333 or 1600 MT/s; storage can be expanded via one full-height mSATA SSD slot and one 2.5-inch drive bay.
