Partaker C4-J3160-4 LAN-4G64G barebone mini PC

Fanless Mini PC for Network Appliances

The Partaker C4-J3160-4 LAN-4G64G is a barebone mini PC built around an Intel Celeron J3160 quad-core processor running at 1.6 GHz with turbo up to 2.48 GHz. It ships with 4 GB of DDR3L memory and a 64 GB mSATA SSD. Four Intel i211AT gigabit LAN ports, AES-NI hardware acceleration and a completely fanless chassis make it suited for firewall, VPN or router roles. The unit measures 115 by 107.5 by 39 mm and operates from -10 to 60 °C.

Suited for Embedded Network Tasks.

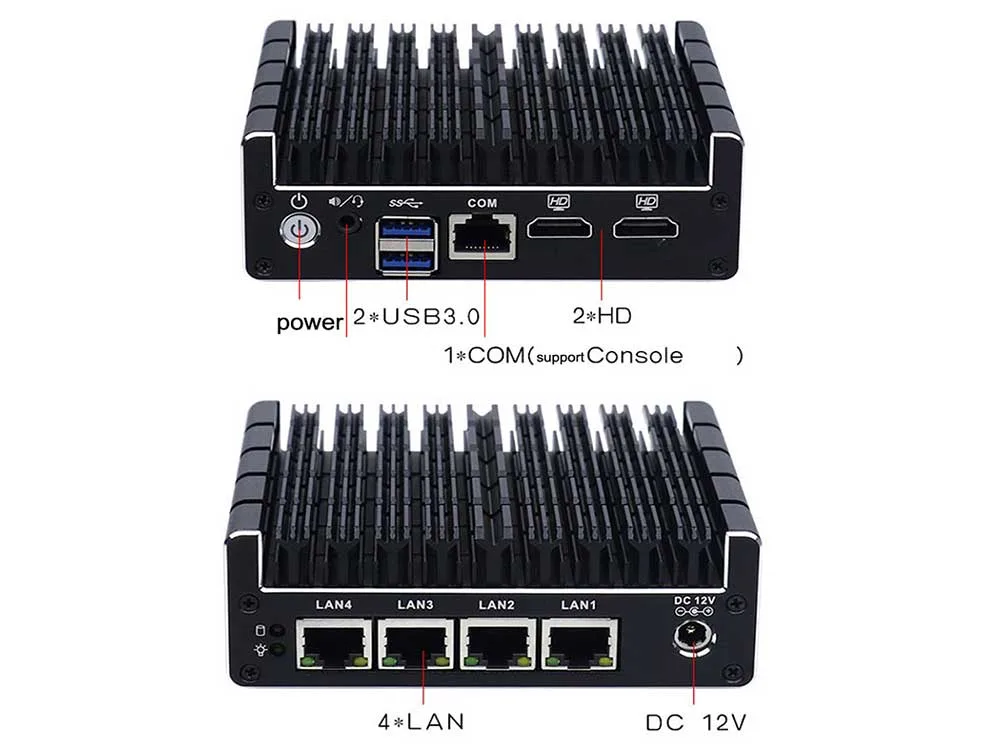

This platform targets builders who need a silent, low-power appliance for pfSense, Linux or Windows routing and security workloads. The four 1000 Mbps Ethernet ports and COM header support headless server deployments. Buyers who want a primary desktop for media playback, office suites or modern web browsing should look elsewhere; the Celeron J3160 and 4 GB of RAM limit responsiveness in those scenarios. The single DDR3L SODIMM slot caps memory at 8 GB, and there is no 2.5-inch drive bay for additional local storage.

Steady Thermal Behaviour Under Continuous Load

Passive cooling across the full industrial temperature range means the system maintains its base frequency during sustained packet-processing workloads without throttling or acoustic noise. The 12 V DC input and included AC adapter provide stable power for 24/7 operation. Integrated Intel HD Graphics drives two HDMI outputs for initial setup or console access, but the GPU is not intended for continuous compute or transcoding tasks. The Realtek ALC662 audio codec supports basic mic and line-level I/O where required.
