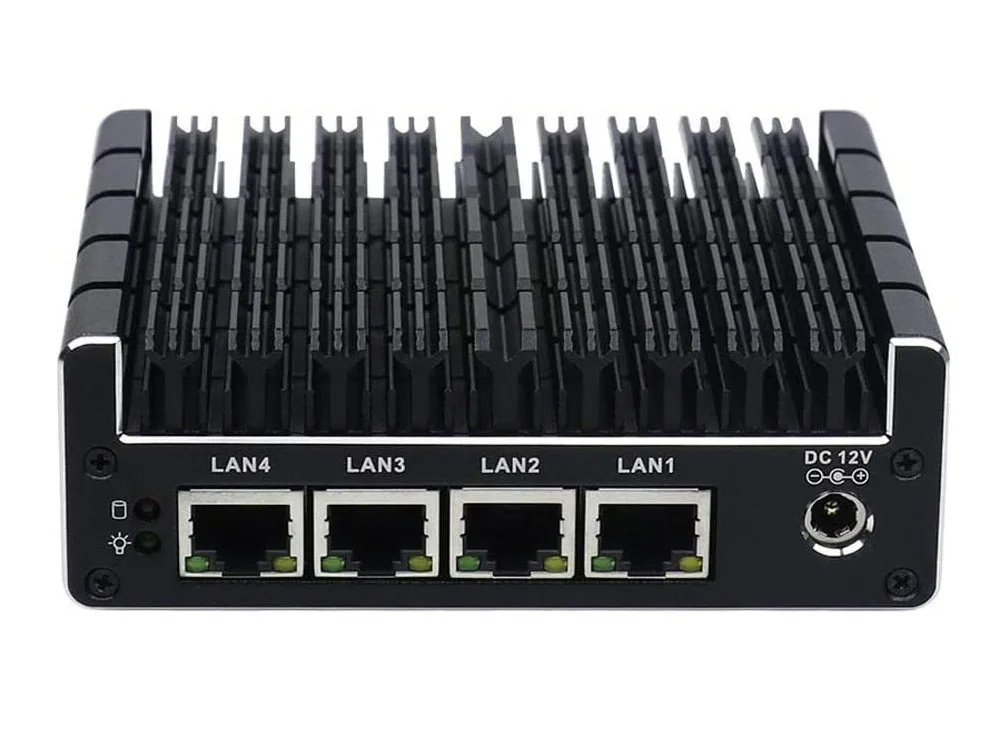

Small black fanless mini PC barebone with four LAN ports

partaker

Partaker C4-J3160-4 LAN-8G240G barebone mini PC

SKU CH-ERAX-DTB5Z

Fanless mini PC with quad-core Celeron J3160, 8 GB DDR3L RAM, 240 GB mSATA SSD and four Intel gigabit LAN ports for firewall or router use

  • TypeBusiness Desktops & Workstations
  • Form FactorMini PC
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 7
  • CPU TypeCeleron

Memory Capacity 8GB DDR3

SSD 240GB

  • Fanless design runs silently in noise-sensitive deployments
  • Four Intel i211AT gigabit ports enable multi-WAN firewall routing
  • AES-NI hardware acceleration offloads VPN encryption tasks
  • 8 GB DDR3L memory and 240 GB mSATA SSD installed ready for pfSense
  • Compact 115 × 107.5 × 39 mm chassis fits VESA or desktop mounting

Fanless mini PC with four Intel gigabit LAN ports

The Partaker C4-J3160-4 LAN-8G240G is a compact barebone system built around an Intel Celeron J3160 quad-core processor running at 1.6 GHz with turbo up to 2.48 GHz. It ships with 8 GB of DDR3L memory and a 240 GB mSATA SSD. The fanless chassis measures 115 by 107.5 by 39 mm and operates silently from -10 to 60 °C.

Suited for network appliances and edge servers

This unit targets installers deploying firewalls, VPN gateways, or router appliances that need four independent 1000M Intel i211AT Ethernet ports and AES-NI acceleration. Buyers who require more than 8 GB of RAM, additional internal drive bays, or discrete graphics performance should consider other platforms.

Four Intel i211AT gigabit ports decide the fit

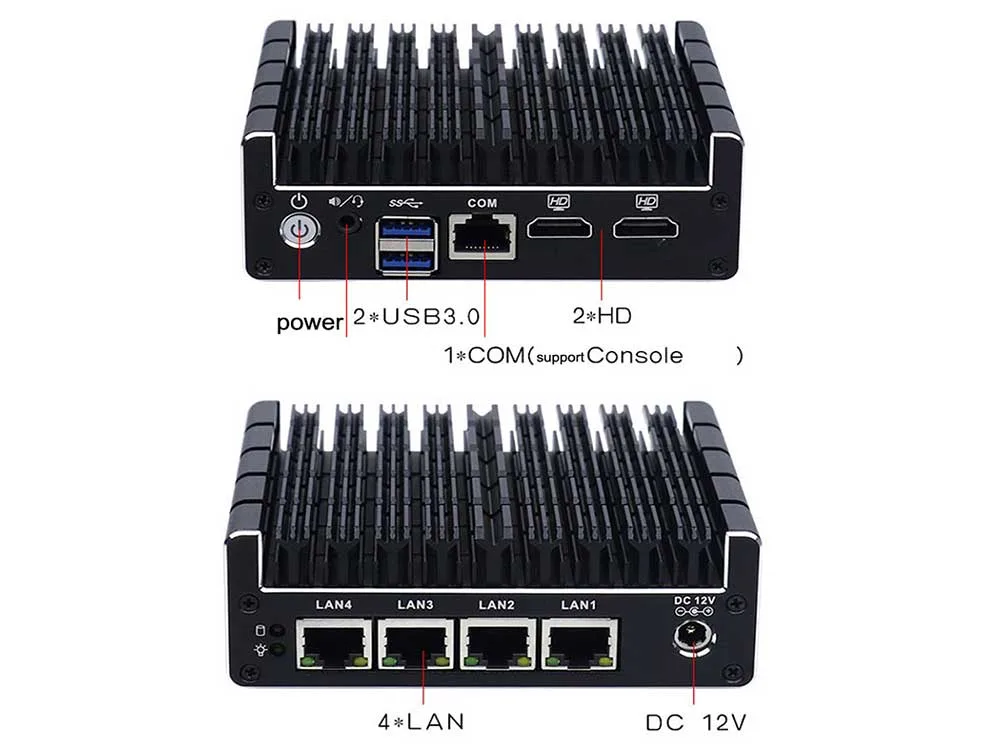

The defining specification is the quartet of Intel i211AT 10/100/1000 Mbps LAN controllers with wake-on-LAN support. If the deployment needs exactly four wired network interfaces in a passively cooled box, this barebone matches; otherwise the port count is the limiting factor.

Points forts

  • Fanless design runs silently in noise-sensitive deployments
  • Four Intel i211AT gigabit ports enable multi-WAN firewall routing
  • AES-NI hardware acceleration offloads VPN encryption tasks
  • 8 GB DDR3L memory and 240 GB mSATA SSD installed ready for pfSense
  • Compact 115 × 107.5 × 39 mm chassis fits VESA or desktop mounting

Caractéristiques

ModelC4-J3160-4 LAN-8G240G
Part NumberC4-J3160-4 LAN-8G240G
TypeBusiness Desktops & Workstations
Form FactorMini PC
ColorBlack
MonitorMonitor not included
Operating SystemWindows 7
CPU TypeCeleron
CPU NameIntel Celeron J3160
GPU/VGA TypeIntel HD Graphics
Graphics InterfaceIntegrated video
Memory Capacity8GB DDR3
SSD240GB
HDDNo
Screen SizeNo Screen
LAN Speed10/100/1000Mbps

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What comes in the box and what do I still need to buy?

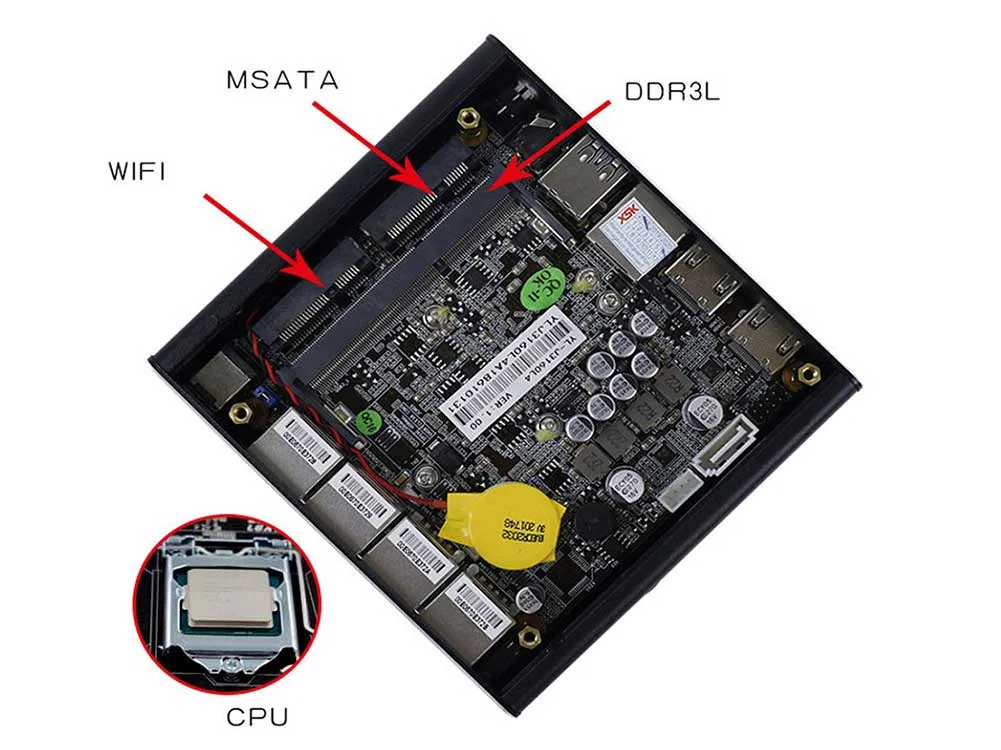

The barebone includes the chassis, motherboard with soldered Intel Celeron J3160, 8 GB DDR3L memory, 240 GB mSATA SSD, AC adapter and power cord. A monitor, keyboard, mouse and any Mini-PCIe Wi-Fi card are not included.

Should I choose the 8 GB / 240 GB version or a different capacity?

This SKU is fixed at 8 GB DDR3L (the maximum the single SODIMM slot supports) and a 240 GB mSATA drive. Other mSATA sizes (16 GB to 256 GB) exist as separate SKUs, but this model ships only with 8 GB RAM and 240 GB storage.

What does the 1.6 GHz base / 2.48 GHz turbo figure mean in daily use?

The quad-core J3160 runs at 1.6 GHz base and can burst to 2.48 GHz for short periods. With AES-NI hardware acceleration and four Intel i211AT gigabit ports it handles firewall, VPN and routing loads at line rate while staying fanless.
