Compact fanless desktop in a titanium-gray aluminium chassis

partaker

partaker PA-3046 desktop PC i5-8265U 32GB DDR4 1TB SSD Windows 10 Pro

SKU CH-QRZ5-JKW54 MPN PA-3046

Fanless industrial mini PC with an Intel Core i5-8265U, 32 GB DDR4, 1 TB SSD, four LAN ports and 9–36 V power input

  • TypeBusiness Desktops & Workstations
  • ColorGray
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • Windows 11Ready
  • CPU TypeIntel Core i5 8th Gen

Memory Capacity 32GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 8GB DDR4

SSD 1TB

HDD None

  • 1TB
  • None

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Quad-core i5-8265U with 3.9 GHz turbo for responsive multitasking
  • 32 GB DDR4 memory handles heavy workloads smoothly
  • 1 TB SSD provides fast storage and quick boot
  • Four Intel 1000M LAN ports ensure reliable wired connectivity
  • Fanless aluminum chassis operates silently in industrial settings

Industrial fanless mini PC

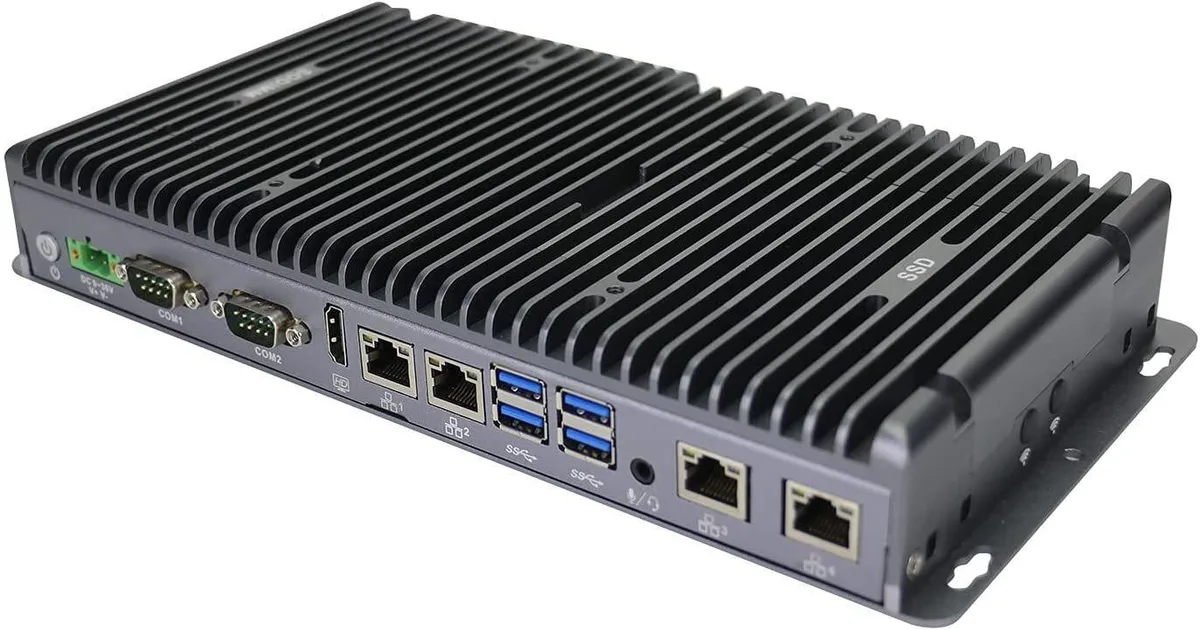

The Partaker PA-3046 is a compact desktop computer built around an onboard Intel Core i5-8265U processor with four cores and eight threads. It ships with 32GB of DDR4 memory and a 1TB SATA SSD, running Windows 10 Pro out of the box. The aluminium alloy chassis acts as a heatsink, making the system completely silent in operation. It targets industrial automation, data acquisition and embedded deployments where space and noise are constrained.

Wide-voltage input and legacy I/O

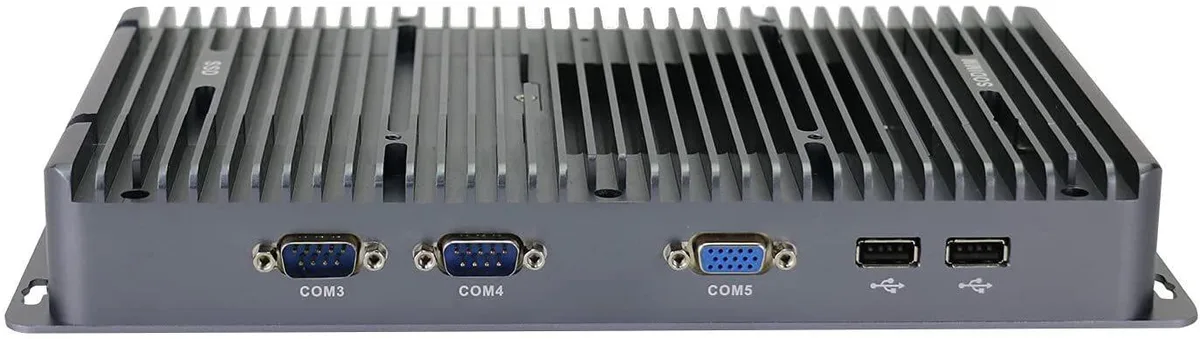

A 9-36V Phoenix connector powers the unit, allowing direct connection to vehicle or industrial DC supplies without an external brick. Video output uses one VGA and one HDMI port for synchronous or asynchronous dual displays. Four Intel I211-AT Gigabit LAN ports, four USB 3.0 ports and four COM ports with RS232/RS422/RS485 options provide extensive wired connectivity for sensors, PLCs and serial equipment. Internal expansion includes an M.2 2280 M-key slot for SATA storage and a Mini PCIe slot with a SIM socket for wireless modules.

Passive cooling and low power draw

The fanless design eliminates moving parts, so acoustic output is zero and dust ingress is minimised. The i5-8265U runs at a 1.6GHz base frequency with a 3.9GHz maximum turbo, keeping thermal output low enough for the aluminium case to dissipate heat passively. Power consumption stays modest across typical industrial workloads, and the wide input range tolerates voltage fluctuations common in mobile or factory environments. TPM 2.0 and AES-NI are supported for hardware-level security.

Points forts

  • Quad-core i5-8265U with 3.9 GHz turbo for responsive multitasking
  • 32 GB DDR4 memory handles heavy workloads smoothly
  • 1 TB SSD provides fast storage and quick boot
  • Four Intel 1000M LAN ports ensure reliable wired connectivity
  • Fanless aluminum chassis operates silently in industrial settings

Caractéristiques

TypeBusiness Desktops & Workstations
ColorGray
MonitorMonitor not included
Operating SystemWindows 10 Pro
Windows 11Ready
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
SSD1TB
HDDNo
Screen SizeNo Screen

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What practical throughput does the four Intel i211‑AT 1000M LAN ports cap at?

Each port is a Gigabit Ethernet link, so real‑world throughput tops out near 1 Gbps per port; the four ports give four independent 1 Gbps channels.

What physical space and mounting does the aluminium alloy chassis need?

The fanless titanium‑gray aluminium chassis is designed for DIN‑rail or wall mounting in industrial cabinets; allow clearance around the 2‑pin phoenix power connector and four LAN ports.

How is the M.2 2280 SATA drive installed, and what step is often missed?

Insert the M.2 2280 SATA SSD into the M‑Key slot at a 30° angle, press flat, and secure with the retaining screw; the step often missed is enabling the SATA controller in BIOS before the OS sees the drive.
