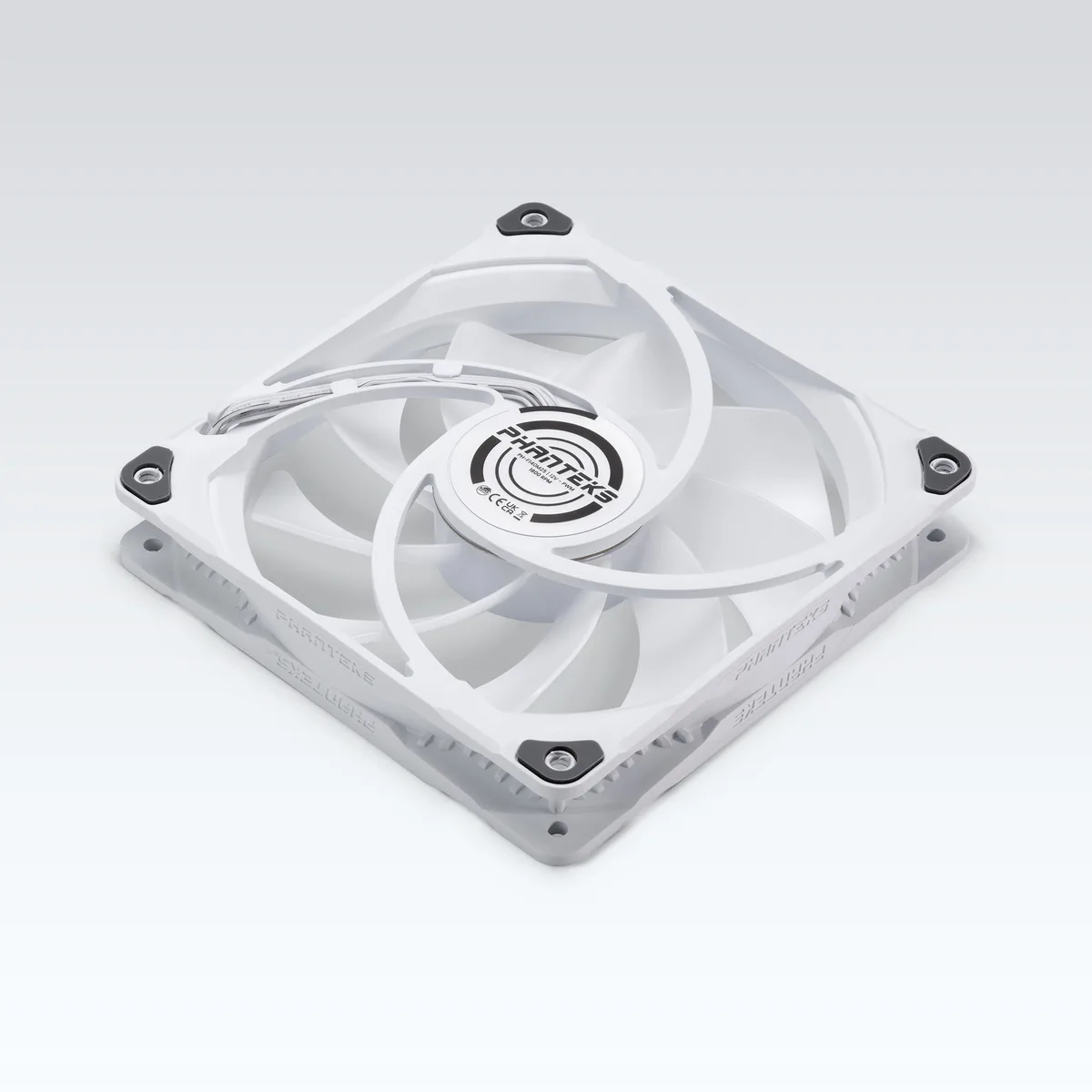

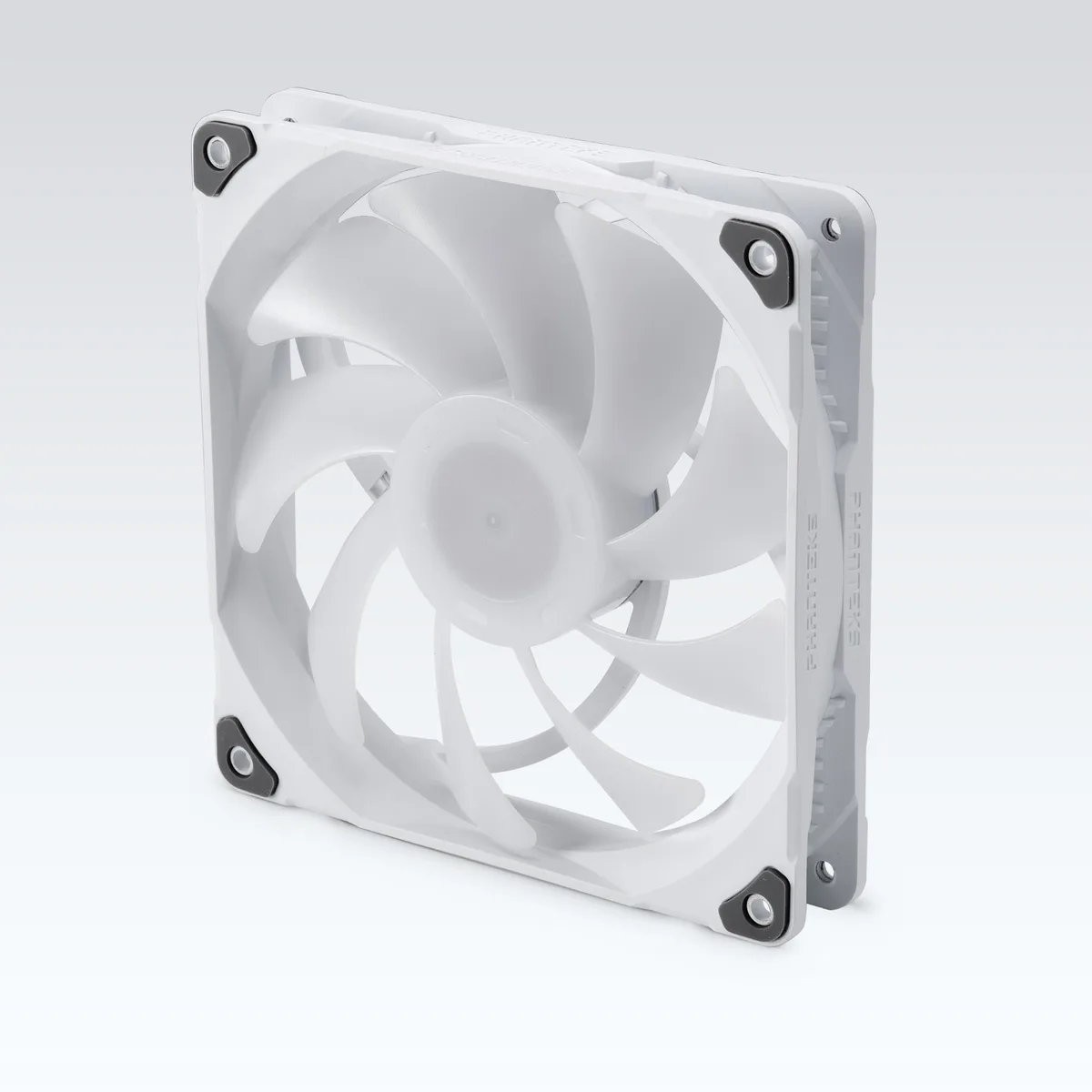

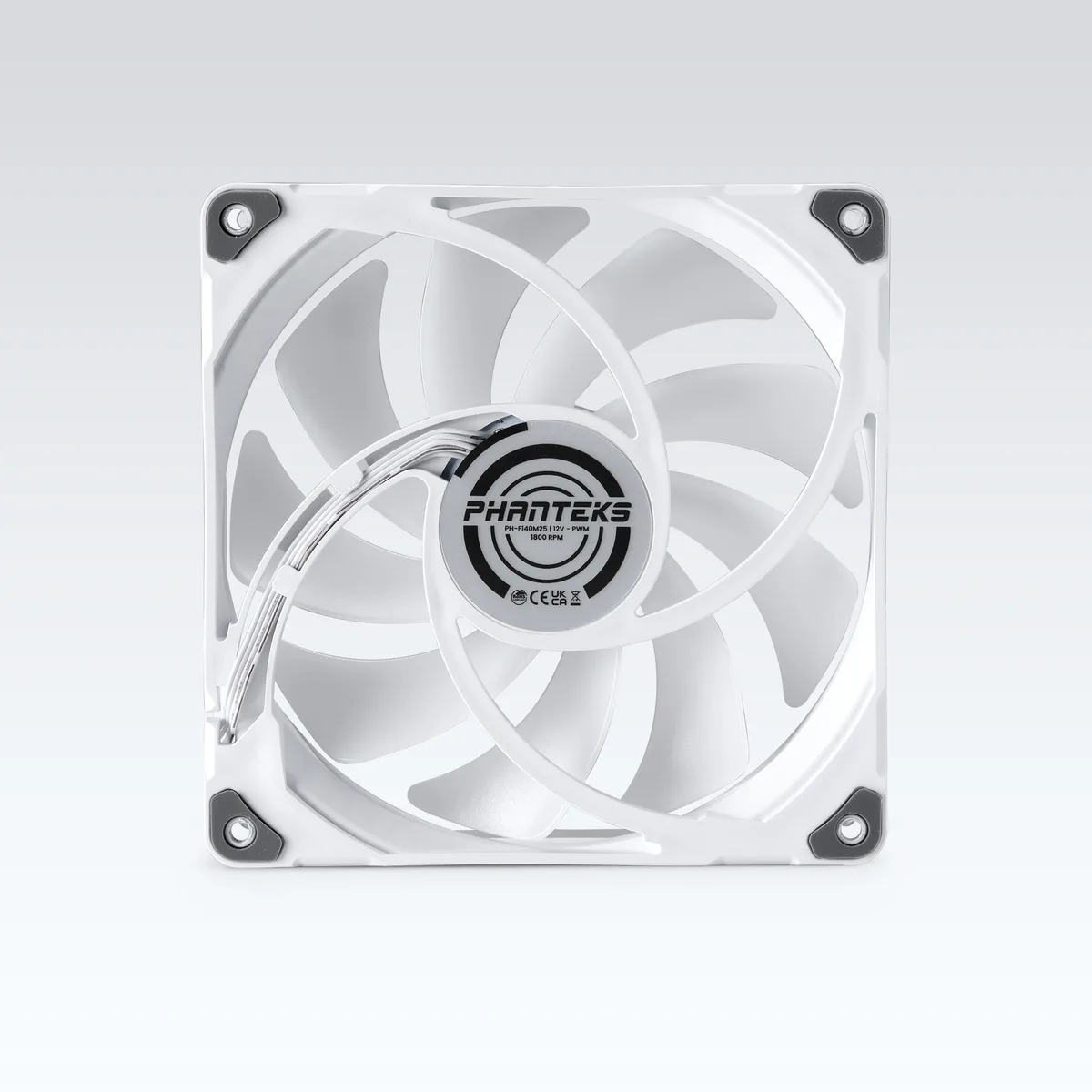

White 140mm case fan with DRGB lighting, 25mm thick, PWM connector

Phanteks

Phanteks PH-F140M25_DRGB_PWM_WT01 140mm DRGB case fan, white

SKU CH-P219-DC029 MPN PH-F140M25_DRGB_PWM_WT01

140 mm PWM case fan delivering 104.62 CFM airflow at up to 1800 RPM with DRGB lighting and daisy-chain cabling

  • Fan Counts1 Fan
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic
  • RPM500-1800±10% RPM

Fan Size 140mm

Style Regular

Model M25

Option Single Fan

Les versions barrées existent, mais ne sont pas disponibles ici.

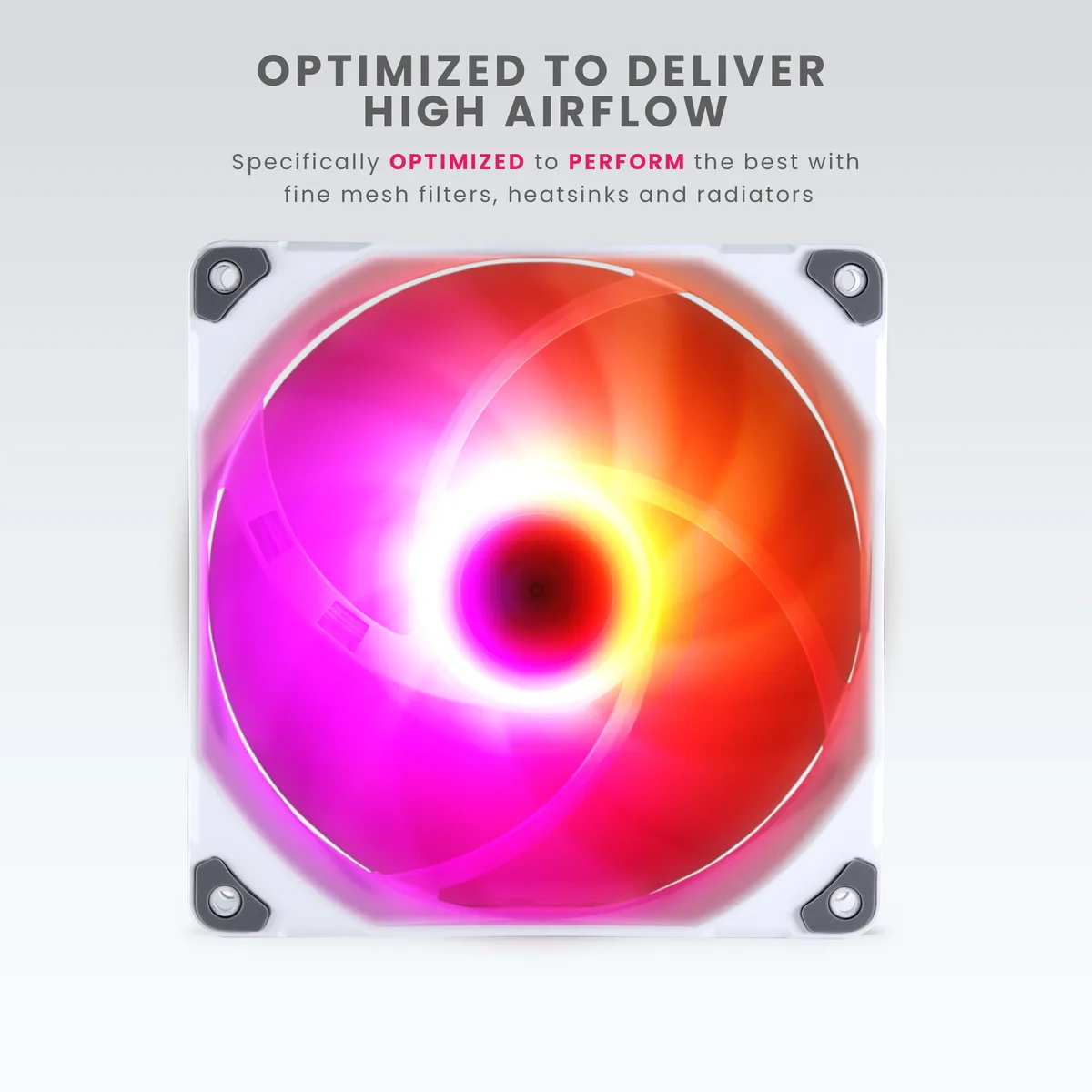

  • High airflow for radiators and filters at 104.62 CFM
  • Quiet operation at 36.57 dB(A) with hydraulic bearing
  • Wide PWM range from 500 to 1800 RPM for precise control

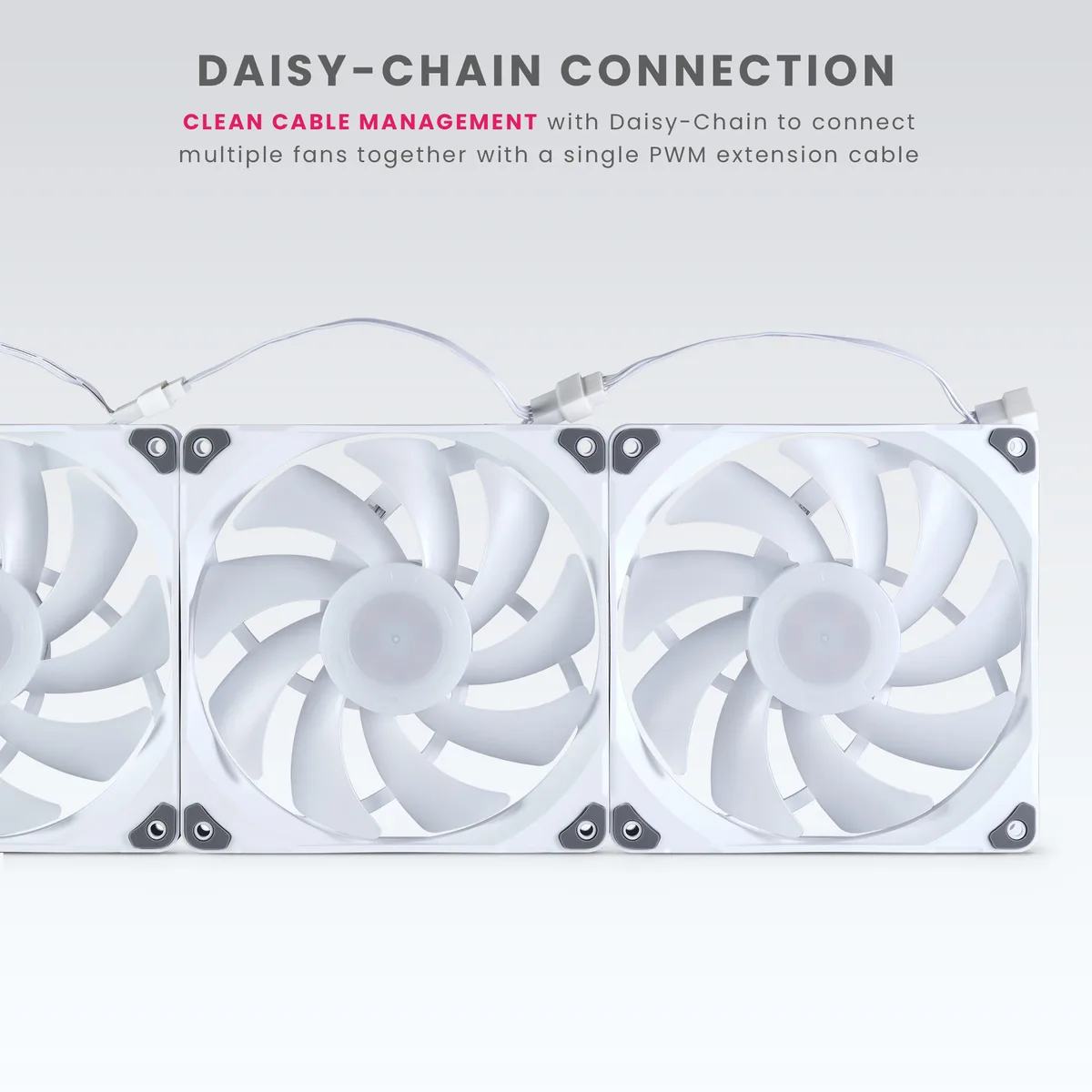

  • Daisy-chain cable reduces clutter when connecting multiple fans
  • DRGB lighting synchronises via motherboard adapter for unified effects

Build fit

The 140mm frame and 25mm thickness suit standard mounting points on radiators and heatsinks, while the hydraulic bearing keeps friction low. A 4-pin PWM connector allows the motherboard to regulate speed across the 500-1800 RPM range, and the daisy-chain cable lets several units share one header for cleaner routing. White blades and DRGB LEDs add visual consistency without requiring a separate lighting controller.

Sustained operation

At the top speed of 1800 RPM the fan moves 104.62 CFM while producing 36.57 dB(A), a ratio that keeps motor and bearing noise in check during long sessions. The wide PWM window lets the curve drop to 500 RPM when thermal headroom appears, reducing wear on the hydraulic bearing. Buyers who need higher static pressure at lower decibel levels or who prefer a non-illuminated variant will not find those needs met here.

Points forts

  • High airflow for radiators and filters at 104.62 CFM
  • Quiet operation at 36.57 dB(A) with hydraulic bearing
  • Wide PWM range from 500 to 1800 RPM for precise control
  • Daisy-chain cable reduces clutter when connecting multiple fans
  • DRGB lighting synchronises via motherboard adapter for unified effects

Caractéristiques

BrandPhanteks
ModelM25-140 D-RGB Fan, White
Part NumberPH-F140M25_DRGB_PWM_WT01
Fan Counts1 Fan
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM500-1800±10% RPM
Air Flow104.62 CFM
Noise Level36.57 dB(A)
Power Connector4 Pin
ColorWhite
LEDDRGB
Poids d’expédition0.18 kg
Dimensions du colis140 × 140 × 25 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What airflow limit appears first when the fan runs at its 1800 RPM maximum for long periods?

At 1800 RPM the fan moves 104.62 CFM, so sustained high-speed operation is capped by that airflow ceiling.

How loud and how much power does the fan draw when it runs all day at full speed?

The hydraulic-bearing fan produces 36.57 dB(A) at 1800 RPM while drawing power through its 4-pin PWM connector.

Which motherboard header must I already have to control both speed and DRGB lighting on this 140 mm fan?

A 4-pin PWM header for speed control and a standard 5 V 3-pin addressable RGB header for the DRGB LEDs.
