Black 360 mm AIO radiator with three 120 mm fans and a square 2.8 inch LCD pump block

SAMA

SAMA Q70-BKWAYNO3-G 360mm liquid cooler with 2.8" LCD display

SKU CH-F4Z2-2ZJ2X MPN Q70-BKWAYNO3-G

A 360 mm liquid cooler with a 2.8" LCD display, magnetic modular fans and a copper cold plate for Intel LGA 115X, 1200, 1700, 1851, 20XX and AMD AM4, AM5 sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel&AMD
  • Block Compatibility - AMDAMD:AM5/AM4
  • Block Compatibility - IntelIntel:LGA115X/1200/1700/1851/20XX
  • Block Dim.61X55mm
  • Block Materialcopper

Model Q70-Black

  • Q60-Black
  • Q60-White
  • Q70-Black
  • Q70-White
  • SM360-Black
  • SM360-White
  • SM360PRO Black
  • SM360PRO White

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 8" LCD shows real-time CPU temperature, fan speed and RGB effects
  • Magnetic modular design lets you detach and reposition the pump block easily
  • 360 mm radiator with three 120 mm PWM fans spinning up to 2600 RPM
  • Copper cold plate and ceramic-bearing pump rated at 2800 RPM for high heat loads
  • Supports Intel LGA 115X, 1200, 1700, 1851, 20XX and AMD AM4, AM5 sockets

360 mm AIO with 2.8" LCD

The SAMA Q70 is a 360 mm all-in-one liquid cooler built around a 397 x 120 x 27 mm aluminium radiator and a copper cold-plate block measuring 61 x 55 mm. A 2.8" LCD screen sits on the pump housing and is driven by downloadable software. Three 120 mm ARGB PWM fans with fluid-dynamic bearings push 500 to 2600 RPM, while the ceramic-bearing pump runs at 2800 RPM with a 1300 ml/min flow rate and 30 dB noise level. It supports Intel LGA 115X, 1200, 1700, 1851, 20XX and AMD AM4, AM5 sockets.

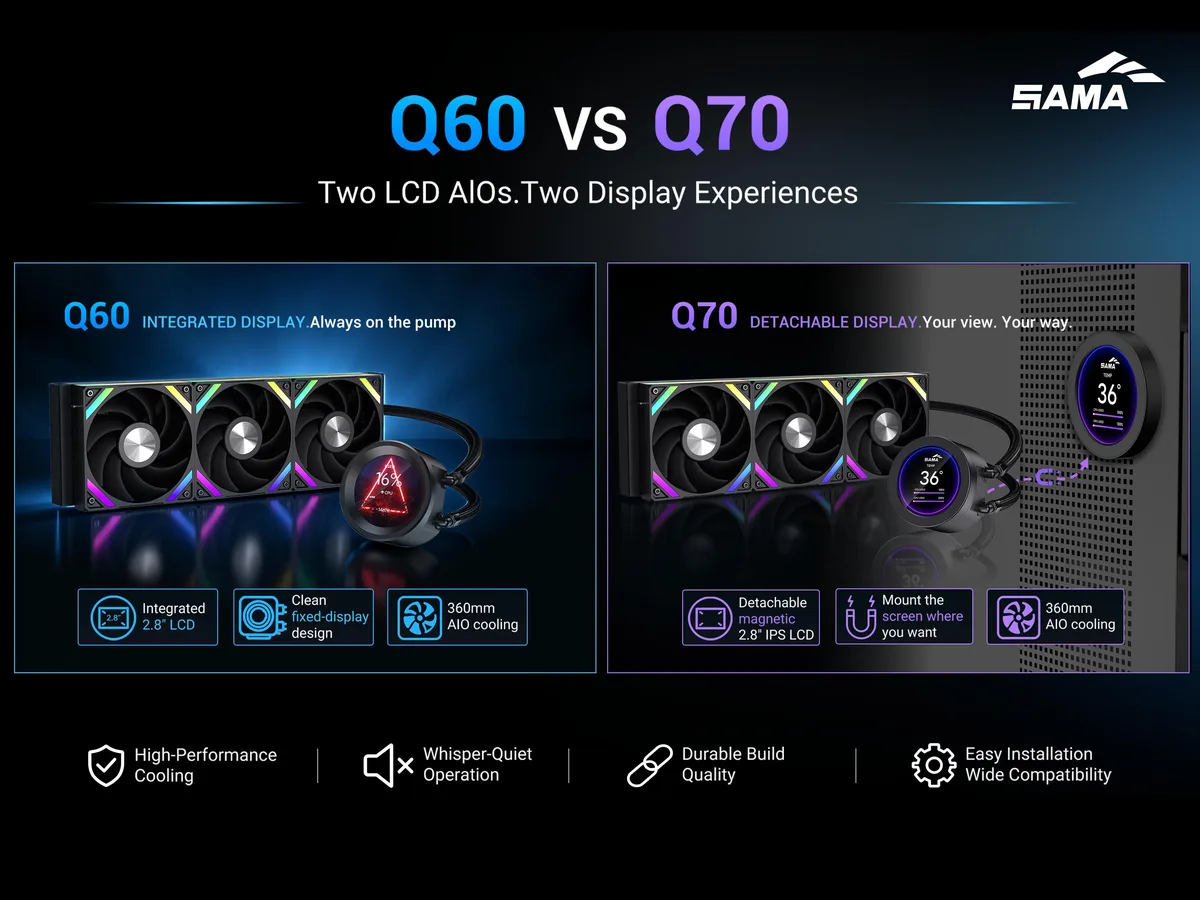

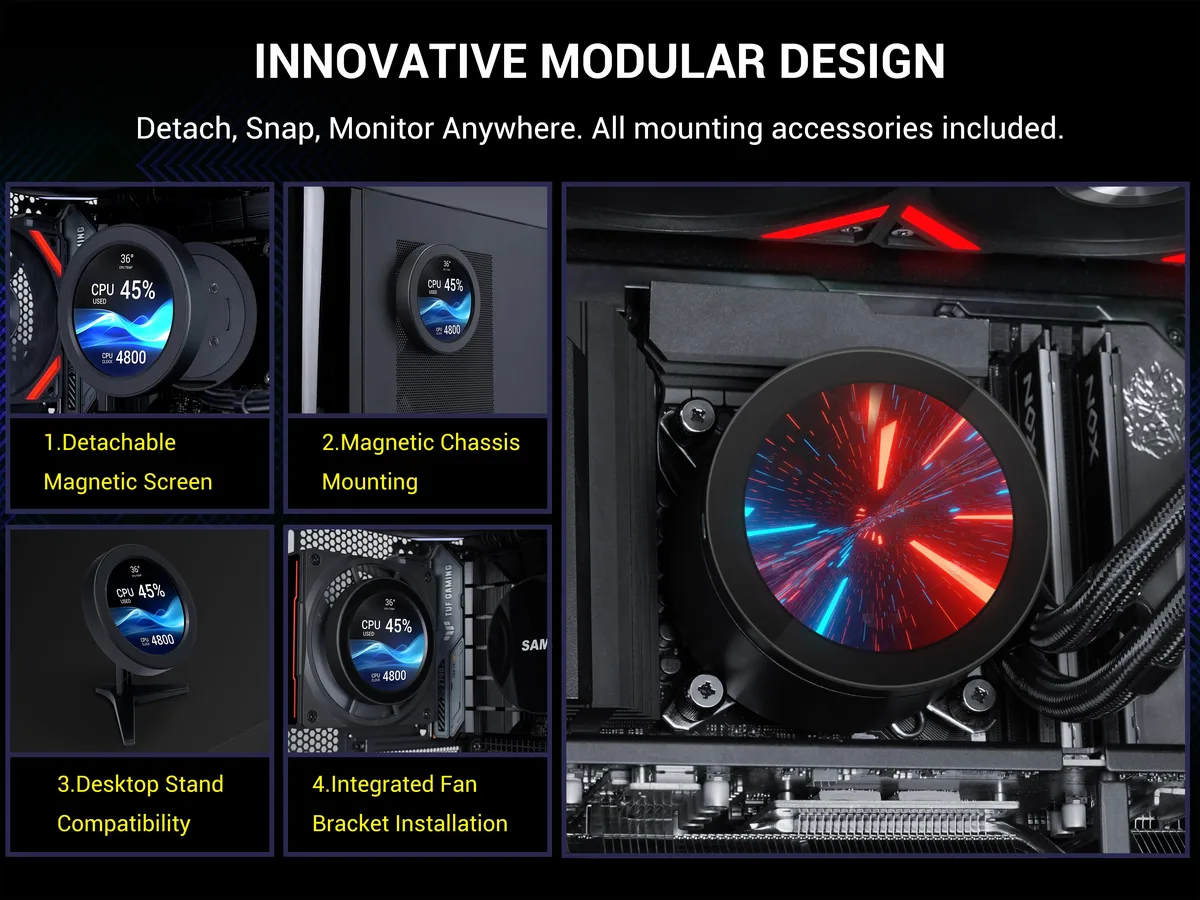

Modular magnetic display for monitoring-focused

This cooler suits builders who want real-time CPU temperature, fan speed and RGB data on a detachable magnetic screen that can be repositioned inside or outside the case. The magnetic attachment system allows the LCD module to be removed and placed elsewhere for easier viewing. Buyers who need a smaller radiator for compact cases, who prefer a cooler without a display, or who do not want to install configuration software should look at other models.

397 x 120 x 27 mm radiator footprint

The single specification that decides fitment is the radiator size of 397 x 120 x 27 mm. Verify that your case can mount a 360 mm radiator with these exact dimensions, including clearance for 25 mm thick fans and tubing routing, before purchase.

Points forts

  • 8" LCD shows real-time CPU temperature, fan speed and RGB effects
  • Magnetic modular design lets you detach and reposition the pump block easily
  • 360 mm radiator with three 120 mm PWM fans spinning up to 2600 RPM
  • Copper cold plate and ceramic-bearing pump rated at 2800 RPM for high heat loads
  • Supports Intel LGA 115X, 1200, 1700, 1851, 20XX and AMD AM4, AM5 sockets

Caractéristiques

BrandSAMA
ModelQ70-Black
Part NumberQ70-BKWAYNO3-G
TypeLiquid Cooling System
Block CompatibilityIntel&AMD
Block Compatibility - AMDAMD:AM5/AM4
Block Compatibility - IntelIntel:LGA115X/1200/1700/1851/20XX
Block Dim.61X55mm
Block Materialcopper
DisplayYes
Pump Speed2800±10%RPM
Pump Dim.L92x W101 xH64mm
Pump BearingCeramic
Pump Capacity=1300ml/min
Pump Noise= 30 db
Radiator Size397*120*27mm
Radiator MaterialAluminum
Fan Dim.120*120*25mm
Bearing TypeFDB
Fan RPM500-2600RPM
Fan Air Flow86 CFM
Fan Noise30 dB-A
Fan Connector5V 3Pin+4 Pin PWM
Pressure3.7mmH2O
Tube Dim.380mm
Tube Materialrubber
Package ContentsCPU Cooler x1,Intel Backplate x1,AMD Bracket x1,Thermal Paste x1,Case Scresw x12,Thumbscrew x4,AMD Screw x4,LGA1700/1200 Screw x4,LGA20XX Screw x4.User Guide x2.USB-A to USB-C 750mm x1,USB 2.0 to USB-C 750mm x1,Desktop Bracket x1,Fan Bracket x1,salf-tapping Screw x4.
Poids d’expédition2.54 kg
Dimensions du colis437 × 191 × 160 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What comes in the box with the SAMA Q70 360mm AIO and do I need to buy any mounting brackets separately?

The cooler includes the 360mm radiator, three 120mm ARGB PWM fans, a water block with 2.8" LCD display, and mounting hardware for Intel LGA 115X/1200/1700/1851/20XX and AMD AM4/AM5 sockets. No extra brackets are required.

How do I decide between the available versions or capacities of this cooler?

This model is offered as a single 360mm configuration with a 2.8" LCD display and three XT120 modular fans. There are no alternative radiator sizes, display options, or fan counts to choose from for the Q70-BKWAYNO3-G.

What does the 2800 RPM pump speed mean for actual CPU temperatures in my system?

The pump runs at 2800±10% RPM with a flow rate of 1300 ml/min and a ceramic bearing rated at 30 dB noise. Combined with the 397x120x27mm aluminum radiator and three fans spinning 500-2600 RPM, it delivers high-capacity heat transfer for demanding workloads on supported Intel and AMD platforms.
