White 360 mm AIO radiator with three 120 mm fans and a 2.8 inch LCD pump block

SAMA

SAMA Q70-WHWAYNO3-G 360 mm liquid cooler

SKU CH-KPK1-GNZEC MPN Q70-WHWAYNO3-G

A 360 mm all-in-one liquid cooler with a 2.8" LCD display, magnetic modular design and three 120 mm PWM fans up to 2600 RPM, compatible with Intel LGA 115X/1200/1700/1851/20XX and AMD AM4/AM5 sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel&AMD
  • Block Compatibility - AMDAMD：AM5/AM4
  • Block Compatibility - IntelIntel:LGA115X/1200/1700/1851/20XX
  • Block Dim.61X55mm
  • Block Materialcopper

Model Q70-White

  • Q60-Black
  • Q60-White
  • Q70-Black
  • Q70-White
  • SM360-Black
  • SM360-White
  • SM360PRO Black
  • SM360PRO White

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 8-inch LCD shows real-time CPU temperature, fan speed and RGB effects via SAMA software

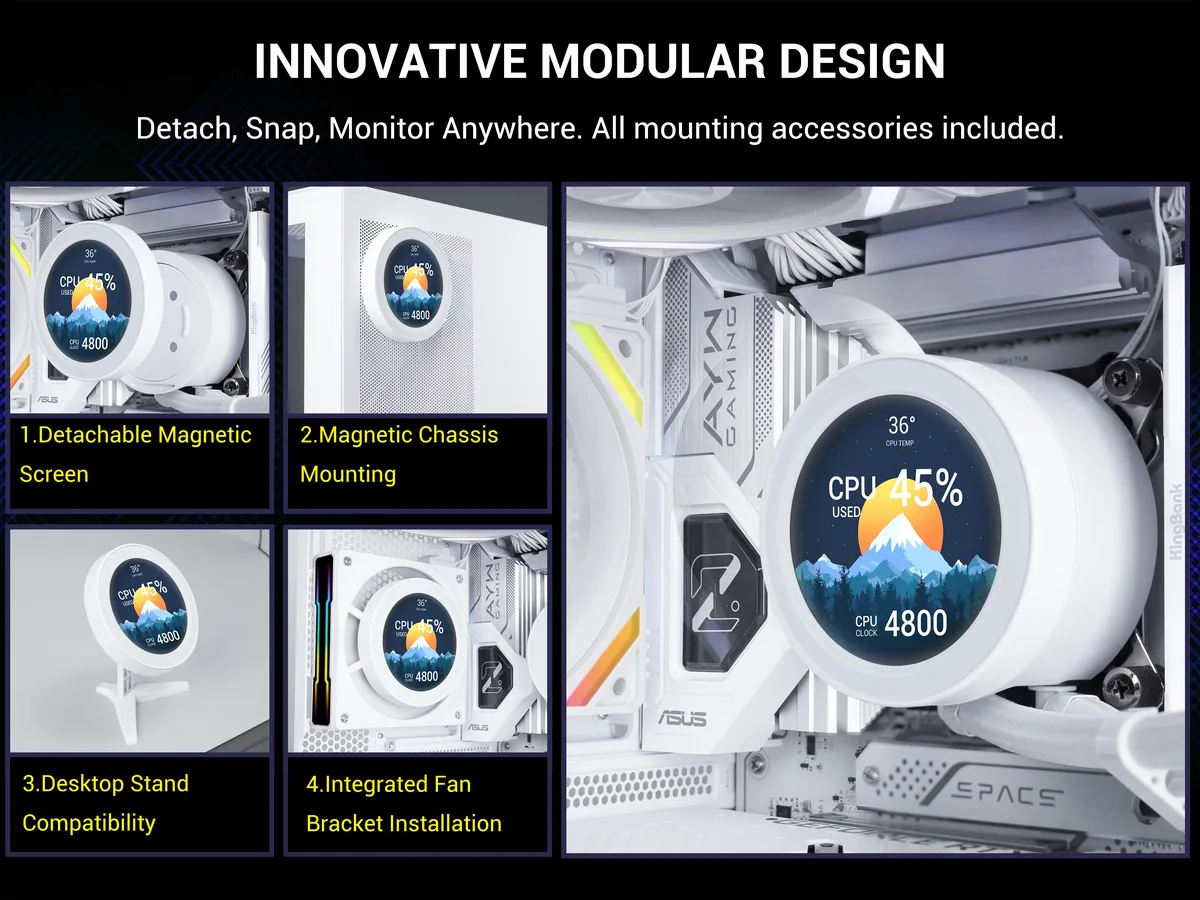

  • Magnetic modular block detaches and repositions easily for custom loop layouts
  • Copper cold plate draws heat efficiently from Intel LGA 115X/1200/1700/1851/20XX and AMD AM4/AM5 sockets

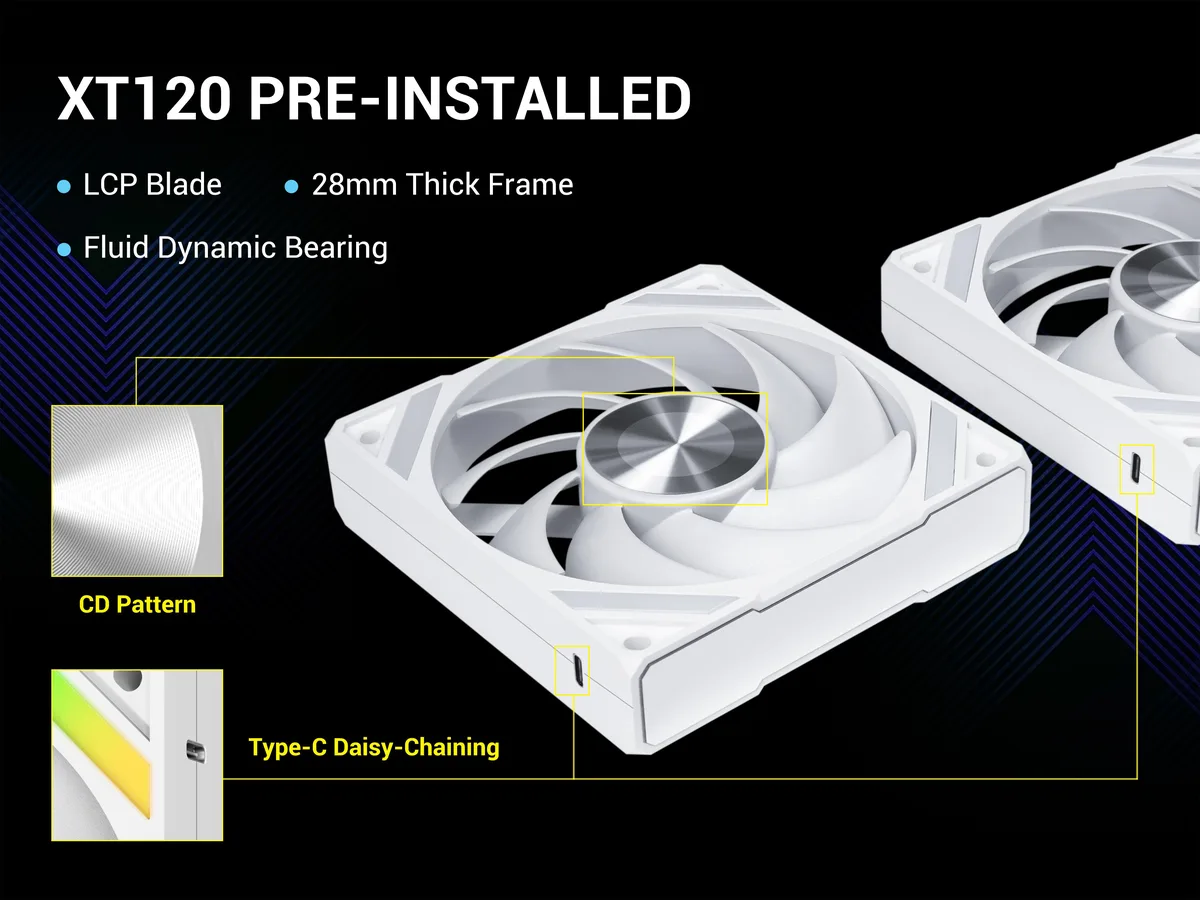

  • Three 120 mm ARGB PWM fans spin 500-2600 RPM on FDB bearings for adjustable airflow
  • 360 mm aluminium radiator (397 x 120 x 27 mm) with ceramic-bearing pump rated ≥1300 ml/min at ≤30 dB

360 mm AIO with 2.8" LCD

The SAMA Q70 is a 360 mm all-in-one liquid cooler built around a 397 x 120 x 27 mm aluminium radiator. A copper cold plate measuring 61 x 55 mm draws heat from the CPU while a ceramic-bearing pump runs at 2800 RPM and moves at least 1300 ml of coolant per minute. Three 120 mm FDB fans operate between 500 and 2600 RPM and the pump noise stays at or below 30 dB. A magnetic 2.8 inch LCD module mounts on the pump head and shows real-time temperatures, fan speeds and RGB effects through downloadable software.

Suits builders who want a large radiator

This cooler fits Intel LGA 115X, 1200, 1700, 1851 and 20XX sockets plus AMD AM4 and AM5 platforms. The modular magnetic design lets you reposition the display without tools. Builders needing a smaller radiator, a quieter pump than 30 dB, or a cooler without software-dependent lighting control should look elsewhere.

Pump flow rate of at least 1300 ml per minute

The pump’s rated capacity of ≥1300 ml/min is the single figure that determines whether the loop can move enough heat for a given CPU load. If your thermal output demands more flow than this specification provides, the cooler will not keep temperatures in check.

Points forts

  • 8-inch LCD shows real-time CPU temperature, fan speed and RGB effects via SAMA software
  • Magnetic modular block detaches and repositions easily for custom loop layouts
  • Copper cold plate draws heat efficiently from Intel LGA 115X/1200/1700/1851/20XX and AMD AM4/AM5 sockets
  • Three 120 mm ARGB PWM fans spin 500-2600 RPM on FDB bearings for adjustable airflow
  • 360 mm aluminium radiator (397 x 120 x 27 mm) with ceramic-bearing pump rated ≥1300 ml/min at ≤30 dB

Caractéristiques

BrandSAMA
ModelQ70-White
Part NumberQ70-WHWAYNO3-G
TypeLiquid Cooling System
Block CompatibilityIntel&AMD
Block Compatibility - AMDAMD：AM5/AM4
Block Compatibility - IntelIntel:LGA115X/1200/1700/1851/20XX
Block Dim.61X55mm
Block Materialcopper
DisplayYes

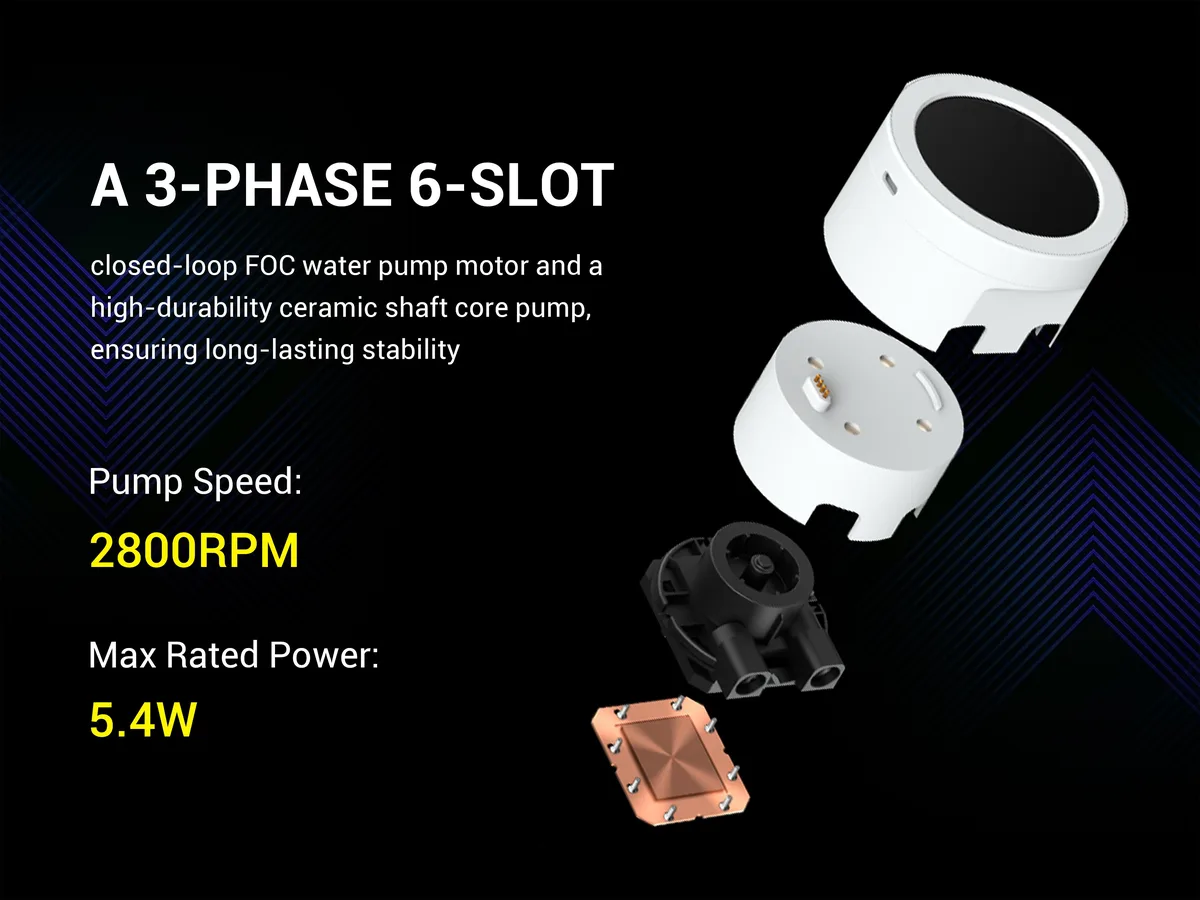

Pump Speed2800±10%RPM
Pump Dim.L92x W101 xH64mm
Pump BearingCeramic
Pump Capacity≥1300ml/min
Pump Noise≤ 30 db
Radiator Size397*120*27mm
Radiator MaterialAluminum
Fan Dim.120*120*25mm
Bearing TypeFDB
Fan RPM500-2600RPM
Fan Air Flow86 CFM
Fan Noise30 dB-A
Fan Connector5V 3Pin+4 Pin PWM
Pressure3.7mmH2O
Tube Dim.380mm
Tube Materialrubber
Package ContentsCPU Cooler x1,Intel Backplate x1,AMD Bracket x1,Thermal Paste x1,Case Scresw x12,Thumbscrew x4,AMD Screw x4,LGA1700/1200 Screw x4,LGA20XX Screw x4.User Guide x2.USB-A to USB-C 750mm x1，USB 2.0 to USB-C 750mm x1，Desktop Bracket x1，Fan Bracket x1，salf-tapping Screw x4.
Poids d’expédition2.52 kg
Dimensions du colis437 × 191 × 160 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I mount the 360 mm radiator and the 61×55 mm copper block on my LGA 1700 board without bending the tubes?

Use the included LGA 1700 bracket, align the block over the CPU, hand-tighten the four captive screws in a cross pattern, then route the 397 mm radiator tubes so they exit toward the rear panel — forcing them upward stresses the barbs.

When should I expect to replace the three 120×25 mm FDB fans or the ceramic-bearing pump running at 2800 RPM?

The FDB fans are rated for long life; plan on swapping fans only if bearing noise appears after several years. The ceramic-bearing pump has no user-service interval — replace the whole AIO if flow drops below 1300 ml/min.

What thermal limit appears first when the 3× 2600 RPM fans and 2800 RPM pump run flat-out on a sustained load?

The pump hits its 30 dB noise ceiling and 1300 ml/min flow ceiling first; beyond that the 27 mm thick aluminum radiator cannot reject additional heat, so coolant temperature plateaus.
