Supermicro
Supermicro SYS-110P-FRN2T-02-G1 rack server Xeon 4310 12-core 64GB DDR4 480GB NVMe 480GB SATA
1U rack server with a 12-core Xeon 4310, 64GB DDR4-3200, 480GB NVMe and 480GB SATA SSDs, dual 10GbE RJ45 and an 800W Platinum PSU
- WorkloadEdge Server
- TypeRack
- Rack Height1U
- LEDsFan Fail/System Over Heat LED HDD activity LED Network Activ
- Hot-swap Fans5 heavy duty fans with optimal fan speed control
- CPU TypeIntel Xeon Silver
- 12-core Xeon 4310 at 2.10 GHz for multi-thread edge workloads
- 64 GB DDR4-3200 ECC memory with eight slots for expansion
- 480 GB NVMe PCIe 4.0 plus 480 GB SATA SSD for fast boot and data

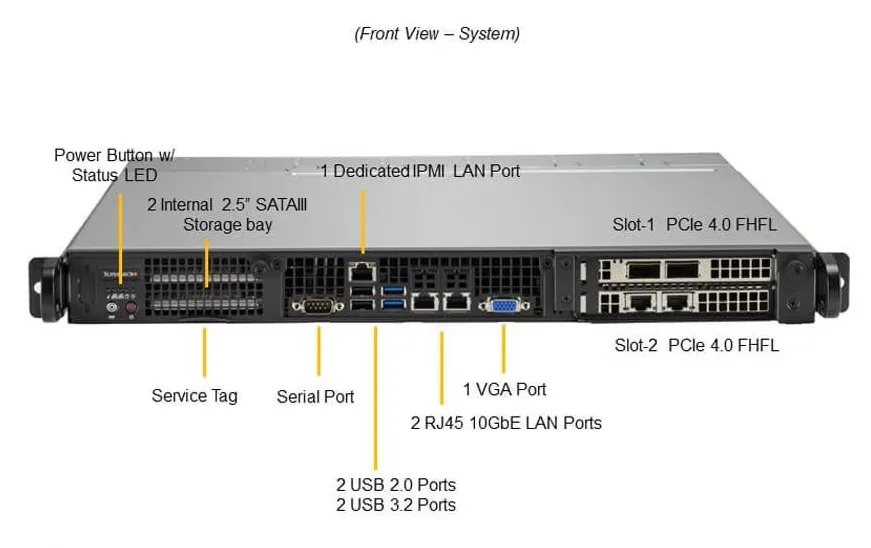

- Dual onboard 10 GbE RJ45 ports for high-speed network connectivity
- 800 W Platinum power supply with five hot-swap fans for efficient cooling
Gold Series Edge Server

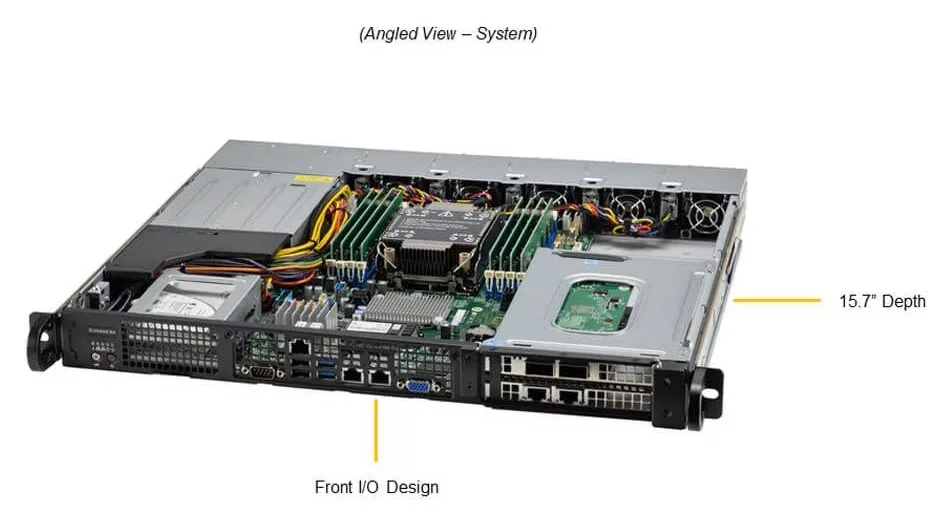

The Supermicro SYS-110P-FRN2T-02-G1 is a 1U rack server built for edge workloads. It ships with a single Intel Xeon Silver 4310 processor providing twelve cores at 2.10 GHz and 18 MB of cache. The system includes 64 GB of DDR4-3200 memory across eight slots and supports up to 2 TB total capacity. Dual 10GbE RJ45 ports handle network traffic.
Thermal and power profile
Five hot-swap fans with optimal speed control maintain airflow while monitoring system health through dedicated LEDs. A single 800 W Platinum-level power supply delivers efficient power conversion for continuous operation. The compact 1U form factor concentrates compute density without sacrificing cooling capacity for sustained edge deployments.
Storage upgrade path
Two internal fixed 2.5-inch SATA bays and one M.2 PCIe 3.0 x4 slot supporting NVMe or SATA drives remain available for expansion. The installed 480 GB NVMe and 480 GB SATA SSDs cover boot and primary storage needs. Buyers who want more storage or additional drive redundancy must populate the empty bays and slot.
Points forts
- 12-core Xeon 4310 at 2.10 GHz for multi-thread edge workloads
- 64 GB DDR4-3200 ECC memory with eight slots for expansion
- 480 GB NVMe PCIe 4.0 plus 480 GB SATA SSD for fast boot and data
- Dual onboard 10 GbE RJ45 ports for high-speed network connectivity
- 800 W Platinum power supply with five hot-swap fans for efficient cooling
Caractéristiques
| Brand | SUPERMICRO |
|---|---|
| Series | Gold Series |
| Model | SYS-110P-FRN2T-02-G1 |
| Workload | Edge Server |
| Type | Rack |
| Rack Height | 1U |
| LEDs | Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED |
| Hot-swap Fans | 5 heavy duty fans with optimal fan speed control |
| CPU Type | Intel Xeon Silver |
| CPU Speed | 4310 (2.10 GHz) |
| Number of CPU Cores | 12-Core Processor |
| Cache Memory | 18 MB |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 64GB |
| Memory Type | DDR4 3200 |
| Memory Features | Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Number of Memory Slots | 8 |
| Storage Controller | 1 x AOM-TPM-9670V-P - Trusted Platform Module (TPM) 2.0 |
| SSD (Installed) | 1 x 480GB M.2 7450 PRO NVMe PCIe 4.0 Solid State Drive 1 x 480GB 2.5" PM893 SATA 6Gb/s Solid State Drive (1 x DWPD) |
| Ethernet Controller | 1 x 2 10GbE RJ45 Ports |

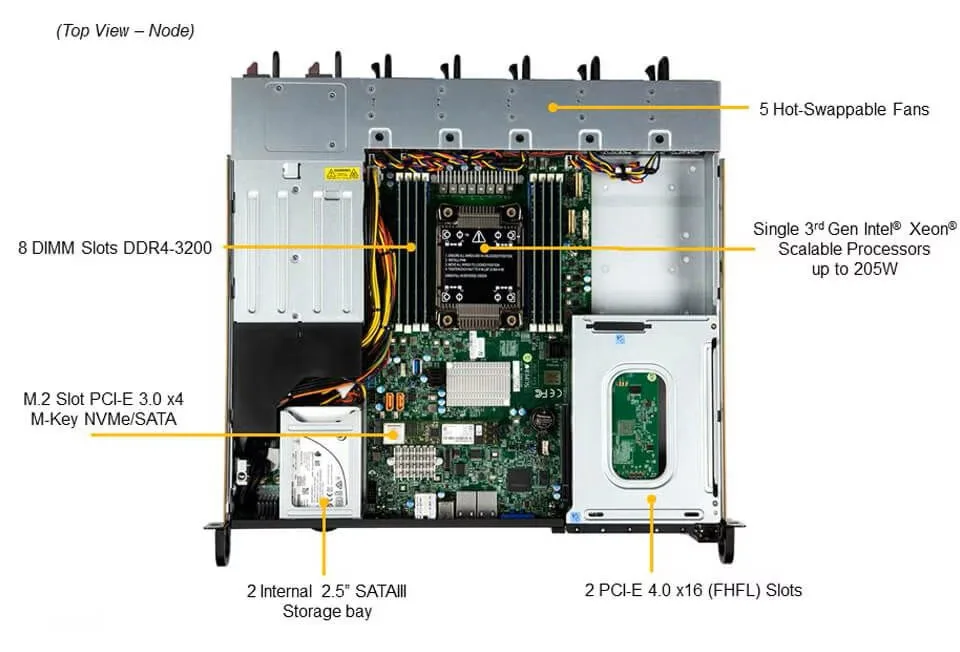

| Expansion Bays | 2 internal fixed 2.5" SATA drive bays 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110) |
| Power Characteristics | 1 x 800W Platinum Level |
| Temperature | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Dimensions | 1.7" x 17.2" x 15.7" |
| Weight | 18 lbs. |
| Poids d’expédition | 8.17 kg |
| Dimensions du colis | 686 × 610 × 203 mm |
Questions sur cet article
How do I install the 480GB M.2 NVMe drive into the M-key 2280/22110 slot and what step is often missed?
Insert the M.2 7450 PRO drive into the M-key 2280/22110 slot, then secure it with the retention screw; the step often missed is fastening that screw.
What maintenance or replacement will the installed SSDs need later?
The 480GB PM893 SATA drive is rated at 1 DWPD; plan to replace it once its write endurance is reached. The M.2 7450 PRO NVMe drive will also require replacement after its endurance limit.
What limit appears first under sustained heavy load?
The single 800W Platinum power supply sets the power ceiling; sustained loads that exceed its output will throttle the system first.
