Supermicro
Supermicro SYS-112H-TN 1U rack server 16 DDR5 slots 8×2.5" NVMe/SAS/SATA
1U rack server with 16 DDR5 slots, eight 2.5-inch NVMe/SAS/SATA bays and two PCIe 5.0 expansion slots
- TypeRack
- Rack Height1U
- LEDsHDD activity LAN1 activity Power status System information
- SecurityHardware Trusted Platform Module (TPM) 2.0 Silicon Root of T
- CPU TypeIntel Xeon 6700 series processors with E-cores
- CPU SocketSocket E2 (LGA-4710)
- 1U rackmount fits dense deployments
- 16 DDR5 slots support up to 2TB memory
- 8 hot-swap 2.5" bays take NVMe, SAS or SATA drives
- Dual PCIe 5.0 plus AIOM 3.0 slots for high-speed add-in cards
- TPM 2.0 and Silicon Root of Trust meet NIST 800-193 security baseline
1U rack server for cloud scale-out

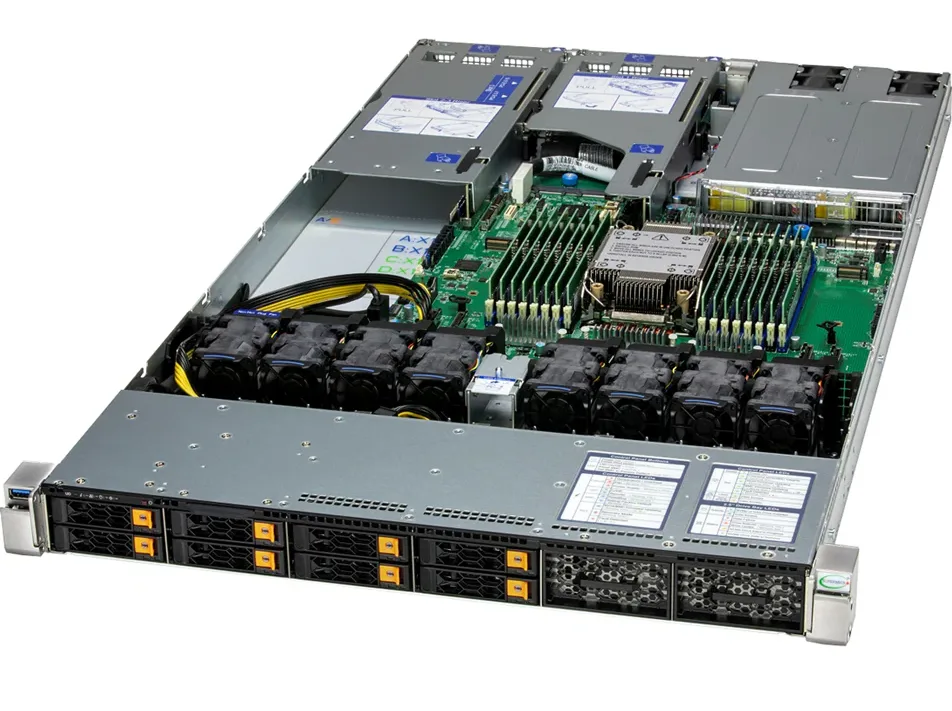

The Supermicro SYS-112H-TN is a 1U rackmount system built for scale-out cloud workloads. It accepts a single Intel Xeon 6700 series processor with E-cores in an LGA-4710 socket. Sixteen DDR5 slots support up to 2TB of ECC RDIMM memory. Eight hot-swap 2.5-inch bays handle NVMe, SAS or SATA drives.
Sustained load with 330W air-cooled CPUs
The chassis supports processors up to 330W TDP using air cooling, allowing continuous high-throughput operation without liquid infrastructure. Sixteen DIMM slots run at 6400MT/s with one DIMM per channel or 5200MT/s with two per channel. PCIe 5.0 lanes feed the NVMe bays and two double-width add-in card slots for steady bandwidth under load.
PCIe 5.0 and OCP 3.0 networking limits
Two PCIe 5.0 expansion slots plus one AIOM slot compatible with OCP NIC 3.0 define the I/O ceiling. The eight drive bays share PCIe 5.0 NVMe connectivity, while RAID 0, 1, 5 and 10 are available through the onboard controller. A dedicated 1GbE BMC port handles management traffic separate from data planes.
Points forts
- 1U rackmount fits dense deployments
- 16 DDR5 slots support up to 2TB memory
- 8 hot-swap 2.5" bays take NVMe, SAS or SATA drives
- Dual PCIe 5.0 plus AIOM 3.0 slots for high-speed add-in cards
- TPM 2.0 and Silicon Root of Trust meet NIST 800-193 security baseline
Caractéristiques
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-112H-TN |
| Type | Rack |
| Rack Height | 1U |
| LEDs | HDD activity LAN1 activity Power status System information |
| Security | Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU Type | Intel Xeon 6700 series processors with E-cores |
| CPU Socket | Socket E2 (LGA-4710) |
| CPU Features | Up to 144C/144T; Up to 108MB Cache Supports up to 330W TDP CPUs (Air Cooled) |
| # of Processors Installed | 0 |
| MAX Processors | 1 |
| Memory Type | DDR5 |
| Max Memory Capacity | 2TB |
| Memory Features | Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Number of Memory Slots | 16 |
| Hard Drive (Installed) | No Hard Drive |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10 |
| LAN Ports | 1 x RJ45 1 GbE Dedicated BMC LAN port |
| Expansion Slots | Default 1 PCIe 5.0 x16 FHHL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Expansion Bays | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays 4 front hot-swap 2.5" SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| Other ports | 2 x USB 3.0 (rear) 1 x USB 3.0 (front) 1 x VGA |
| Operating System | No |
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 1.7" x 17.2" x 30.66" |
| Weight | 19.2 lbs. |
| Poids d’expédition | 34.02 kg |
| Dimensions du colis | 1100 × 672 × 253 mm |
Questions sur cet article
How loud or hot does the SYS-112H-TN run when the 330W TDP CPU is fully loaded all day?
The chassis supports up to 330W TDP processors with air cooling; actual acoustics and thermals depend on the specific Xeon 6700 series CPU and fan profile you install.
Which DDR5 modules and Xeon 6700 processor must I supply for this barebone server to boot?
You need one LGA-4710 Xeon 6700 series CPU and up to 16 ECC DDR5 RDIMMs — 6400MT/s at 1DPC for 1TB max or 5200MT/s at 2DPC for 2TB max.
Can my existing 2.5" SAS and SATA drives share the 8 hot-swap bays with new NVMe U.2 units?
Yes — the eight 2.5" bays accept NVMe, SAS and SATA drives simultaneously, and the onboard controller supports RAID 0, 1, 5 and 10 across them.
