Supermicro

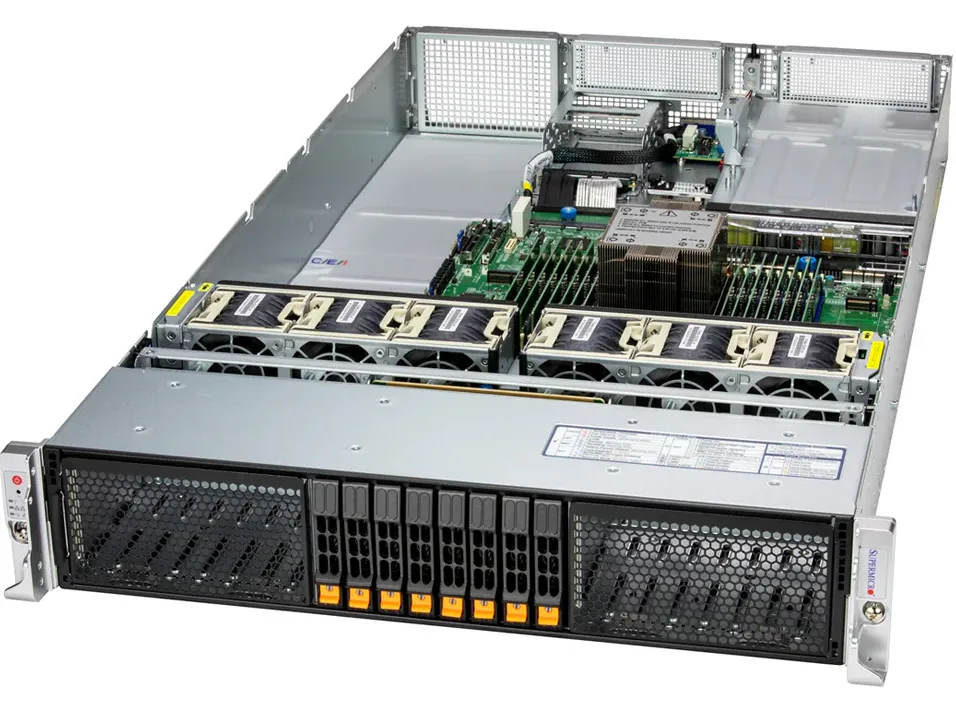

Supermicro SYS-212H-TN 2U rack server
2U rack server for Intel Xeon 6700 series with 8 hot-swap 2.5" NVMe/SAS/SATA bays, 16 DDR5 slots up to 2TB, up to 144 cores, and 3 PCIe 5.0 plus AIOM slots
- TypeRack
- Rack Height2U
- LEDsHDD activity LAN1 activity Power status System information
- SecurityHardware Trusted Platform Module (TPM) 2.0 Silicon Root of T
- CPU TypeIntel Xeon 6700 series processors with E-cores
- CPU SocketSocket E2 (LGA-4710)
- Single Intel Xeon 6700 series processor scales cloud workloads
- 16 DDR5 slots support up to 2TB ECC memory
- 8 hot-swap 2.5" bays accept NVMe SAS SATA drives
- Up to 3 PCIe 5.0 plus 1 AIOM slot for expansion
- TPM 2.0 and Silicon Root of Trust NIST 800-193 compliant
2U Rack Server for Scale-Out Cloud
The Supermicro SYS-212H-TN is a 2U rackmount server built for scale-out cloud workloads. It supports a single Intel Xeon 6700 series processor with up to 144 cores and 108MB cache. The system arrives without a CPU installed, allowing integrators to select the exact processor for their performance and power envelope.
PCIe 5.0 Expansion and NVMe Storage Limits
Up to three PCIe 5.0 slots plus one AIOM slot compatible with OCP NIC 3.0 provide high-speed I/O for networking and accelerators. Eight hot-swap 2.5-inch bays accept NVMe, SAS, or SATA drives with RAID 0, 1, 5, and 10 support. GPU capacity is limited to one double-width or two single-width cards connected via PCIe 5.0 x16 CPU-to-GPU interconnect.
DDR5 Memory Configuration Decides Maximum Capacity
Sixteen DDR5 RDIMM slots deliver up to 1TB at 6400MT/s in a one-DIMM-per-channel layout or 2TB at 5200MT/s when fully populated with two DIMMs per channel. Buyers who need the full 2TB must accept the lower memory speed, while those prioritising 6400MT/s throughput are capped at 1TB.
Points forts
- Single Intel Xeon 6700 series processor scales cloud workloads
- 16 DDR5 slots support up to 2TB ECC memory
- 8 hot-swap 2.5" bays accept NVMe SAS SATA drives
- Up to 3 PCIe 5.0 plus 1 AIOM slot for expansion
- TPM 2.0 and Silicon Root of Trust NIST 800-193 compliant
Caractéristiques
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-212H-TN |
| Type | Rack |
| Rack Height | 2U |
| LEDs | HDD activity LAN1 activity Power status System information |
| Security | Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU Type | Intel Xeon 6700 series processors with E-cores |
| CPU Socket | Socket E2 (LGA-4710) |
| CPU Features | Up to 144C/144T; Up to 108MB Cache Supports up to 330W TDP CPUs (Air Cooled) |
| # of Processors Installed | 0 |
| MAX Processors | 1 |
| Memory Type | DDR5 |
| Max Memory Capacity | 2TB |
| Memory Features | Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Number of Memory Slots | 16 |
| Hard Drive (Installed) | No Hard Drive |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10 |
| GPU Type | Up to 1 double-width or 2 single-width GPUs PCIe 5.0 x16 CPU-to-GPU Interconnect |
| LAN Ports | 1 x RJ45 1 GbE Dedicated BMC LAN port |
| Expansion Slots | Option A 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 FH/10.5"L double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B 1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Expansion Bays | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 8 front hot-swap 2.5" SAS*/SATA* drive bays Option B: Total 16 bays 16 front hot-swap 2.5" SAS*/SATA* drive bays Option C: Total 24 bays 24 front hot-swap 2.5" SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID) |
| Other ports | 2 x USB 3.0 (rear) 1 x VGA |
| Operating System | No |
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 3.5" x 17.2" x 31.74" |
| Weight | 45 lbs. |
| Poids d’expédition | 34.02 kg |
| Dimensions du colis | 1100 × 672 × 253 mm |
Questions sur cet article
Should I populate 1 DIMM per channel or 2 DIMMs per channel for the 6400 MT/s DDR5 speed?
Use one DIMM per channel (1DPC) to reach 6400 MT/s with up to 1 TB total. Two DIMMs per channel (2DPC) drops the speed to 5200 MT/s but allows up to 2 TB total across the 16 slots.
What does the 144-core Xeon 6700 series actually deliver in this 2U chassis?
The single Socket E2 (LGA-4710) supports up to 144 cores and 144 threads with 108 MB cache at up to 330 W TDP, air-cooled, giving maximum single-socket throughput for scale-out cloud workloads.
How many PCIe 5.0 lanes are available for the AIOM networking slot?
The AIOM slot follows the OCP NIC 3.0 standard and connects via PCIe 5.0, so the networking card can use the full Gen 5 bandwidth provided by the Xeon 6700 series CPU.
