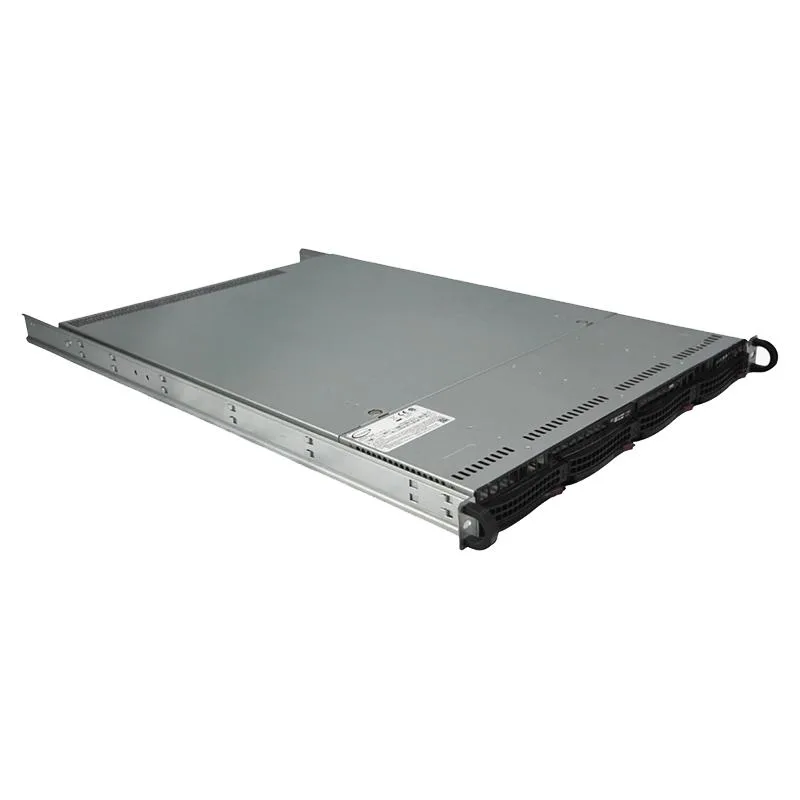

Silver 1U rack server with four front drive trays and dual rear power supplies

Supermicro

Supermicro SYS-5019C-WR 1U rack server 1x Xeon E-2124 3.3GHz 32GB DDR4 9361-8i 4x 3.5" trays 2x 500W PSUs

SKU CH-WJZZ-91RCS

1U rack server with Xeon E-2124 3.3 GHz, 32 GB DDR4, 9361-8i RAID, four 3.5" trays and dual 500 W PSUs

  • Type0
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI FeaturesNo
  • CPU TypeIntel Xeon
  • CPU Speed0
  • Quad-core Xeon E-2124 runs at 3.3 GHz with 4.5 GHz turbo for responsive compute
  • 32 GB DDR4-2666 ECC memory protects data integrity across four DIMM slots
  • MegaRAID 9361-8i controller delivers 12 Gb/s SAS connectivity with 1 GB battery-backed cache
  • Four hot-swap 3.5-inch trays support SATA and SAS drives for flexible storage
  • Redundant 500 W 80 Plus Platinum power supplies maintain uptime with 96% efficiency

1U rack server with Xeon E-2124

This 1U Supermicro rack server ships with a single Intel Xeon E-2124 3.3 GHz four-core processor and 32 GB of DDR4-2666 ECC memory. It is built for data-centre workloads that need redundant power and hardware RAID in a compact form factor. The system includes an LSI MegaRAID 9361-8i controller with 1 GB cache and battery backup. Dual 500 W Platinum power supplies provide hot-swap redundancy.

LSI MegaRAID 9361-8i hardware RAID

The installed MegaRAID 9361-8i delivers eight 12 Gb/s SAS/SATA ports with RAID 0, 1, 5 and 10 support. This controller decides whether the server matches a project that requires battery-backed write cache and hardware parity. Four front-accessible 3.5-inch hot-swap trays accept SATA or SAS drives; no drives are included. Dual M.2 slots add optional NVMe or SATA boot devices.

Suits single-socket ECC workloads.

Buyers needing a single-socket Xeon E-2100/E-2200 platform with ECC memory, IPMI 2.0 remote management and redundant 80 Plus Platinum power will find the configuration aligned. Organisations requiring dual-processor scaling, more than four 3.5-inch bays, or full-height GPU clearance should evaluate larger chassis options. Front bezel and rack rails are not included.

Points forts

  • Quad-core Xeon E-2124 runs at 3.3 GHz with 4.5 GHz turbo for responsive compute
  • 32 GB DDR4-2666 ECC memory protects data integrity across four DIMM slots
  • MegaRAID 9361-8i controller delivers 12 Gb/s SAS connectivity with 1 GB battery-backed cache
  • Four hot-swap 3.5-inch trays support SATA and SAS drives for flexible storage
  • Redundant 500 W 80 Plus Platinum power supplies maintain uptime with 96% efficiency

Caractéristiques

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB2
Model0
Part Number3.30 GHz
Type0
Rack Height1U
Redundant Hot-swap PowerYes
AI FeaturesNo
CPU TypeIntel Xeon
CPU Speed0
CPU SocketLGA 1151
Number of CPU Cores4-Core Processor
# of Processors InstalledE-2124
MAX Processors0
Chipset0
Installed Memory Size32GB
Memory Type0
Max Memory Capacity0
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)0
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Intel 210i-AT Dual Gigabit RJ45 Network Adapter
LAN Ports0
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features0

Questions sur cet article

How does the 4.5 GHz turbo frequency of the Xeon E-2124 behave under sustained server loads?

The processor reaches 4.5 GHz on single-core bursts; under continuous multi-core work it settles at the 3.3 GHz base clock, which the 1U cooling and redundant 500 W platinum supplies are designed to sustain.

What RAID levels and drive throughput does the MegaRAID 9361-8i actually support with the four 3.5" bays?

The 9361-8i provides hardware RAID 0, 1, 5 and 10 across its eight 12 Gb/s SAS/SATA ports; with four bays populated the array is limited by the installed drives, not the controller.

What rack hardware is required to mount this 1U chassis?

The unit fits a standard 19-inch rack but ships without rails or a front bezel; you must supply compatible 1U sliding rails and a bezel if desired.
