Supermicro SYS-751GE-TNRT-NV1 rack server, 4 NVIDIA A100 GPUs, dual Xeon 6444Y

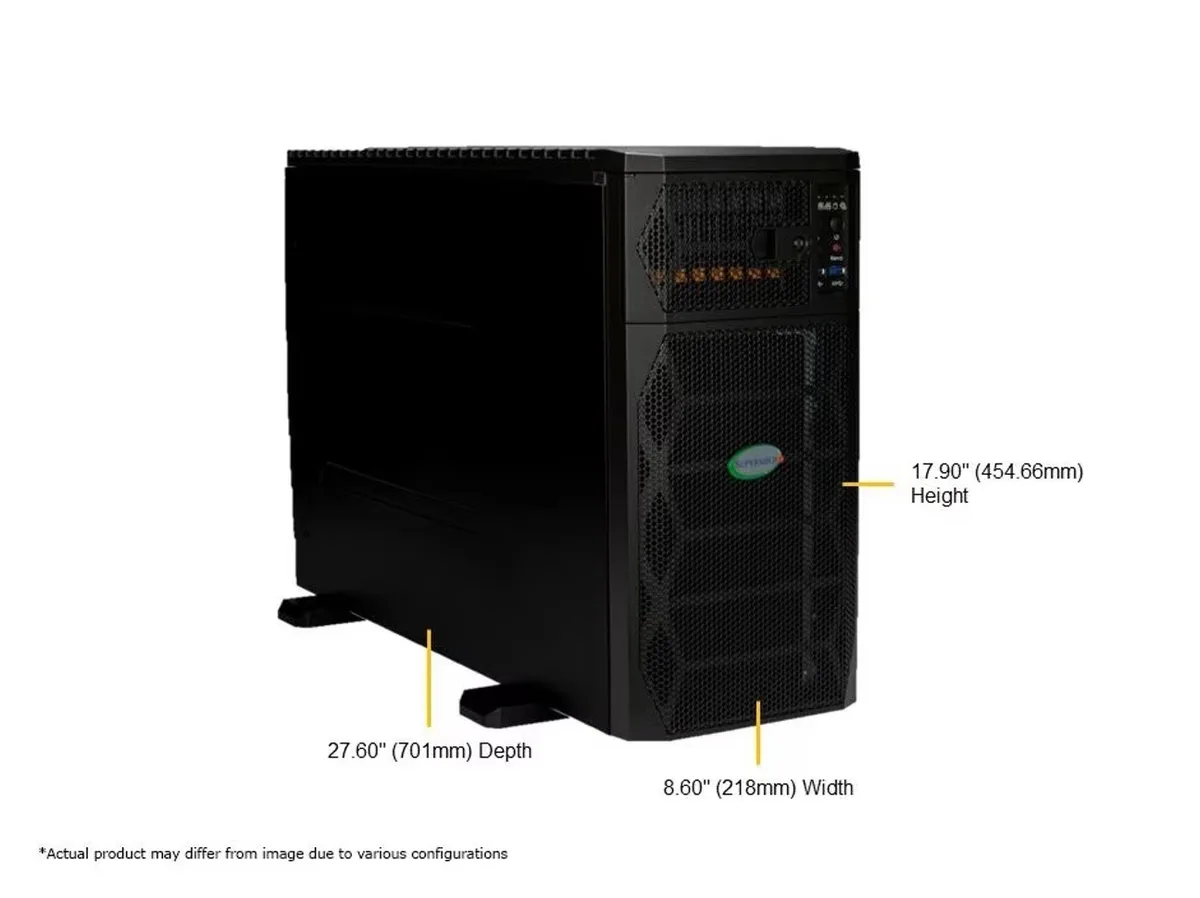

5U tower server with dual Xeon 6444Y processors and four liquid-cooled NVIDIA A100 GPUs linked by NVLink
- WorkloadWorkstation
- TypeTower
- Rack Height5U/Tower
- CPU TypeIntel Xeon Scalable
- CPU Speed6444Y (3.60 GHz)
- CPU SocketDual Socket E (LGA-4677)
- Dual Xeon 6444Y processors deliver 32 cores at 3.6 GHz for compute-heavy workloads
- Four liquid-cooled NVIDIA A100 GPUs with NVLink 2+2 topology accelerate AI training and inference

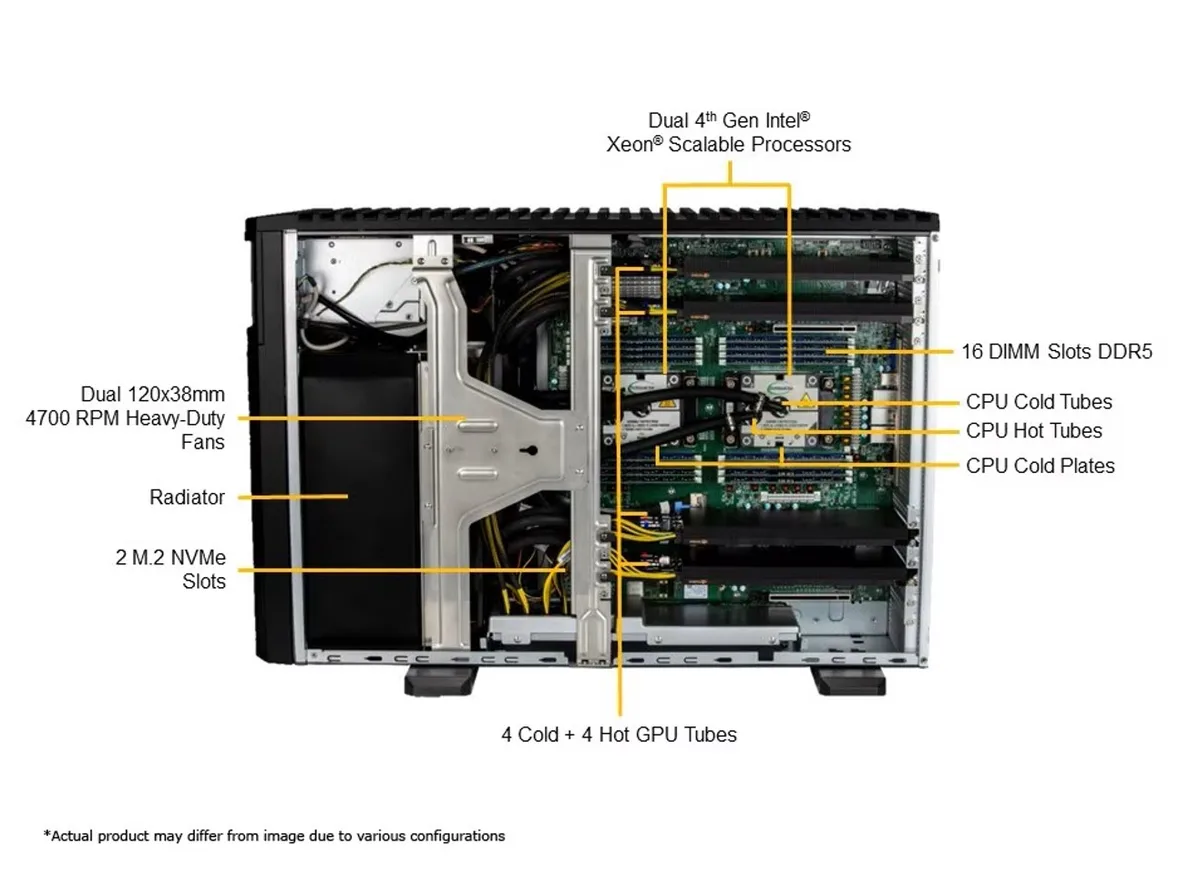

- Closed-loop liquid cooling keeps CPUs and GPUs at stable temperatures under sustained load
- 16 DDR5 slots support up to 512 GB of 4800 MHz ECC memory for large datasets
- Dual-port ConnectX-6 Dx 25 GbE adapter plus dual 10 GbE Base-T provide high-throughput networking
5U Tower Server for AI Training
The Supermicro SYS-751GE-TNRT-NV1 is a 5U tower system designed for AI and HPC workloads. It arrives with four liquid-cooled NVIDIA A100 GPUs linked by NVLink bridges in a 2+2 configuration. Dual 4th Gen Intel Xeon 6444Y processors, each with 16 cores at 3.60 GHz, are installed in the dual LGA-4677 sockets. Ubuntu 22.04 LTS and the Supermicro Cloud Orchestrator AI software stack are pre-loaded.
PCIe 5.0 and NVLink GPU Interconnect Limits
Each GPU connects to the CPUs through a PCIe 5.0 x16 link, providing the CPU-to-GPU bandwidth ceiling for this platform. GPU-to-GPU communication is handled by the installed NVLink bridges in a 2+2 topology rather than a full mesh. The dual-port NVIDIA ConnectX-6 Dx adapter adds a 25GbE SFP28 link, while the Intel X550-AT2 supplies two 10GbE Base-T ports and the ASPEED AST2600 provides a 1GbE management port. Storage connectivity is limited to the SATA III interface with RAID 0, 1, 5, 10 support.
512 GB DDR5-4800 ECC Memory Ceiling
The board offers 16 DIMM slots populated with DDR5-4800 ECC modules, capping total system memory at 512 GB using 16×32 GB DRAM. No memory is installed from the factory, so the buyer must procure the full complement to reach the maximum. The Intel C741 chipset governs this limit; future 5th Gen Xeon support is noted but does not alter the current memory capacity or speed specification.
Points forts
- Dual Xeon 6444Y processors deliver 32 cores at 3.6 GHz for compute-heavy workloads
- Four liquid-cooled NVIDIA A100 GPUs with NVLink 2+2 topology accelerate AI training and inference
- Closed-loop liquid cooling keeps CPUs and GPUs at stable temperatures under sustained load
- 16 DDR5 slots support up to 512 GB of 4800 MHz ECC memory for large datasets
- Dual-port ConnectX-6 Dx 25 GbE adapter plus dual 10 GbE Base-T provide high-throughput networking
Caractéristiques
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-751GE-TNRT |
| Workload | Workstation |
| Type | Tower |
| Rack Height | 5U/Tower |
| CPU Type | Intel Xeon Scalable |
| CPU Speed | 6444Y (3.60 GHz) |
| CPU Socket | Dual Socket E (LGA-4677) |
| CPU Features | 4th Gen Intel Xeon Scalable processors Future support for the upcoming 5th Gen Intel Xeon processors |
| # of Processors Installed | 0 |
| MAX Processors | 2 |
| Chipset | Intel C741 |
| Installed Memory Size | No |
| Memory Type | DDR5 |
| Max Memory Capacity | 512GB |
| Memory Features | Memory Capacity: 16 DIMM slots 512GB: 16x 32 GB DRAM Memory Type: 4800MHz ECC DDR5 DRAM |
| Number of Memory Slots | 16 |
| Hard Drive (Installed) | None |
| HDD Interface | SATA III |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10 |
| GPU Type | GPU: NVIDIA A100 Max GPU Count: Up to 4 double-width GPU(s) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA NVLink Bridge (2+2) |
| LAN Ports | 2 x 10GbE BaseT with Intel X550-AT2 1 x 1GbE BaseT with ASPEED AST2600 1 x 25GbE SFP28 with NVIDIA Connect-X-6 Dx |
| Expansion Slots | 7 PCIe 5.0 x16 FHFL slot(s) Note: 4 NVIDIA Liquid-cooled A100 with NVIDIA NVLink, NVIDIA Connect-X6 Dx 25G Network adapter installed |

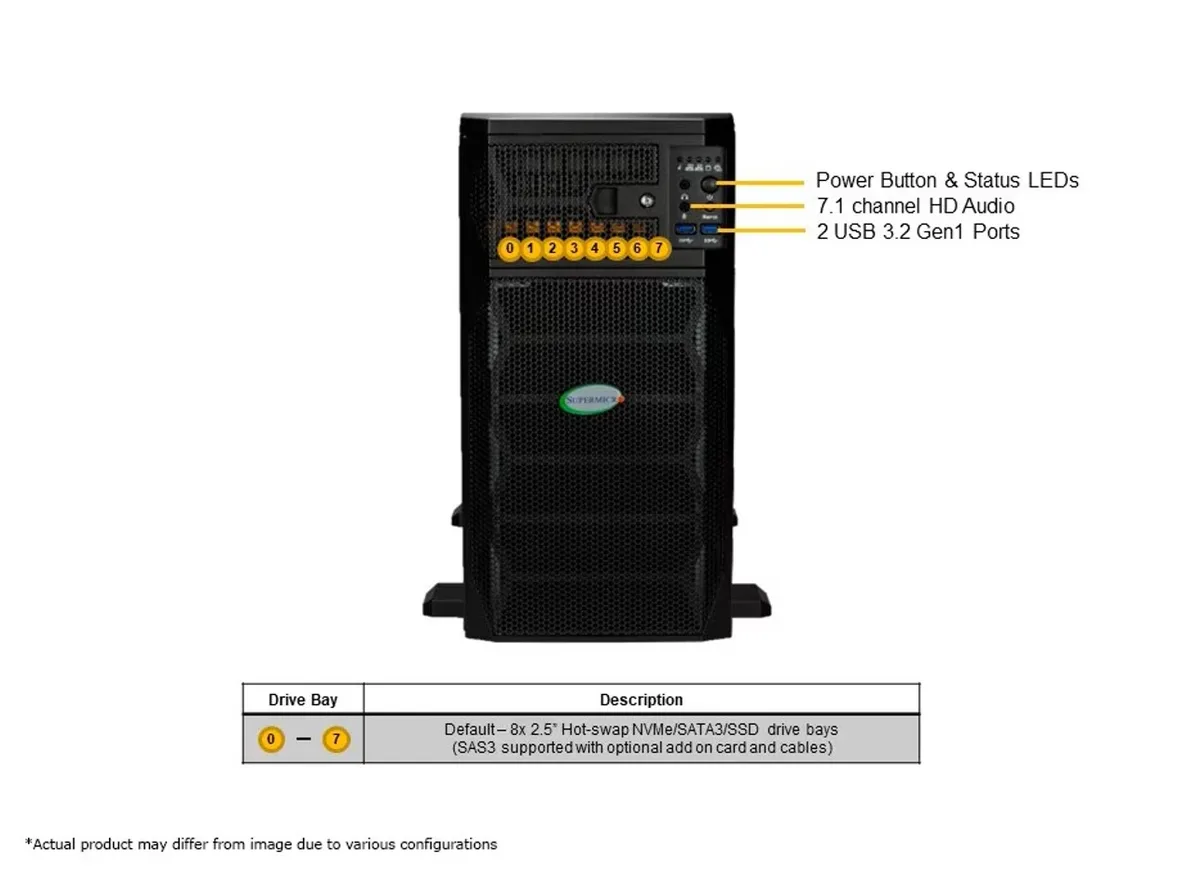

| Expansion Bays | 8 x 2.5" hot-swap NVMe/SATA drive bays (2 x 1.92TB NVMe Drives RAID 1 (OS), 4 x 1.92TB NVMe Drives (Data) installed) 2 x M.2 NVMe |
| Other ports | 1 x VGA |
| Power Characteristics | 2200W Redundant Titanium Level power supplies |
| Temperature | Operating Temperature: 10°C ~ 25°C (50°F ~ 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| Poids d’expédition | 54.89 kg |
| Dimensions du colis | 955 × 655 × 389 mm |
Questions sur cet article
How many NVIDIA A100 GPUs come installed and how are they linked?
Four liquid-cooled NVIDIA A100 GPUs are installed and connected by NVLink bridges in a 2+2 configuration.
What does the dual Xeon 6444Y at 3.6 GHz deliver for GPU workloads?
Each 16-core Xeon 6444Y runs at 3.6 GHz and provides PCIe 5.0 x16 lanes directly to each GPU for high-throughput compute.
What networking adapters are fitted and what speeds do they support?
A dual-port NVIDIA ConnectX-6 Dx 25GbE SFP28 adapter, two 10GbE Base-T ports via Intel X550-AT2, and one 1GbE management port are installed.
