Supermicro
Supermicro SYS-A21GE-NBRT-G1 10U rack server dual Xeon 8570 2.3TB DDR5 8x B200 GPU
10U rack server with dual Xeon 8570 processors, 2.3TB DDR5 memory, eight B200 GPUs, eight 3.8TB NVMe SSDs and two 1.9TB M.2 NVMe SSDs
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height10U
- LEDsHDD activity Network activity LEDs System information (overh
- Hot-swap Fans15 heavy duty hot-swappable 80mm Fan(s) 4 heavy duty interna
- CPU TypeIntel Xeon Platinum
- Dual Xeon 8570 processors with 56 cores each handle heavy compute loads
- Eight NVIDIA HGX B200 GPUs provide 180GB video memory for AI training
- 3TB DDR5-5600 memory installed supports large dataset processing
- Eight 3.8TB U.3 NVMe SSDs plus two 1.92TB M.2 NVMe drives deliver fast storage
- Six 5250W titanium redundant power supplies ensure continuous operation
Gold Series 10U GPU server

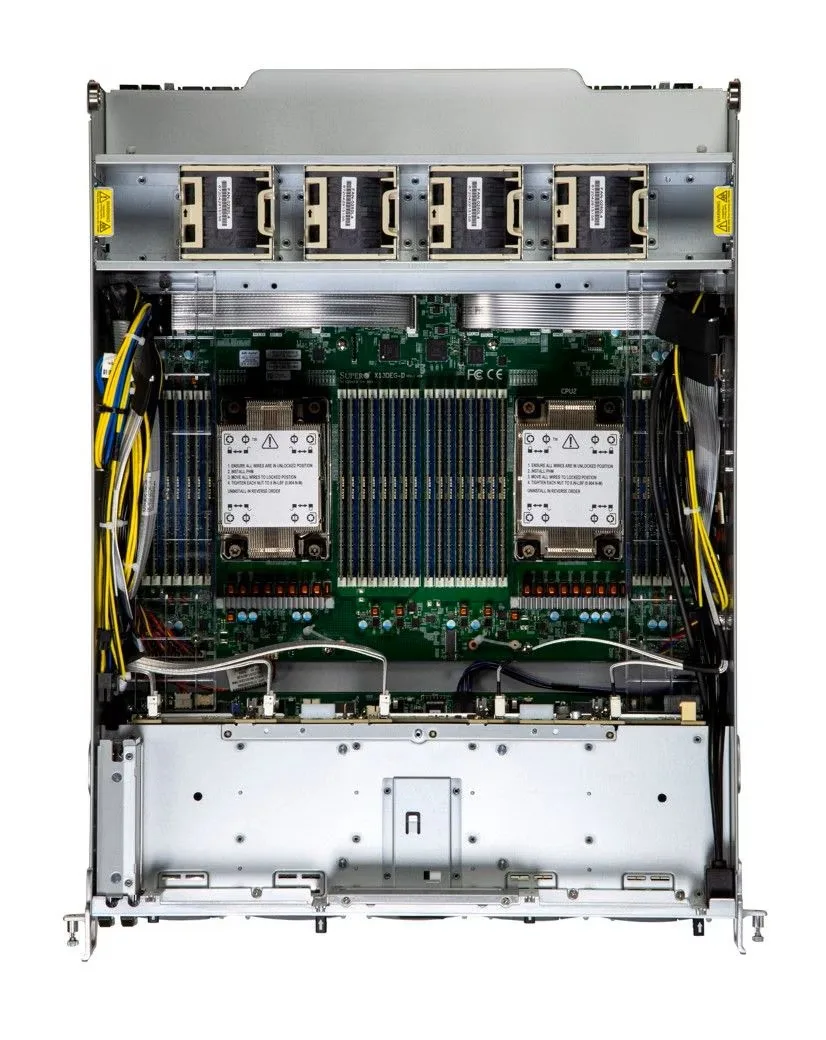

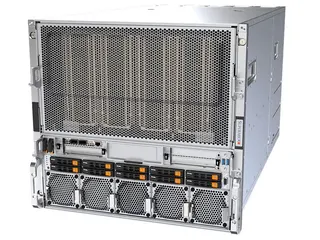

The Supermicro SYS-A21GE-NBRT-G1 is a 10U rack server built for high-density compute. Dual Intel Xeon Platinum 8570 processors deliver 56 cores each at 2.10 GHz. The system ships with 2.3 TB of DDR5-5600 ECC memory across 32 slots. Eight NVIDIA HGX B200 GPUs provide 180 GB of video memory for large-scale AI workloads.
Hot-swap cooling and dense storage

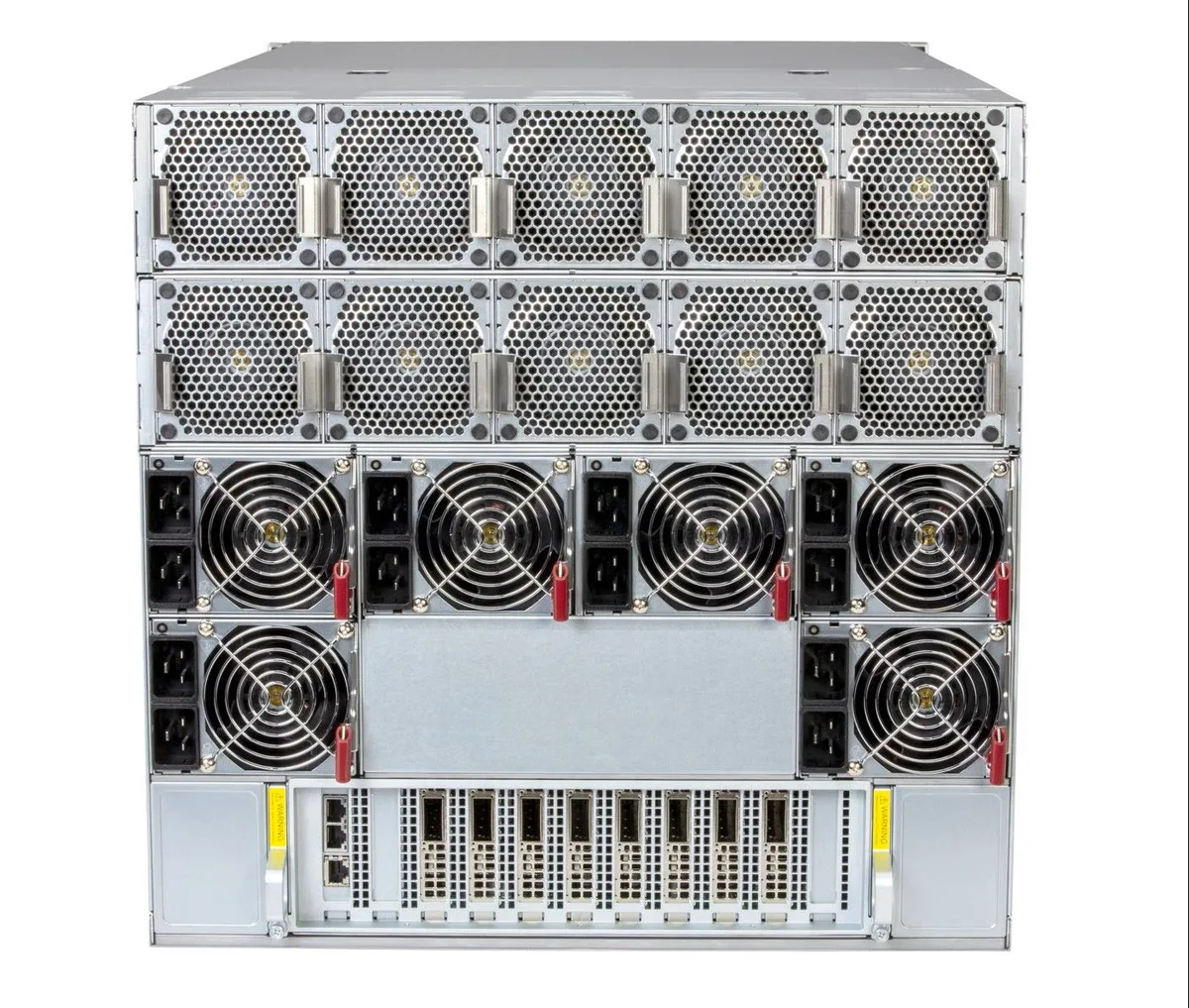

Fifteen hot-swappable 80 mm fans and four internal 60 mm fans maintain airflow under sustained load. Eight 3.8 TB U.3 NVMe SSDs and two 1.92 TB M.2 NVMe SSDs install directly into the chassis. Eight single-port 400 GbE OSFP connections and one NVIDIA BlueField-3 DPU at 200 Gb/s handle east-west and north-south traffic. Six 5250 W titanium redundant power supplies operate in a 3+3 configuration.
8TB DDR5 ceiling for memory-bound jobs
Maximum supported memory reaches 8 TB when all 32 slots are populated at 2 DPC, running at 4400 MT/s. This ceiling decides whether the platform fits parameter-heavy models or in-memory databases. Buyers who need more than 8 TB of coherent memory must look at multi-node clusters. Systems limited to 1 DPC top out at 4 TB and 5600 MT/s.
Points forts
- Dual Xeon 8570 processors with 56 cores each handle heavy compute loads
- Eight NVIDIA HGX B200 GPUs provide 180GB video memory for AI training
- 3TB DDR5-5600 memory installed supports large dataset processing
- Eight 3.8TB U.3 NVMe SSDs plus two 1.92TB M.2 NVMe drives deliver fast storage
- Six 5250W titanium redundant power supplies ensure continuous operation
Caractéristiques
| Brand | SUPERMICRO |
|---|---|
| Series | Gold Series |
| Model | SYS-A21GE-NBRT-G1 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 10U |
| LEDs | HDD activity Network activity LEDs System information (overheat/UID) UID |
| Hot-swap Fans | 15 heavy duty hot-swappable 80mm Fan(s) 4 heavy duty internal 60mm Fan(s) |
| CPU Type | Intel Xeon Platinum |
| CPU Speed | 8570 (2.10 GHz) |
| CPU Socket | LGA 4677 |
| Number of CPU Cores | 56-Core Processor |
| Cache Memory | 300 MB |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 2.3TB |
| Memory Type | DDR5-5600 |
| Max Memory Capacity | 8TB |
| Memory Features | Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Number of Memory Slots | 32 |
| SSD (Installed) | 2 x 1.9TB M.2 PM9A3 NVMe Solid State Drive 8 x 3.8TB 2.5" 7450 PRO NVMe (15mm) PCIe 4.0 Solid State Drive (1 x DWPD) |
| Servers_Graphic Installed | 1 |
| GPU Type | NVIDIA HGX GPU Baseboard 8 B200 |
| Video Memory | 180GB |
| Ethernet Controller | 8 x 400-Gigabit MCX75310AAS-NEAT (1 x OSFP) Ethernet Network Adapter 1 x BlueField-3 BF3220 DPU 200GbE Dual Port Crypto Enable 1 x 2 RJ45 10Gbase-T Ports |
| Expansion Bays | 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110; VROC required for RAID) |
| Power Characteristics | 6x 5250W Redundant (3 + 3) Titanium Level (96%) Hot-plug power supplies |
| Temperature | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 17.2" x 17.6" x 33.2" |
| Weight | 293 lbs. |
| Poids d’expédition | 156.49 kg |
| Dimensions du colis | 1255 × 693 × 640 mm |
Questions sur cet article
What is the maximum memory speed supported when all 32 DDR5 slots are populated?
When all 32 slots are populated in a 2DPC configuration, the maximum supported memory speed is 4400 MT/s for ECC DDR5 RDIMM modules.
What are the physical dimensions and drive bay requirements for the installed NVMe storage?
The server includes eight 2.5-inch 15mm U.3 NVMe SSDs and two M.2 NVMe SSDs, requiring compatible 2.5-inch drive bays and M.2 slots on the motherboard.
How are the eight NVIDIA B200 GPUs installed, and what is a common installation oversight?
The eight B200 GPUs are pre-integrated on the NVIDIA HGX baseboard; a common oversight is neglecting to verify that the six 5250W Titanium power supplies are fully seated and the 3+3 redundancy mode is active before powering on.
