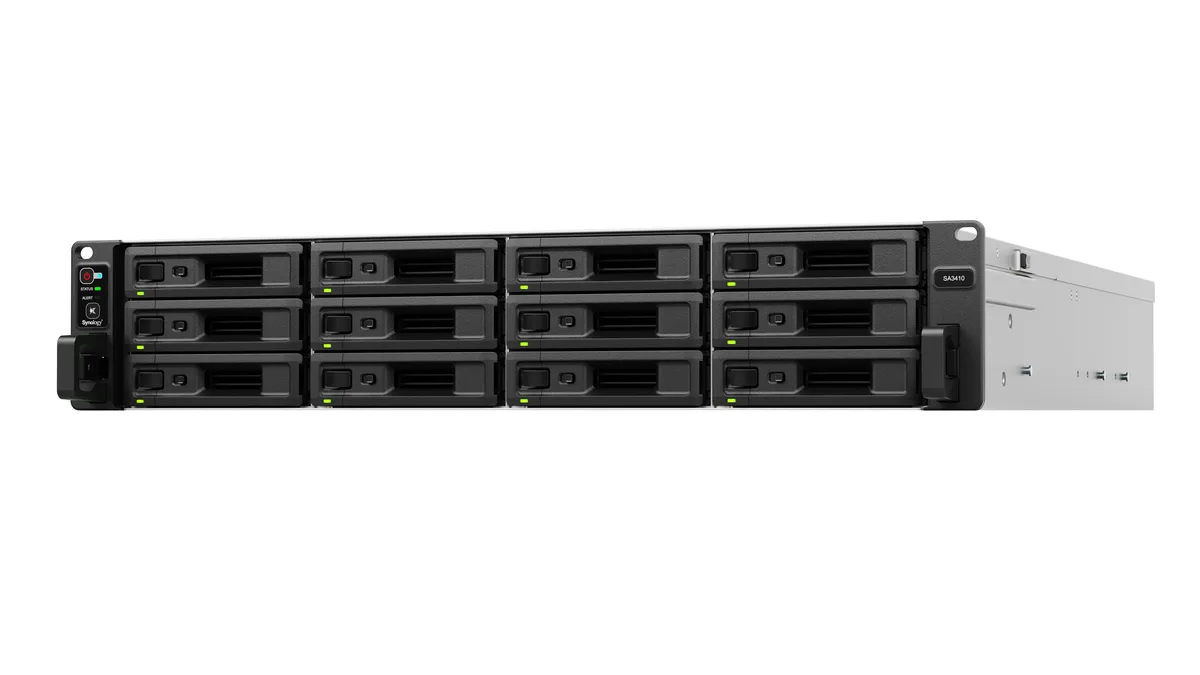

Synology Inc.
Synology SA3410 12-bay rackmount NAS 16 GB DDR4 ECC Xeon D-1541
- 2 x 10 GbE RJ-45 (1…
- 2 x USB 3.2 Gen 1
5 996,99 $US
0.07629564BTC
En stock
Synology Inc.
Synology SA3200D 12-bay dual-controller SAS rackmount NAS 8 GB DDR4
Dual-controller 12-bay SAS rackmount NAS with Intel Xeon D-1521 processors, 8 GB DDR4 ECC memory, and Synology High Availability for minute-level failover
- Port RJ-452 x 1GbE RJ-45 1 x 10GbE RJ-45 (10GBASE-T)
- HDD Interface12 x 3.5"/2.5" SAS SSD/HDD (drives not included)
- Port OthersExternal port (per controller): 1 x expansion port PCIe 3.0
- Form Factor2U
- ProcessorIntel Xeon D-1521 4-core 2.4 GHz, Turbo Boost up to 2.7 GHz
- Installed Memory8 GB DDR4 ECC UDIMM (expandable up to 64 GB)
Installed Memory 8GB DDR4
- 16GB DDR4
- 8GB DDR4
Option SA3200D
- SA3200D
- SA3410
- Dual-controller active-passive design delivers minute-level failover for continuous service availability
- 12 SAS drive bays in a 2U chassis scale to 576 TB raw capacity with minimal performance impact
- Intel Xeon D-1521 2.4 GHz processor with 8 GB DDR4 ECC memory expandable to 64 GB powers enterprise workloads
- 10GbE RJ-45 plus 1GbE RJ-45 and PCIe 3.0 x8 slot per controller enable high-speed connectivity and expansion
- DiskStation Manager provides unified file block and object storage with SMB NFS iSCSI and license-free virtualization integration
Dual-controller 12-bay SAS NAS
The Synology SA3200D is a 2U rackmount storage array with two active-passive controllers, each built around an Intel Xeon D-1521 4-core processor at 2.4 GHz with Turbo Boost to 2.7 GHz. It presents twelve 3.5"/2.5" SAS drive bays and ships with 8 GB DDR4 ECC UDIMM per controller, expandable to 64 GB. The platform runs DiskStation Manager and targets organisations that need continuous file, block and object services without a single point of failure.
Sustained multi-controller throughput
Under continuous load the active-passive pair maintains service while the standby controller mirrors state, enabling minute-level failover if the primary encounters a fault. Each controller provides a PCIe 3.0 x8 slot and an expansion port for additional SAS shelves, allowing raw capacity to scale beyond 500 TB with minimal performance impact. The architecture supports RAID F1, RAID 5 and RAID 6 for large volumes up to 200 TB when at least 32 GB RAM is installed.
Thermal and power envelope
The chassis operates from 0 °C to 35 °C with dual 100-240 V AC power supplies sharing the load across both controllers. Redundant cooling keeps internal temperatures stable during extended RAID rebuilds or iSCSI workloads, while the 2U form factor fits standard rack airflow without requiring specialised ducting. Power draw scales with the number of installed SAS drives and active expansion units.
Points forts
- Dual-controller active-passive design delivers minute-level failover for continuous service availability
- 12 SAS drive bays in a 2U chassis scale to 576 TB raw capacity with minimal performance impact
- Intel Xeon D-1521 2.4 GHz processor with 8 GB DDR4 ECC memory expandable to 64 GB powers enterprise workloads
- 10GbE RJ-45 plus 1GbE RJ-45 and PCIe 3.0 x8 slot per controller enable high-speed connectivity and expansion
- DiskStation Manager provides unified file block and object storage with SMB NFS iSCSI and license-free virtualization integration
Caractéristiques
| Brand | Synology |
|---|---|
| Model | SA3200D |
| Port RJ-45 | 2 x 1GbE RJ-45 1 x 10GbE RJ-45 (10GBASE-T) |
| HDD Interface | 12 x 3.5"/2.5" SAS SSD/HDD (drives not included) |
| Port Others | External port (per controller): 1 x expansion port PCIe 3.0 slot (per controller): 1 x 8-lane x8 slot High-performance network interface card support |
| Form Factor | 2U |
| Processor | Intel Xeon D-1521 4-core 2.4 GHz, Turbo Boost up to 2.7 GHz |
| Installed Memory | 8 GB DDR4 ECC UDIMM (expandable up to 64 GB) |
| Max Memory Capacity | 64GB |
| Included HDD Capacity | Diskless System |
| RAID | Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Synology RAID F1 |
| Supported Protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Management | DiskStation Manager (DSM) General DSM specifications: File system: Btrfs, ext4 Storage management: Maximum single volume size: 108TB/200TB (at least 32 GB RAM required, for RAID 5 or RAID 6 groups only) Maximum system snapshots: 65,536 Maximum internal volume: 64 File sharing capability: Maximum local user account: 16,000 Maximum local group: 512 Maximum shared folder: 512 Maximum concurrent SMB/NFS/AFP/FTP connection: 1,200 Security: Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizabl |
| Power | AC input power voltage: 100 V to 240 V AC Power frequency: 50/60 Hz, single phase |
| Temperature | Operating temperature: 0°C to 35°C (32°F to 95°F) Storage temperature: -20°C to 60°C (-5°F to 140°F) |
| Humidity | 5% to 95% RH |
| Dimensions | 3.46" x 16.75" x 27.24" 3.46" x 18.98" x 28.50" (with server ears) |
| Weight | 43.43 lbs. |
| Package Contents | SA3200D main unit x 1 Quick Installation Guide x 1 Accessory pack x 1 AC power cord x 2 |
| Poids d’expédition | 24.74 kg |
| Dimensions du colis | 832 × 603 × 241 mm |
Autres versions de ce modèle
1 de plus dans cette gamme
Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.
Questions sur cet article
How much power does the SA3200D draw when both controllers run 24/7?
The unit accepts 100 V to 240 V AC at 50/60 Hz single phase; each controller uses an Intel Xeon D-1521 4-core 2.4 GHz processor with Turbo Boost up to 2.7 GHz and 8 GB DDR4 ECC UDIMM.
What drives and cabling must I supply to populate the 12 bays?
You need 12 SAS SSDs or HDDs in 3.5" or 2.5" form factor; drives are not included and the chassis provides 12 SAS drive slots.
Will the SA3200D share storage with my existing 1GbE and 10GbE switches?
Each controller has 2 x 1GbE RJ-45 and 1 x 10GbE RJ-45 (10GBASE-T) ports for direct connection to standard Ethernet switches.
