Synology Inc.
Synology SA3410 12-bay rackmount NAS 16 GB DDR4 ECC Xeon D-1541
A 12-bay 2U rackmount NAS with an 8-core Xeon D-1541, 16 GB DDR4 ECC, dual 10 GbE and four Gigabit ports, plus two PCIe Gen3 x8 slots for expansion
- Port RJ-452 x 10 GbE RJ-45 (10GBASE-T) 4 x Gigabit RJ-45
- Port USB2 x USB 3.2 Gen 1
- HDD Interface12 x SATA (12 x Bay)
- PCIe2 x Gen3 x8 slots (x8 link)
- Form Factor2U
- ProcessorIntel Xeon D-1541 8-core 2.1 (base) / 2.7 (turbo) GHz
Installed Memory 16GB DDR4
- 16GB DDR4
- 8GB DDR4
Option SA3410
- SA3200D
- SA3410
- Eight-core Xeon D-1541 handles heavy multi-user workloads
- 16 GB DDR4 ECC memory protects data integrity under load
- Dual 10 GbE ports plus four Gigabit links deliver high-throughput networking
- Twelve 3.5-inch bays accept SAS and SATA drives for flexible capacity
- Two PCIe 3.0 x8 slots enable 40 GbE or Fibre Channel expansion

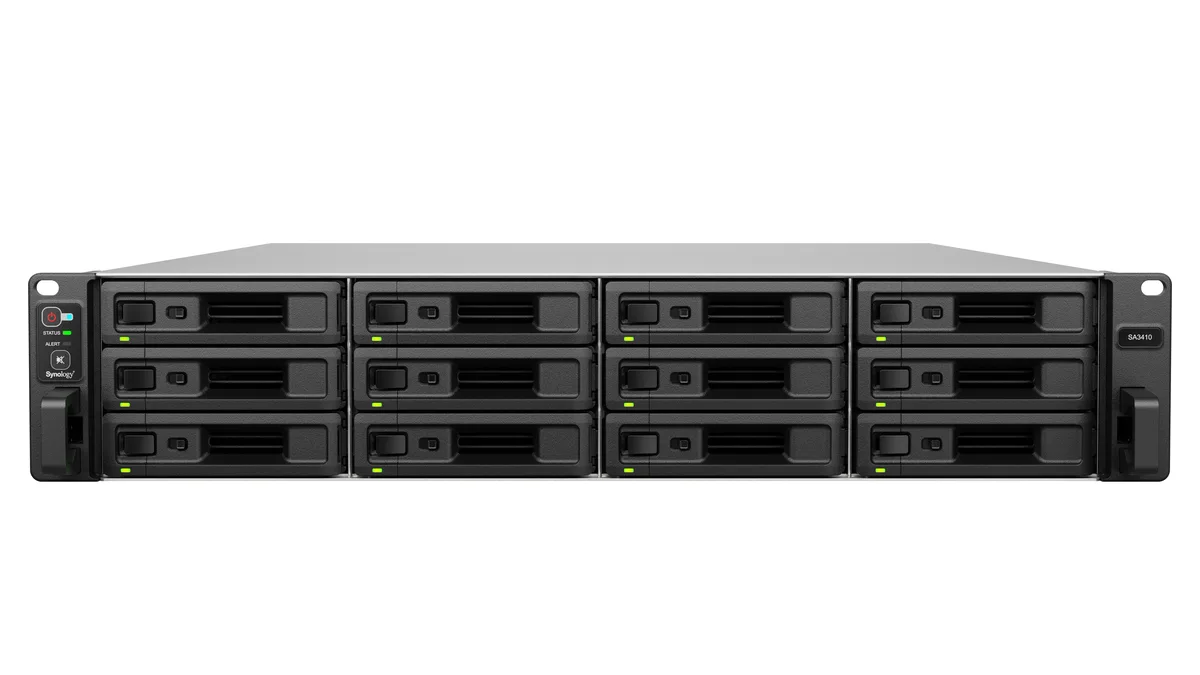

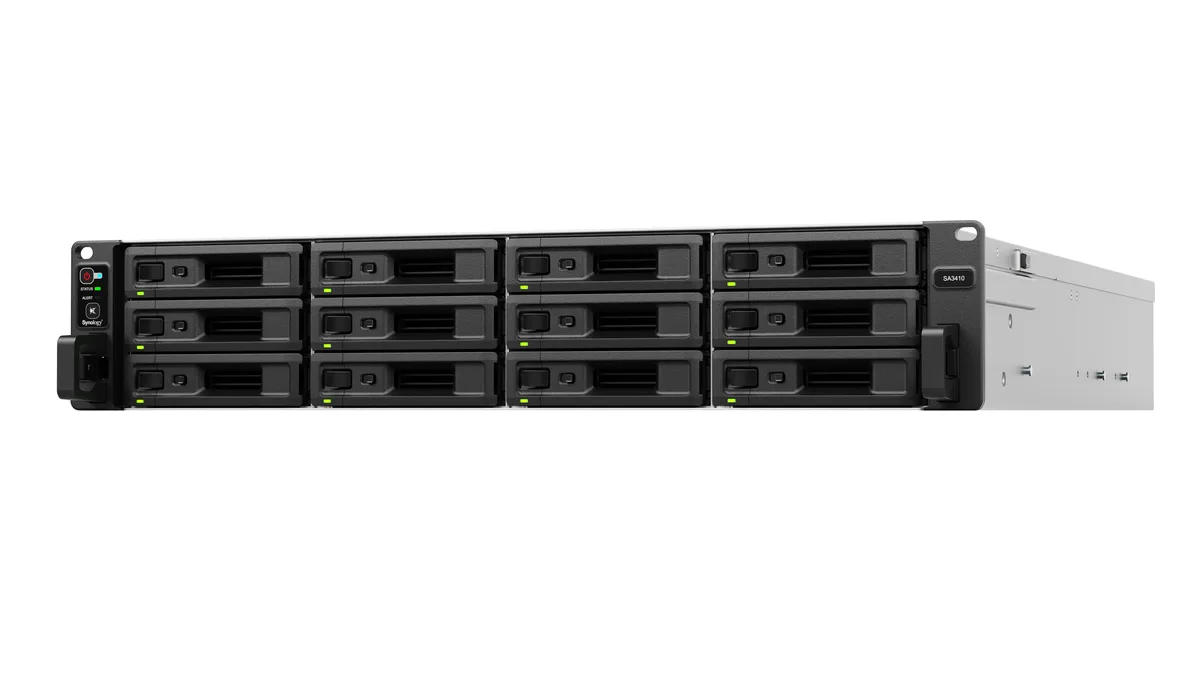

12-bay 2U rackmount NAS with Xeon D-1541
The Synology SA3410 is a diskless 2U rackmount NAS built around an Intel Xeon D-1541 eight-core processor running at 2.1 GHz base and 2.7 GHz turbo. It ships with 16 GB of DDR4 ECC RDIMM memory, expandable to 128 GB. Twelve drive bays accept 3.5-inch and 2.5-inch SATA or SAS drives, while two PCIe Gen3 x8 slots allow additional expansion cards.
Suited for multi-user environments needing 10 GbE

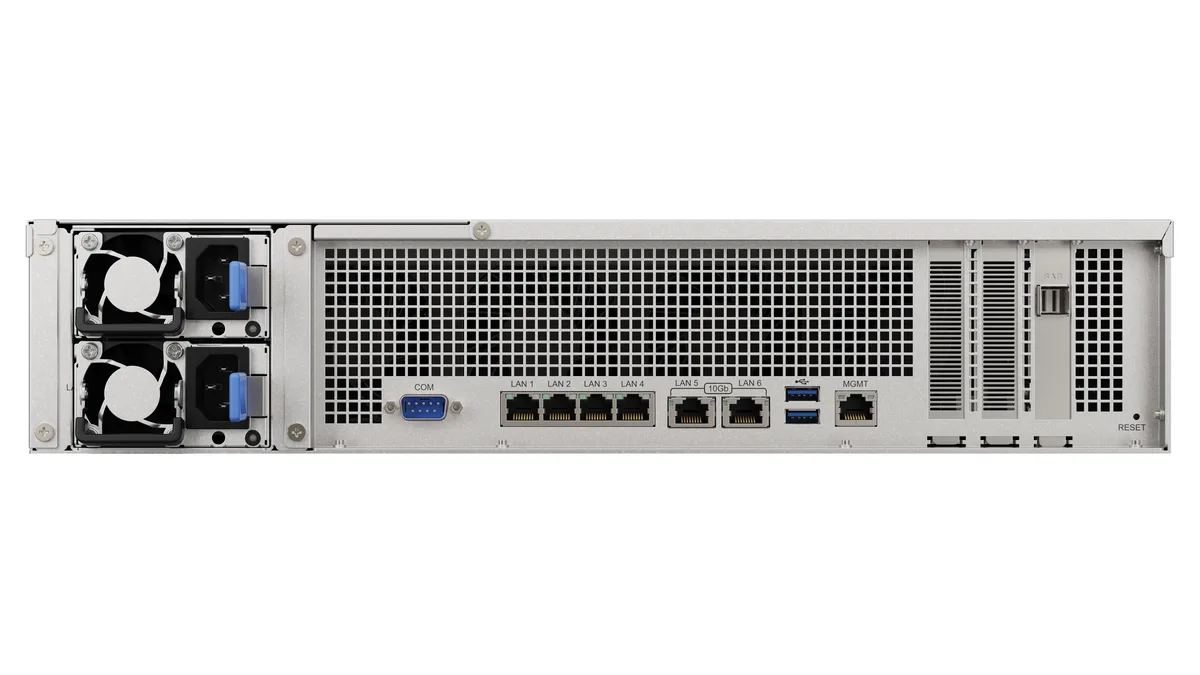

Organisations that require high sequential throughput for many concurrent users will benefit from dual 10 GbE RJ-45 ports and four Gigabit ports. The platform supports SMB, NFS, iSCSI and VPN protocols for file, block and remote access workloads. Buyers who need Fibre Channel connectivity or more than twelve internal bays without adding expansion units should evaluate other solutions.
Sustained throughput with hardware redundancy
Under continuous load the system delivers over 6,200 MB/s sequential read and 3,000 MB/s sequential write across the twelve-bay array. Dual 10 GbE links and ECC memory maintain data integrity during prolonged transfers, while power draw stabilises at 136.15 W during access and drops to 58.48 W when drives hibernate. Operating temperatures remain within 0 °C to 35 °C.
Points forts
- Eight-core Xeon D-1541 handles heavy multi-user workloads
- 16 GB DDR4 ECC memory protects data integrity under load
- Dual 10 GbE ports plus four Gigabit links deliver high-throughput networking
- Twelve 3.5-inch bays accept SAS and SATA drives for flexible capacity
- Two PCIe 3.0 x8 slots enable 40 GbE or Fibre Channel expansion
Caractéristiques
| Brand | Synology |
|---|---|
| Model | SA3410 |
| Port RJ-45 | 2 x 10 GbE RJ-45 (10GBASE-T) 4 x Gigabit RJ-45 |
| Port USB | 2 x USB 3.2 Gen 1 |
| HDD Interface | 12 x SATA (12 x Bay) |
| PCIe | 2 x Gen3 x8 slots (x8 link) |
| Form Factor | 2U |
| Processor | Intel Xeon D-1541 8-core 2.1 (base) / 2.7 (turbo) GHz |
| Installed Memory | 16 GB DDR4 ECC RDIMM |
| Max Memory Capacity | 128GB |
| Included HDD Capacity | Diskless System |
| Drive Compatibility | 3.5" SAS HDD 2.5" SAS SSD 3.5" SATA HDD 2.5" SATA SSD |
| Supported Protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Power | 100-240 VAC 50/60Hz |
| Power Consumption | 136.15 W (Access) 58.48 W (HDD Hibernation) |
| Usage | Ultra high prerformance for large number of users |
| Temperature | Operating Temperature: 0°C to 35°C (32°F to 95°F) Storage Temperature: -20°C to 60°C (-5°F to 140°F) |
| Humidity | 5% to 95% RH |
| Dimensions | 28.5" x 18.98" x 3.46" |
| Weight | 31.97 lbs. |
| Package Contents | 1 x Main Unit 1 x Accessory Pack 2 x AC Power Cord 1 x Quick Installation Guide |
| Poids d’expédition | 18.42 kg |
| Dimensions du colis | 851 × 622 × 229 mm |
Autres versions de ce modèle
1 de plus dans cette gamme
Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.
Questions sur cet article
What drives must I already own to populate the 12 SATA bays in this SA3410?
The unit accepts 3.5" SATA HDDs, 2.5" SATA SSDs, 3.5" SAS HDDs and 2.5" SAS SSDs; any mix of those four types will fit the twelve drive bays.
Will my existing 1 GbE network switches work with the four Gigabit RJ-45 ports on this NAS?
Yes, the four Gigabit RJ-45 ports auto-negotiate down to 1 GbE so they connect directly to older switches without extra configuration.
How can I verify the Xeon D-1541 is running at its 2.7 GHz turbo speed after setup?
Open DSM Resource Monitor and watch the CPU frequency graph; it should show the cores reaching 2.7 GHz under load.
