Black top-flow CPU cooler with aluminium fin stack, four copper heat pipes and a 120 mm PWM fan

Thermaltake

Thermaltake CL-P073-AL12BL-A TOUGHAIR 110 CPU cooler

SKU CH-BW5Y-REZA8 MPN CL-P073-AL12BL-A

A compact 114 mm top-flow air cooler with four direct-touch heat pipes, asymmetric fins and a 120 mm PWM fan spinning up to 2000 RPM to handle CPUs up to 140 W TDP while also directing airflow over

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size120mm
  • CPU Socket CompatibilityIntel LGA 1851/1700/1200/1156/1155/1151/1150 AMD AM4/AM3+/AM
  • RPM500 - 2000 RPM (PWM)
  • Air Flow58.35 CFM

Options 140W

Color Black

Model TOUGHAIR 110

  • Top-flow design cools CPU and nearby motherboard components
  • 140 W TDP capacity handles high-end processors

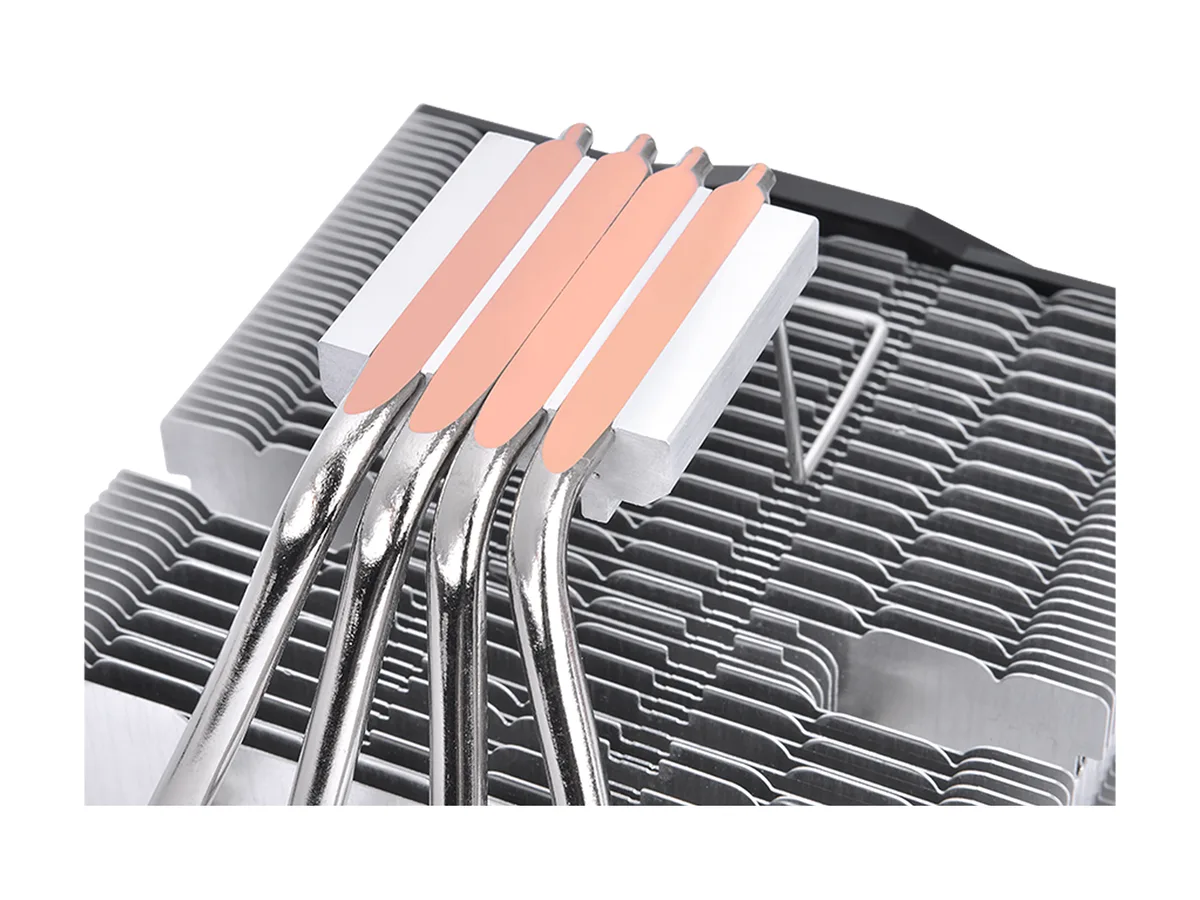

  • Four 6 mm direct-touch heat pipes transfer heat instantly
  • Asymmetric fin structure reduces turbulence for better airflow
  • 120 mm PWM fan runs 500 to 2000 RPM at 23.6 dBA

TOUGHAIR 110 Top-Flow Cooler

The Thermaltake CL-P073-AL12BL-A is a 114 mm tall top-flow air cooler rated for 140 W TDP. It fits Intel LGA 1851, 1700, 1200, 1150, 1151, 1155 and 1156 sockets plus AMD AM4, AM3+, AM3, AM2+, AM2, FM2 and FM1 platforms. The asymmetric fin stack and four direct-touch copper heat pipes target builders who need low-profile cooling with motherboard component airflow.

Sustained Load Behaviour

Four 6 mm heat pipes make direct contact with the CPU base to move heat into the aluminium fin array continuously. The 120 mm PWM fan spins between 500 and 2000 RPM, delivering 58.35 CFM at a maximum noise level of 23.6 dBA. Top-flow orientation pushes air down through the fins, helping to cool voltage regulators and memory modules during extended workloads.

Compatibility Checks

Verify that your case allows at least 159.5 mm of cooler clearance for the 114 mm heatsink height. The fan frame measures 25 mm thick by 120 mm square, so confirm no tall memory modules or VRM heatsinks sit in the airflow path. A 4-pin PWM header is required on the motherboard for automatic speed control. Builders needing taller towers or liquid cooling should consider other designs.

Points forts

  • Top-flow design cools CPU and nearby motherboard components
  • 140 W TDP capacity handles high-end processors
  • Four 6 mm direct-touch heat pipes transfer heat instantly
  • Asymmetric fin structure reduces turbulence for better airflow
  • 120 mm PWM fan runs 500 to 2000 RPM at 23.6 dBA

Caractéristiques

BrandThermaltake
ModelCL-P073-AL12BL-A
ColorBlack
TypeFan & Heatsinks
Fan Size120mm
CPU Socket CompatibilityIntel LGA 1851/1700/1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
RPM500 - 2000 RPM (PWM)
Air Flow58.35 CFM
Noise Level23.6 dBA
Power Connector4 Pin
LEDNon-LED
Heatsink MaterialAluminum & Copper
Max CPU Cooler Height159.5 mm
Fan Dimensions25.00 x 120.00 x 120.00 mm
Heatsink Dimensions114.10 x 137.70 x 123.60 mm
Weight848.22g

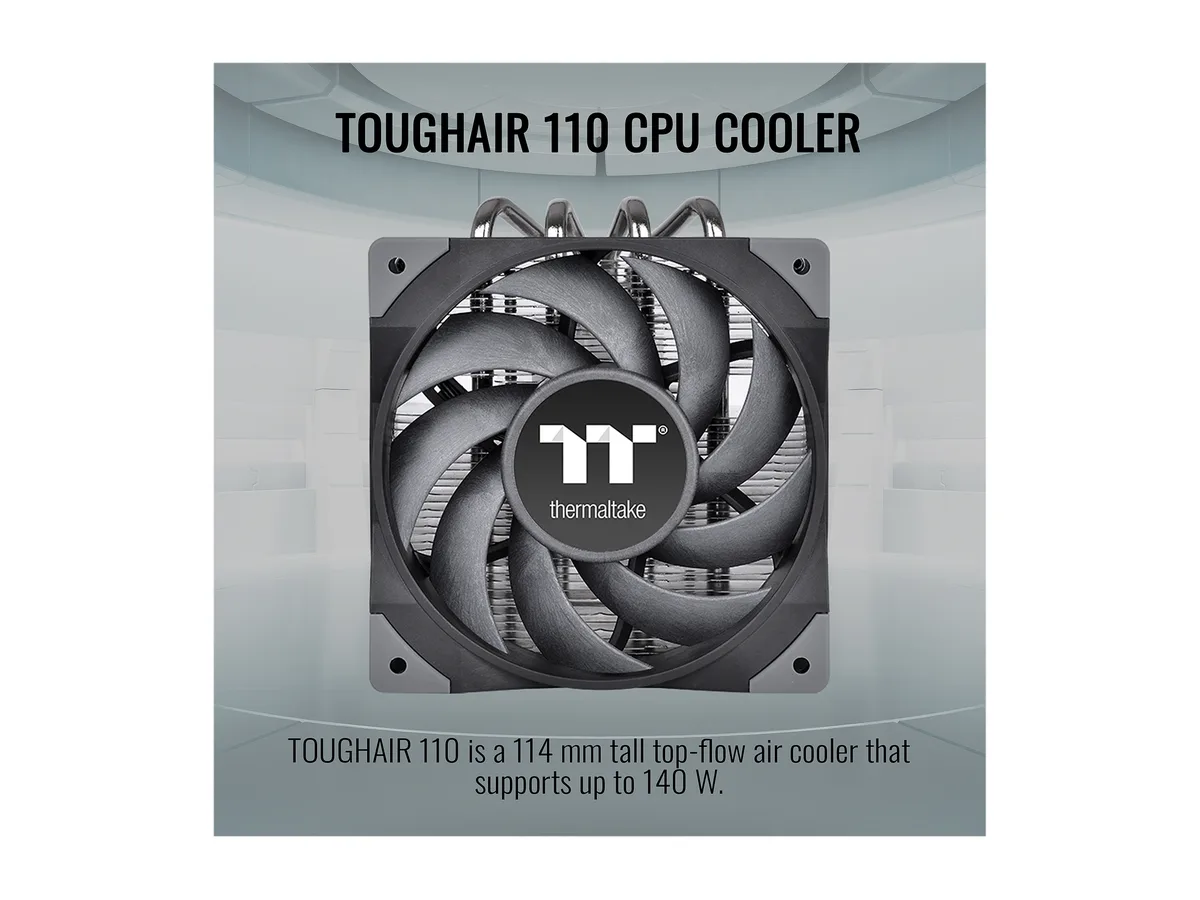

FeaturesTOUGHAIR 110 is a 114 mm tall top-flow air cooler that supports up to 140 W. The top-flow design is also beneficial in cooling other components on the motherboard while cooling the CPU.

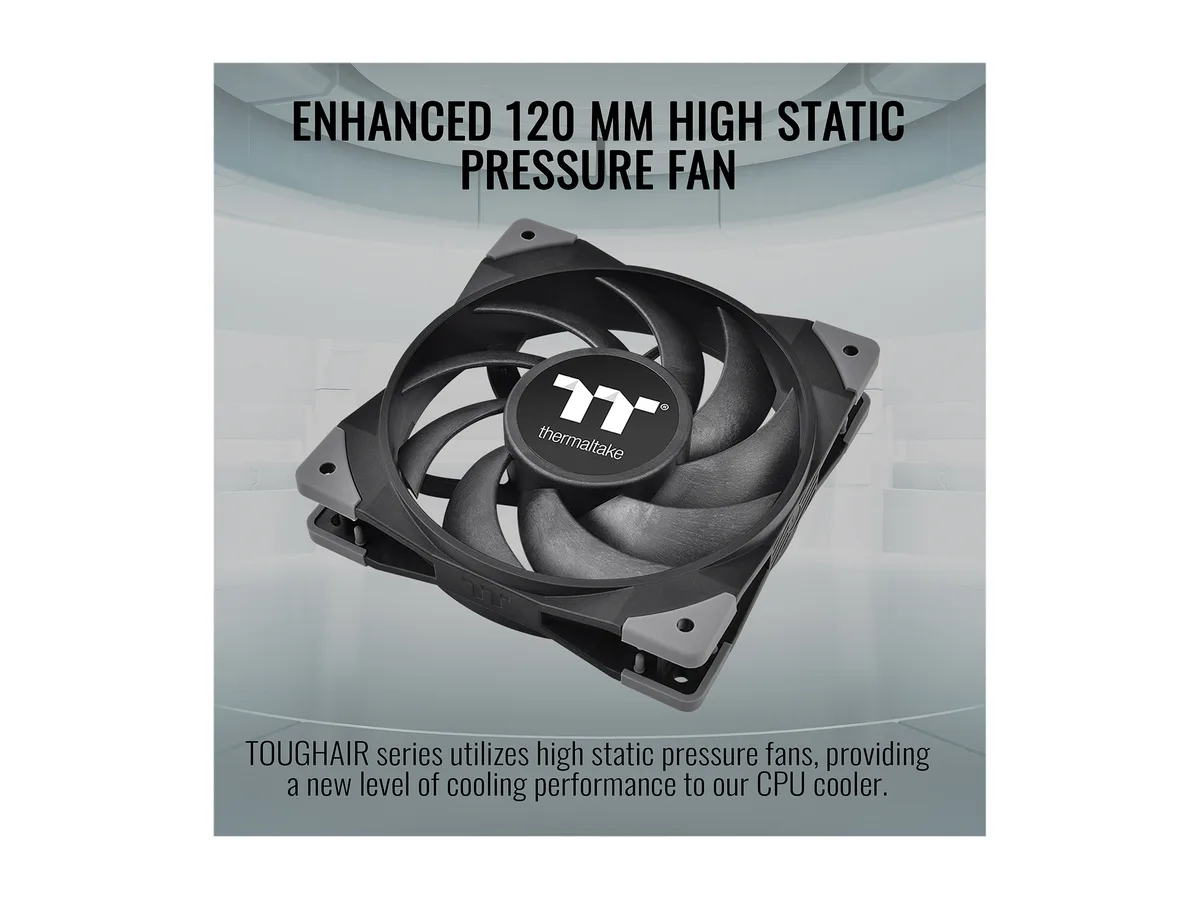

TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.

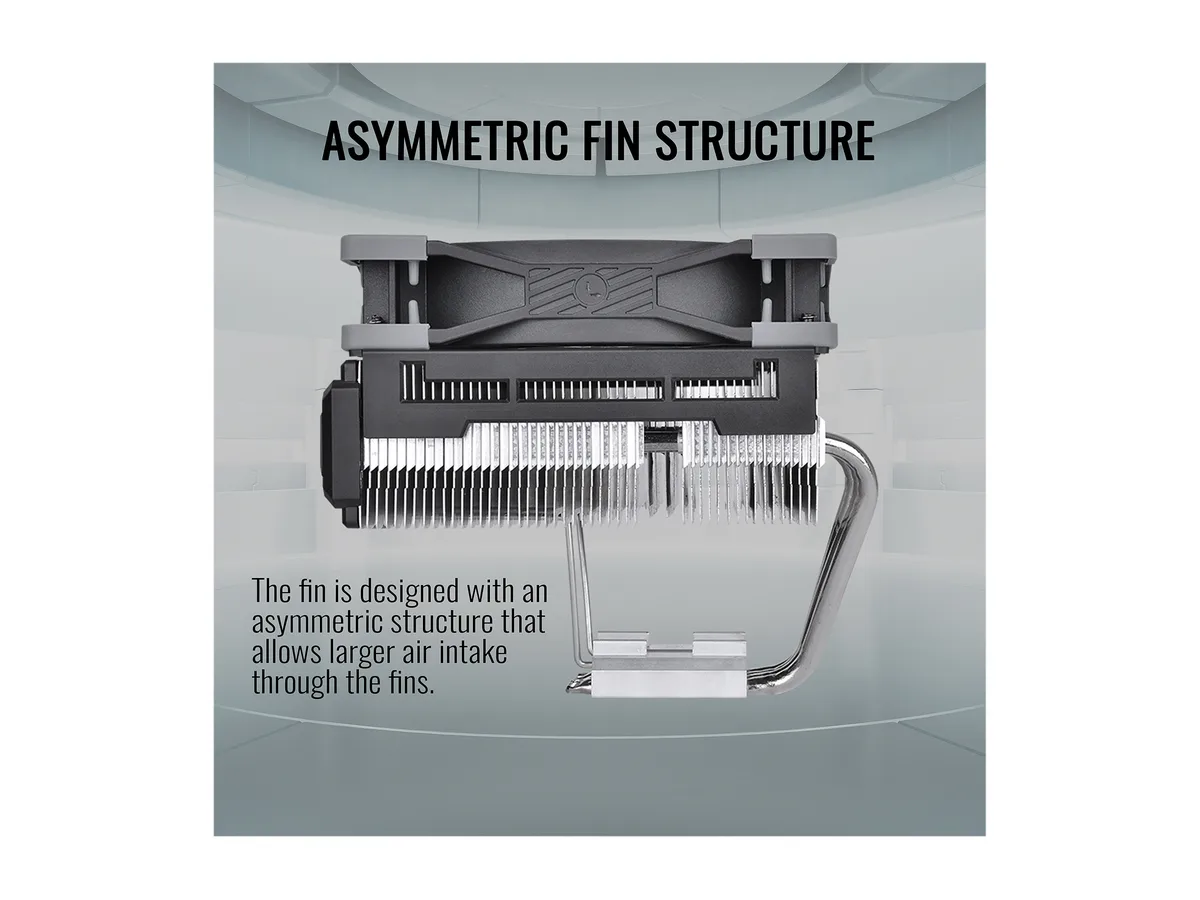

The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the f
Poids d’expédition0.86 kg
Dimensions du colis165 × 159 × 127 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud is the 120 mm fan when it runs at its 2000 RPM maximum all day?

At full speed the fan produces 23.6 dBA, which is generally considered quiet for a 140 W cooler under sustained load.

Does the package include mounting hardware for my AMD AM4 motherboard or do I need a separate bracket?

The cooler ships with universal brackets covering Intel LGA 1851, 1700, 1200, 115x and AMD AM4, AM3(+), AM2(+), FM2(+), so no extra kit is required.

Will the 114 mm tall top-flow design clear the tall RAM modules I already have installed?

Because air is blown downward across the motherboard, the 114 mm height leaves the DIMM slots completely unobstructed regardless of RAM heat-spreader height.
