Three black 140mm RGB case fans with magnetic reversible blades and controller

Thermaltake

Thermaltake SWAFAN EX 14 RGB 3-Pack 140mm Case Fan CL-F144-PL14SW-A

SKU CH-RP7V-DJ1SH MPN CL-F144-PL14SW-A

Three 140 mm PWM fans with reversible magnetic blades, RGB lighting and a controller deliver up to 81.6 CFM at 2000 RPM

  • Fan Counts3 Fans
  • Fan ControllerController
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140 x 140 x 25 mm
  • Fan Thickness25mm

Fan Size 140mm

Model SWAFAN EX

  • SWAFAN
  • SWAFAN EX

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Swappable blades via magnetic connection for easy airflow direction changes
  • Three 140mm fans with included controller simplify RGB cooling setup
  • PWM control from 500 to 2000 RPM balances performance and noise
  • Hydraulic bearing supports long-life operation at up to 81.6 CFM per fan
  • TT RGB Plus 2.0 software enables full lighting customisation across all fans

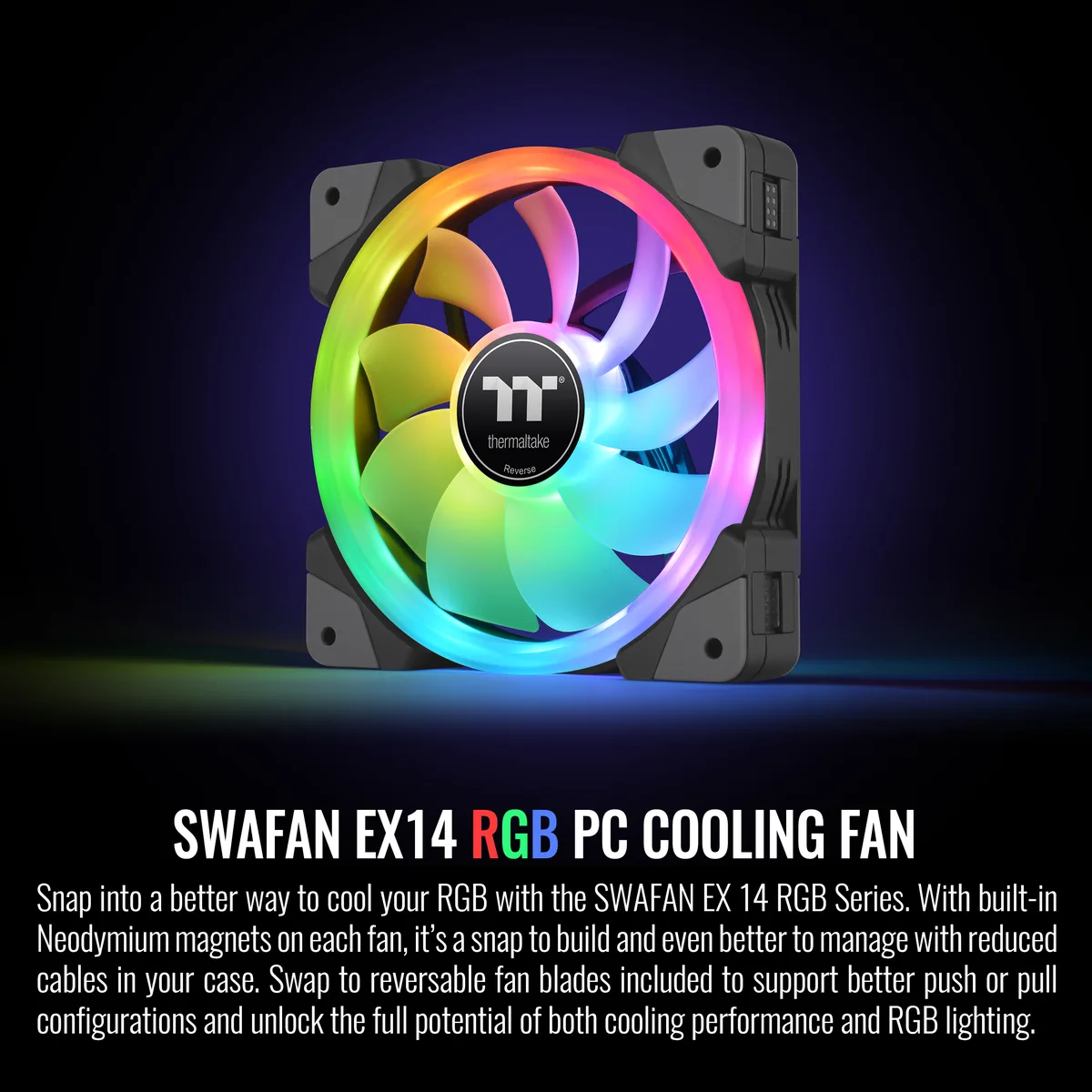

Swappable Blade 140 mm RGB Triple Pack

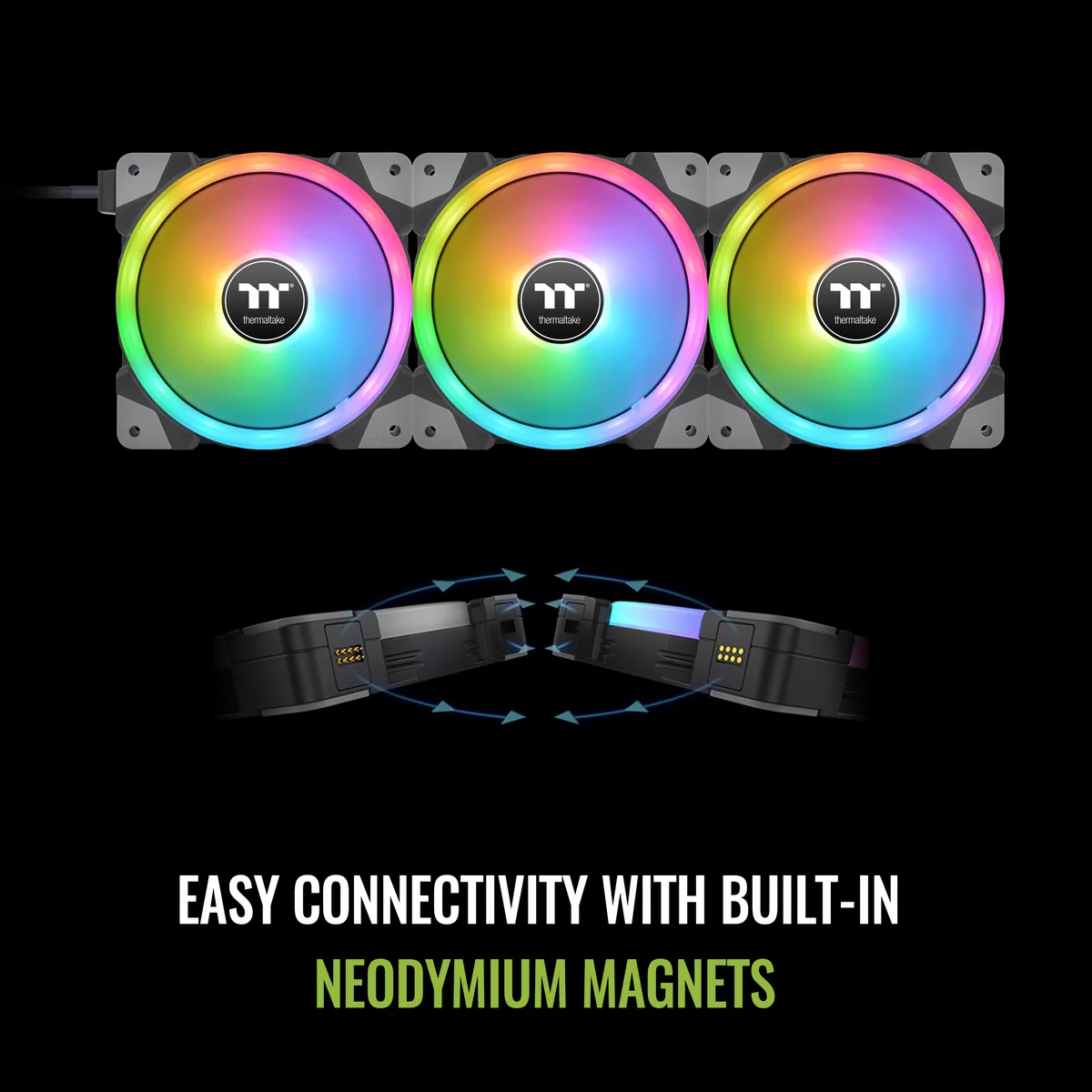

This 3-fan kit uses a magnetic mounting system that lets you swap between standard and reverse blades without tools. Each 140 x 140 x 25 mm unit runs on a hydraulic bearing and connects via a 4-pin PWM header for 500 to 2000 RPM control. The included controller handles RGB lighting and fan curves through a USB 2.0 internal header and a Molex power feed.

Builders wanting reversible airflow without extra

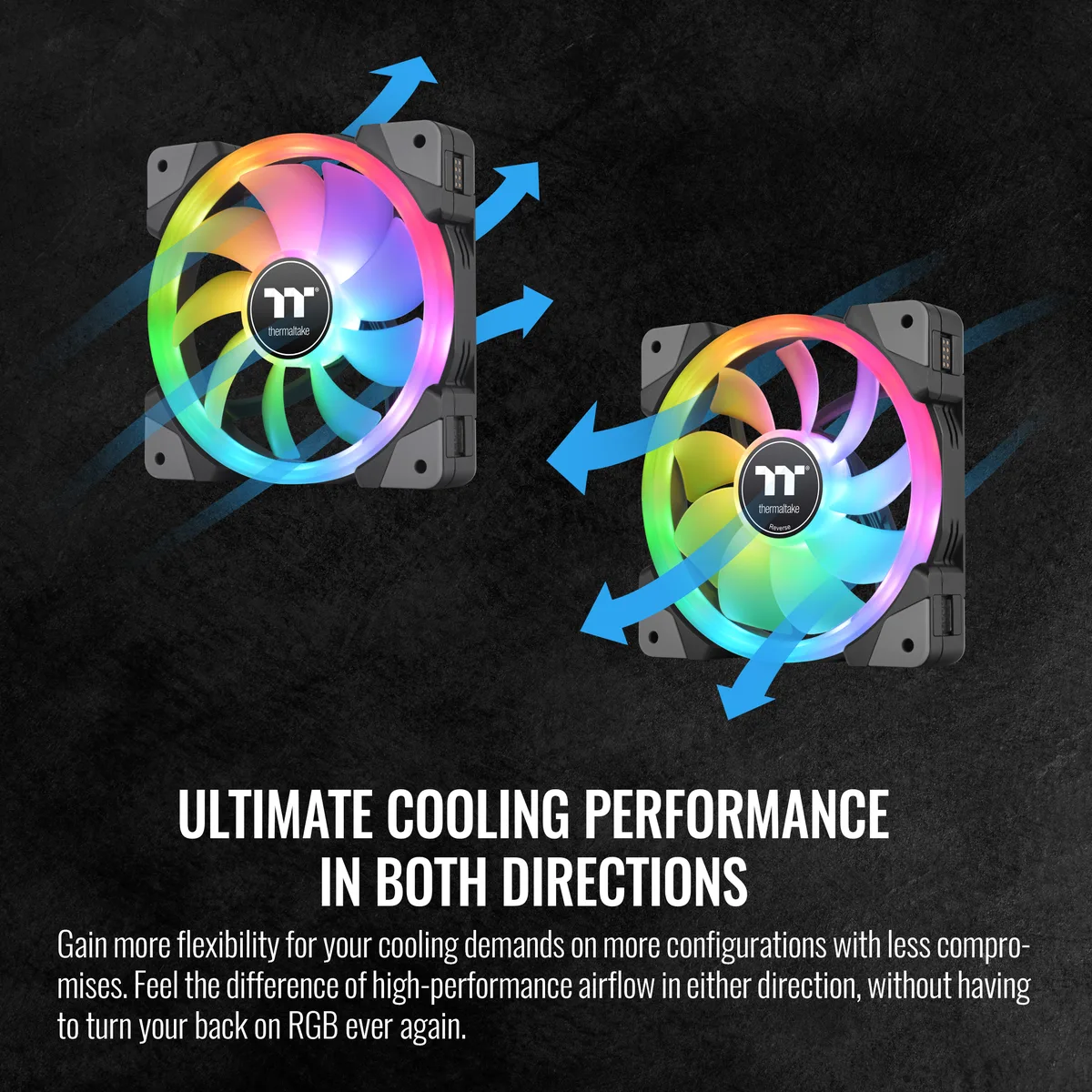

The magnetic blade design suits cases where you might flip intake to exhaust or test push-pull layouts. Users who need silence below 34.5 dB-A at the standard blade's rated speed will not meet that target here. The kit also demands a spare USB 2.0 header and a Molex connector, so boards lacking either cannot run the controller.

81.6 CFM peak airflow per fan at 2000 RPM

This single figure defines the cooling ceiling for the standard blade orientation. The reverse blade drops to 79.3 CFM while noise rises to 38.8 dB-A. If your thermal load requires more than 81.6 CFM per 140 mm position, this triple pack will not satisfy it.

Points forts

  • Swappable blades via magnetic connection for easy airflow direction changes
  • Three 140mm fans with included controller simplify RGB cooling setup
  • PWM control from 500 to 2000 RPM balances performance and noise
  • Hydraulic bearing supports long-life operation at up to 81.6 CFM per fan
  • TT RGB Plus 2.0 software enables full lighting customisation across all fans

Caractéristiques

BrandThermaltake
SeriesSWAFAN EX 14 RGB
ModelSWAFAN EX 14 RGB
Part NumberCL-F144-PL14SW-A
Fan Counts3 Fans
Fan ControllerController
TypeCase Fan
CompatibilityCase
Fan Size140 x 140 x 25 mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM500 ~ 2000 R.P.M (2510-4Pin)
Air FlowFan Blade 1 : 81.6 CFM (only one fan)
Fan Blade 2 (Reverse) : 79.3 CFM (only one fan)
Noise LevelFan Blade 1 : 34.5 dB-A (only one fan)
Fan Blade 2 (Reverse) : 38.8 dB-A (only one fan)
Power Connector4 Pin
ColorBlack
LEDRGB
Poids d’expédition1.41 kg
Dimensions du colis203 × 170 × 150 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the magnetic blades on the SWAFAN EX 14 RGB, and what step do people miss?

Snap each reversible blade onto the motor hub using the neodymium magnets, then connect the Mag-cables to the included controller; the step often missed is plugging the controller into both a Molex power connector and a USB 2.0 internal header for RGB control.

What maintenance will the hydraulic-bearing fans and magnetic blades need later?

The hydraulic bearings are sealed and require no lubrication; periodically remove the magnetic blades and use compressed air to clear dust from the blades and motor hub to keep airflow near the rated 81.6 CFM.

At 2000 RPM sustained, which limit appears first — noise or airflow drop?

Noise reaches 34.5 dB-A in standard orientation or 38.8 dB-A with reversed blades before any measurable airflow reduction occurs at the maximum 2000 RPM speed.
