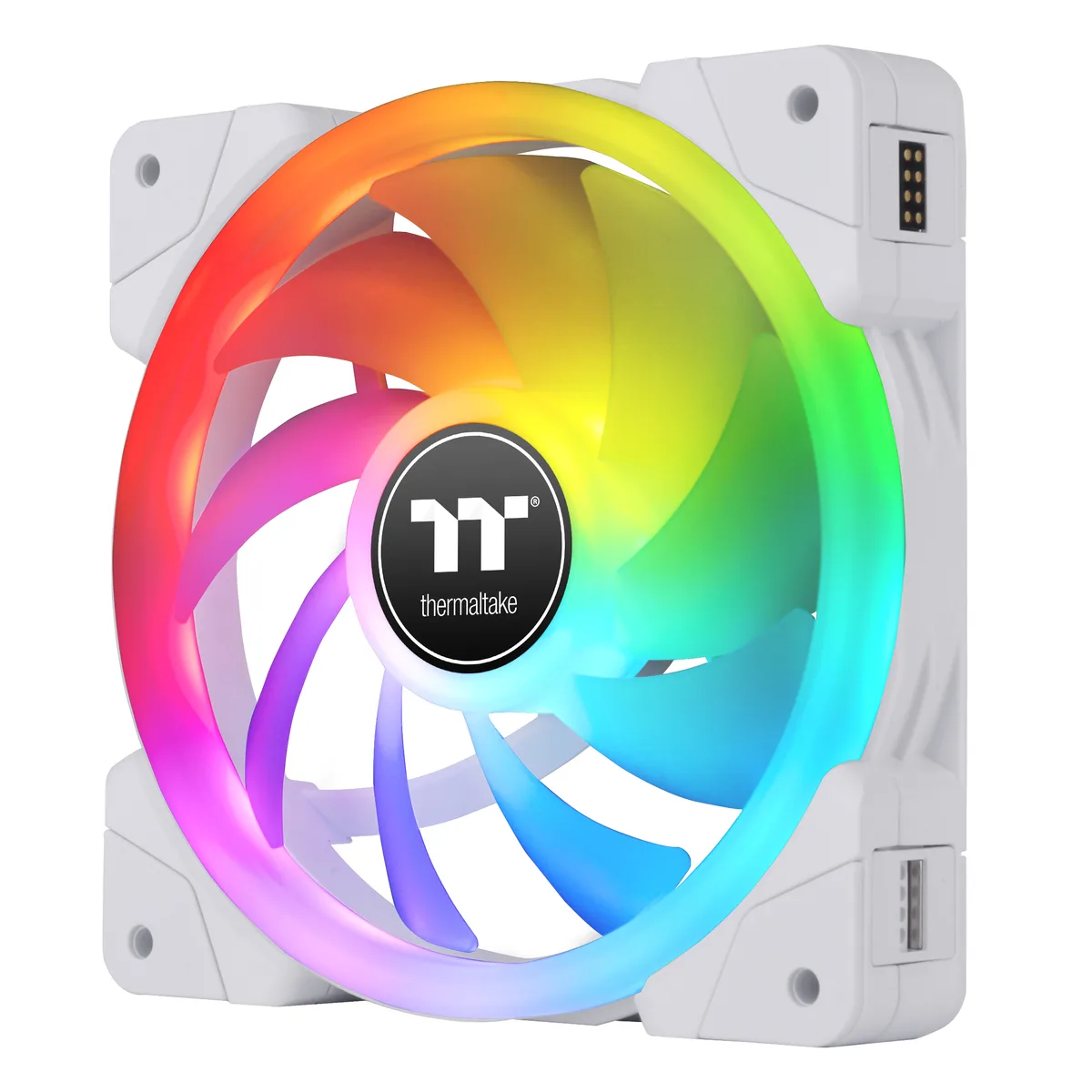

Three white 140 mm RGB case fans with magnetic reversible blades and controller

Thermaltake

Thermaltake SWAFAN EX 14 RGB White 3-pack 140 mm CL-F162-PL14SW-A

SKU CH-VK36-1TB6Q MPN CL-F162-PL14SW-A

Three white 140 mm PWM fans with swappable magnetic blades, reversible airflow up to 81.6 CFM and RGB lighting controlled via included controller

  • Fan Counts3 Fans
  • Fan ControllerController
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140 x 140 x 25 mm
  • Fan Thickness25mm

Fan Size 140mm

Model SWAFAN EX

  • SWAFAN
  • SWAFAN EX

Les versions barrées existent, mais ne sont pas disponibles ici.

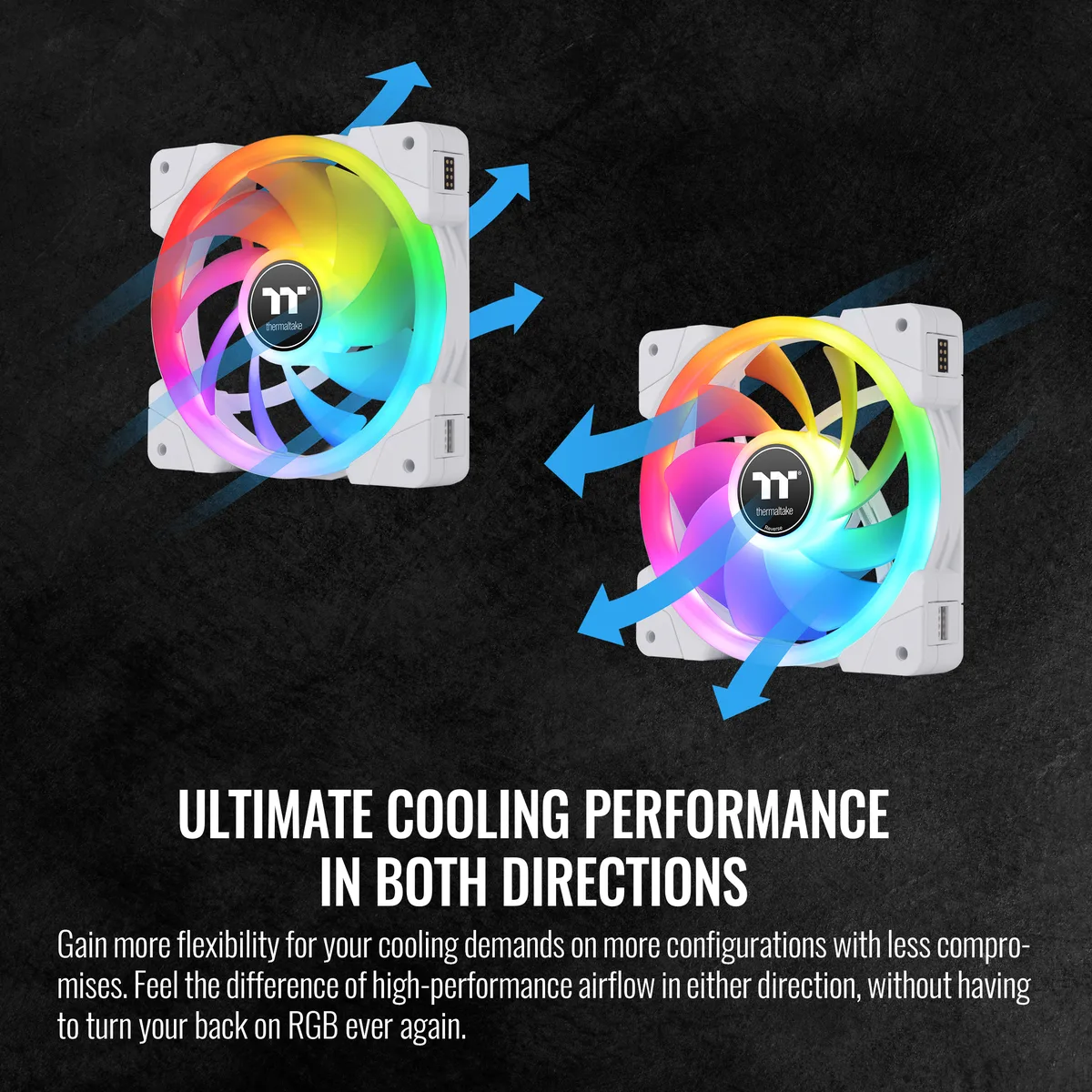

  • Swappable blades with magnetic connection let you reverse airflow direction
  • 500 to 2000 RPM range delivers up to 81.6 CFM per fan
  • Hydraulic bearing runs at 34.5 dB-A in standard orientation
  • Addressable RGB lighting controlled via included controller and TT RGB Plus 2.0 software
  • Three 140 mm fans, three reversible blades, three mag-cables and controller in the box

Three-fan kit with reversible blades

The pack contains three 140 mm PWM fans, each supplied with a reversible blade set that attaches by magnetic connection. A dedicated controller is included to manage speed and lighting from a single point. The hydraulic bearing supports a 500 to 2000 RPM range.

Magnetic blade swap and cable routing

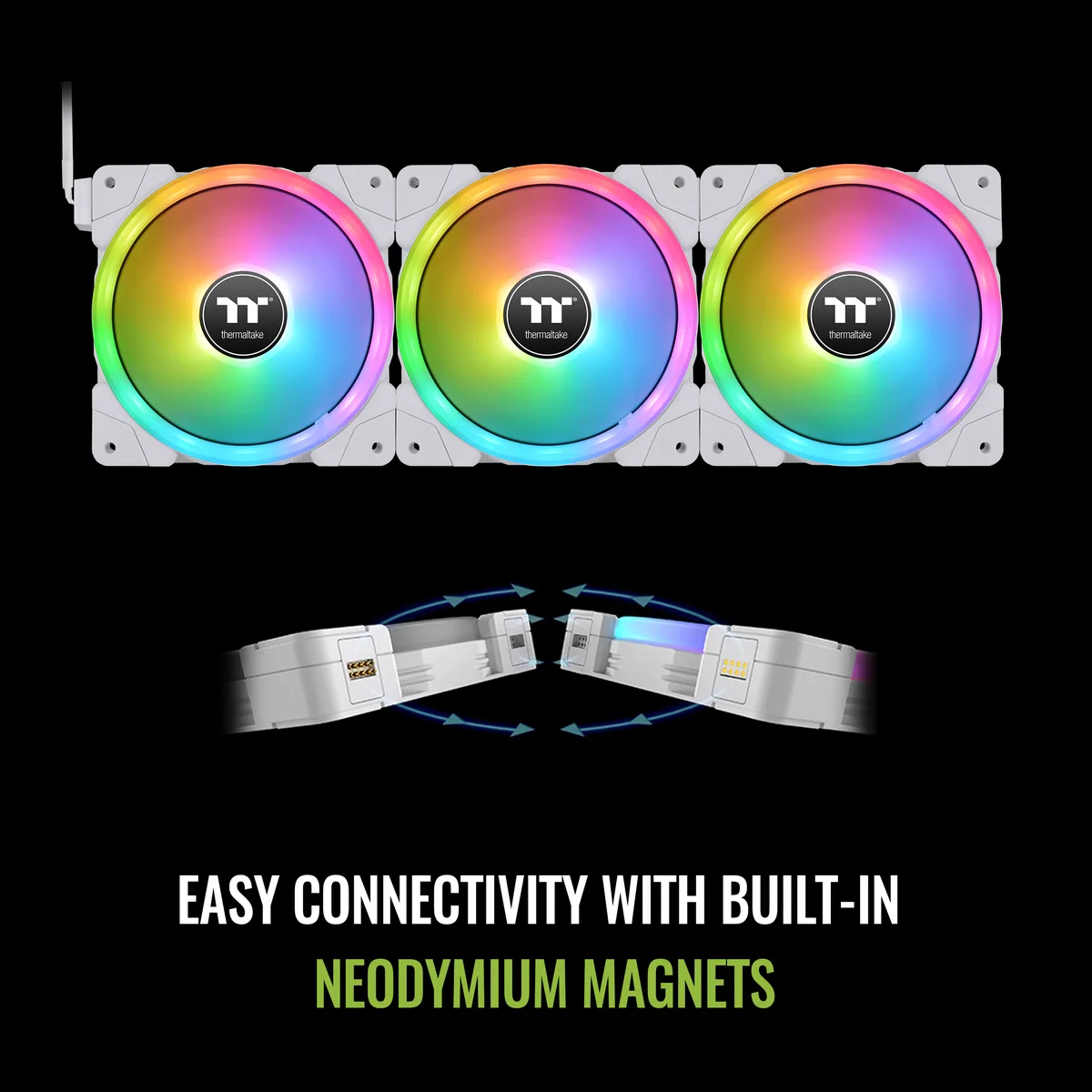

Swapping between standard and reverse airflow takes seconds without tools, using the neodymium magnetic mount. The three Mag-cables link fans to the controller, which draws power from a Molex connector and communicates through a USB 2.0 internal header. White frames and RGB LEDs are addressed via TT RGB Plus 2.0 software.

Check headers and clearance before ordering

Your motherboard must provide a free USB 2.0 internal header for the controller link. The power supply needs an available Molex plug for the controller’s 2510-4Pin input. Each fan occupies a 140 x 140 x 25 mm slot, so verify that your case has matching mounting points for three units. Buyers who want addressable 5 V RGB headers on the motherboard itself cannot use this kit’s proprietary control method.

Points forts

  • Swappable blades with magnetic connection let you reverse airflow direction
  • 500 to 2000 RPM range delivers up to 81.6 CFM per fan
  • Hydraulic bearing runs at 34.5 dB-A in standard orientation
  • Addressable RGB lighting controlled via included controller and TT RGB Plus 2.0 software
  • Three 140 mm fans, three reversible blades, three mag-cables and controller in the box

Caractéristiques

BrandThermaltake
SeriesSWAFAN EX 14 RGB White
ModelSWAFAN EX 14 RGB White
Part NumberCL-F162-PL14SW-A
Fan Counts3 Fans
Fan ControllerController
TypeCase Fan
CompatibilityCase
Fan Size140 x 140 x 25 mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM500 ~ 2000 R.P.M (2510-4Pin)
Air FlowFan Blade 1 : 81.6 CFM (only one fan)
Fan Blade 2 (Reverse) : 79.3 CFM (only one fan)
Noise LevelFan Blade 1 : 34.5 dB-A (only one fan)
Fan Blade 2 (Reverse) : 38.8 dB-A (only one fan)
Power Connector4 Pin
ColorWhite
LEDRGB
Poids d’expédition1.50 kg
Dimensions du colis203 × 170 × 150 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What RPM range does the 4-pin PWM interface support on these 140 mm fans?

The 4-pin PWM connector lets each fan run from 500 to 2000 RPM, so the motherboard can tune speed precisely across that whole range.

What case clearance and mounting hardware are required for the 140 x 140 x 25 mm frames?

You need 140 mm mounting points with 25 mm thickness clearance; the pack includes magnetic mag-cables that snap the reversible blades onto the fan frames.

How do I install the controller and where do the Molex and USB 2.0 headers plug in?

Connect the supplied controller to a Molex power plug and a USB 2.0 internal header, then attach the three fan cables to the controller ports.
